Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

6 part groups · 7 illustrations

Illustrations

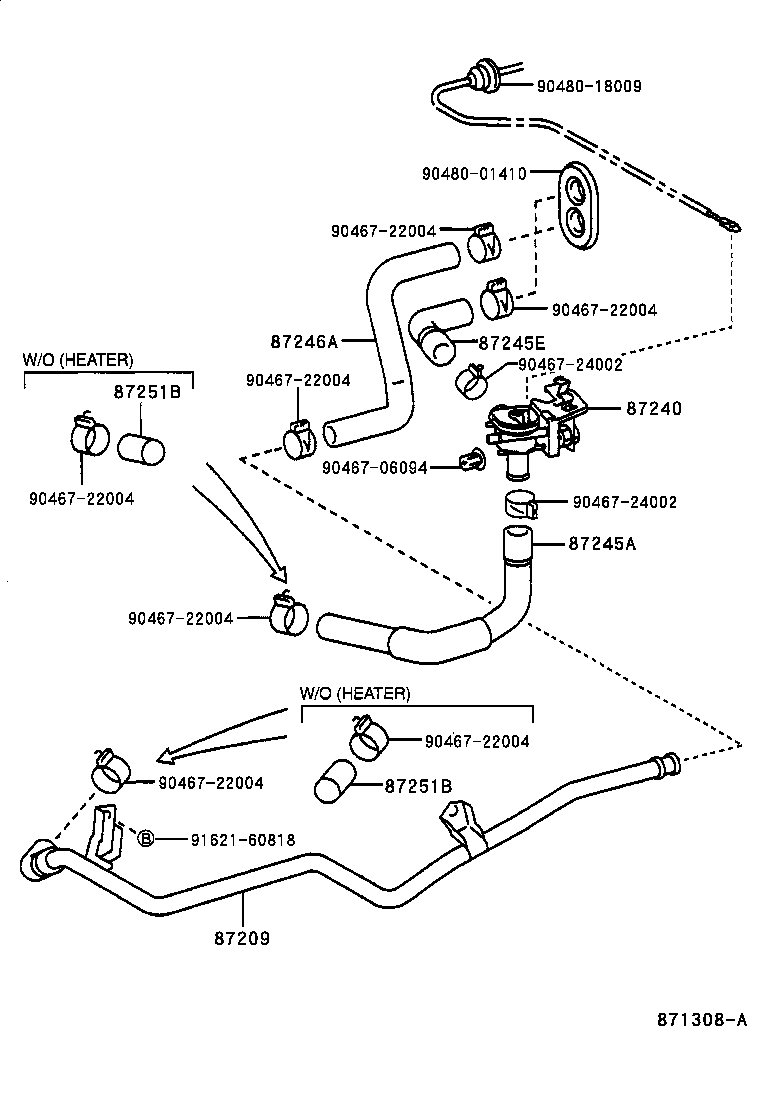

Figure 871046 871046 1995-05 → — Figure 871306 871306 1997-04 → — Figure 871307A 871307A 1997-04 → — Figure 871308A 871308A 1997-04 → — Figure 871047 871047 1995-05 → — Figure 871309 871309 1997-04 → — Figure 873747 873747 2000-05 → —

Part groups

PNCDescription
87209 Hose Sub-assy, Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87251B Plug, Heater Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
