Toyota Corolla Sed/WG

1995-05 → 2004-12 · chassis AE11#,CE110,EE11#,ZZE11# · catalogue 151340 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

8 part groups · 10 illustrations

Illustrations

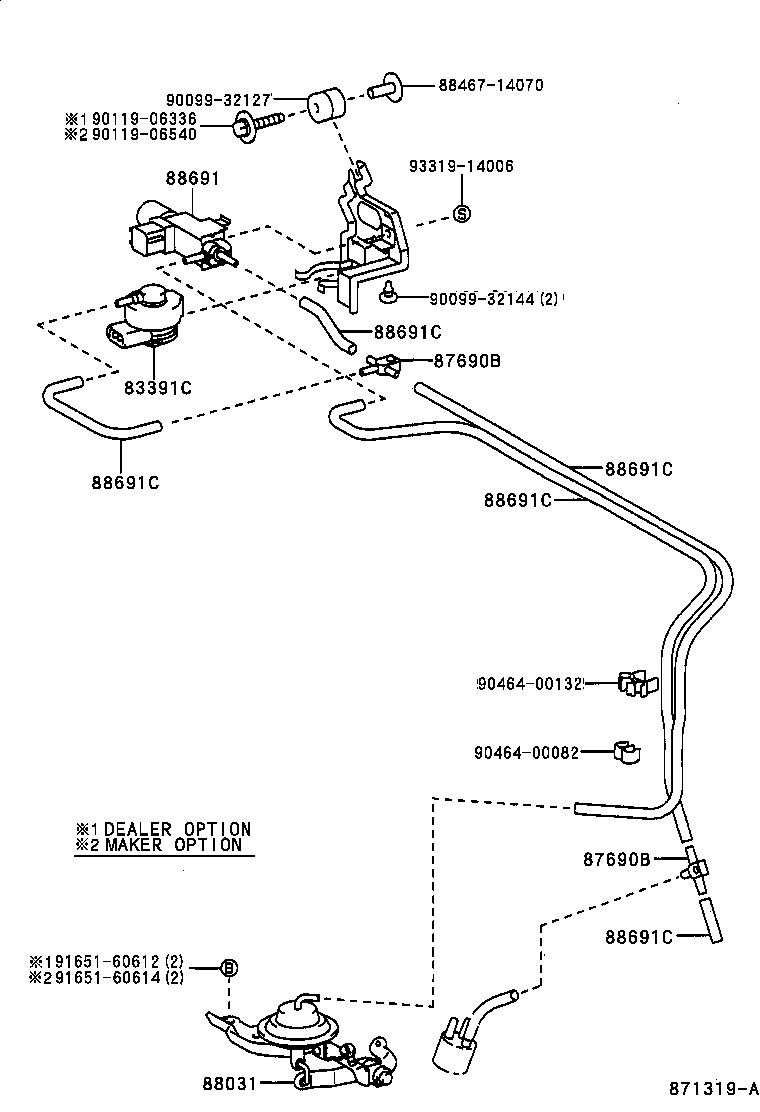

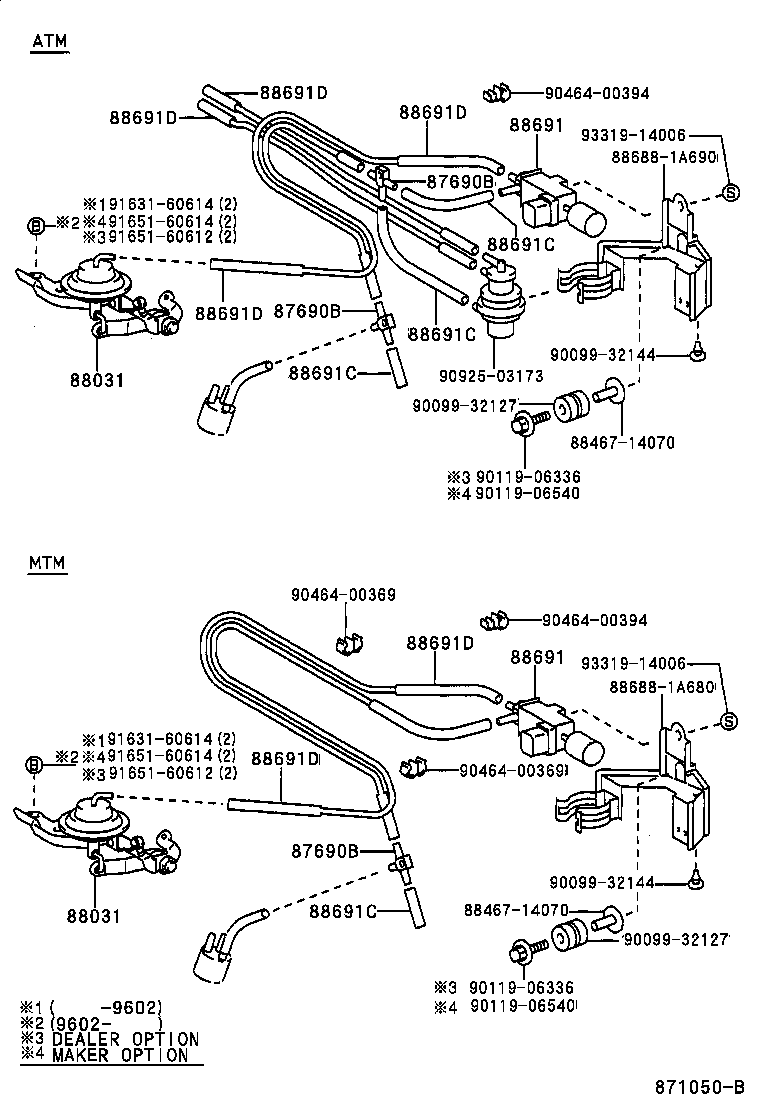

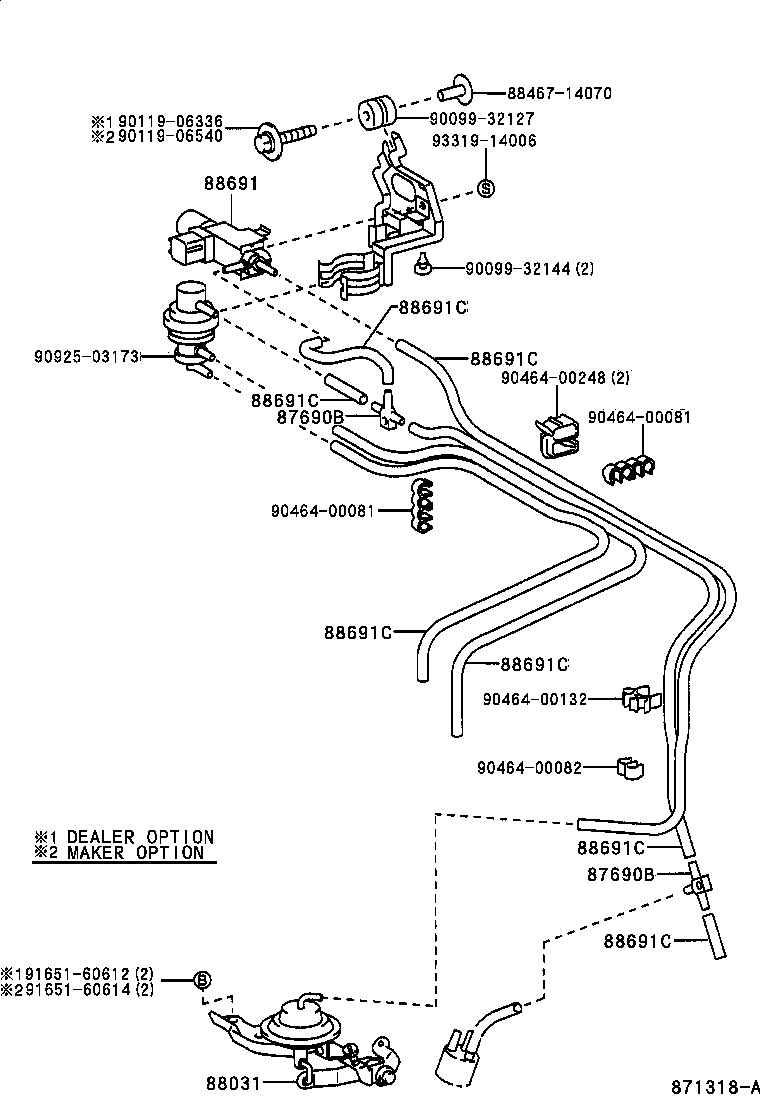

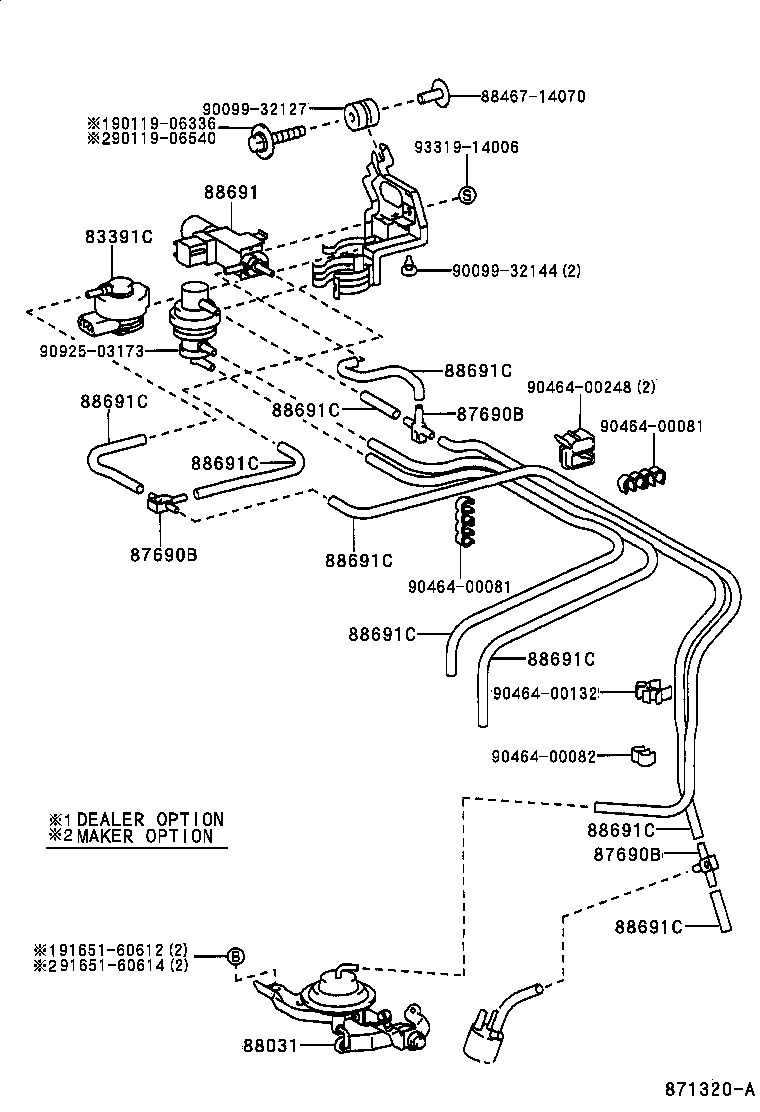

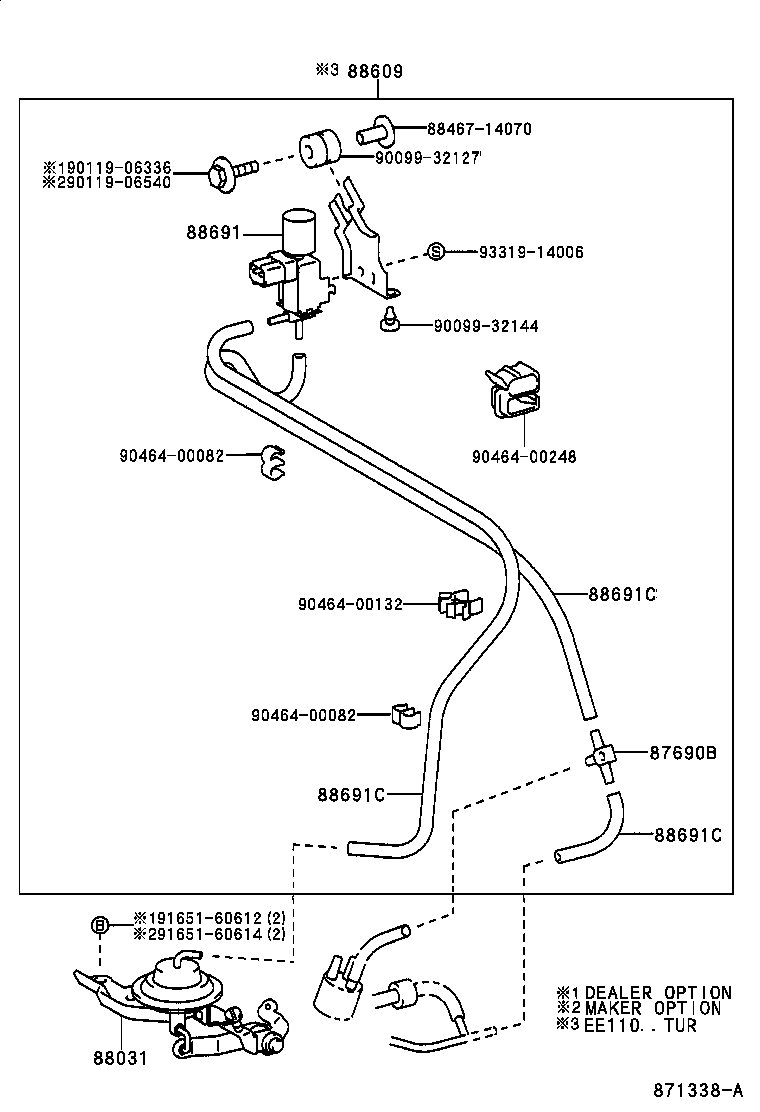

Figure 871104 871104 1995-05 → 1997-04 Figure 871313 871313 1997-04 → — Figure 871314 871314 1997-04 → — Figure 871315 871315 1997-04 → — Figure 871316A 871316A 1997-04 → — Figure 871050B 871050B 1995-05 → — Figure 871338A 871338A 1997-04 → — Figure 871318A 871318A 1997-04 → — Figure 871319A 871319A 1997-04 → — Figure 871320A 871320A 1997-04 → 1997-07

Part groups

PNCDescription
83391C Switch, Cooler Vacuum
87690B Way, 3
88031 Actuator Set, Idle-up
88609 Device Sub-assy, Idle UP
88689A Hose, Cooler Vacuum NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
