Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

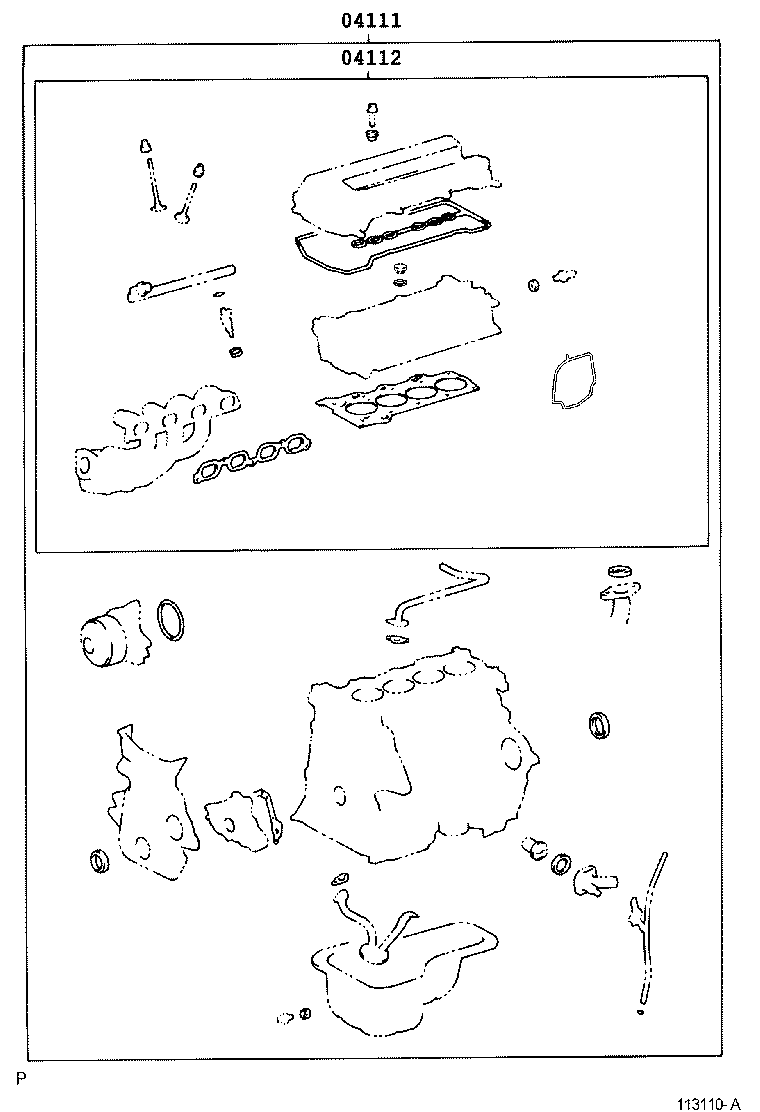

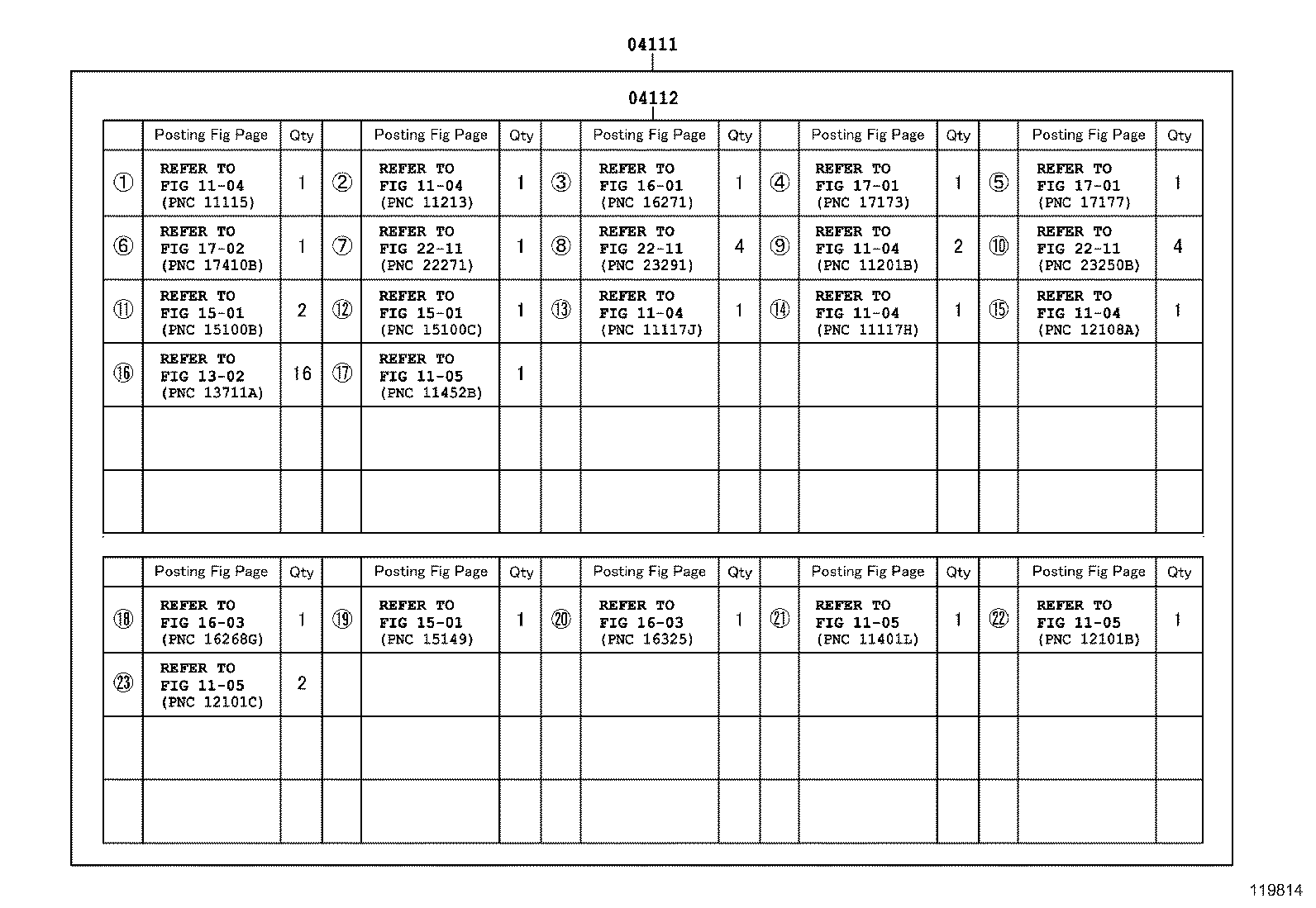

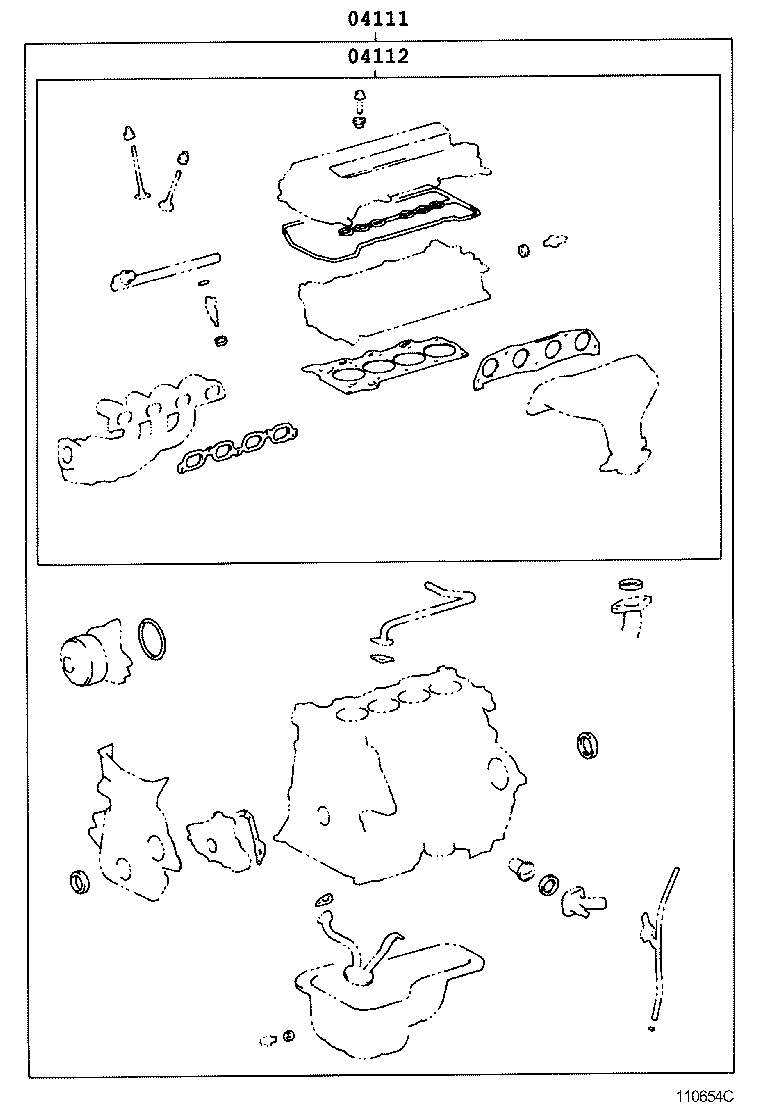

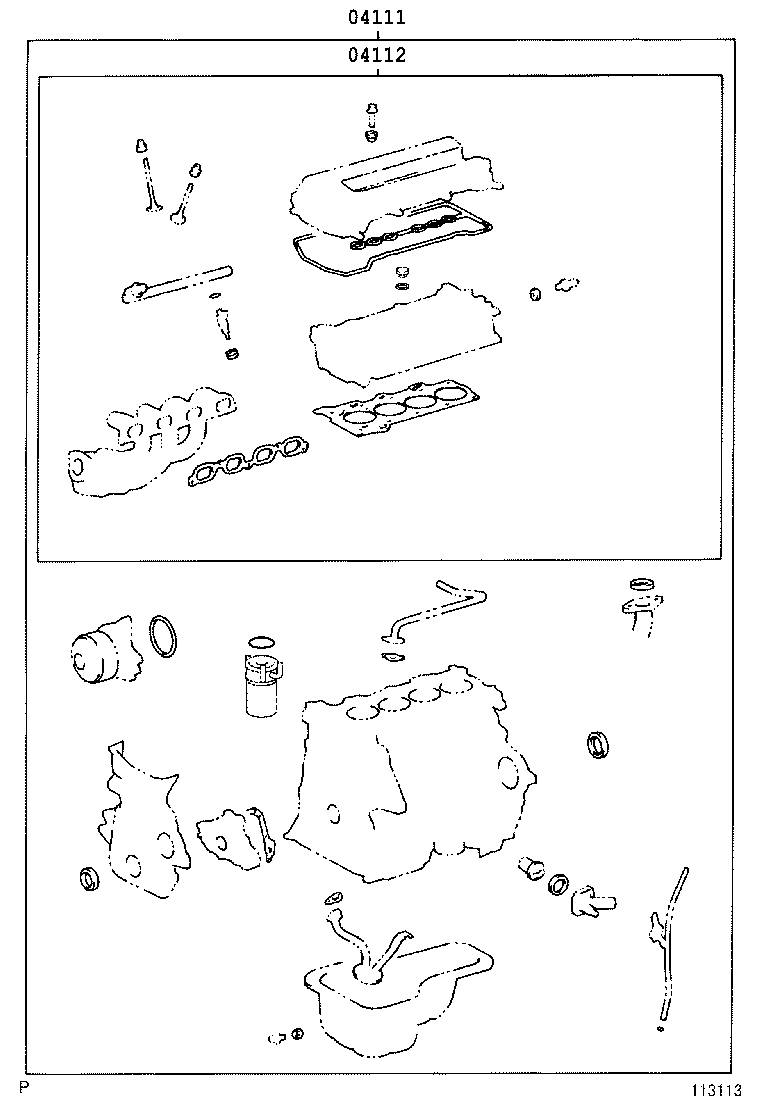

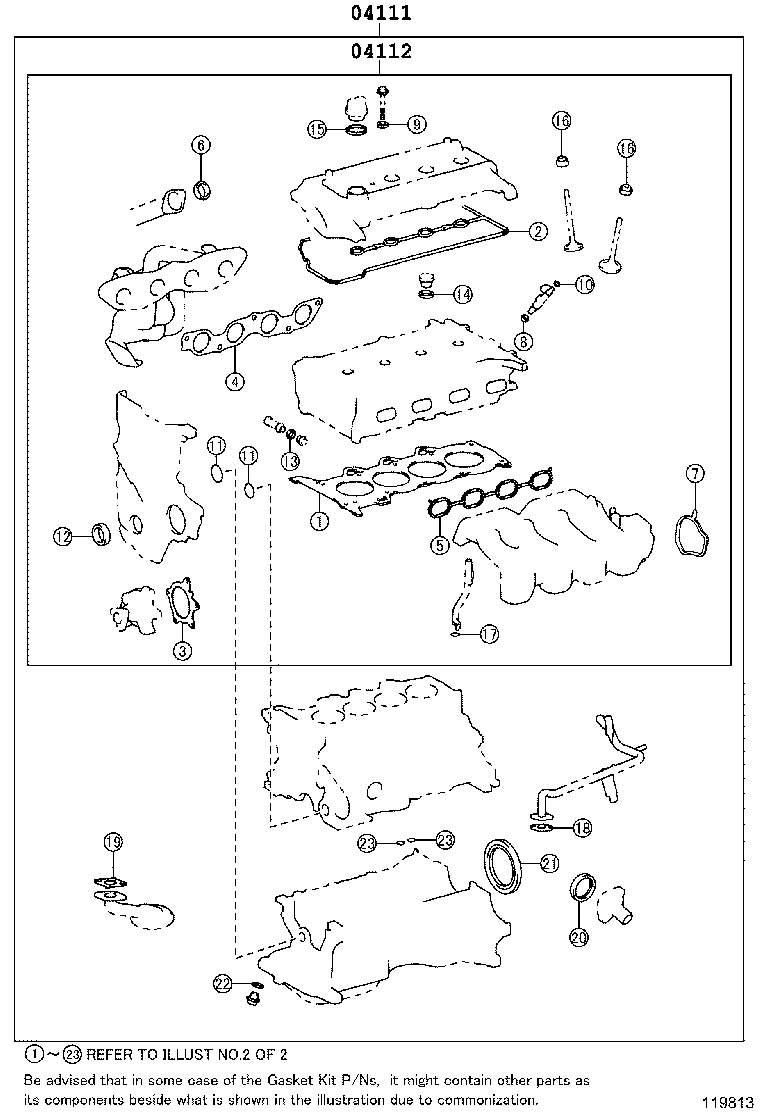

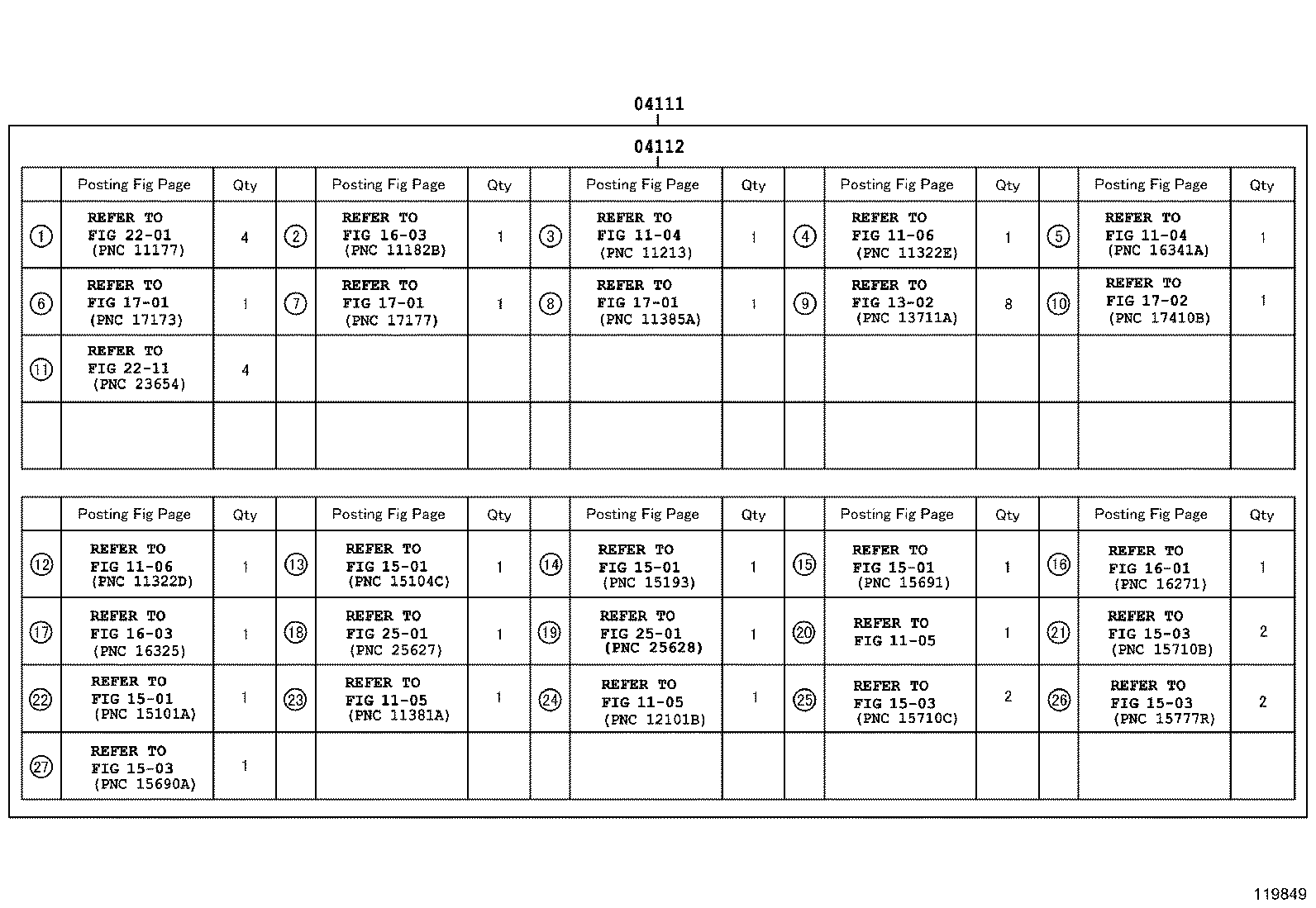

Figure 119850 119850 2001-10 → — Figure 119849 119849 2001-10 → — Figure 119813 119813 2000-08 → — Figure 119814 119814 2000-08 → — Figure 110654C 110654C 2000-08 → 2004-04 Figure 113110A 113110A 2004-04 → — Figure 113113 113113 2004-04 → — Figure 113692 113692 2005-07 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
