Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

12 part groups · 6 illustrations

Illustrations

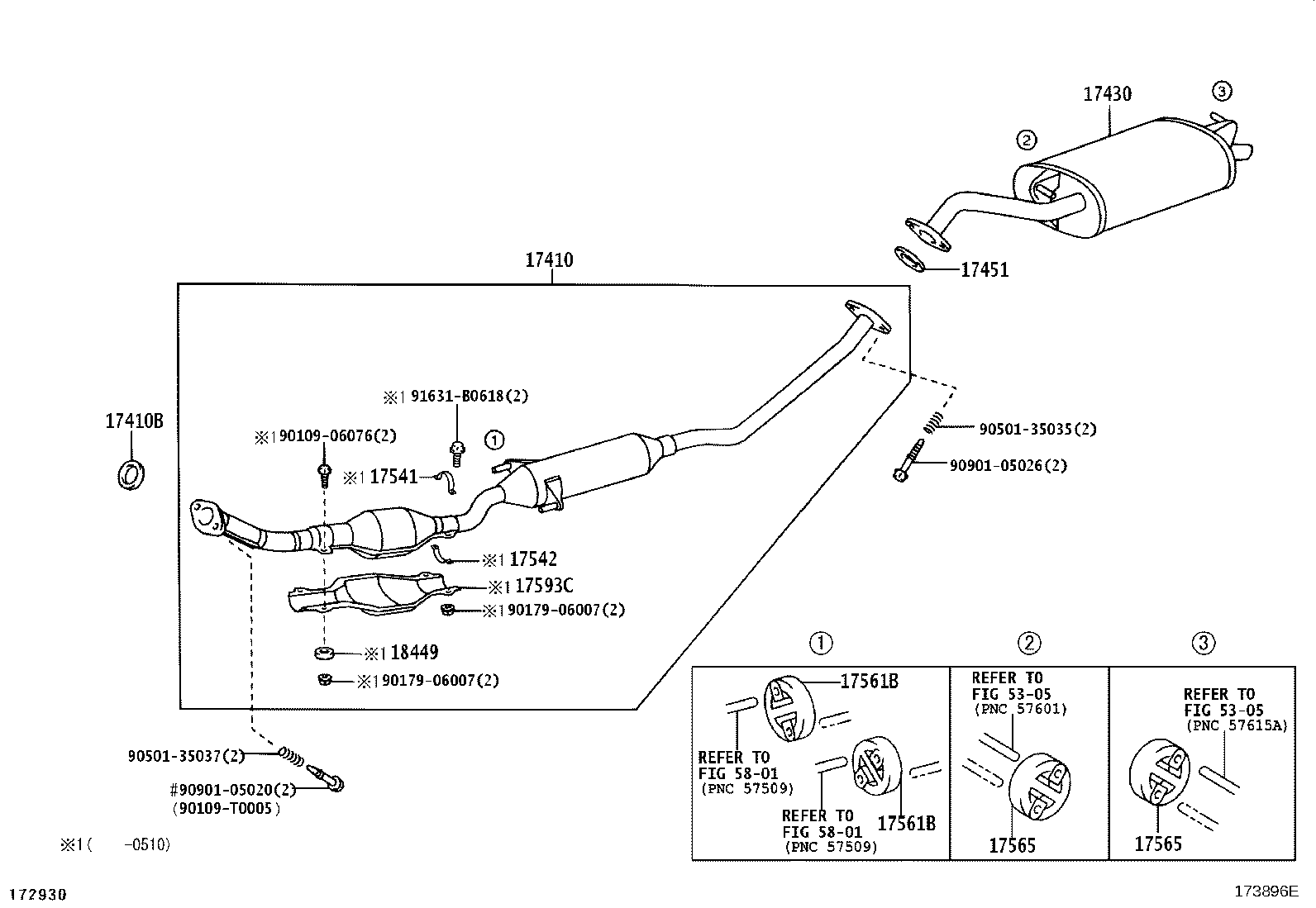

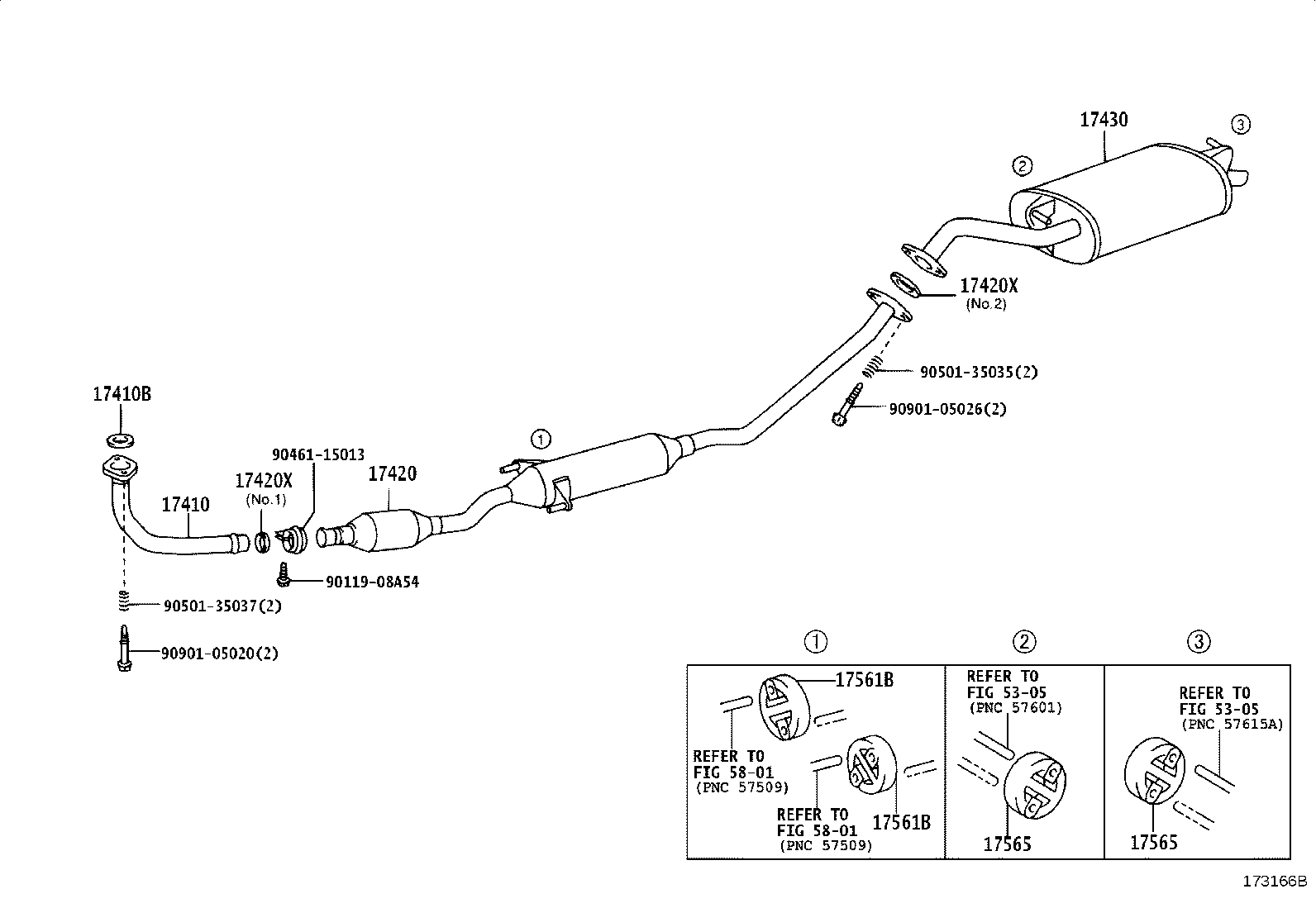

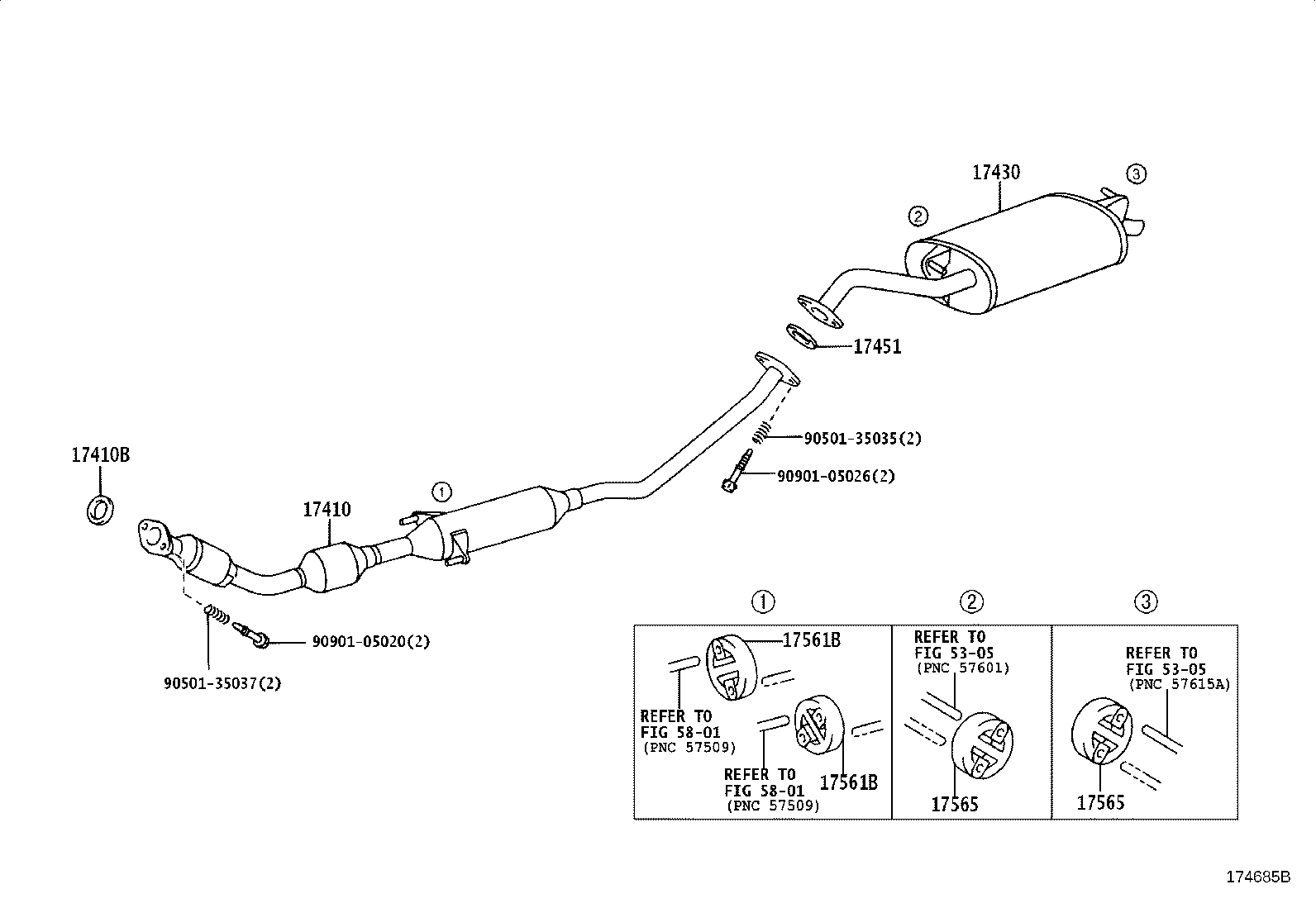

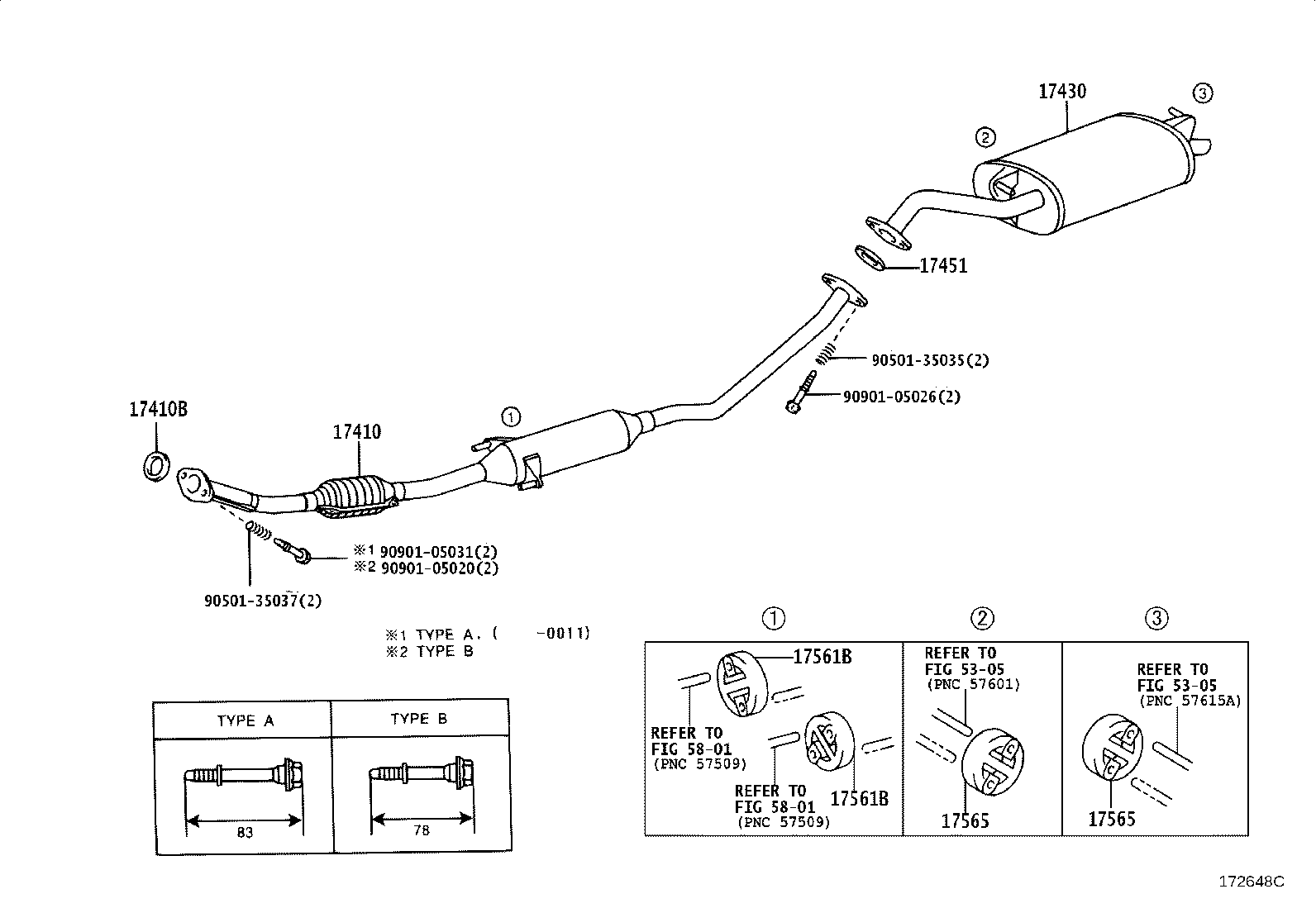

Figure 172647D 172647D 2000-08 → 2005-12 Figure 172647D 172647D 2000-08 → — Figure 174685B 174685B 2005-12 → — Figure 172648C 172648C 2000-08 → — Figure 173896E 173896E 2001-10 → — Figure 173166B 173166B 2001-10 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17541 Stay, Exhust Pipe Protector, NO.1
17542 Stay, Exhaust Pipe Protector, NO.2
17561B Support, Exhaust Pipe, NO.1
17565 Support, Exhaust Pipe, NO.5
17593C Protector, Exhaust Pipe, Lower NO.1
18449 Spacer, Converter Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
