Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

7 part groups · 4 illustrations

Illustrations

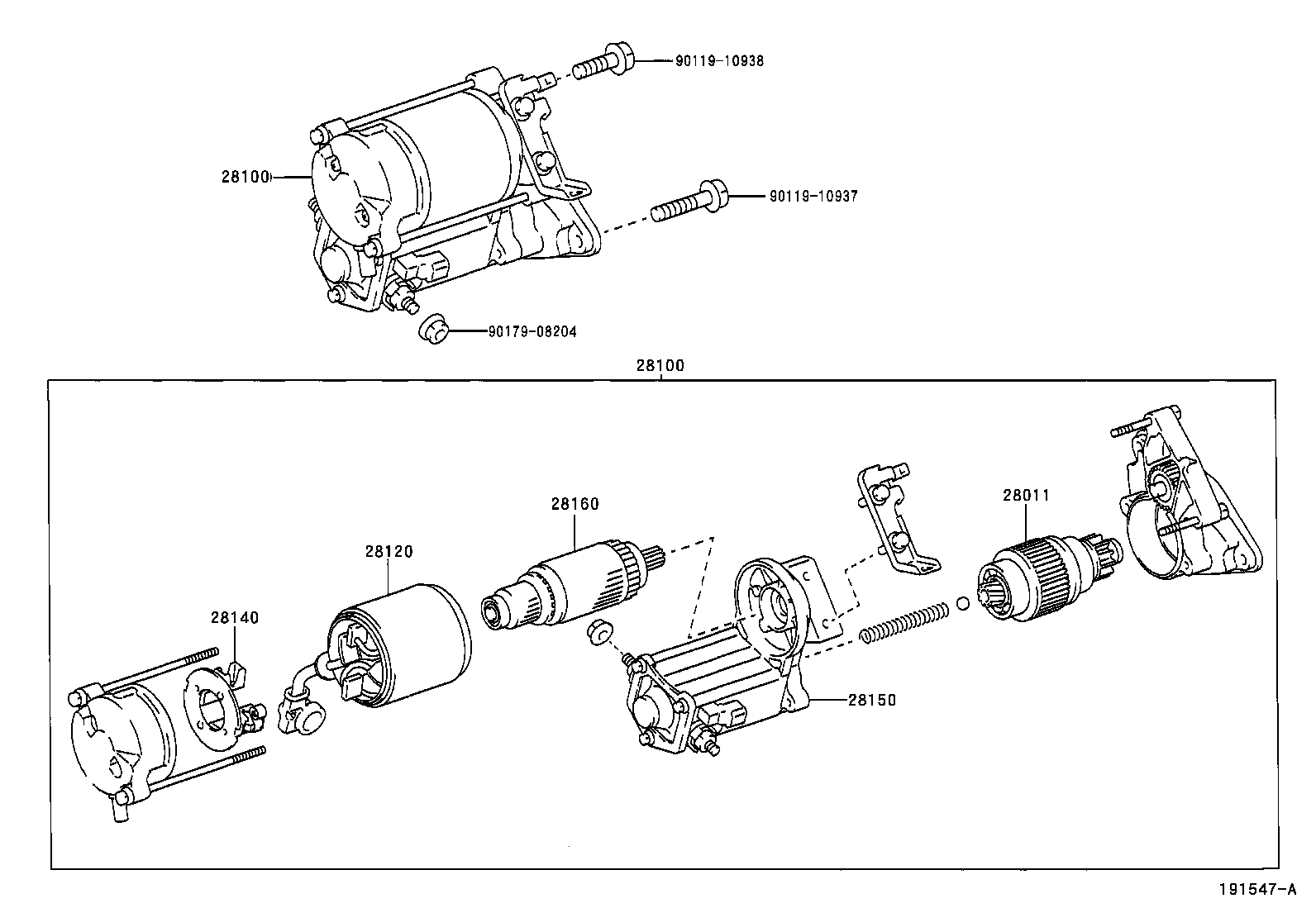

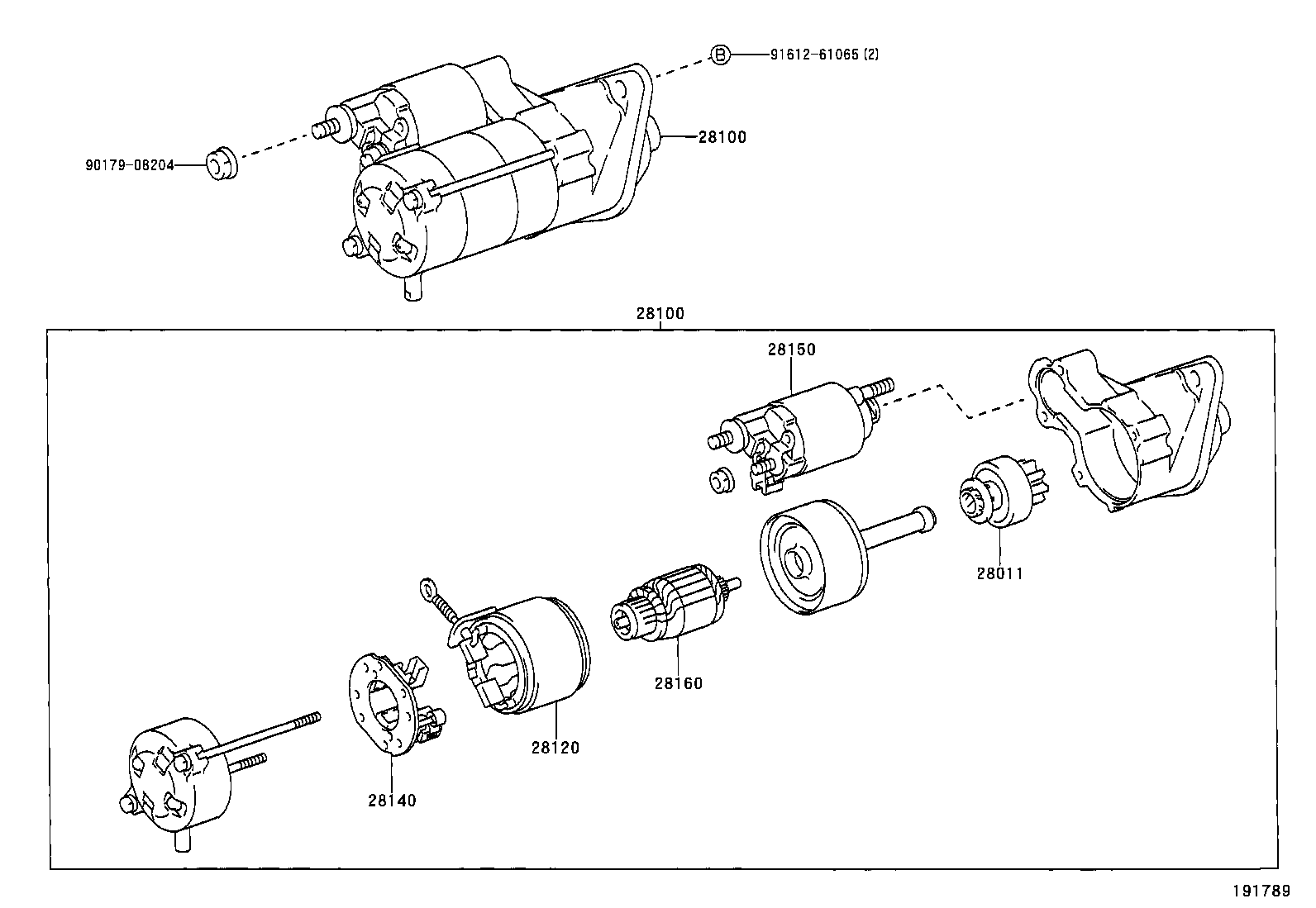

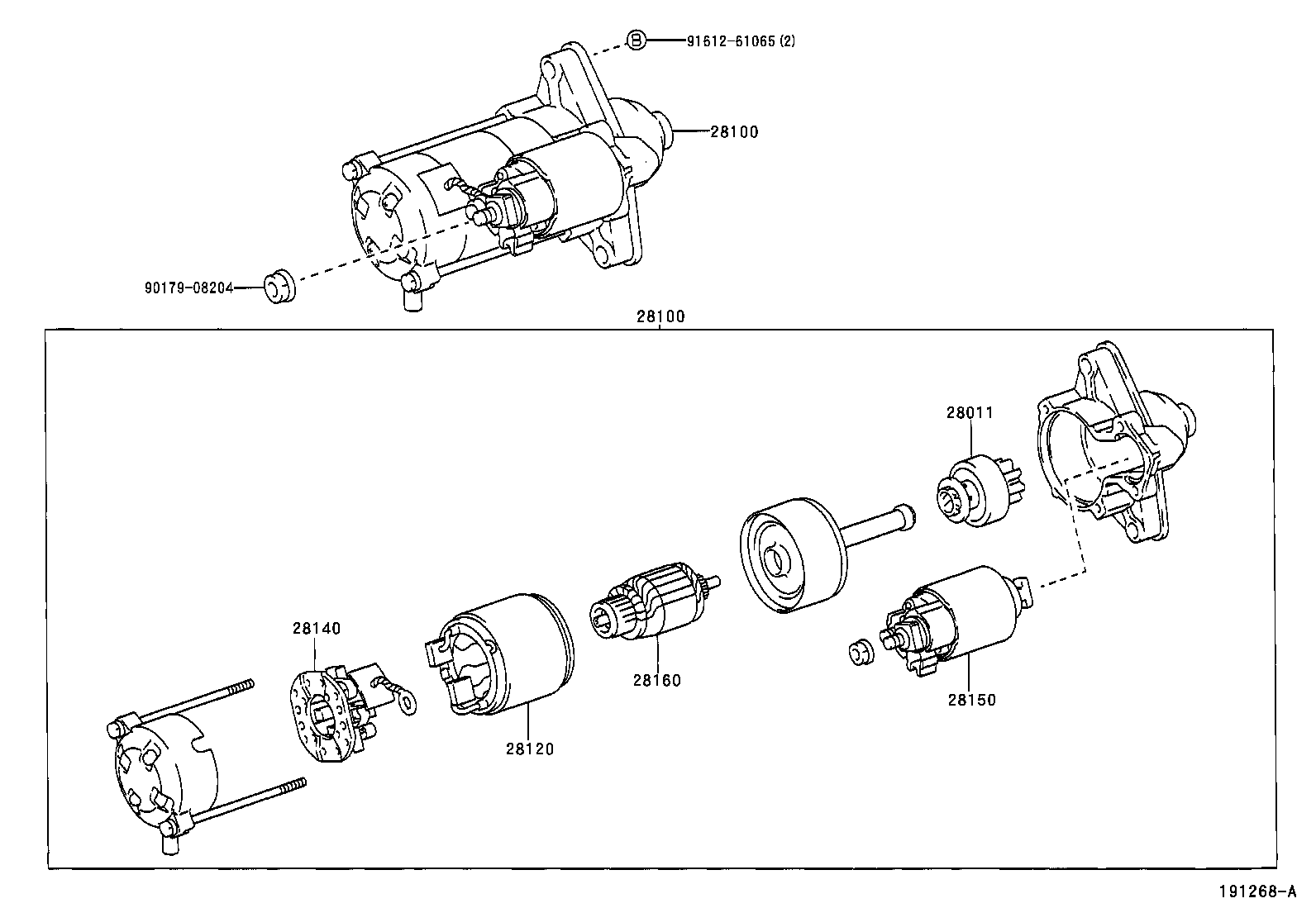

Figure 191267C 191267C 2000-08 → 2002-08 Figure 191268A 191268A 2000-08 → — Figure 191547A 191547A 2001-10 → — Figure 191789 191789 2002-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28120 Yoke Assy, Starter
28140 Holder Assy, Starter Brush
28142A Starter Kit
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
