Toyota Corolla/Altis Sed/WG
2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General
Discontinued model
Data version 2009-01

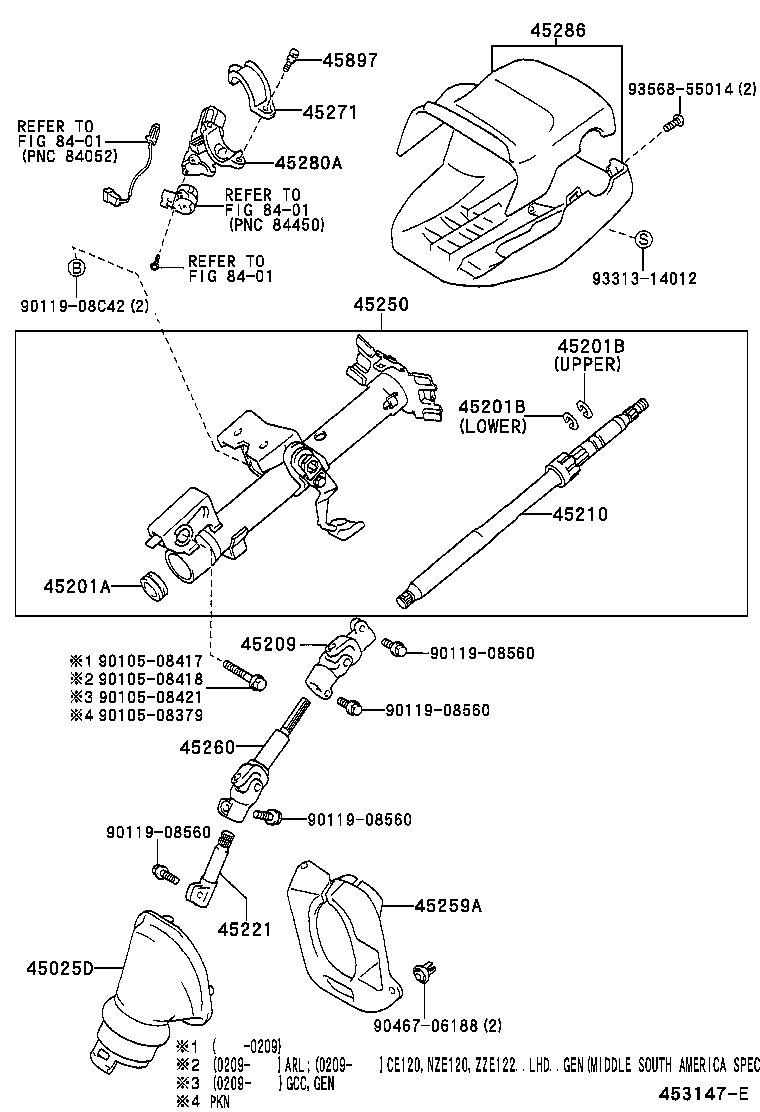

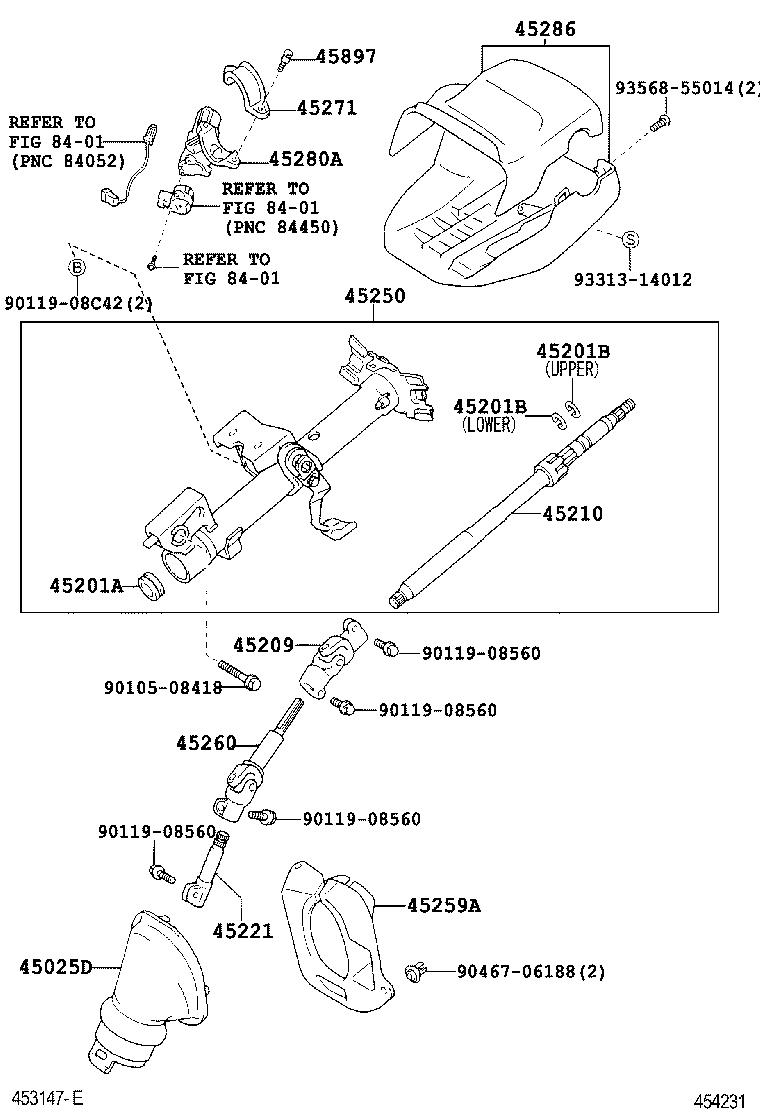

Steering Column & Shaft
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45209 | Yoke Sub-assy, Steering Sliding |
| 45210 | Shaft Assy, Steering Main |
| 45221 | Shaft, Steering Intermediate |
| 45250 | Column Assy, Steering |
| 45259A | Sheet, Column Hole Cover Silencer |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45271 | Clamp, Steering Column, Upper |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45874B | Protector, Steering Column, NO.1 |
| 45897 | Bolt, Steering Lock Set |
| 80960 | Motor Assy, Power Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
