Toyota Corolla/Altis Sed/WG
2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General
Discontinued model
Data version 2009-01

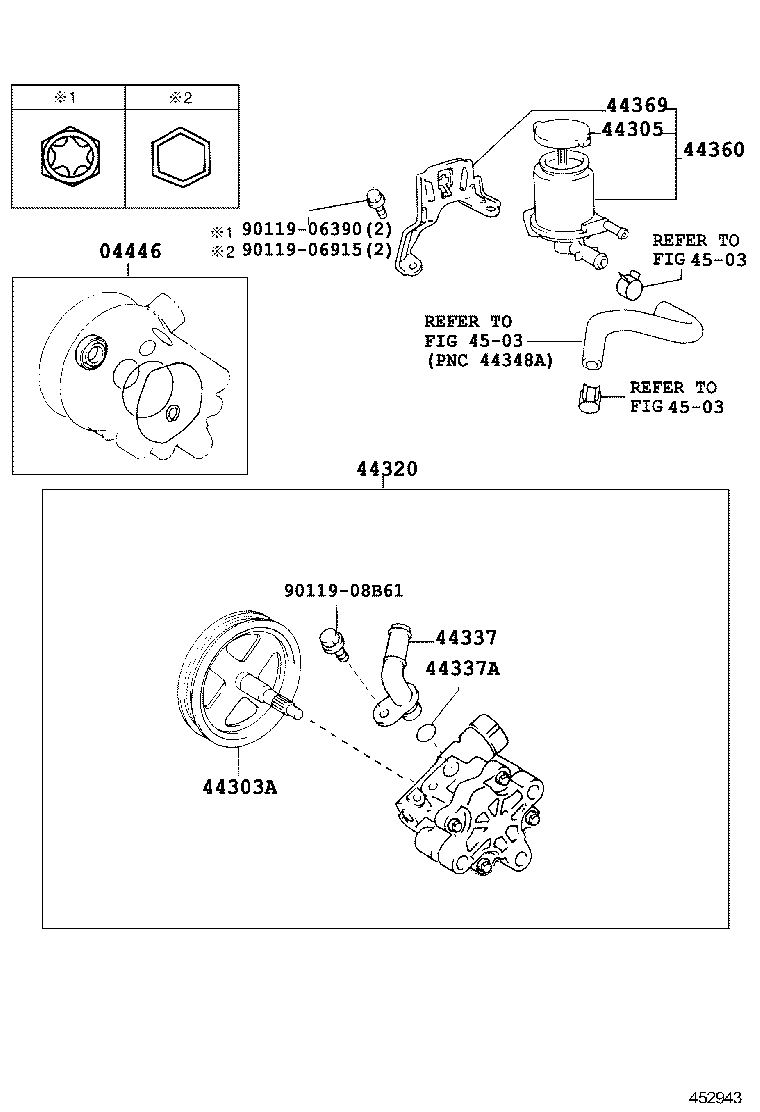

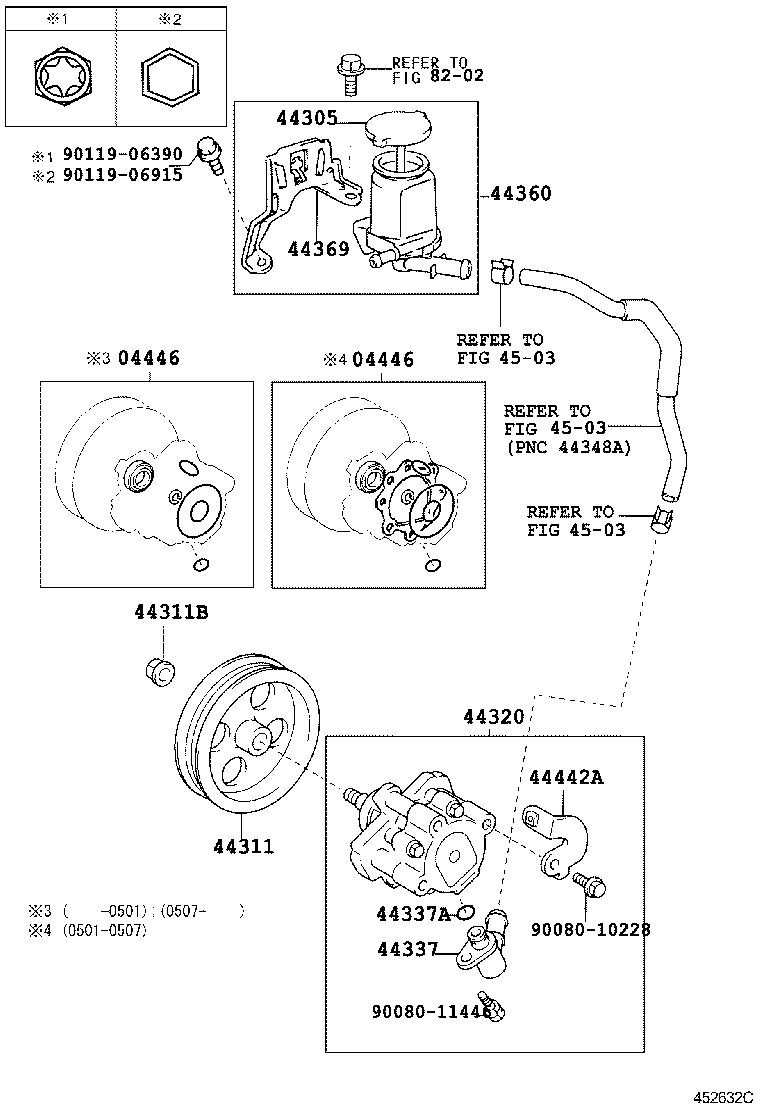

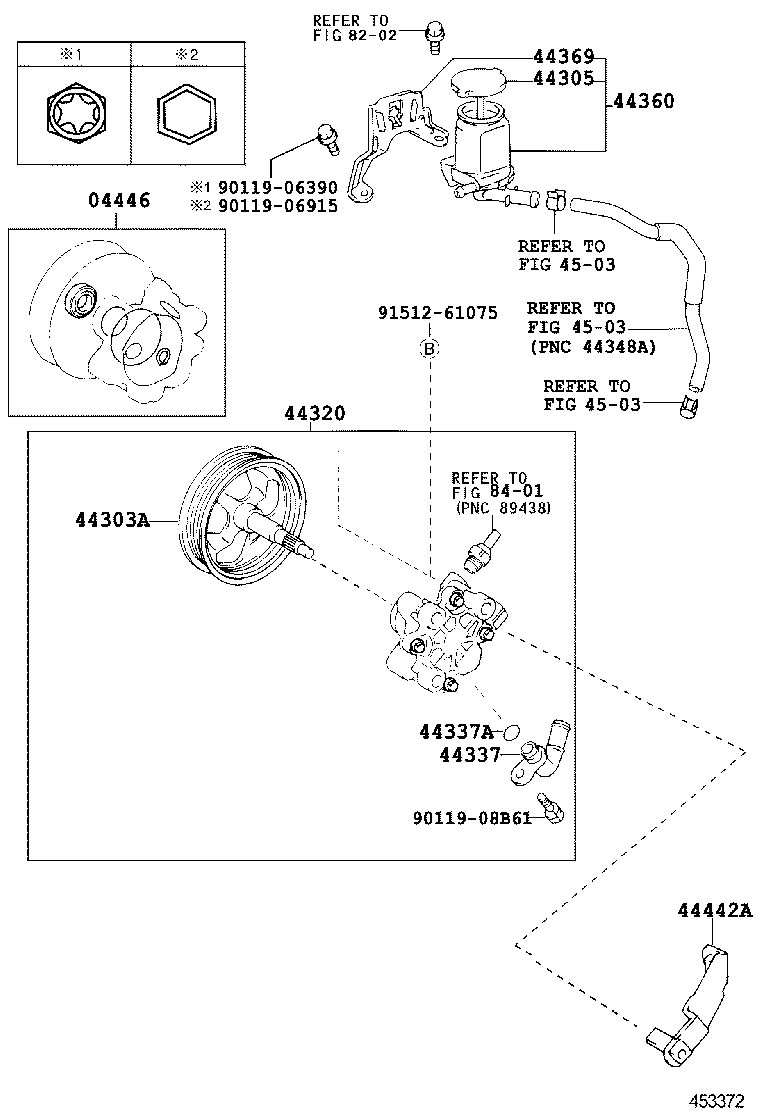

Vane Pump & Reservoir (POWER STEERING)
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04446 | Gasket Kit, Power Steering Pump |
| 44303A | Shaft Sub-assy, W/Pulley |
| 44305 | Cap Sub-assy, Vane Pump Oil Reservoir |
| 44311 | Pulley, Vane Pump |
| 44311B | Nut(FOR VANE PUMP PULLEY) |
| 44320 | Pump Assy, Vane |
| 44337 | Union, Power Steering Suction Port |
| 44337A | Ring, O(FOR POWER STEERING SUCTION PORT) |
| 44360 | Reservoir Assy, Vane Pump Oil |
| 44369 | Bracket, Oil Reservoir, NO.1 |
| 44393 | Insulator, Power Steering Pump Heat |
| 44441B | Bracket, Pump, Front |
| 44442A | Bracket, Vane Pump, Rear |
| 44443B | Bracket, Vane Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
