Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

12 part groups · 10 illustrations

Illustrations

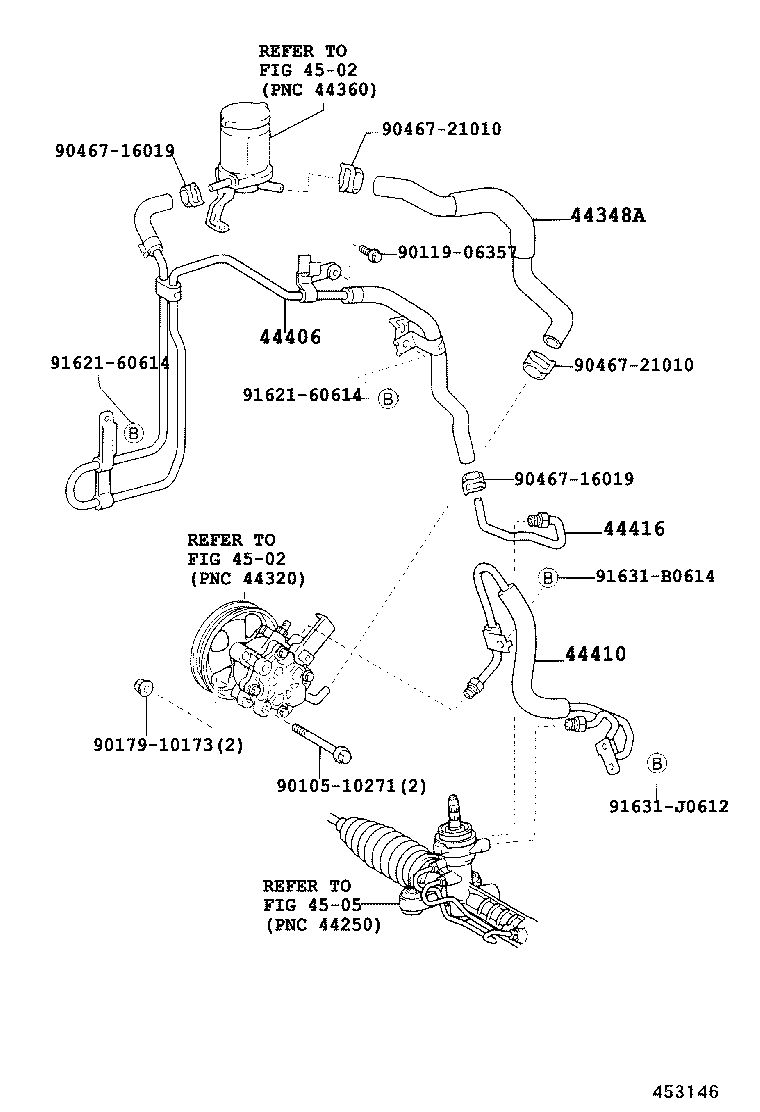

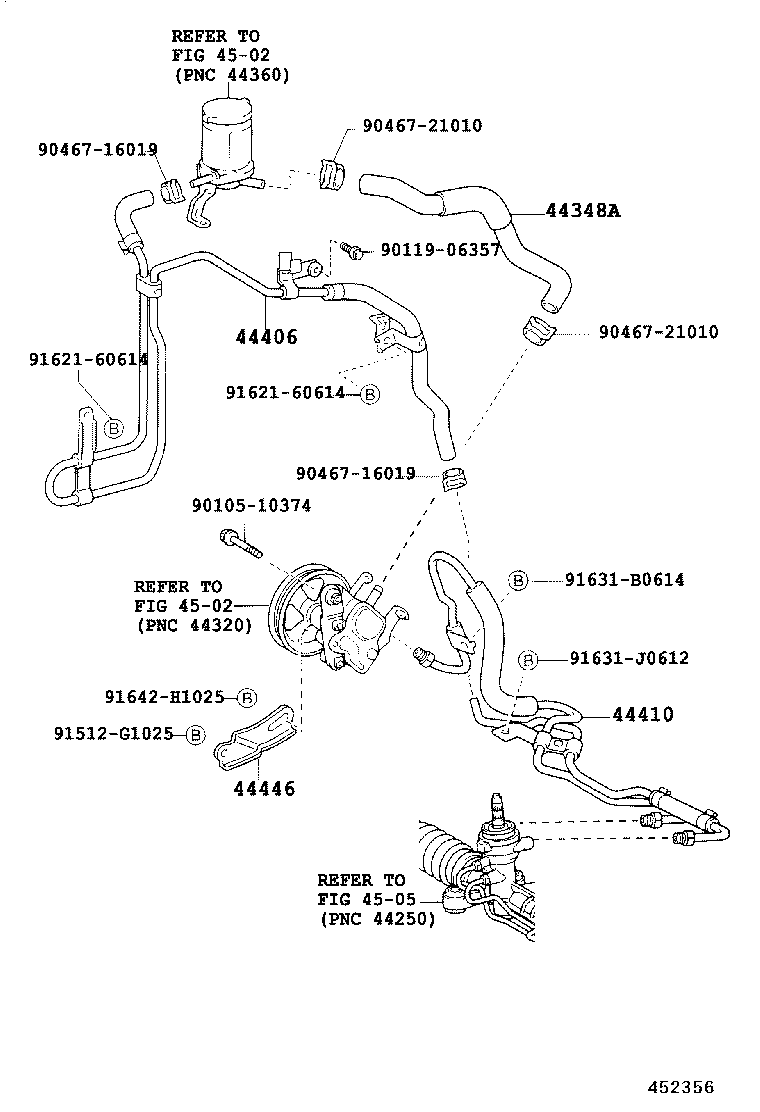

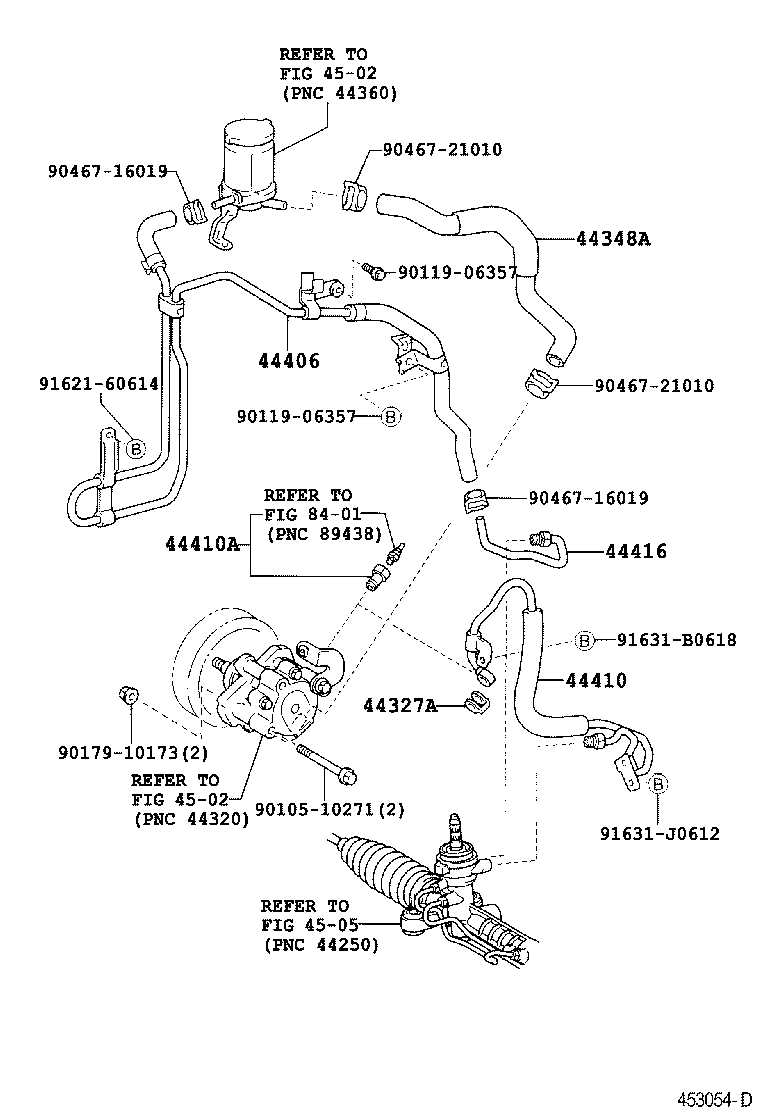

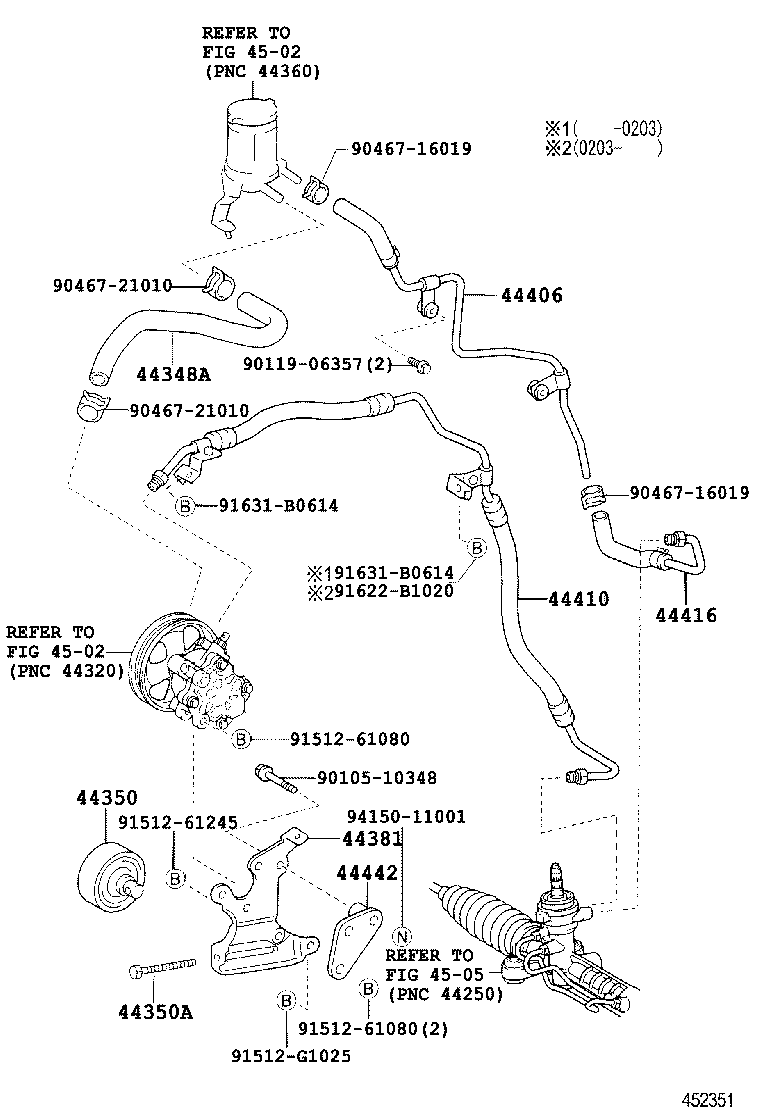

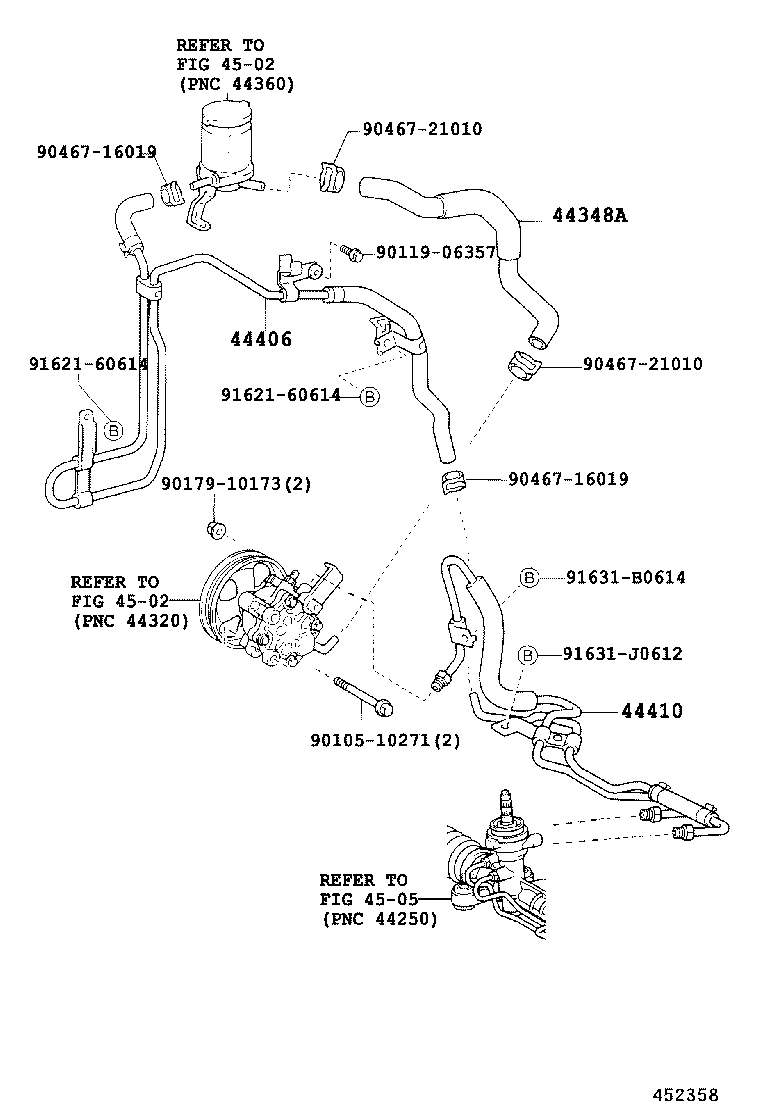

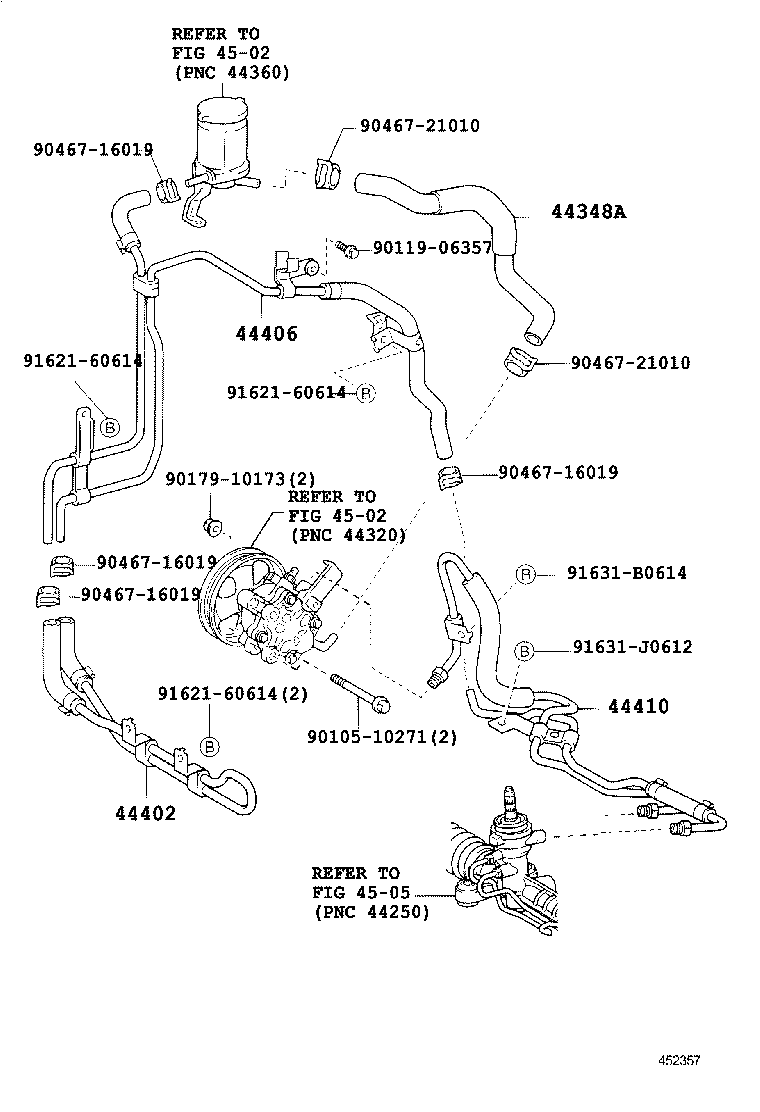

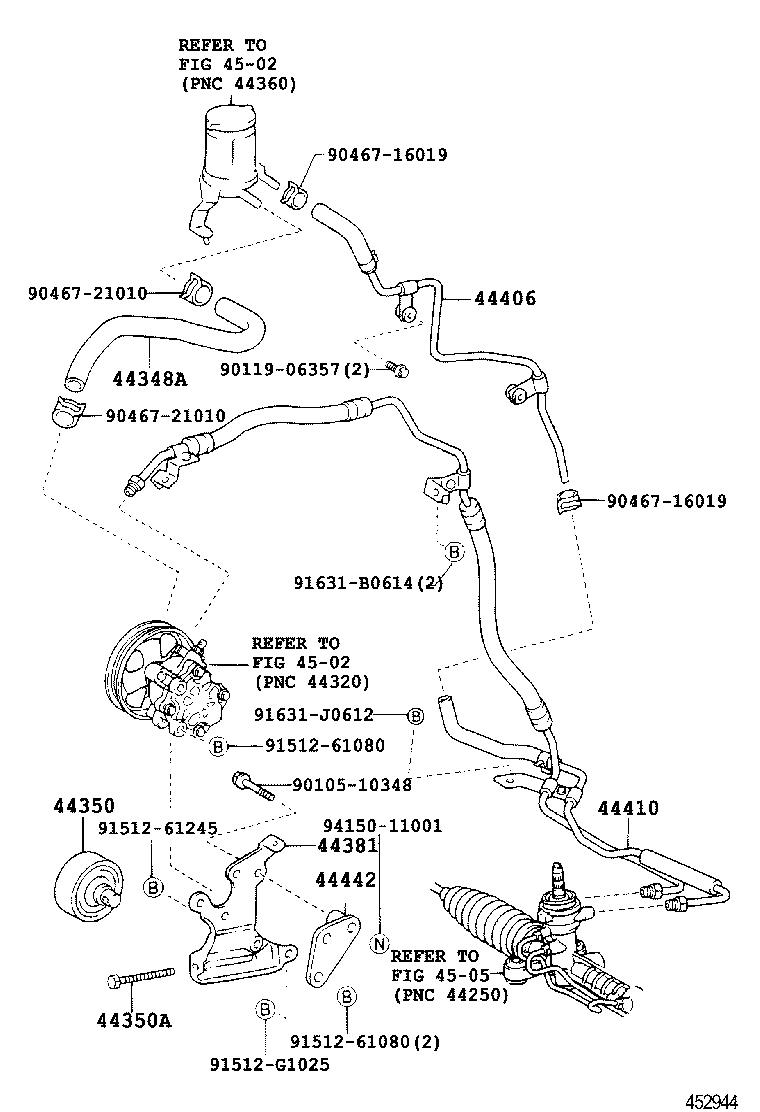

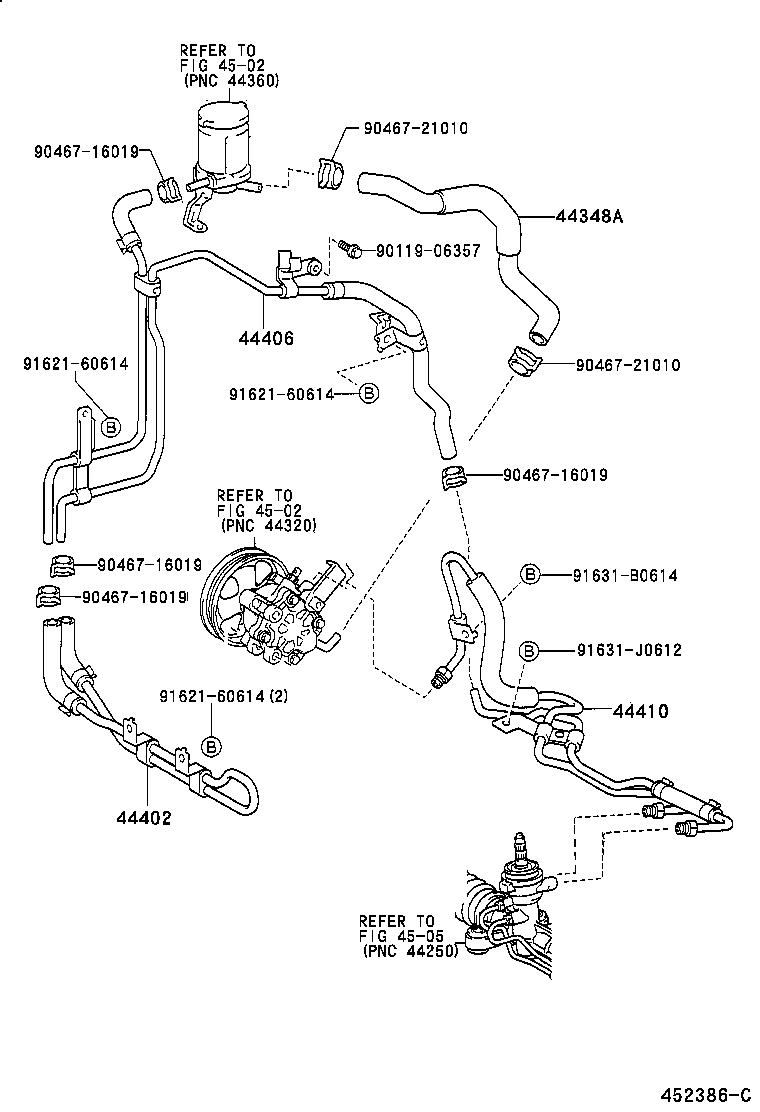

Figure 452355H 452355H 2000-08 → — Figure 452356F 452356F 2000-08 → — Figure 453146B 453146B 2000-08 → — Figure 453054D 453054D 2002-02 → — Figure 452357E 452357E 2000-08 → — Figure 452358D 452358D 2000-08 → — Figure 452358D 452358D 2001-10 → — Figure 452386C 452386C 2000-08 → — Figure 452351F 452351F 2001-10 → — Figure 452944F 452944F 2001-10 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44442 Bracket, Pump, Rear
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
