Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 3 illustrations

Illustrations

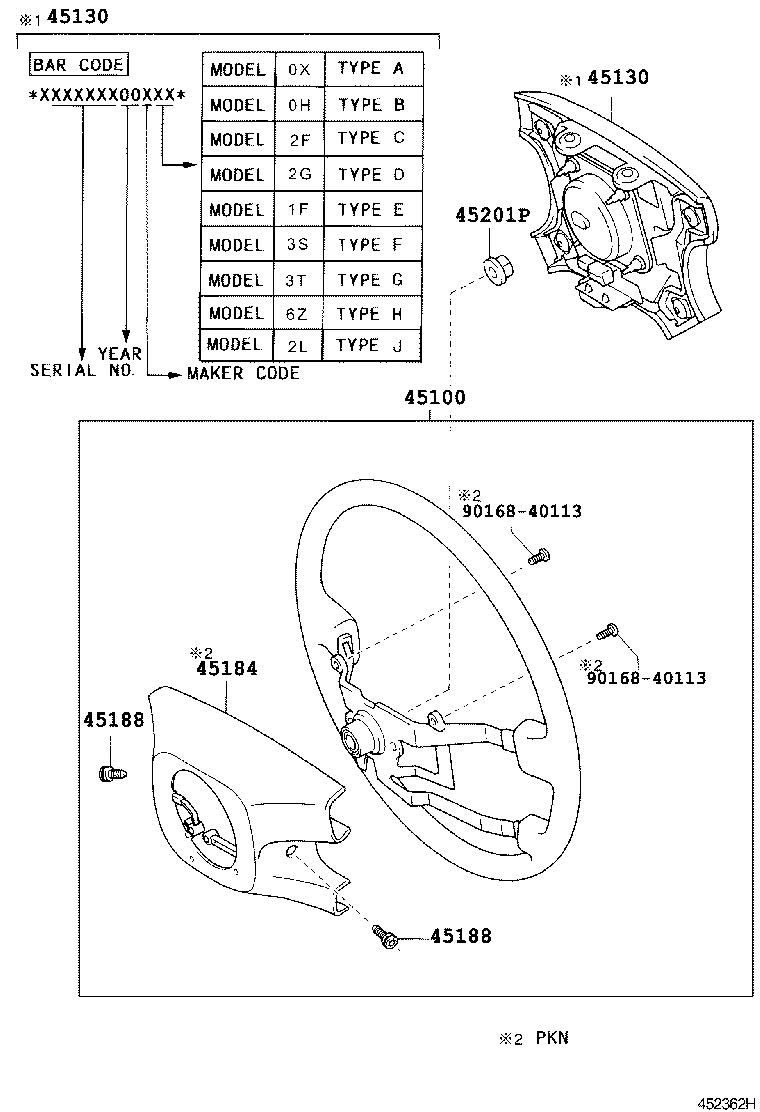

Figure 452361A 452361A 2000-08 → — Figure 452622 452622 2002-02 → — Figure 452362H 452362H 2000-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45107 Wire Sub-assy, Horn Button
45130 Button Assy, Horn
45136F Plate, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45184 Cover, Steering Wheel Boss, Lower
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
