Toyota Corolla/Altis Sed/WG
2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General
Discontinued model
Data version 2009-01

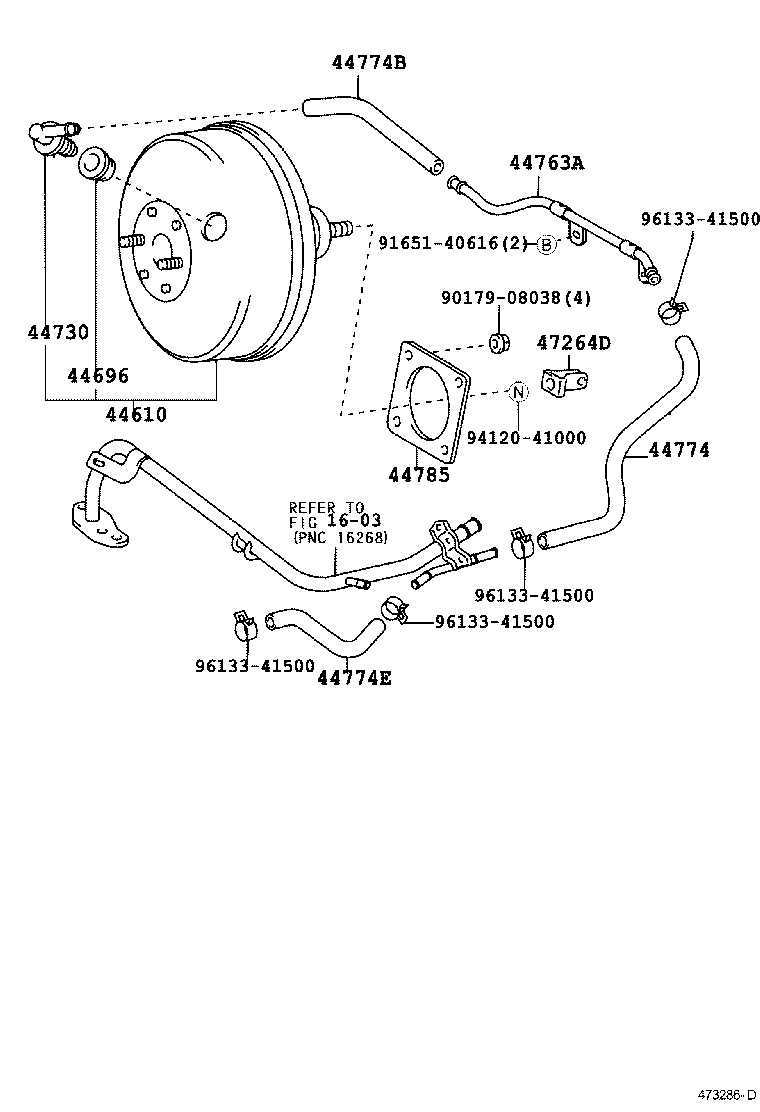

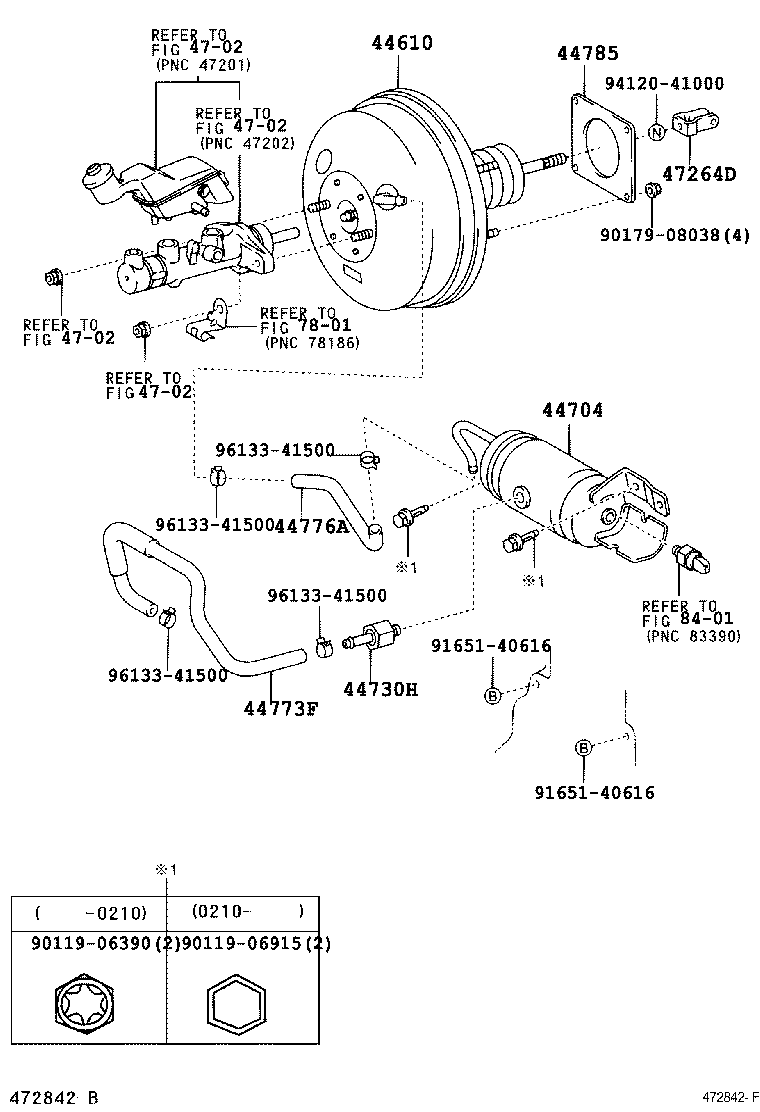

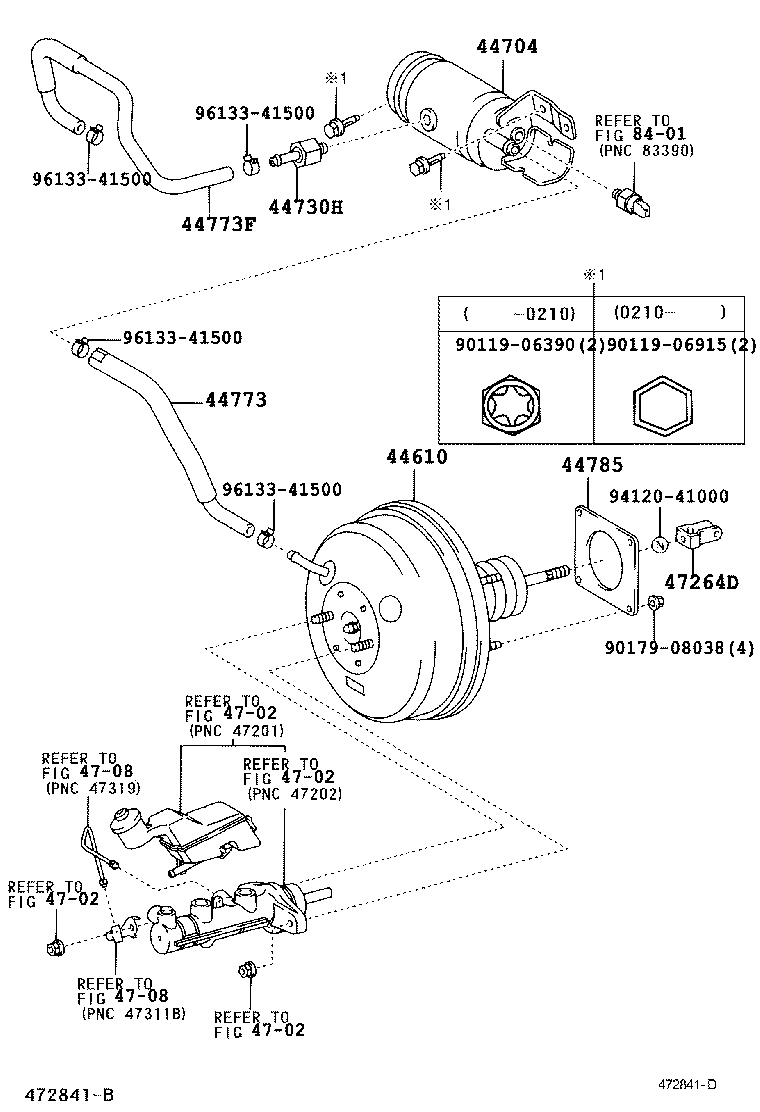

Brake Booster & Vacuum Tube
16 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730H | Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR) |
| 44758 | Bracket, Vacuum Check Valve |
| 44763 | Tube, Booster Vacuum |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44773 | Hose, Vacuum, NO.2 |
| 44773F | Hose, Union TO Check Valve |
| 44774 | Hose, Union TO Connector Tube |
| 44774B | Hose, Union TO Connector Tube |
| 44774E | Hose, Union TO Connector Tube |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
