Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

10 part groups · 7 illustrations

Illustrations

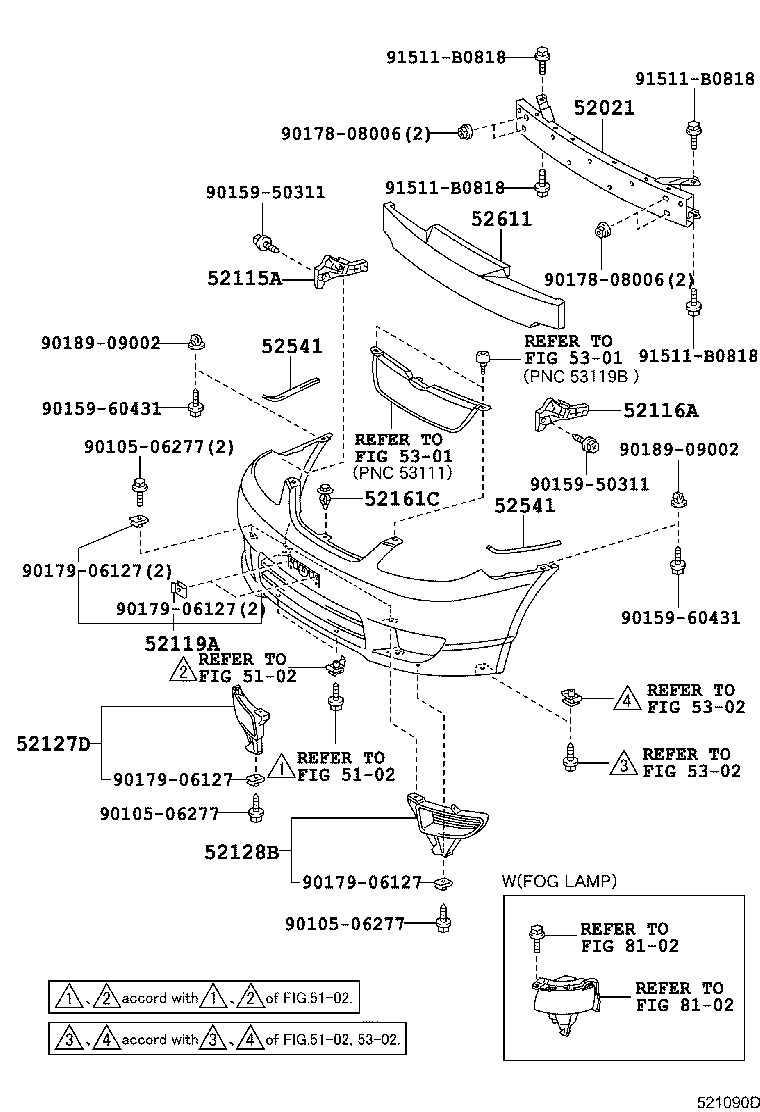

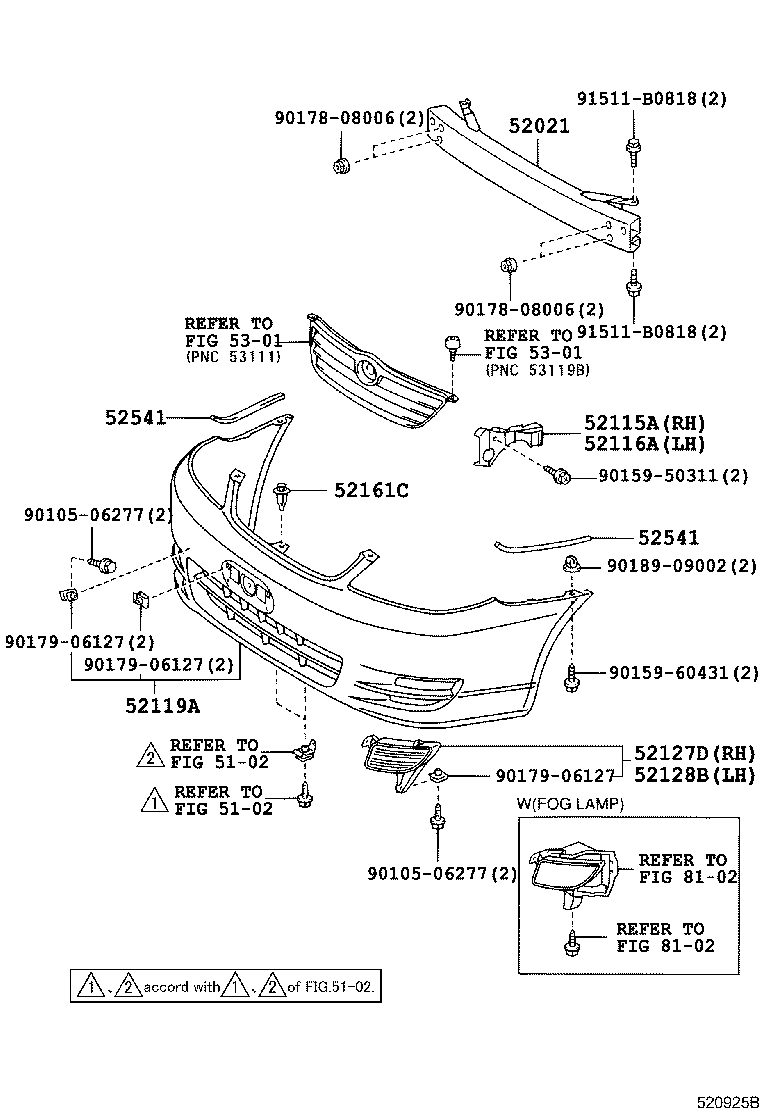

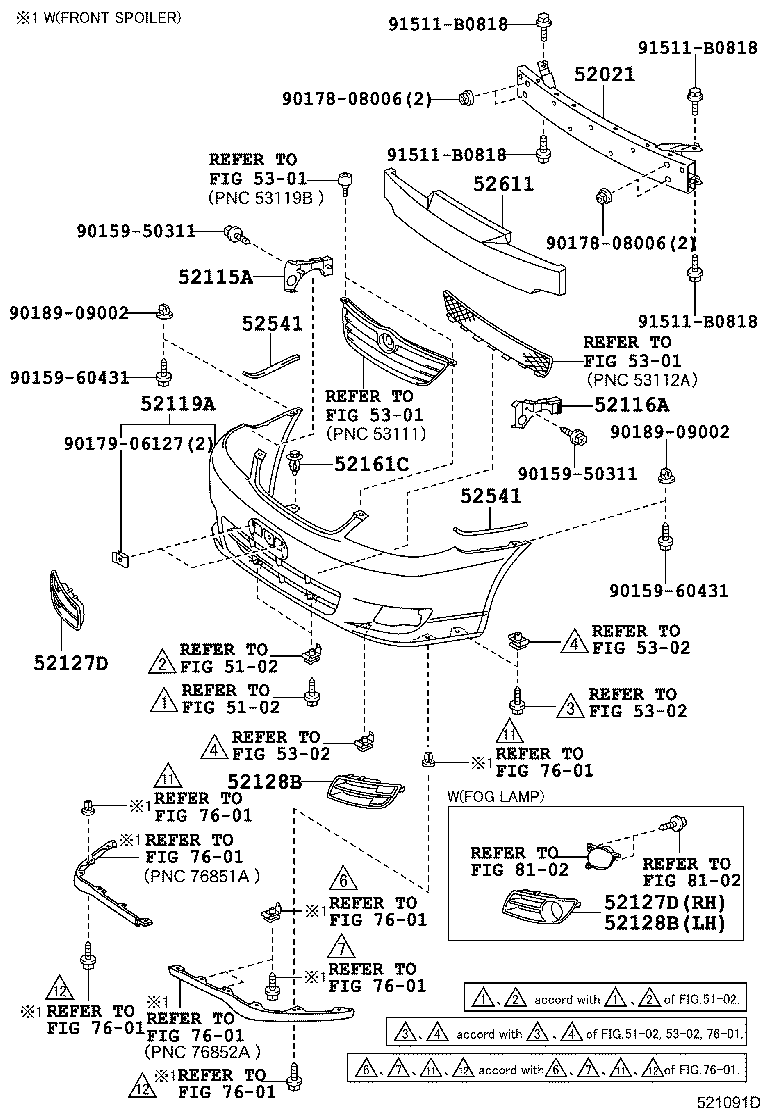

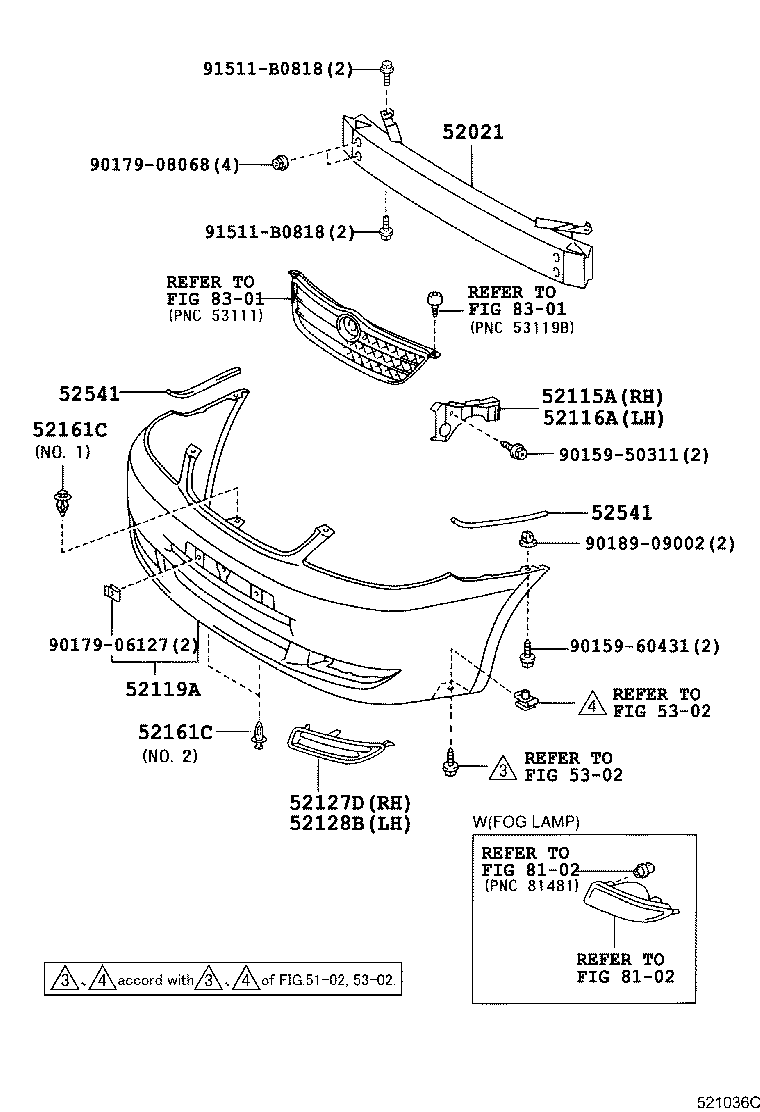

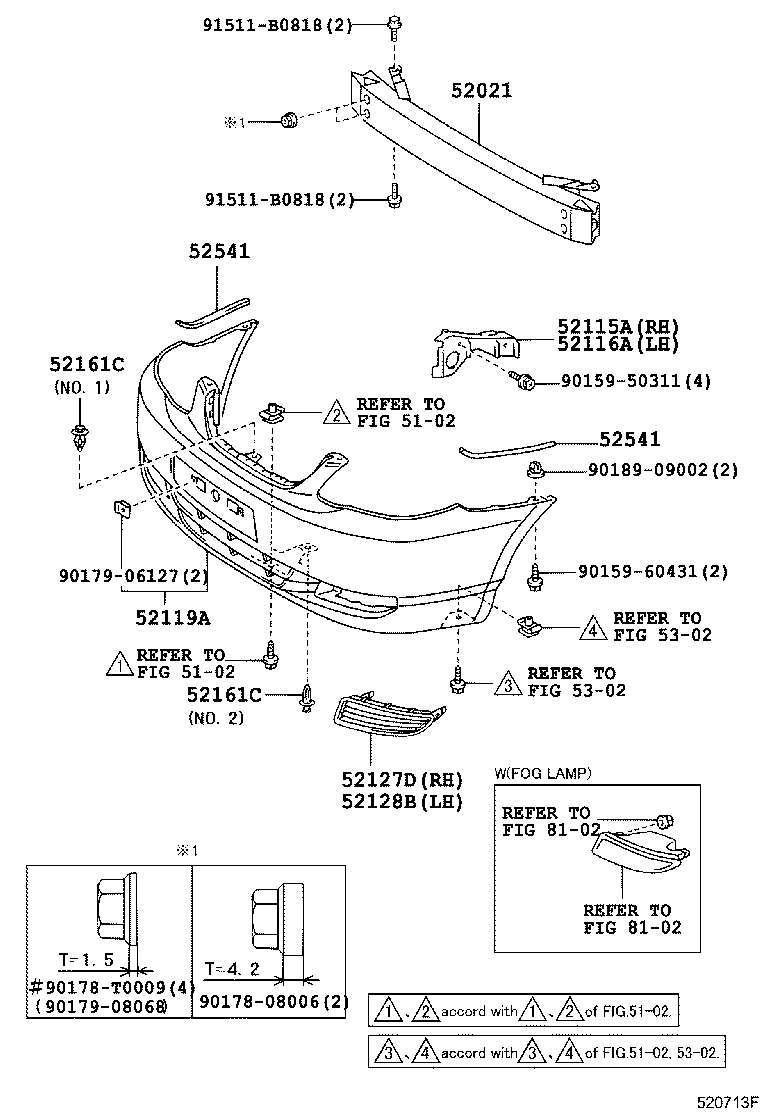

Figure 520651E 520651E 2000-08 → 2002-09 Figure 520651E 520651E 2002-09 → 2004-04 Figure 520925B 520925B 2002-09 → 2004-04 Figure 521036C 521036C 2002-09 → 2004-04 Figure 520713F 520713F 2002-02 → — Figure 521090D 521090D 2004-04 → — Figure 521091D 521091D 2004-04 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52541 Protector, Front Bumper
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
