Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

3 part groups · 5 illustrations

Illustrations

Figure 530989E

530989E 2000-08 → 2004-04

Figure 531381A

531381A 2001-10 → 2004-04

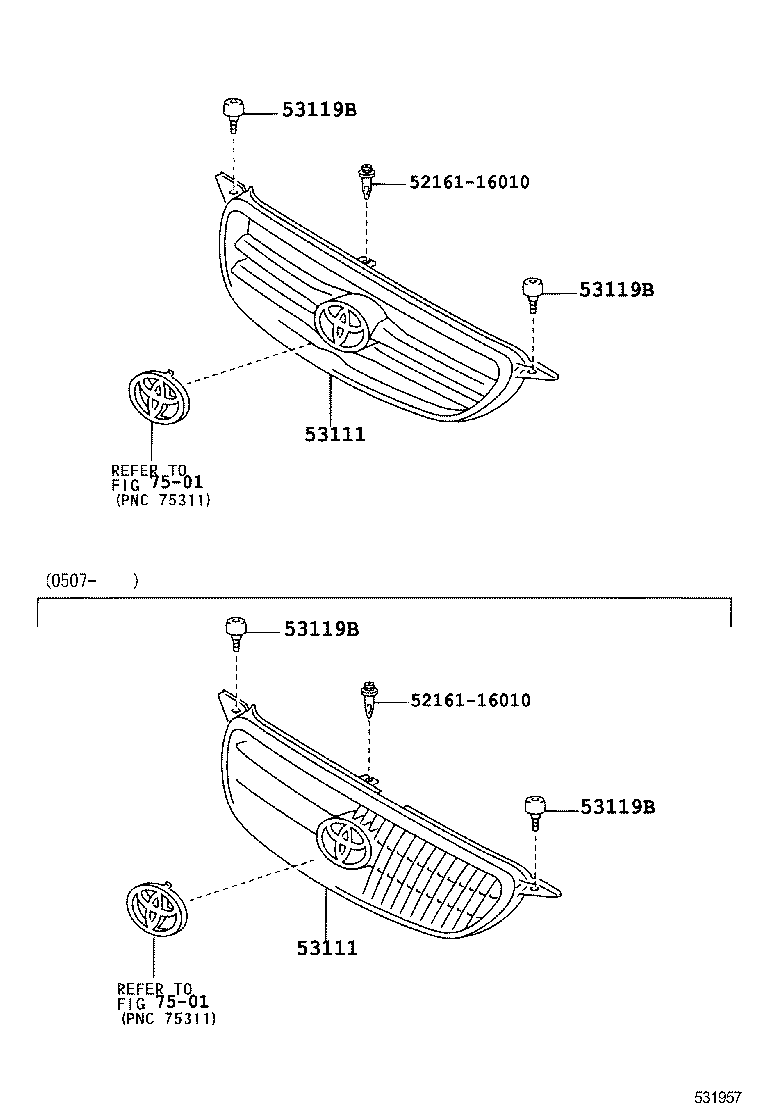

531957 2002-02 → —

Figure 531652A

531652A 2004-04 → —

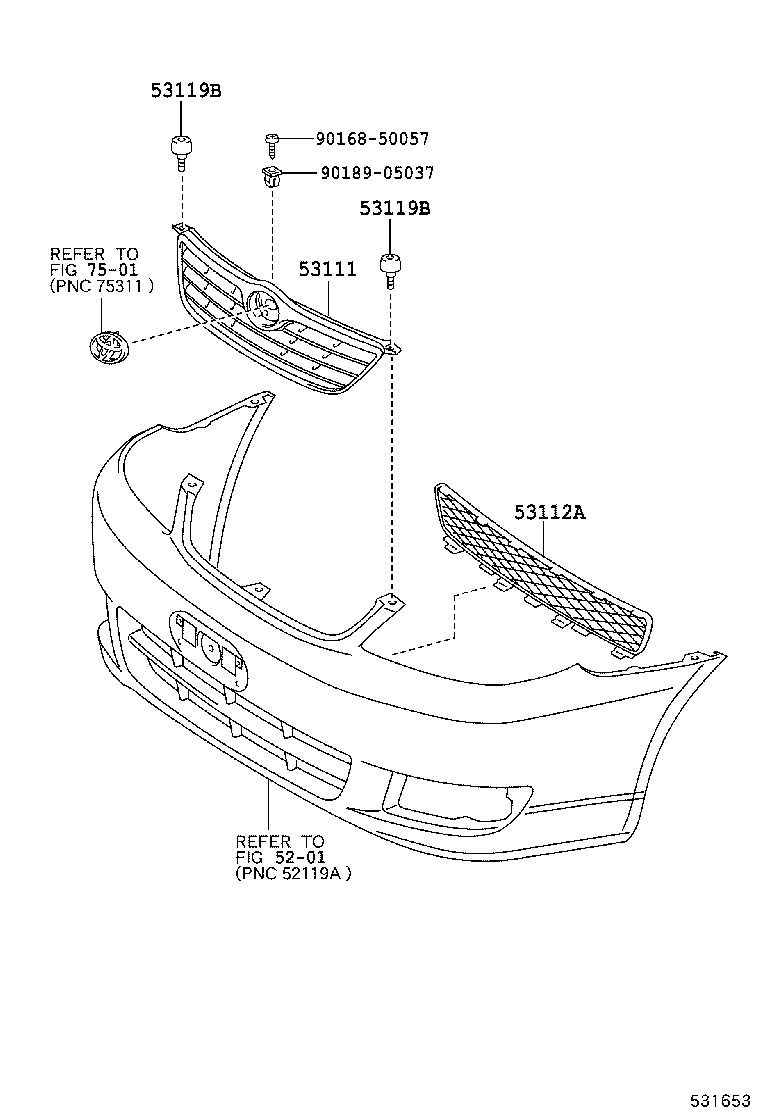

531653 2004-04 → —

Part groups

PNC	Description
53111	Grille, Radiator
53112A	Grille, Radiator, Lower
53119B	Protector, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
