Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

17 part groups · 12 illustrations

Illustrations

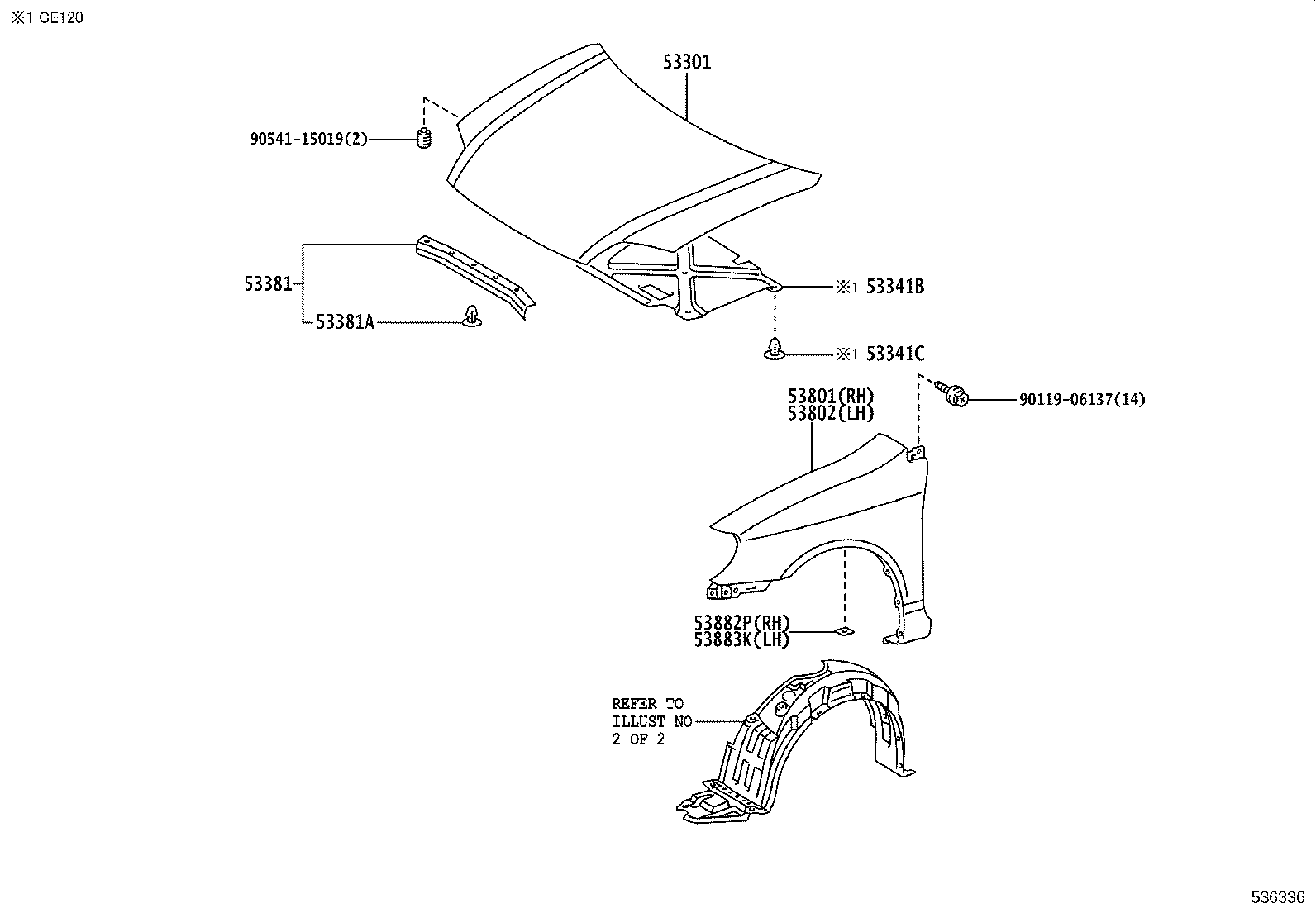

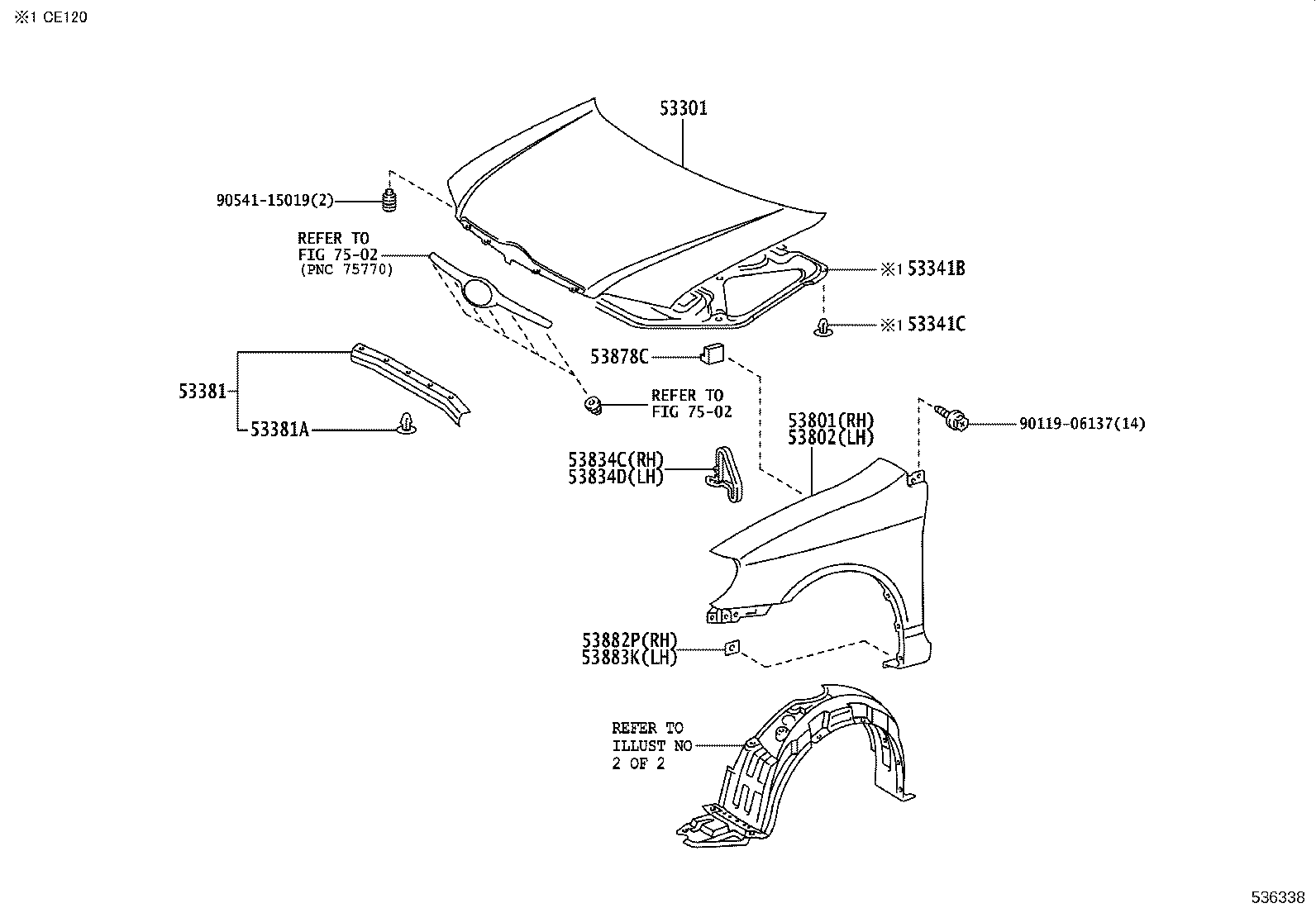

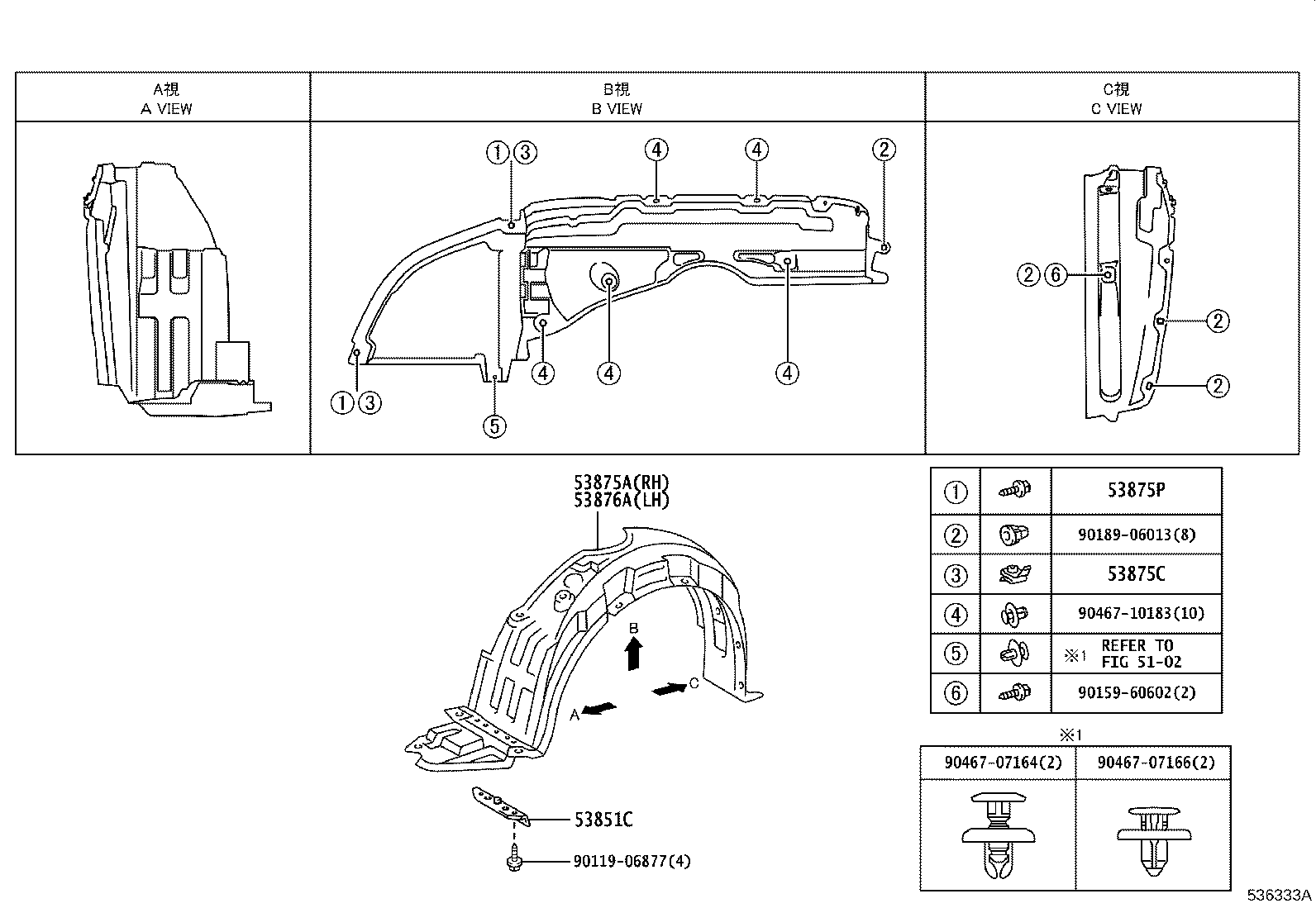

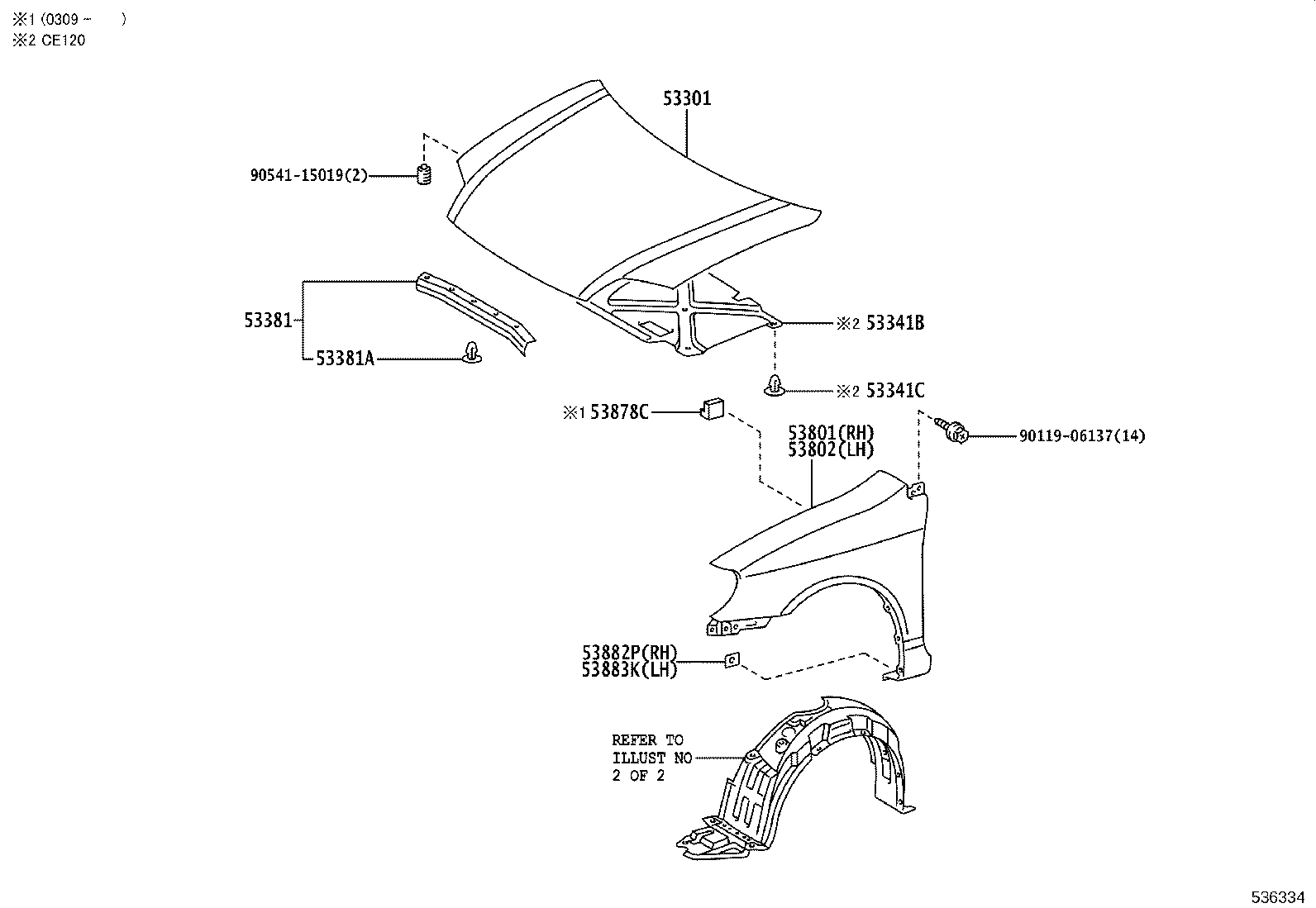

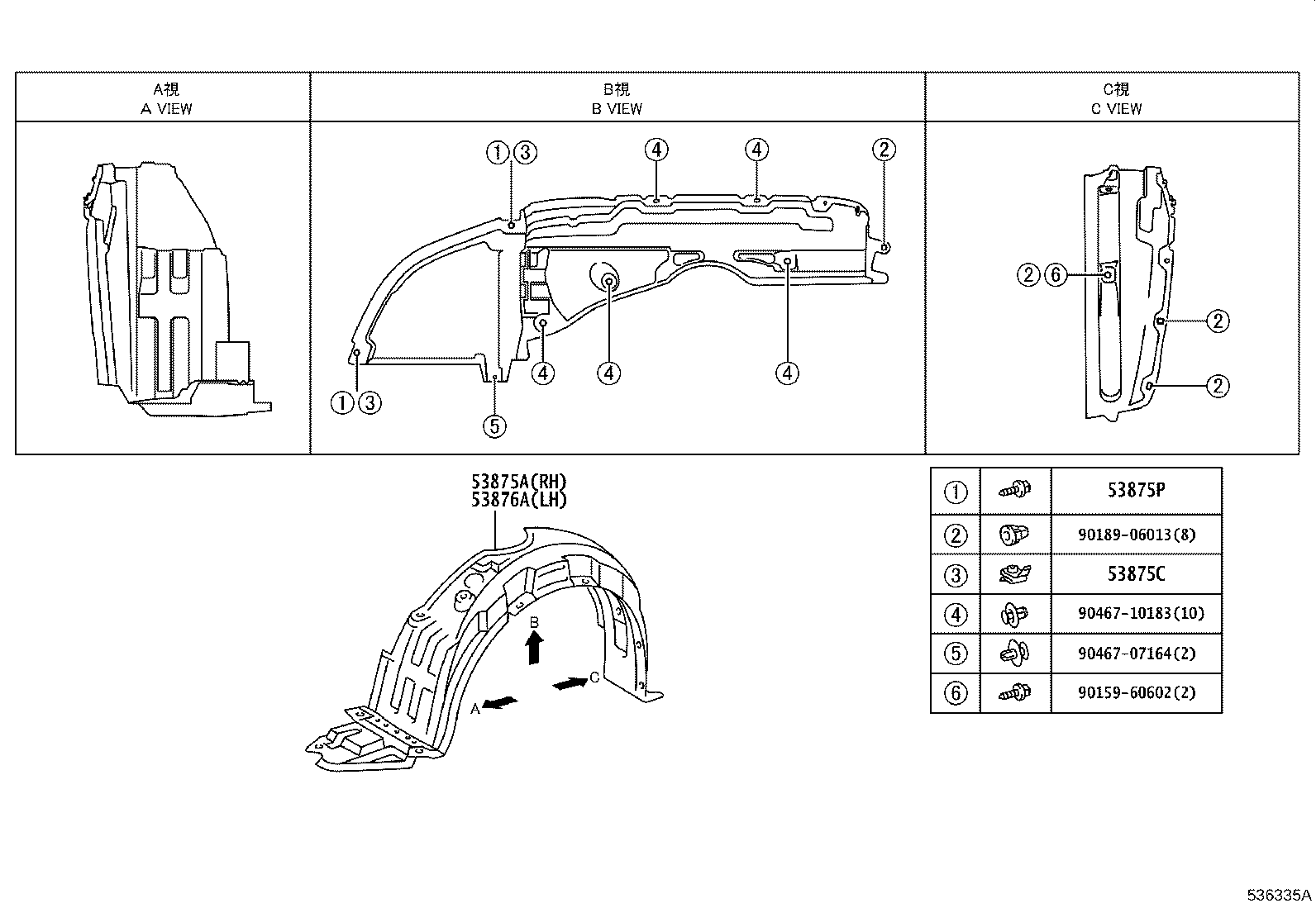

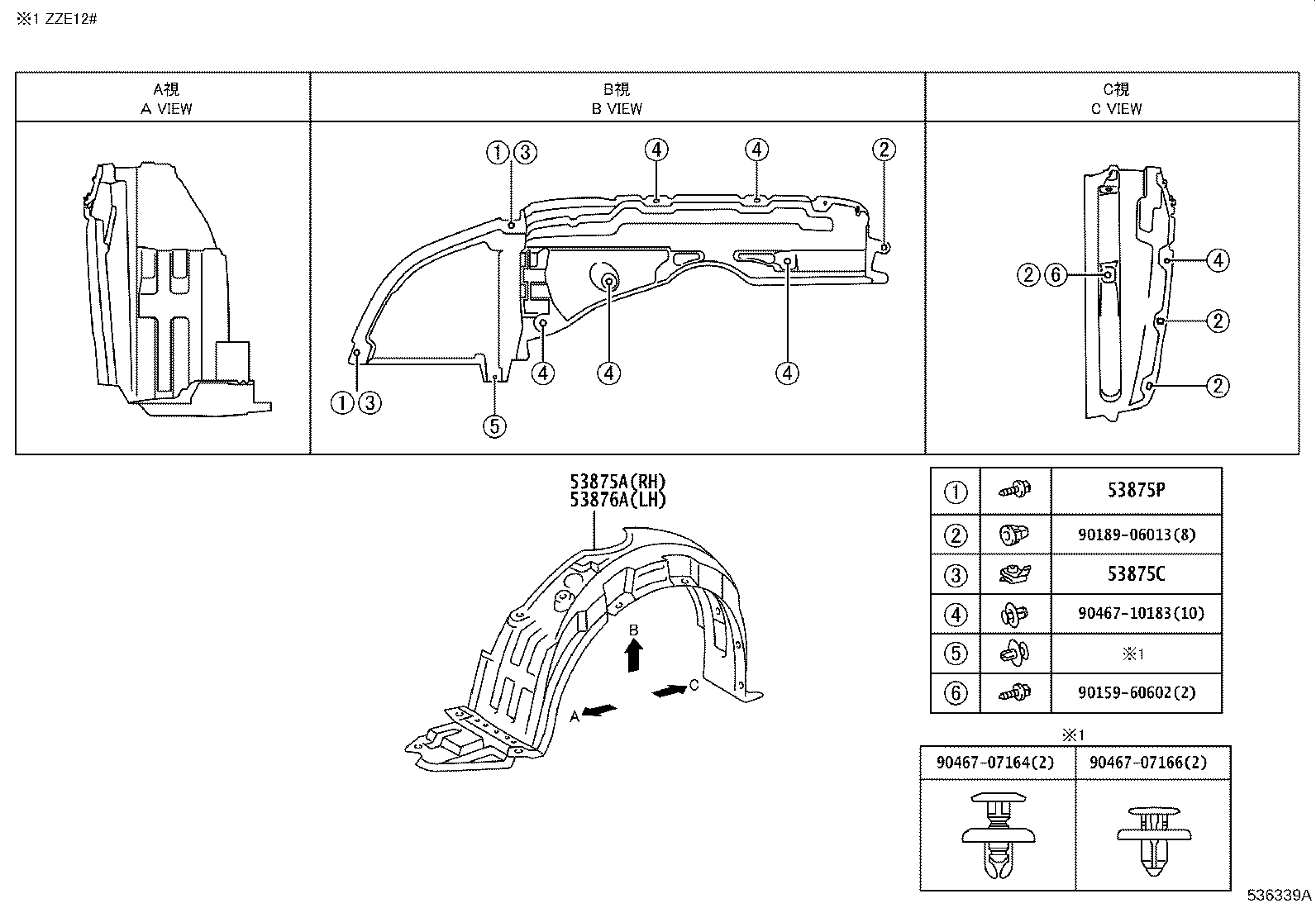

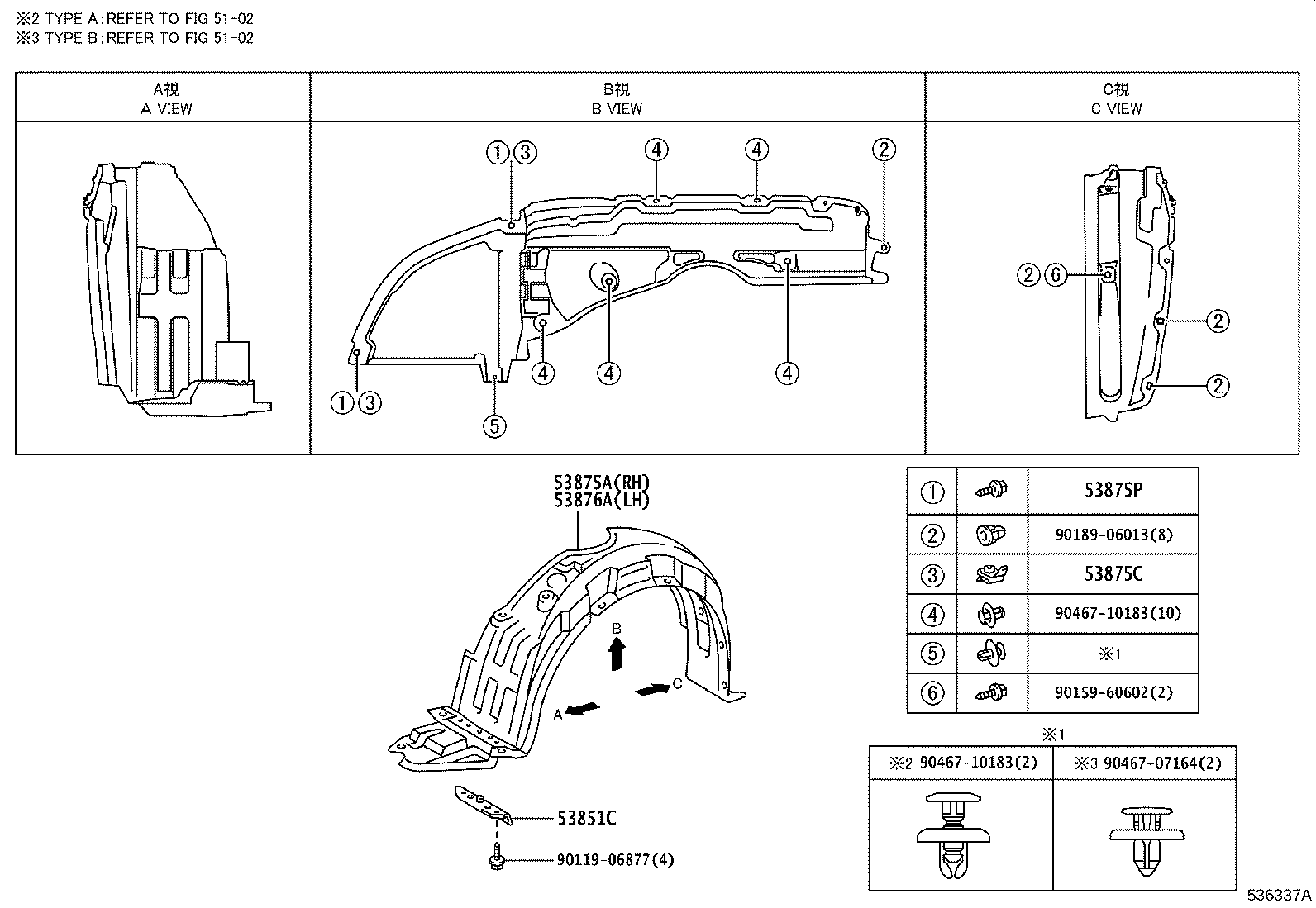

Figure 536332 536332 2000-08 → 2002-09 Figure 536332 536332 2002-09 → 2004-04 Figure 536332 536332 2002-09 → — Figure 536333A 536333A 2000-08 → 2002-09 Figure 536333A 536333A 2002-09 → 2004-04 Figure 536333A 536333A 2002-09 → — Figure 536334 536334 2002-09 → 2004-04 Figure 536335A 536335A 2002-09 → 2004-04 Figure 536336 536336 2002-09 → 2004-04 Figure 536337A 536337A 2002-09 → 2004-04 Figure 536338 536338 2004-04 → — Figure 536339A 536339A 2004-04 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53834C Plate, Front Fender Support, RH
53834D Plate, Front Fender Support, LH
53851C Pad, Front Wheel Opening Extension, NO.1
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53876A Liner, Front Fender, LH
53878C Spacer, Front Fender
53882P Seal, Front Fender, RH
53883K Seal, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
