Toyota Corolla/Altis Sed/WG
2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General
Discontinued model
Data version 2009-01

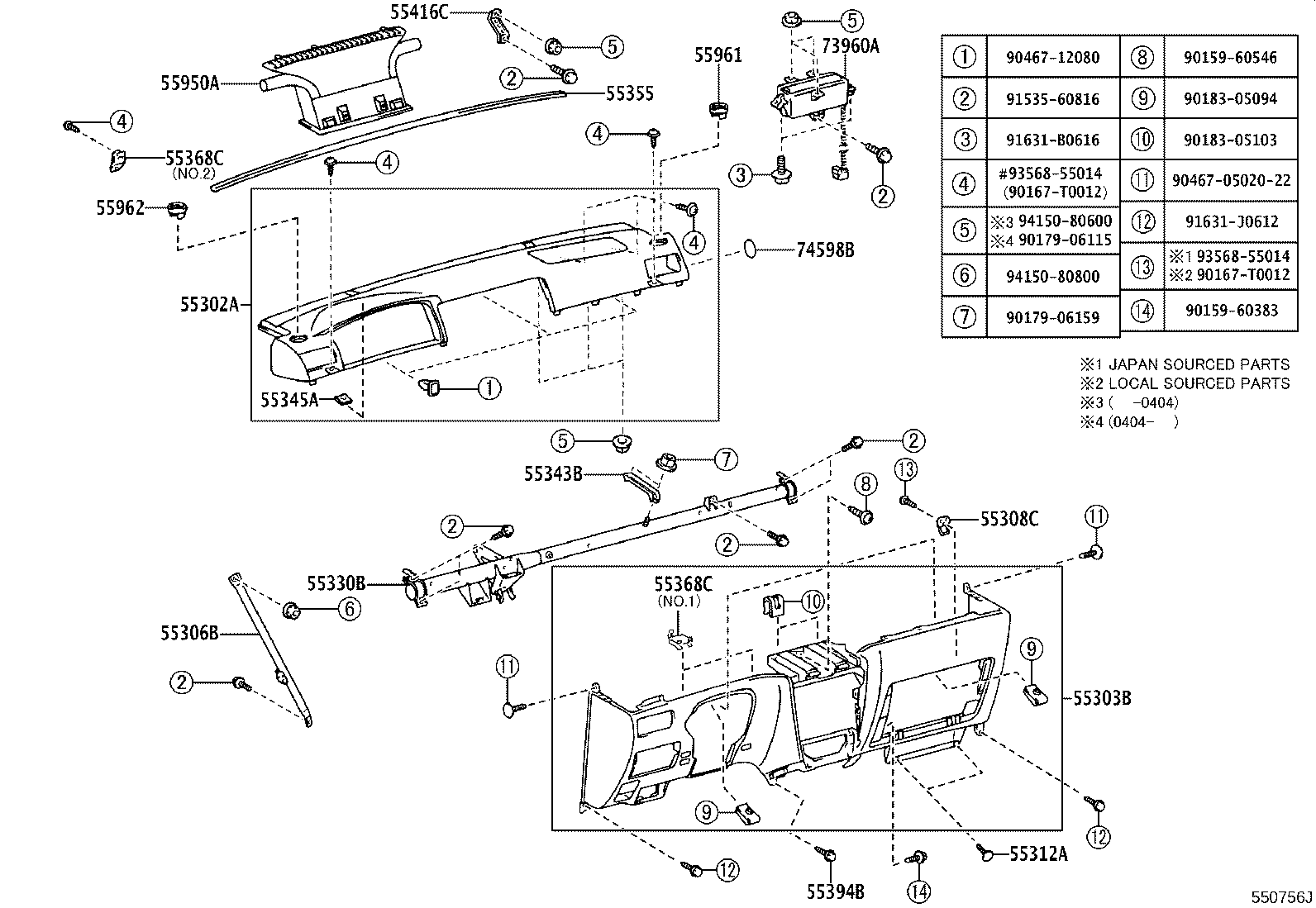

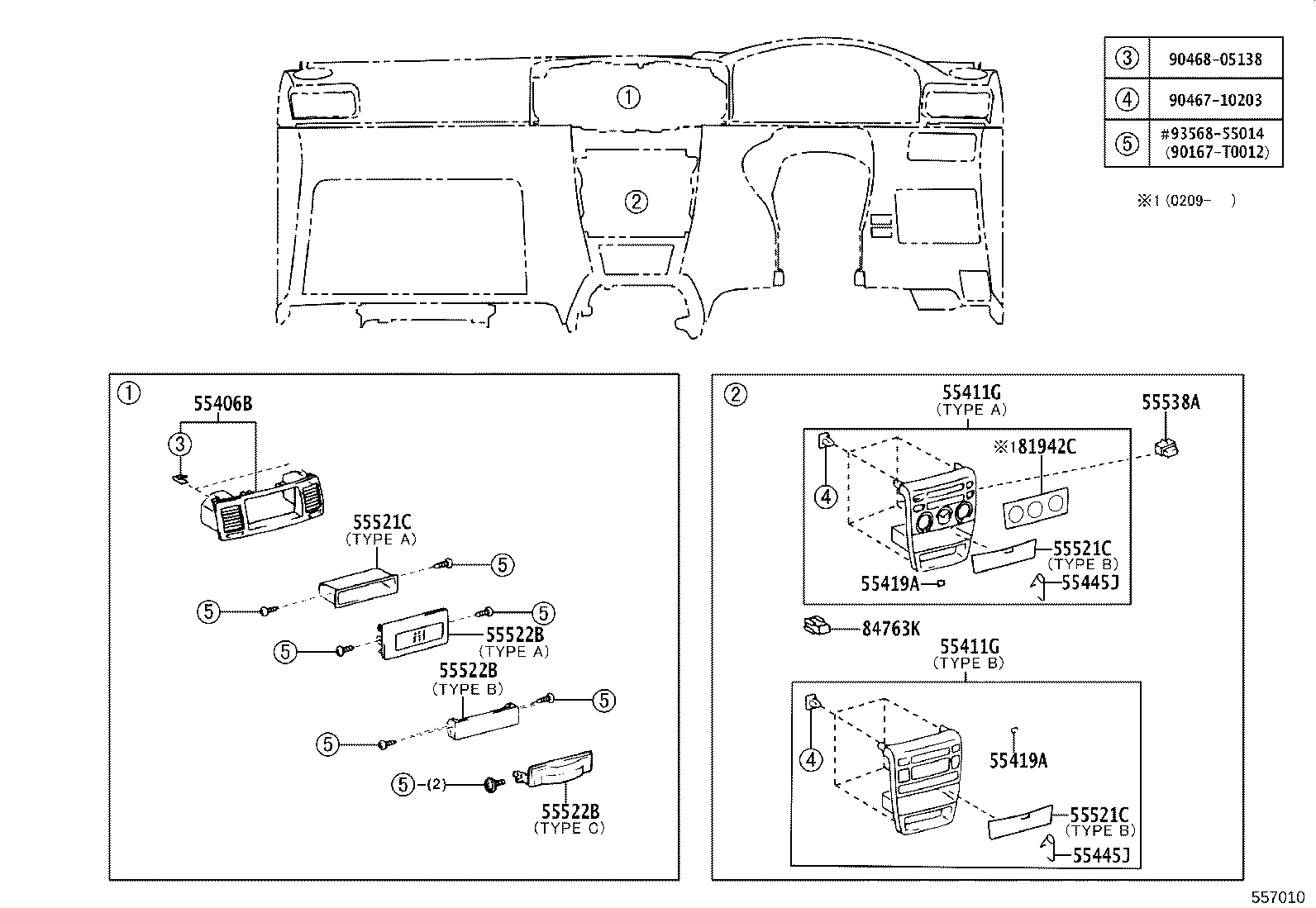

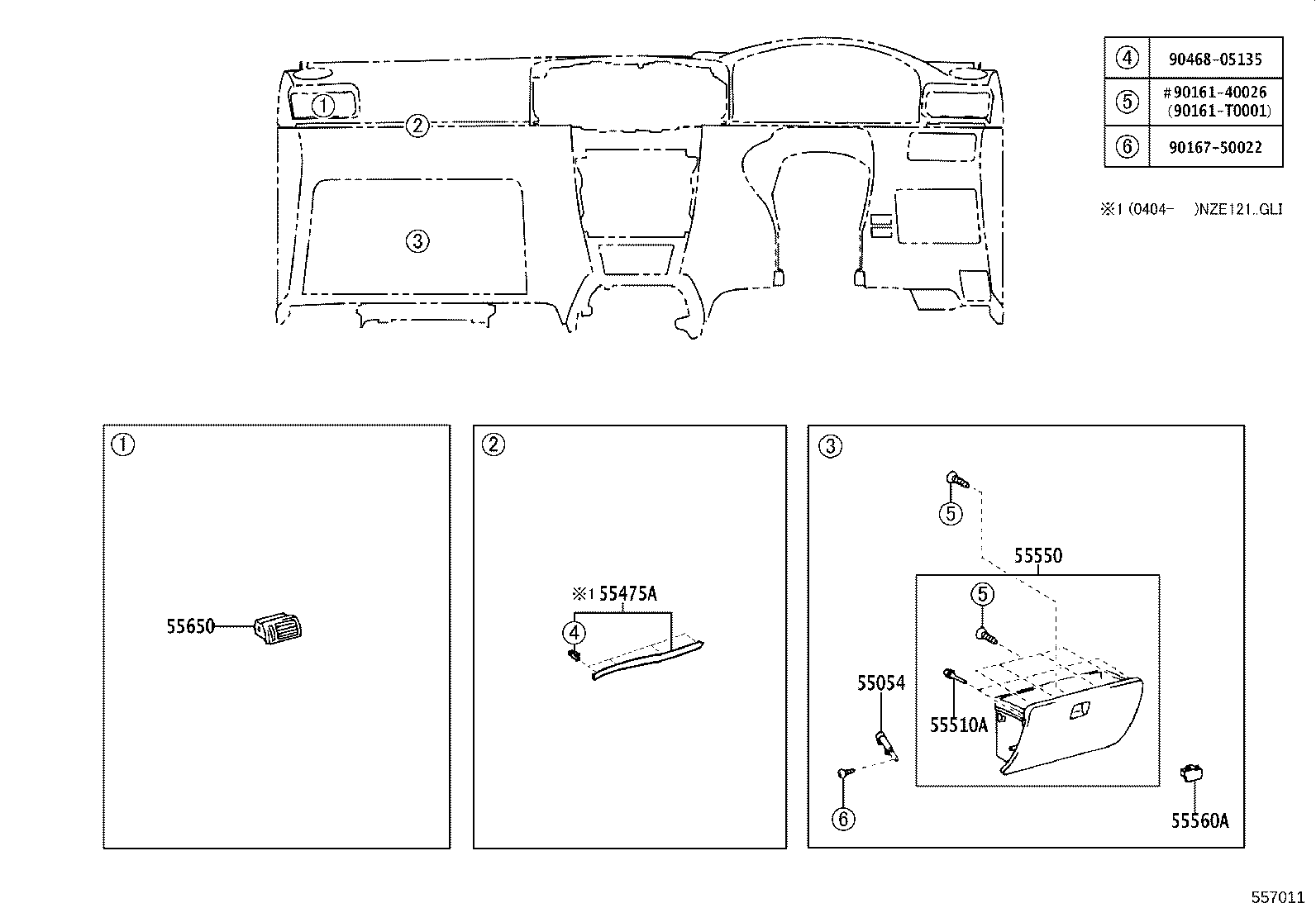

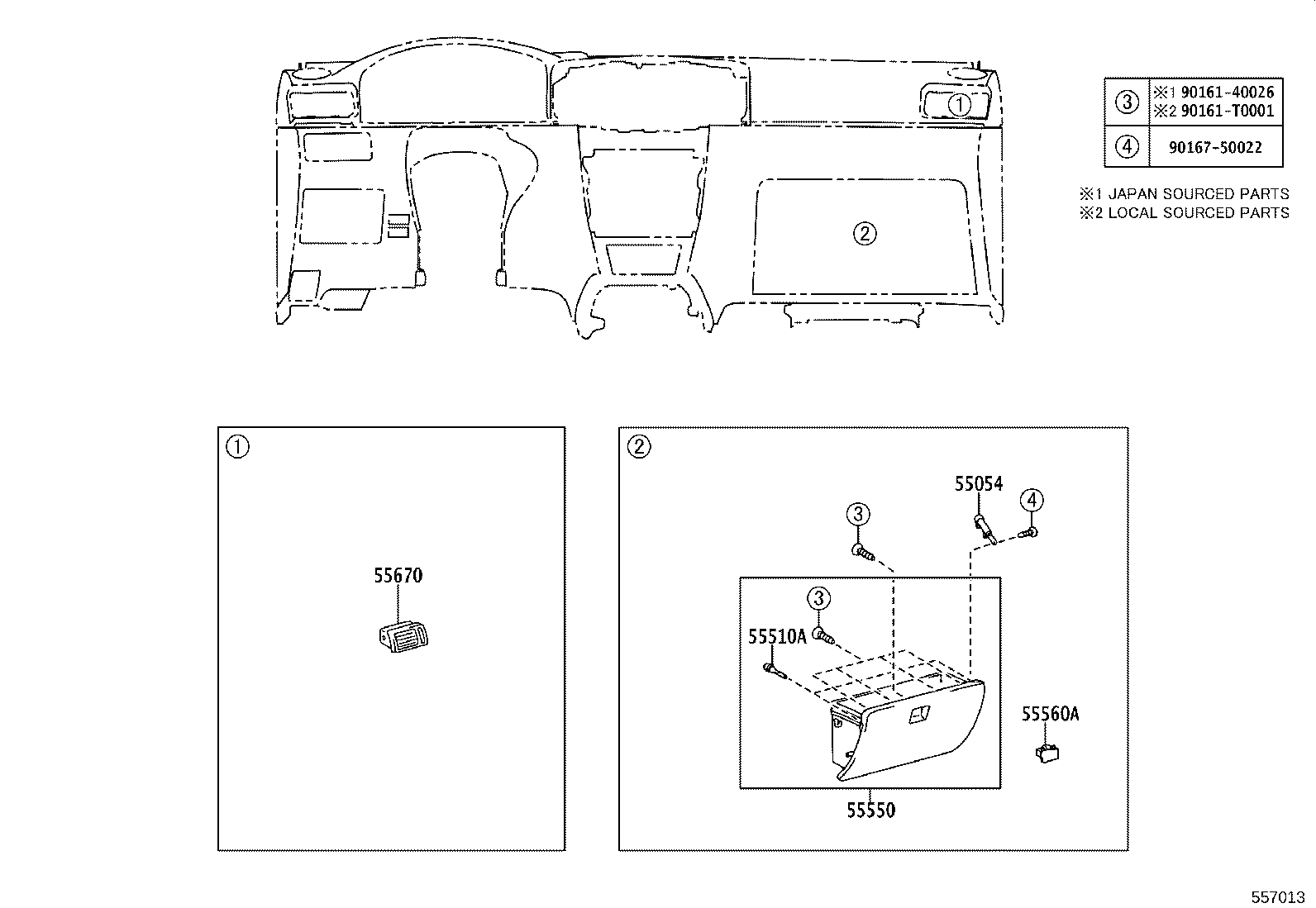

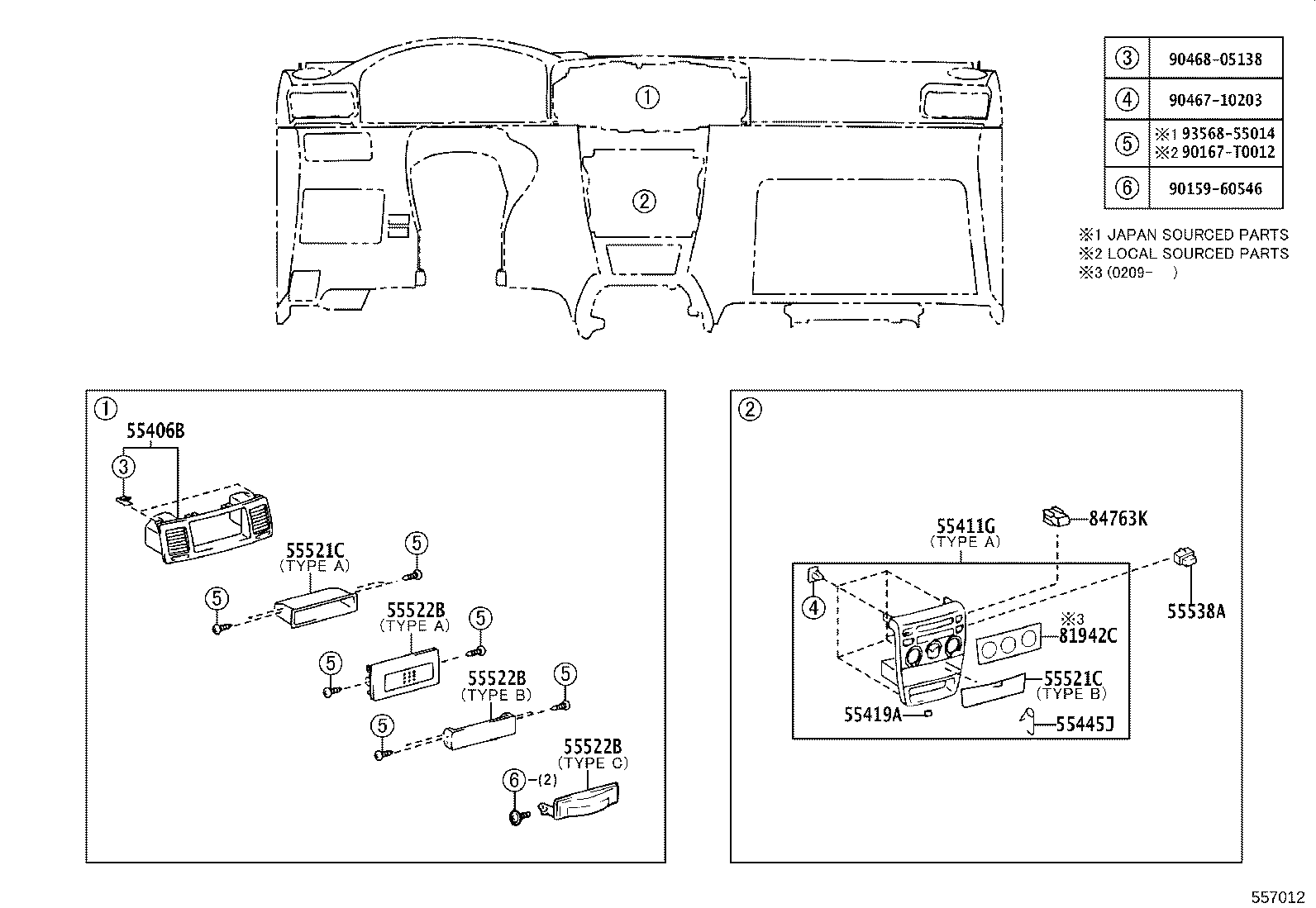

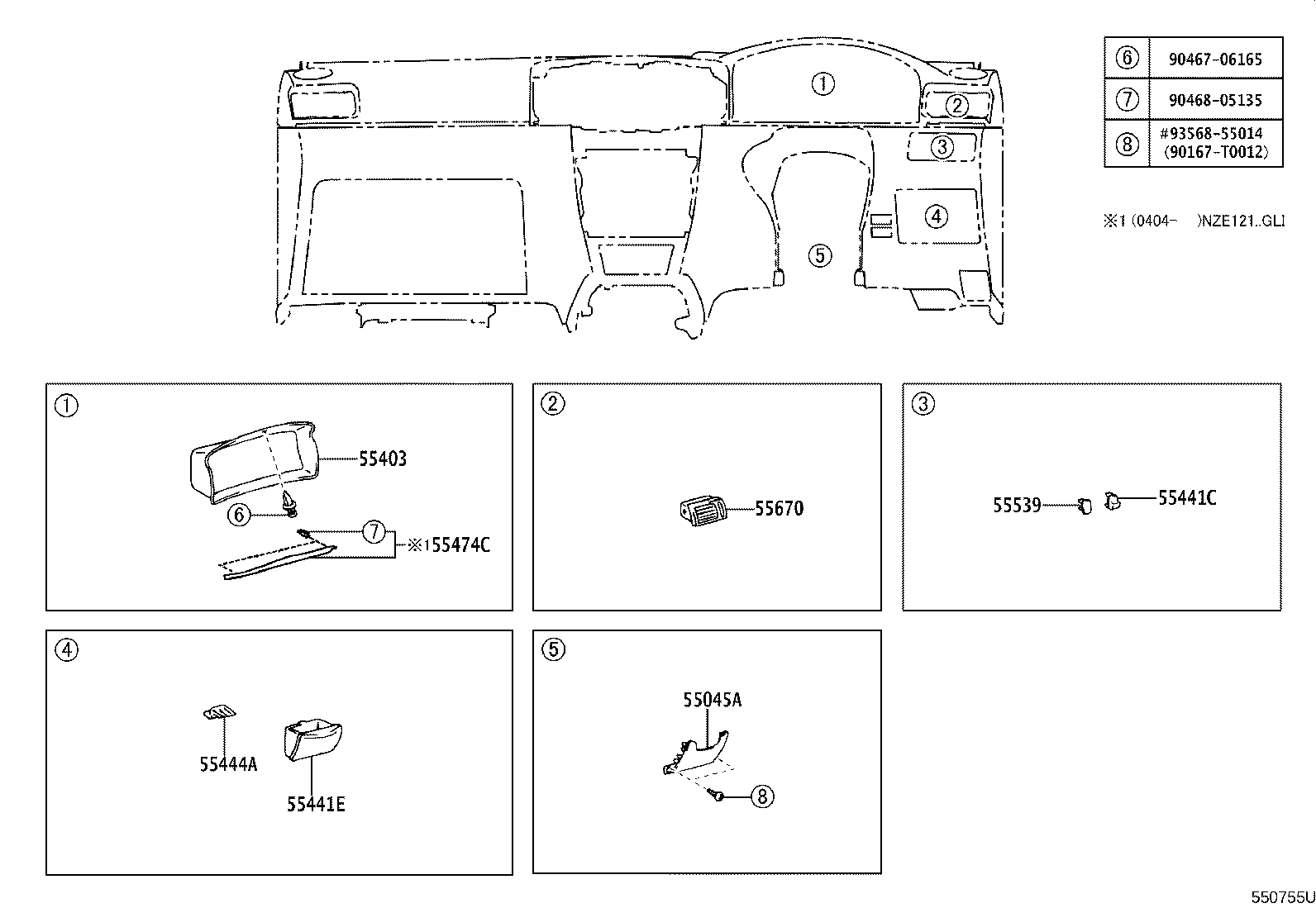

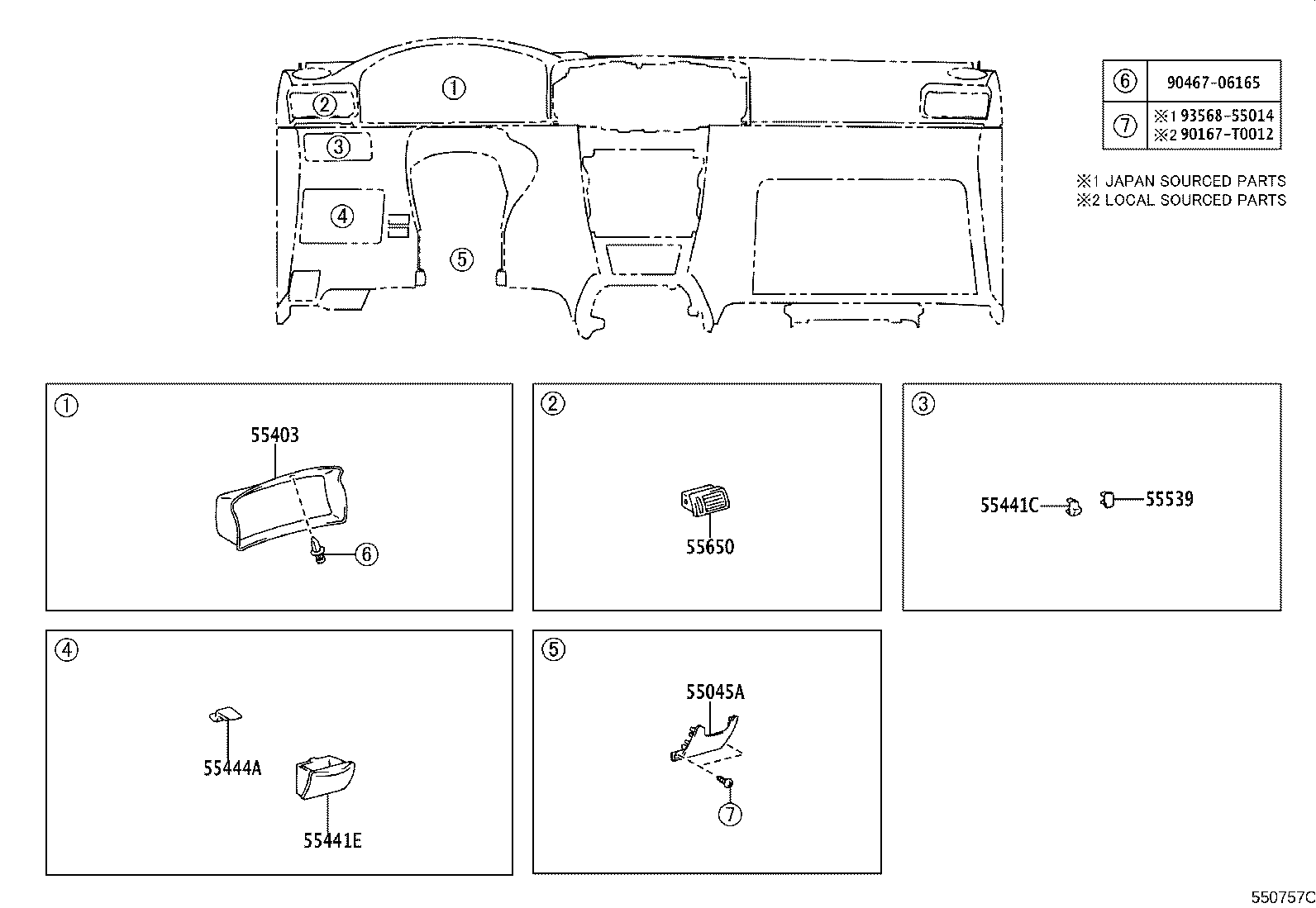

Instrument Panel & Glove Compartment
41 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045A | Panel Sub-assy, Instrument Panel Finish, Lower RH |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306B | Brace Sub-assy, Instrument Panel TO Cowl |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55312A | Clip, Instrument Panel |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55345A | Clip, Instrument Panel, NO.1 |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55368C | Bracket, Meter Mounting |
| 55394B | Bolt, Instrument Panel |
| 55403 | Hood Sub-assy, Meter |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55416C | Retainer, Instrument Cluster Finish Panel |
| 55419A | Cushion, Instrument Cluster Finish Panel |
| 55441C | Box, Instrument Panel Coin |
| 55441E | Box, Instrument Panel |
| 55444A | Spring, Instrument Panel Box |
| 55445J | Spring, Instrument Panel Box |
| 55474C | Garnish, Instrument Cluster Finish Panel, NO.1 |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55538A | Cover, Cooler Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55560A | Lock Assy, Glove Compartment Door |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 74598B | Label, Passenger Airbag Caution |
| 81942C | Sheet, Heater Control Name |
| 84763K | Plate, Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
