Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01

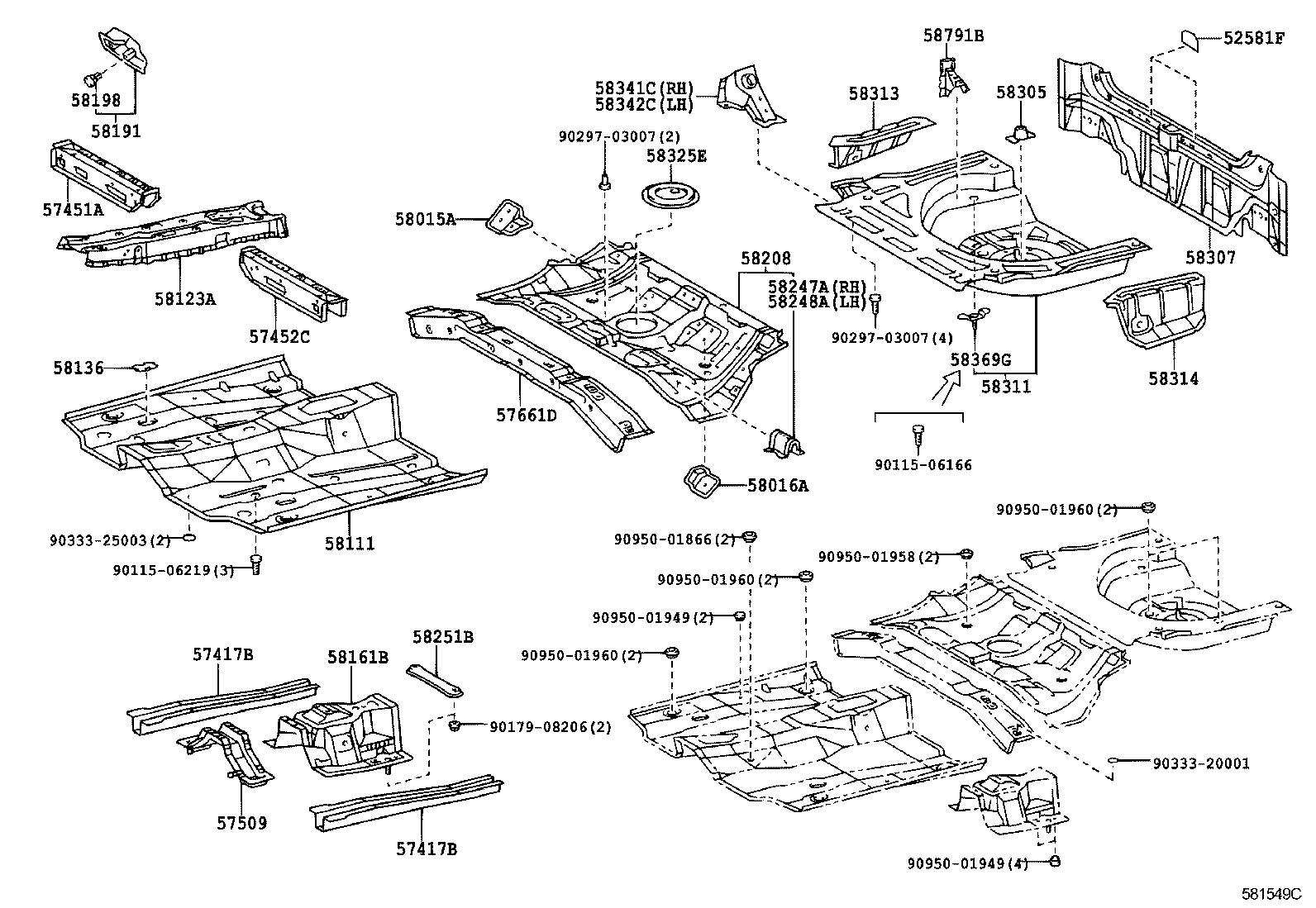

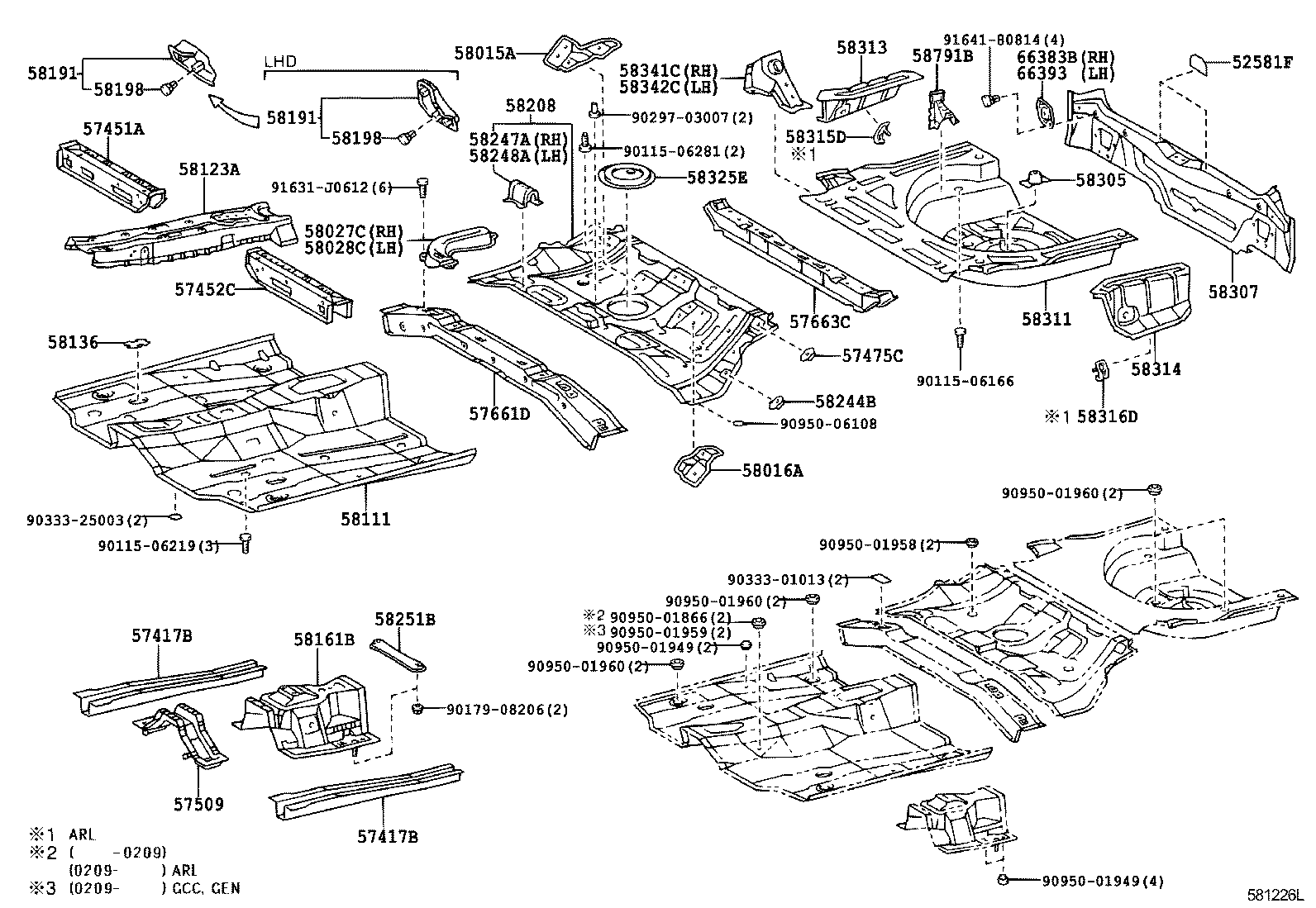

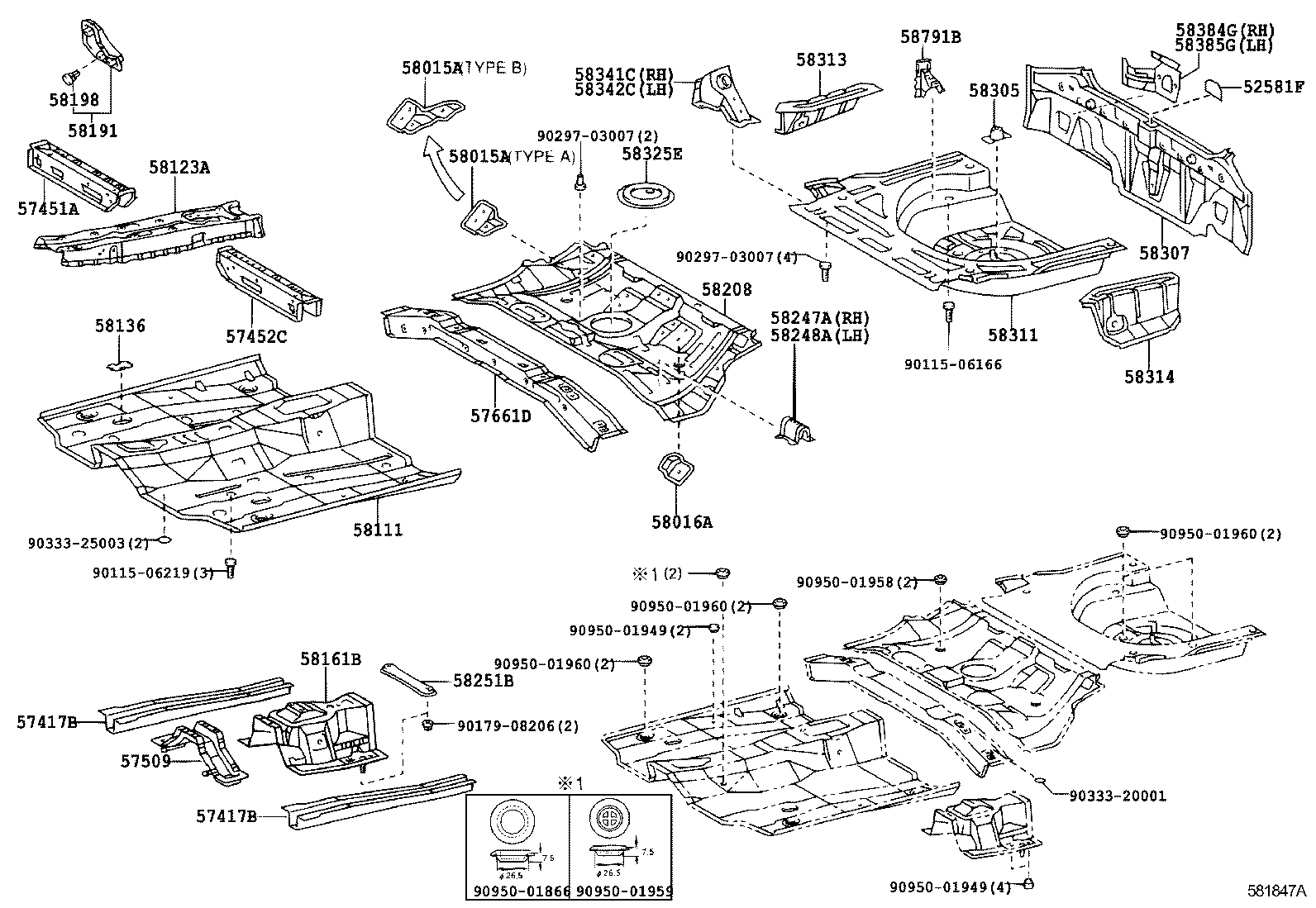

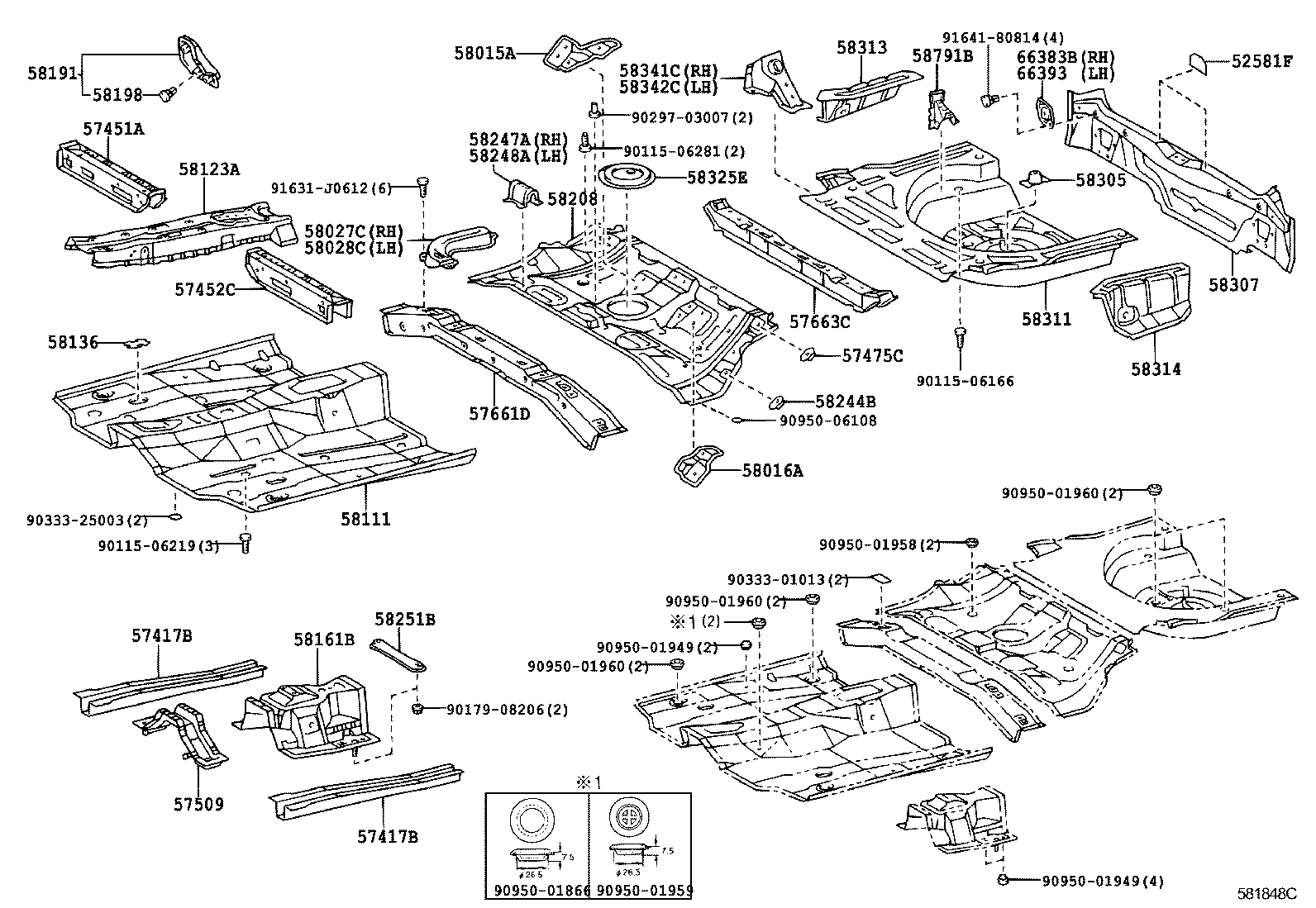

Floor Pan & Lower Back Panel

39 part groups · 5 illustrations

PNC	Description
52581F	Protector, Rear Bumper
57417B	Reinforcement, Front Floor Under
57451A	Member, Front Floor Cross, RH
57452C	Member, Front Floor Cross, LH
57475C	Plate, Front Floor Crossmember
57509	Reinforcement Sub-assy, Front Floor, Center
57661D	Member, Rear Floor Cross, Front
57663C	Member, Rear Floor Cross, Center
58015A	Reinforce Sub-assy, Belt Anchor, NO.3 RH
58016A	Reinforce Sub-assy, Belt Anchor, NO.3 LH
58027C	Panel Sub-assy, Center Floor Side, RH
58028C	Panel Sub-assy, Center Floor Side, LH
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58136	Cover, Front Floor Hole
58161B	Reinforcement, Belt Anchor TO Floor Pan
58191	Footrest, Front Floor
58198	Clip, Footrest
58208	Pan, Center Floor
58244B	Bracket, Rear Seat Cushion Mounting
58247A	Reinforcement, Rear Seat Cushion Hinge, RH
58248A	Reinforcement, Rear Seat Cushion Hinge, LH
58251B	Brace, Floor Panel, Front
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58315D	Extension, Rear Floor Pan, RH
58316D	Extension, Rear Floor Pan, LH
58325E	Cover, Rear Floor Service Hole
58341C	Bracket, Rear Absorber Mounting, NO.1 RH
58342C	Bracket, Rear Absorber Mounting, NO.1 LH
58369G	Bracket, Fuel Tube, NO.3
58384G	Gusset, Lower Back, Upper RH
58385G	Gusset, Lower Back, Upper LH
58791B	Carrier, Jack
66383B	Bracket, Rope Hook, NO.1 RH
66393	Bracket, Rope Hook, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
