Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

7 part groups · 4 illustrations

Illustrations

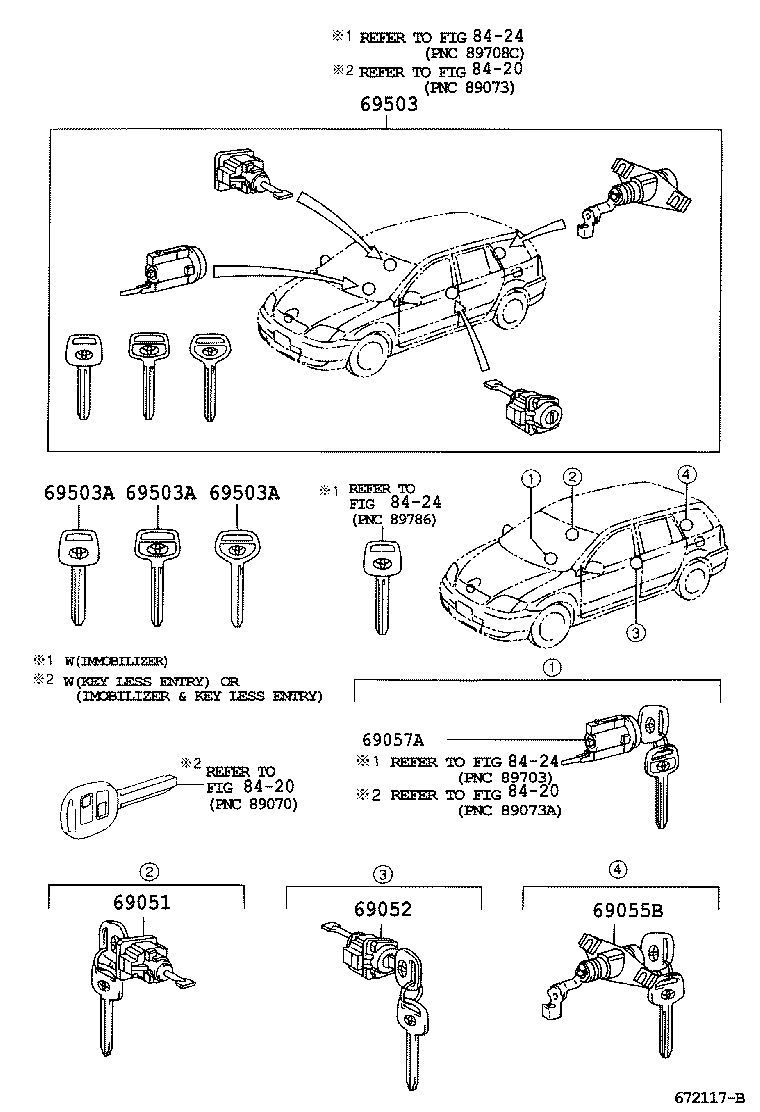

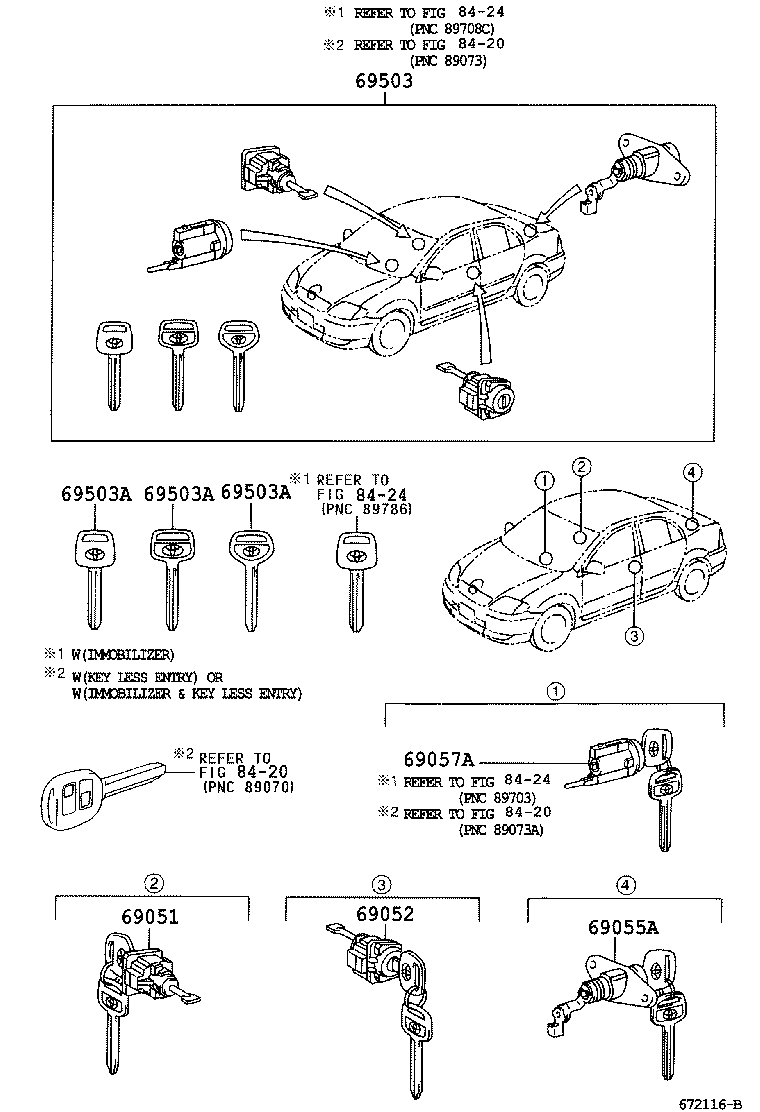

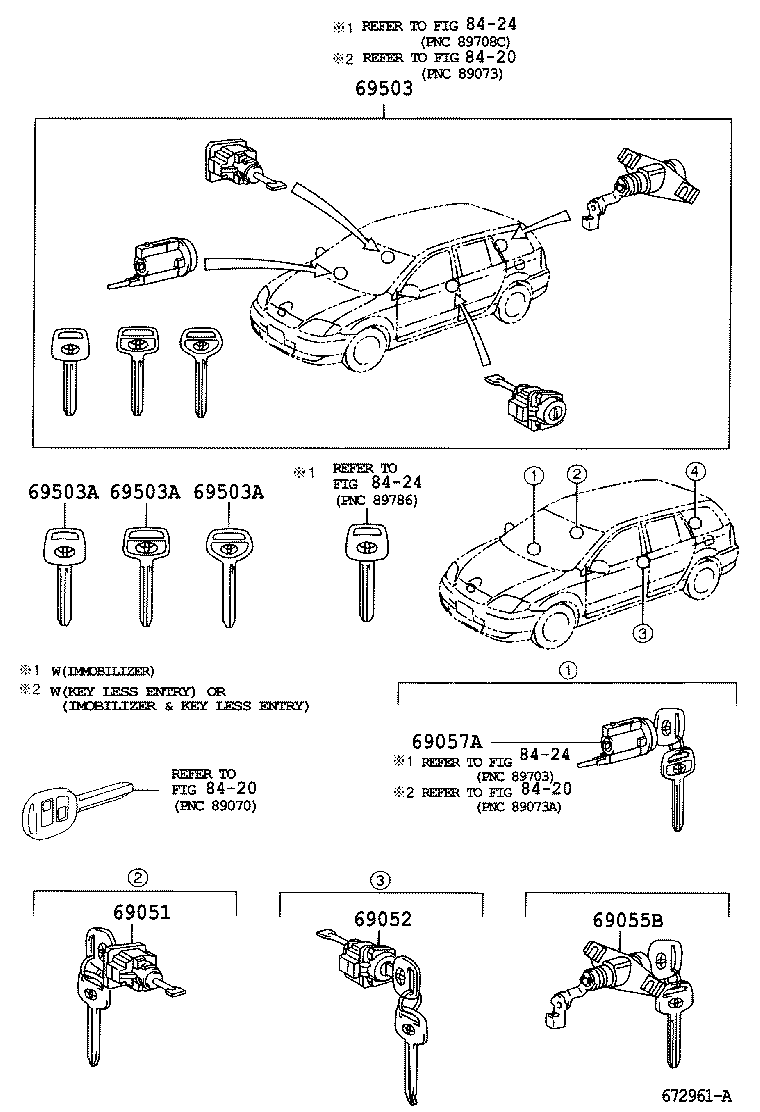

Figure 672115C 672115C 2000-08 → — Figure 672116B 672116B 2000-08 → — Figure 672961A 672961A 2000-08 → — Figure 672117B 672117B 2000-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
