Toyota Corolla/Altis Sed/WG
2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General
Discontinued model
Data version 2009-01

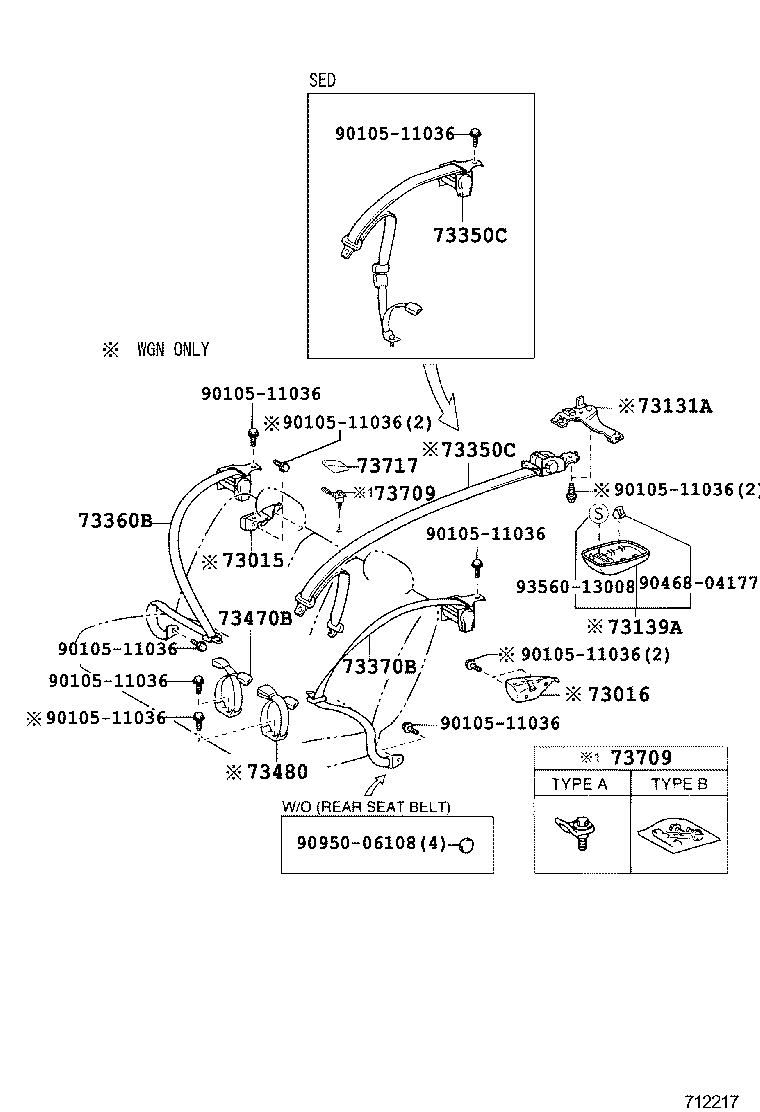

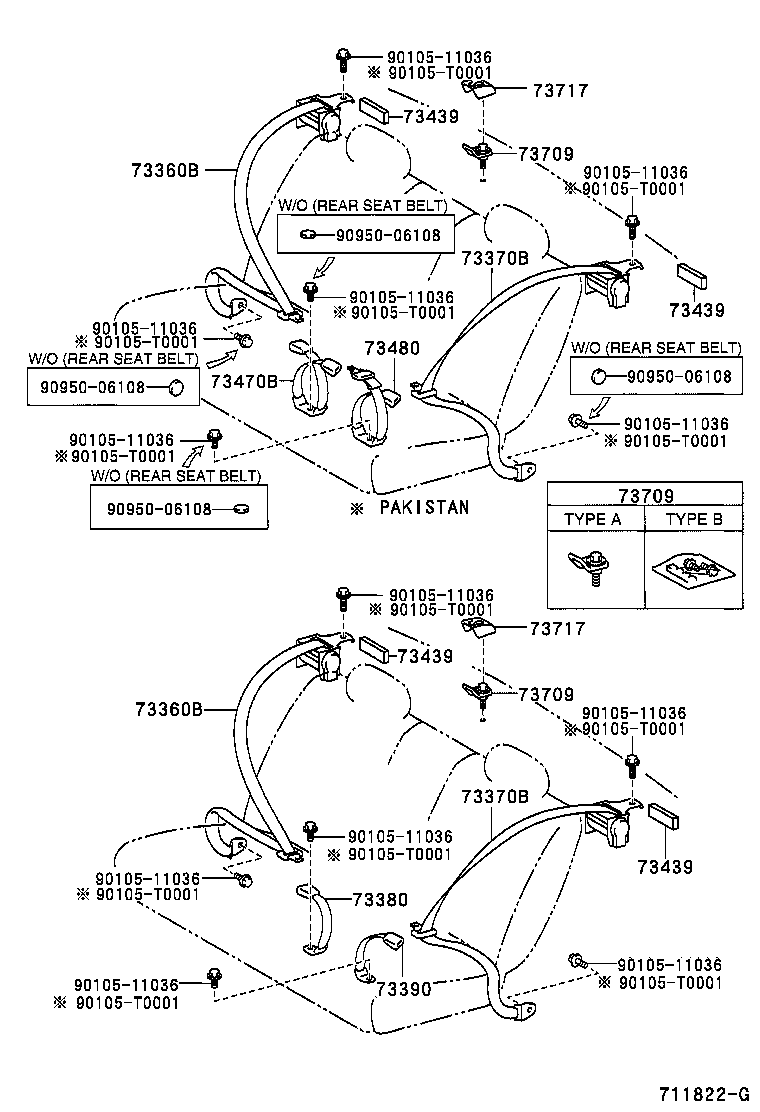

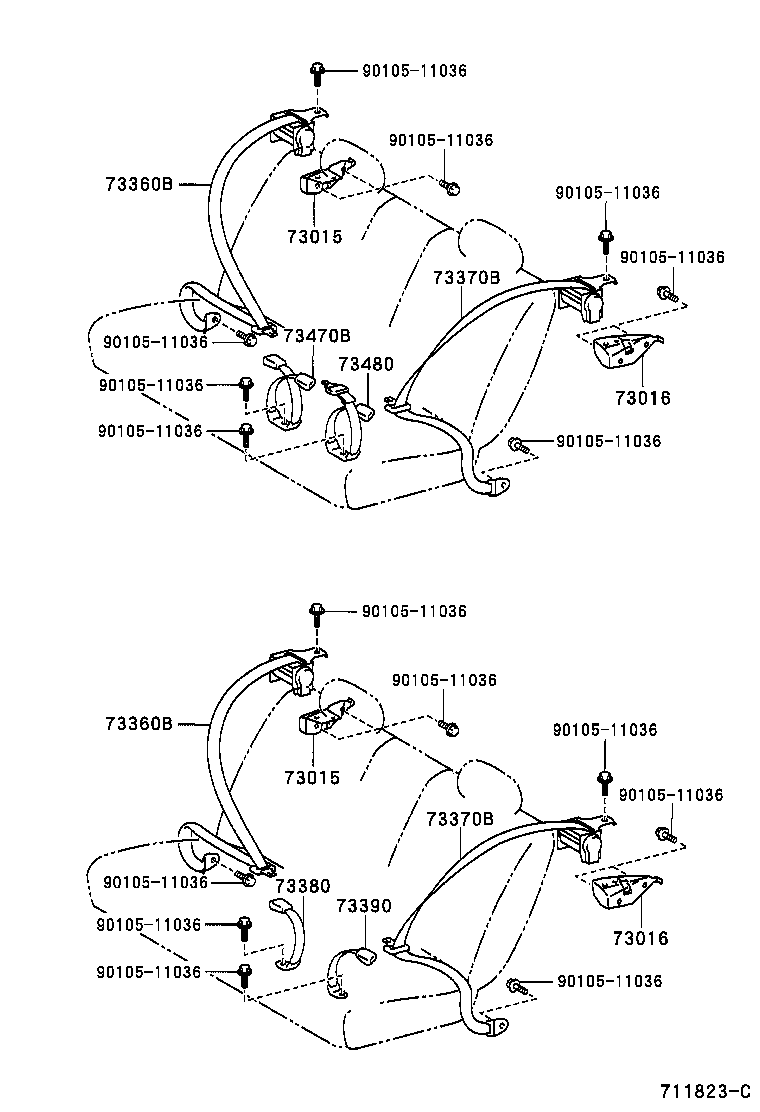

Seat Belt & Child Restraint Seat
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73015 | Bracket Sub-assy, Belt Outer Anchor, RH |
| 73016 | Bracket Sub-assy, Belt Outer Anchor, LH |
| 73131A | Bracket, Seat Belt |
| 73135 | Cover, Shoulder Belt Anchorage Plate |
| 73139A | Cover, Seat Belt Anchor |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360B | Belt Assy, Rear Seat, Outer |
| 73370B | Belt Assy, Rear Seat, Outer |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73439 | Cushion, Rear Seat Belt Retractor |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
| 73709 | Bracket Sub-assy, Tether Anchor |
| 73717 | Cover, Child Restraint Seat Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
