Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

15 part groups · 3 illustrations

Illustrations

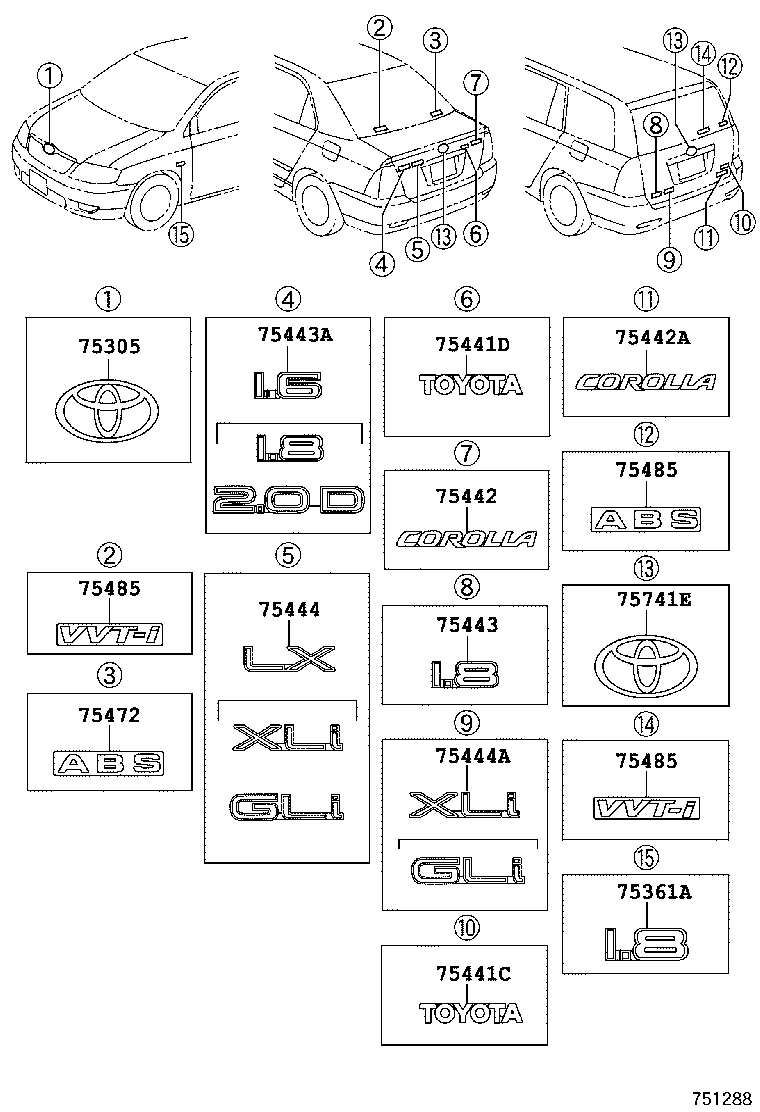

Figure 750813I 750813I 2000-08 → 2004-04 Figure 750813I 750813I 2004-04 → — Figure 751288A 751288A 2004-04 → —

Part groups

PNCDescription
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75361A Plate, Front Fender Name, NO.1
75441C Plate, Back Door Name
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75444A Plate, Back Door Name, NO.4
75445 Plate, Luggage Compartment Door Name, NO.5
75472 Plate, Rear Window Name
75485 Plate, Back Window Name
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
