Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

13 part groups · 6 illustrations

Illustrations

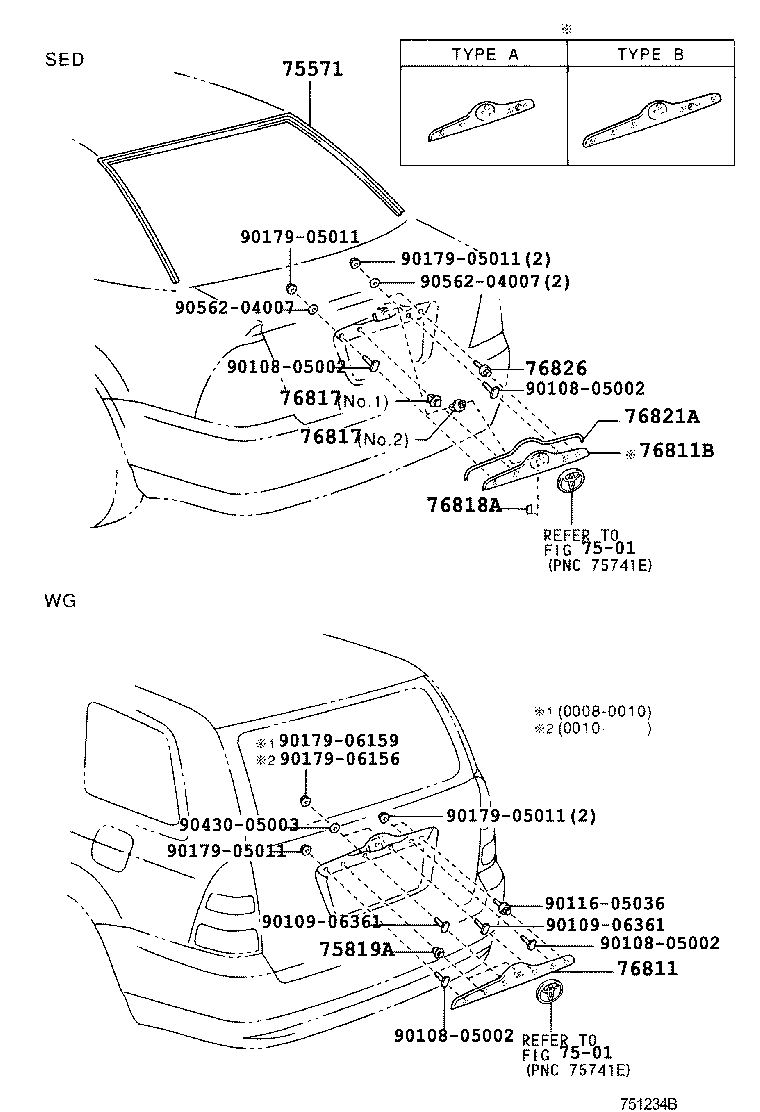

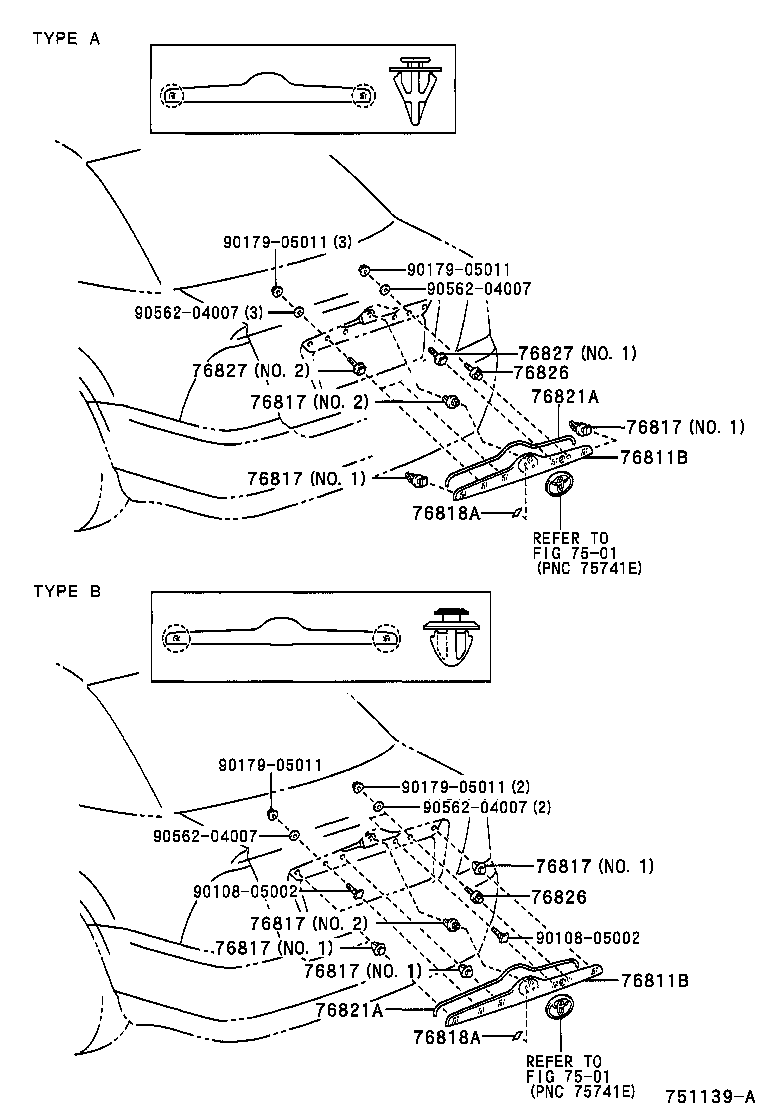

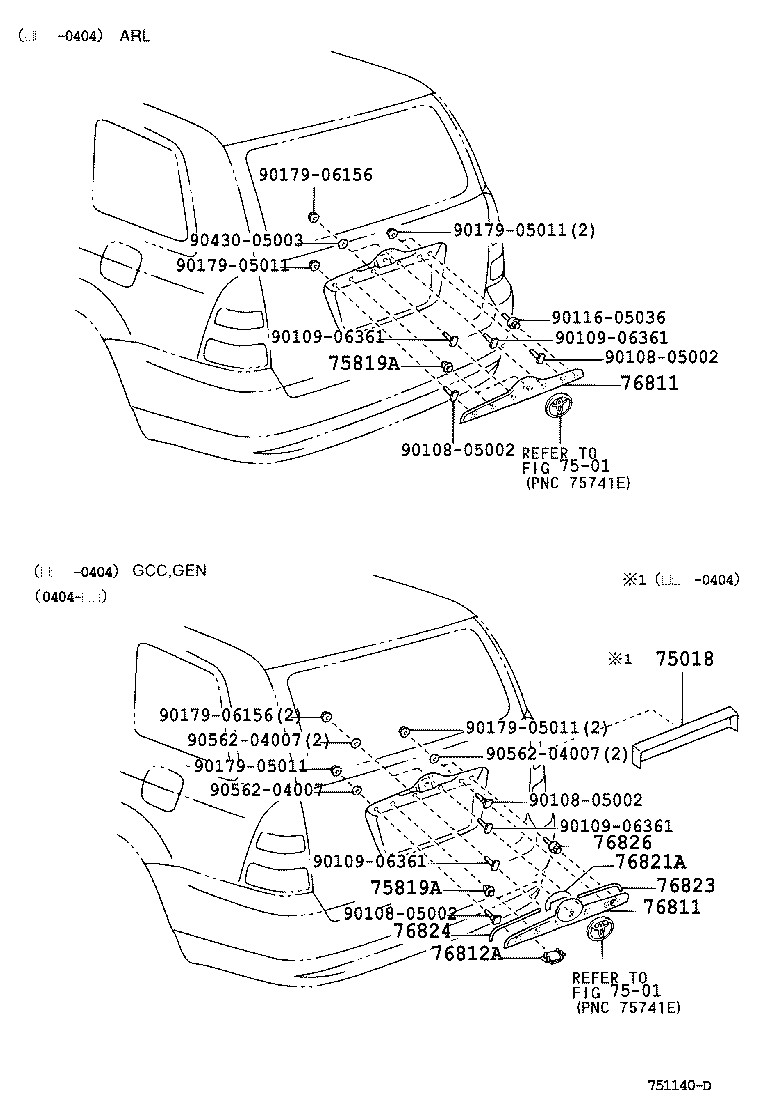

Figure 750817E 750817E 2000-08 → 2002-09 Figure 751234B 751234B 2002-09 → 2004-04 Figure 751138 751138 2002-09 → — Figure 751139A 751139A 2002-09 → — Figure 751291 751291 2004-04 → — Figure 751140D 751140D 2002-09 → —

Part groups

PNCDescription
75018 Frame Sub-assy, Rear License Plate
75571 Moulding, Back Window, Outside Upper
75819A Clip, Back Door Moulding
76811 Garnish, Back Door, Outside
76811B Garnish, Luggage Compartment Door, Outside
76812A Garnish, Back Door, Outside NO.2
76817 Clip, Back Door Outside Garnish
76818A Pad, Luggage Garnish, NO.1
76821A Protector, Luggage Compartment Door Outside Garnish
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76826 Retainer, Back Door Garnish, NO.1
76827 Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
