Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

57 part groups · 12 illustrations

Illustrations

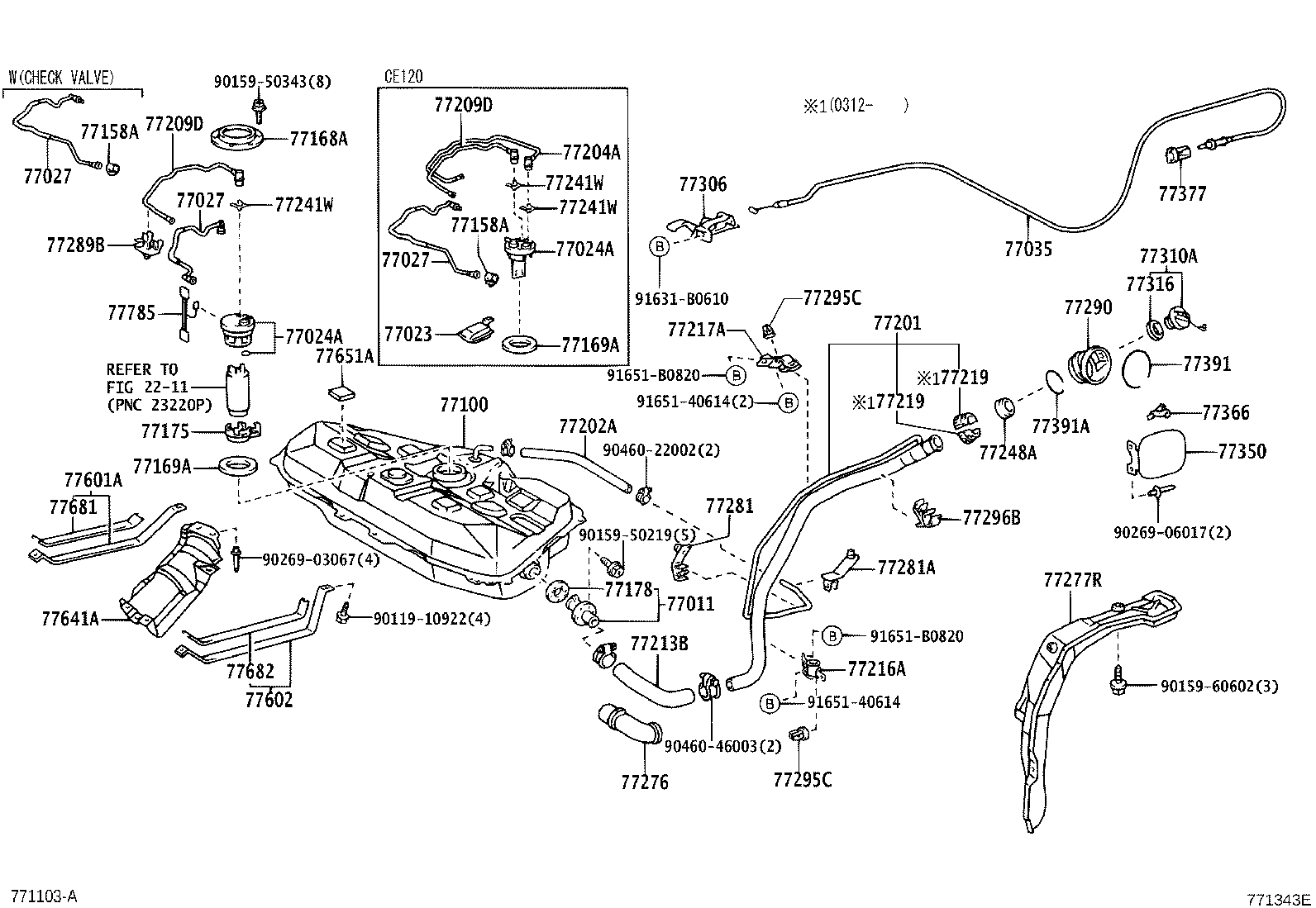

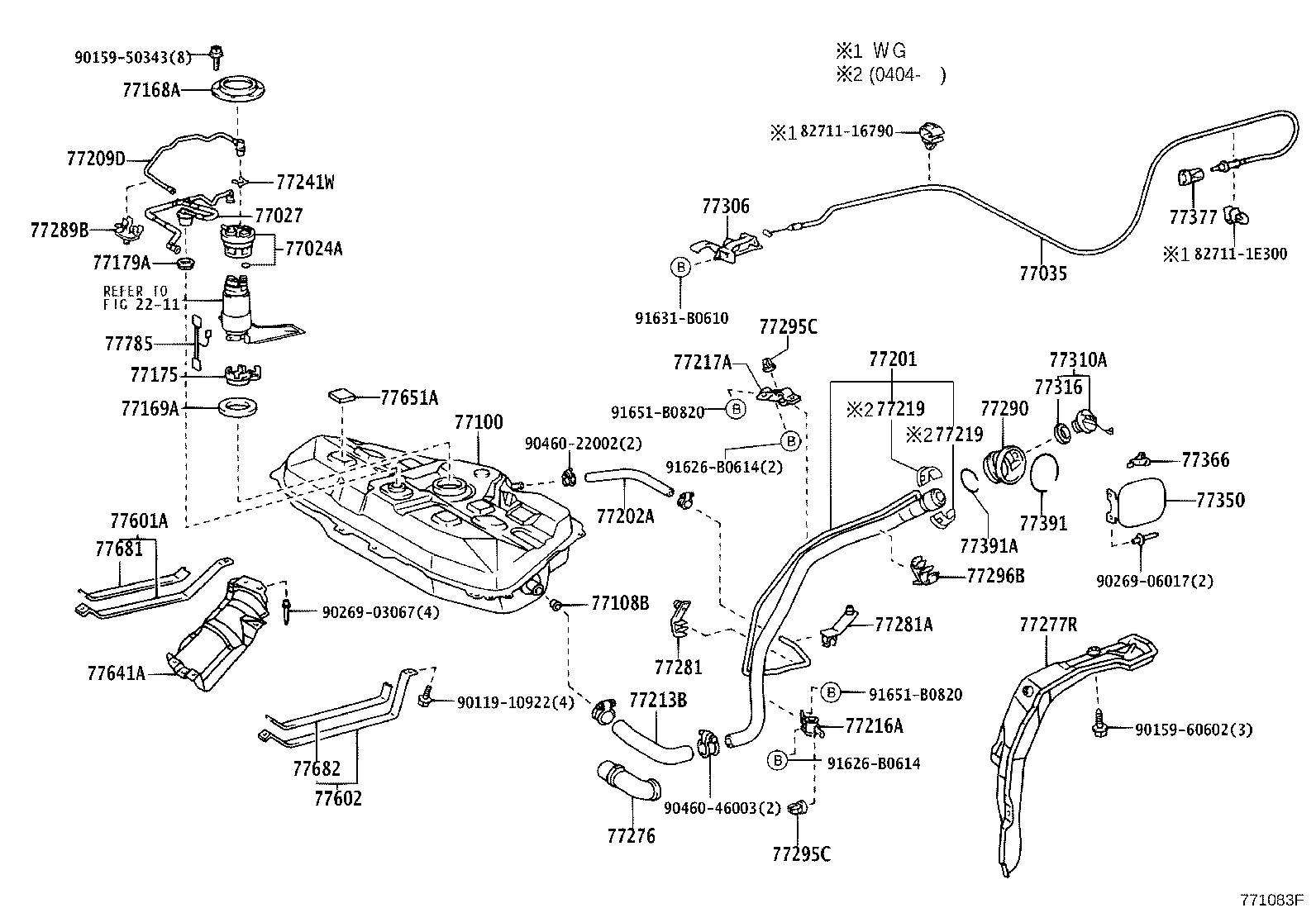

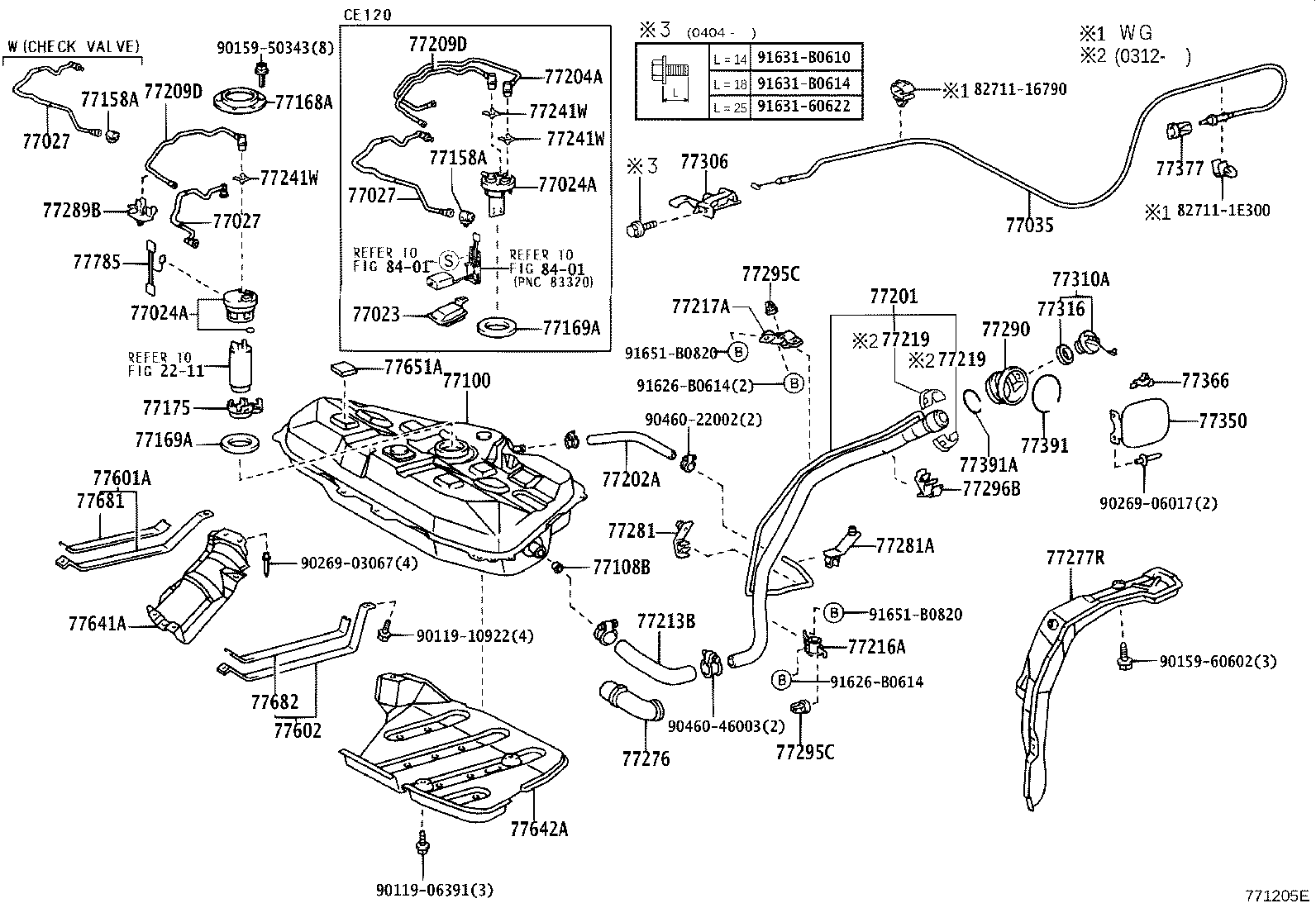

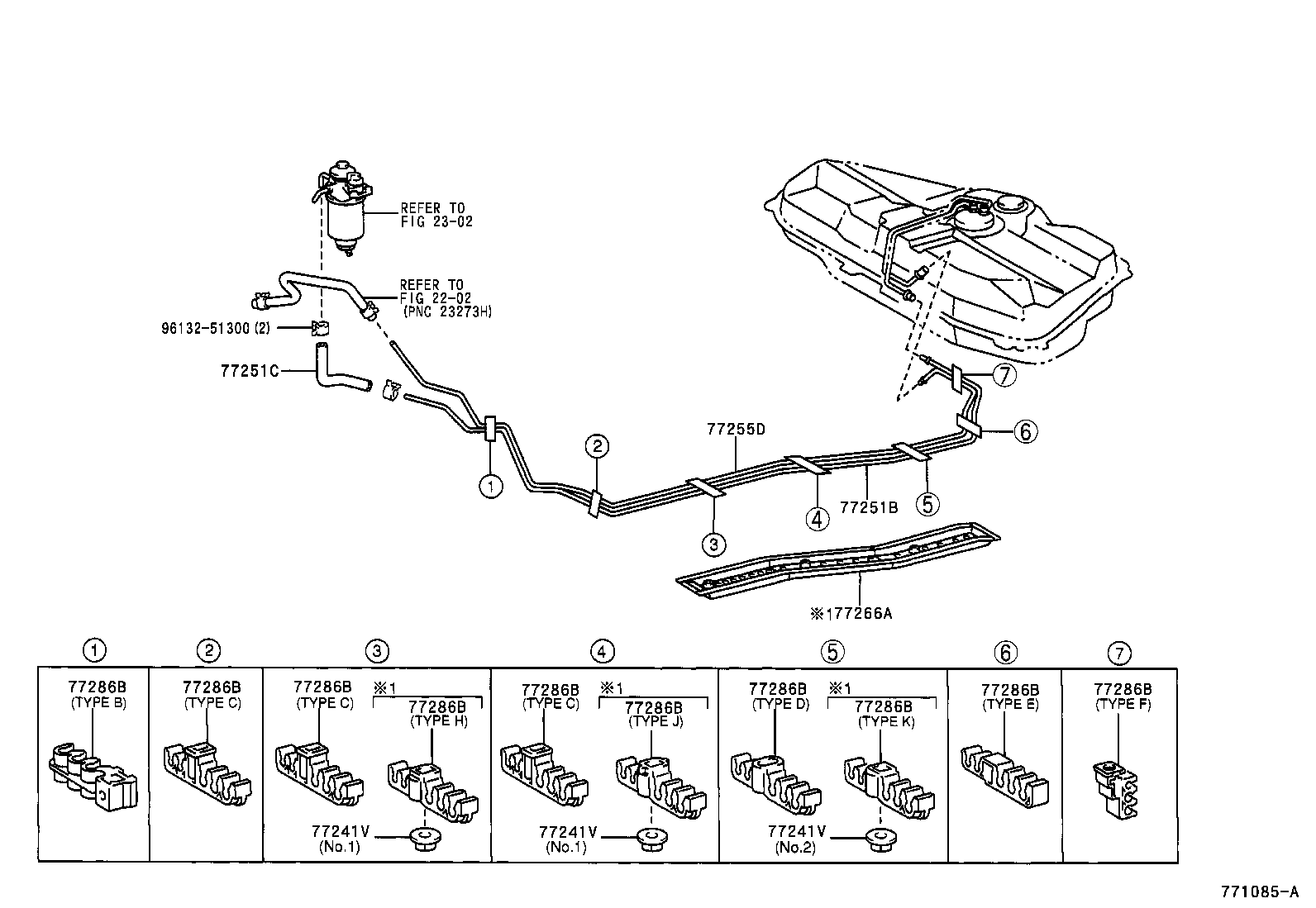

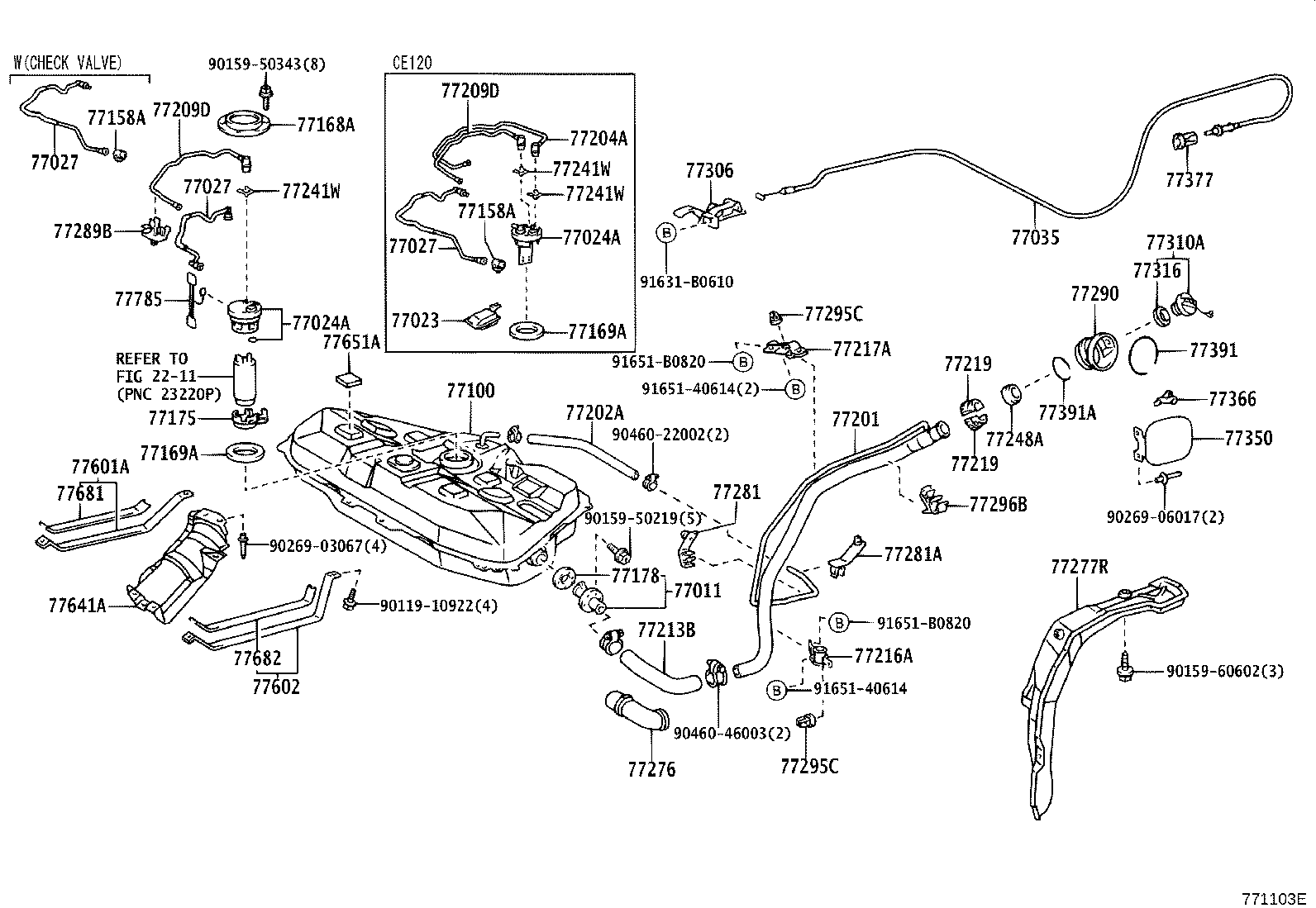

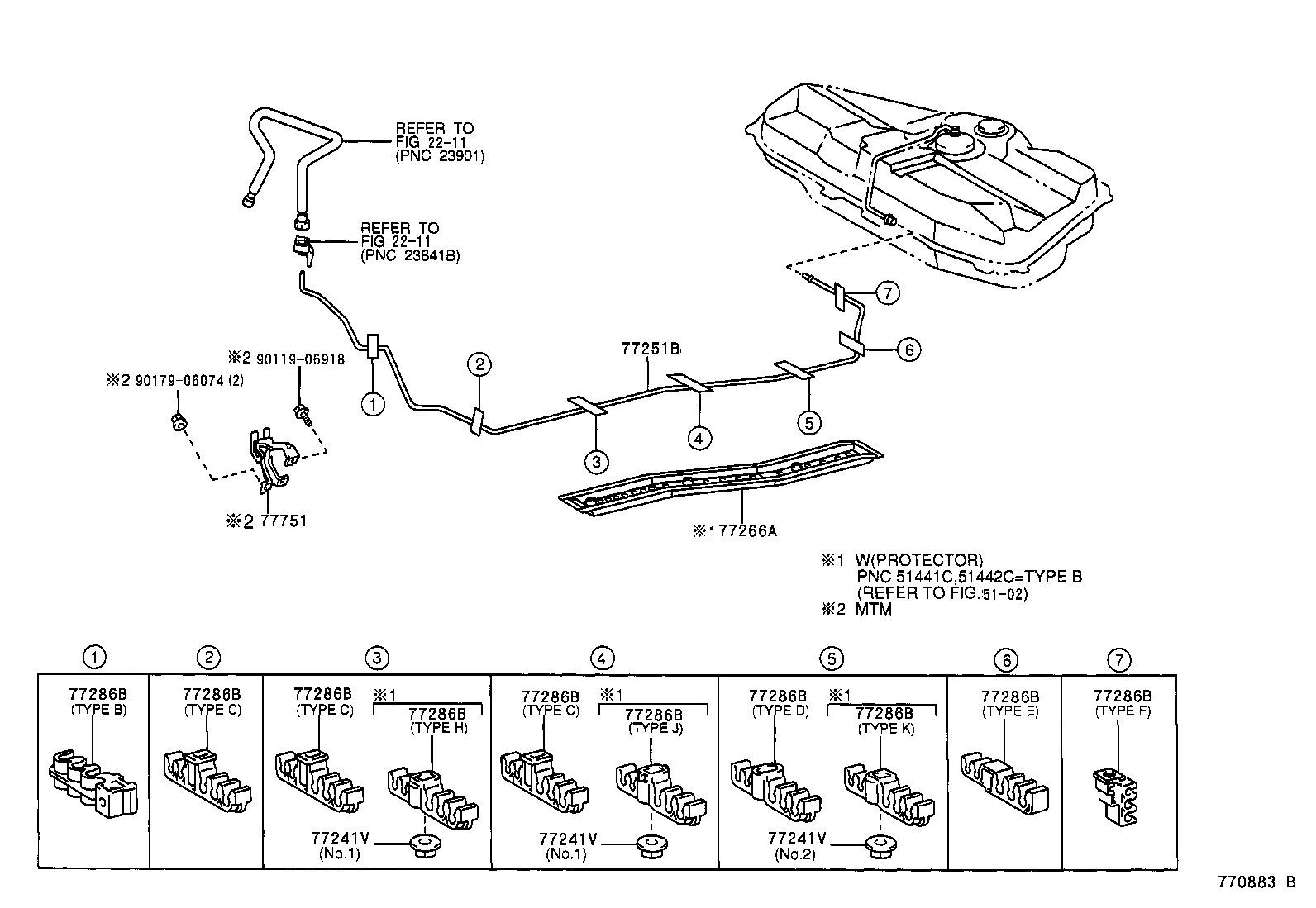

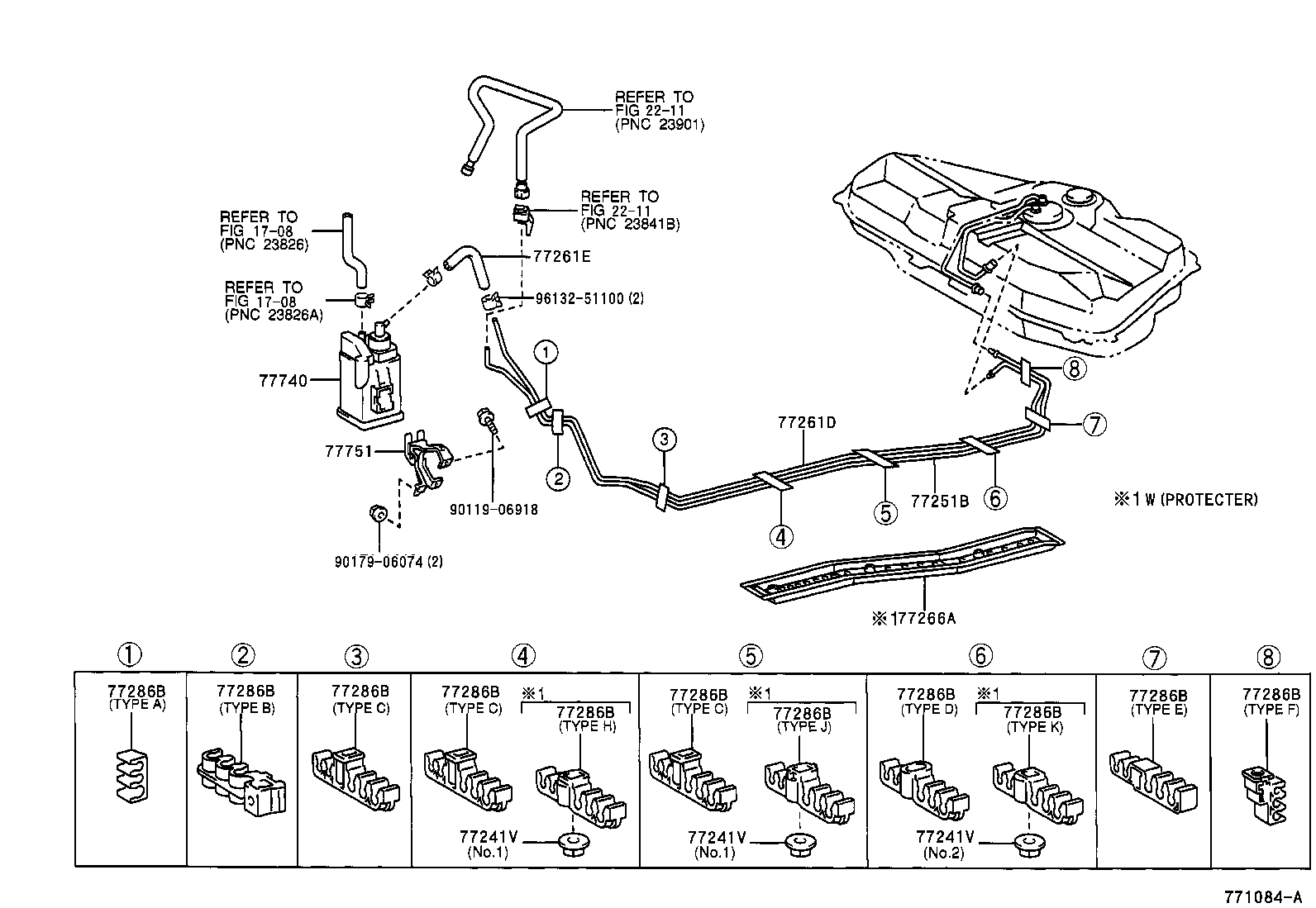

Figure 770890H 770890H 2000-08 → 2002-09 Figure 771205E 771205E 2002-09 → — Figure 771343E 771343E 2002-09 → 2004-04 Figure 771083F 771083F 2001-10 → — Figure 771103E 771103E 2002-02 → — Figure 771084A 771084A 2000-08 → — Figure 771084A 771084A 2001-10 → — Figure 771084A 771084A 2005-07 → — Figure 770883B 770883B 2000-08 → — Figure 770883B 770883B 2002-02 → 2005-07 Figure 770883B 770883B 2005-07 → — Figure 771085A 771085A 2001-10 → —

Part groups

PNCDescription
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77023 Filter Sub-assy, Fuel Suction Tube
77024A Plate Sub-assy, Fuel Suction
77027 Tube Sub-assy, Fuel Evaporation, NO.2
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77108B Valve Sub-assy, Fuel Tank Filler Check
77158A Support, Tank Suction Tube
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77175 Support, Fuel Suction, NO.2
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77204A Tube, Fuel Tank Return
77209D Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77219 Cover, Fuel Tank Filler Pipe
77241V Clip, Tube Joint
77241W Clip, Tube Joint
77248A Holder, Fuel Tank Filler Pipe Cover
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77255D Tube, Fuel Return
77261D Tube, Fuel Tank TO Canister
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77266A Protector, Fuel Tube, NO.1
77276 Protector, Fuel Hose
77277R Protector, Fuel Tank Filler Pipe
77281 Bracket, Fuel Main Tube, NO.1
77281A Clamp, Fuel Filler Pipe
77286B Clamp, Fuel Tube W/Grommet, NO.2
77289B Clamp, Fuel Tube, NO.3
77290 Shield Assy, Fuel Tank Filler Pipe
77295C Grommet, Fuel Tube
77296B Support, Fuel Tube Protector, NO.1
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77601A Band Sub-assy, Fuel Tank, NO.1
77602 Case Sub-assy, Fuel Tank, Upper
77641A Protector, Fuel Tank, NO.1
77642A Protector, Fuel Tank, NO.2
77651A Cushion, Fuel Tank, NO.1
77681 Seat, Fuel Tank Band, RH
77682 Seat, Fuel Tank Band, LH
77740 Canister Assy, Charcoal
77751 Bracket, Charcoal Canister Base
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
