Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

27 part groups · 8 illustrations

Illustrations

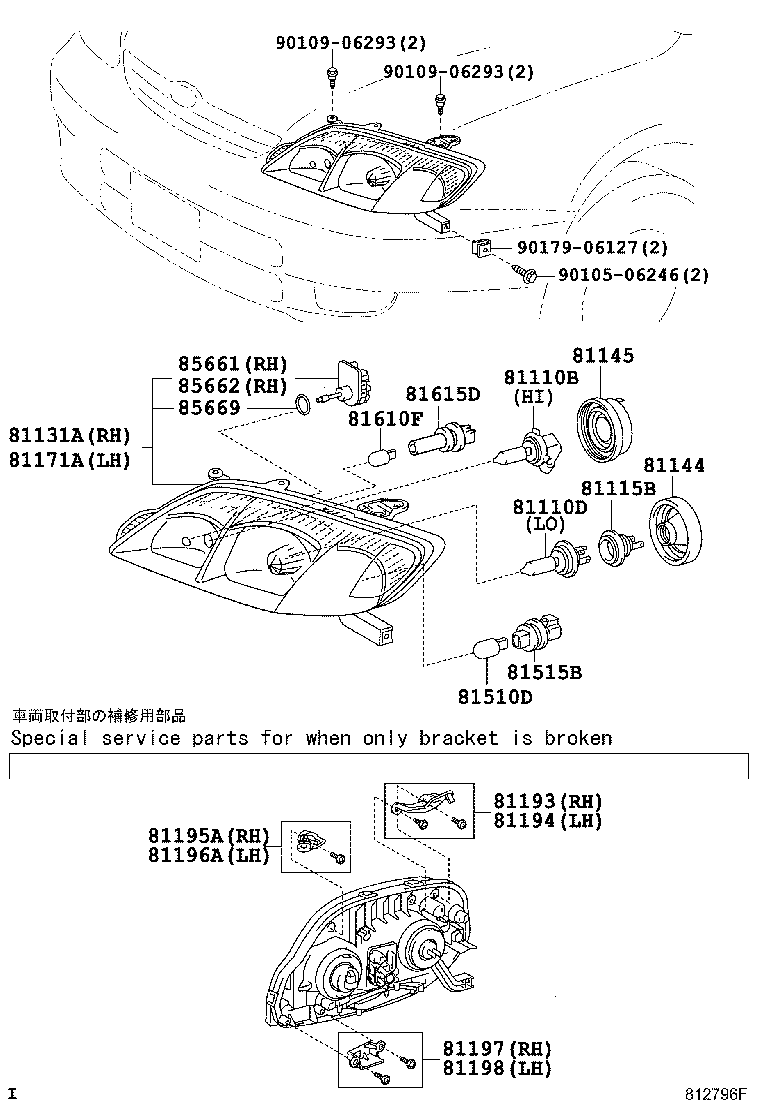

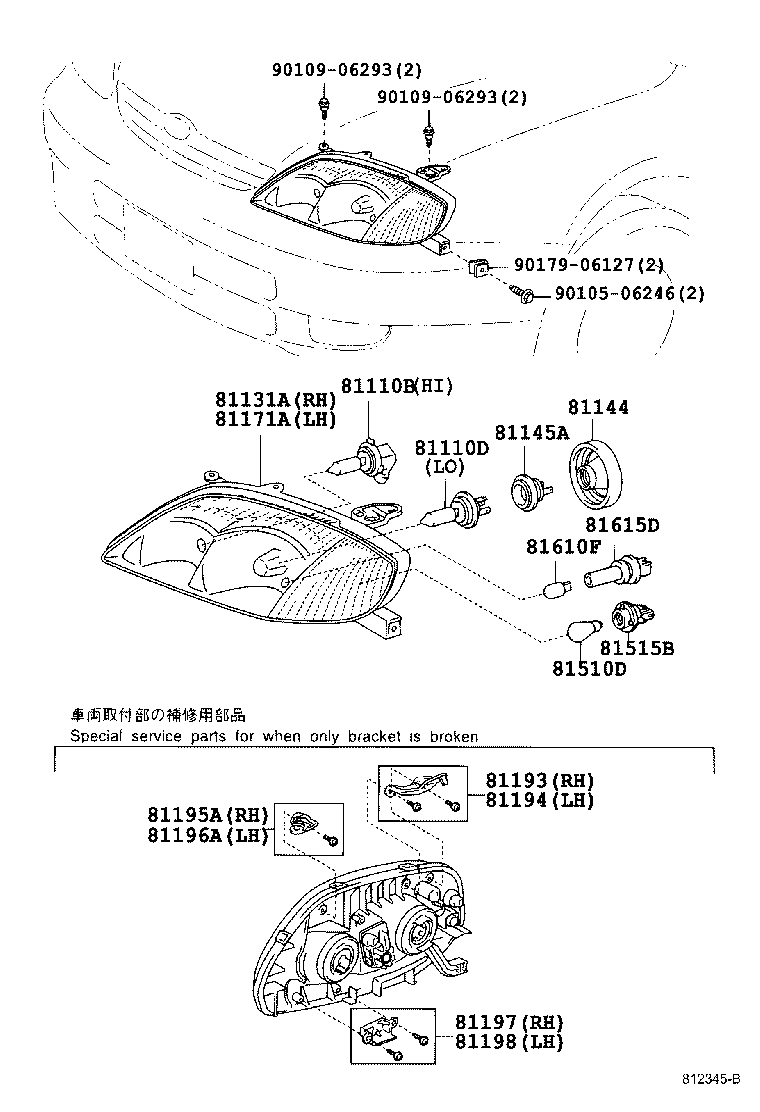

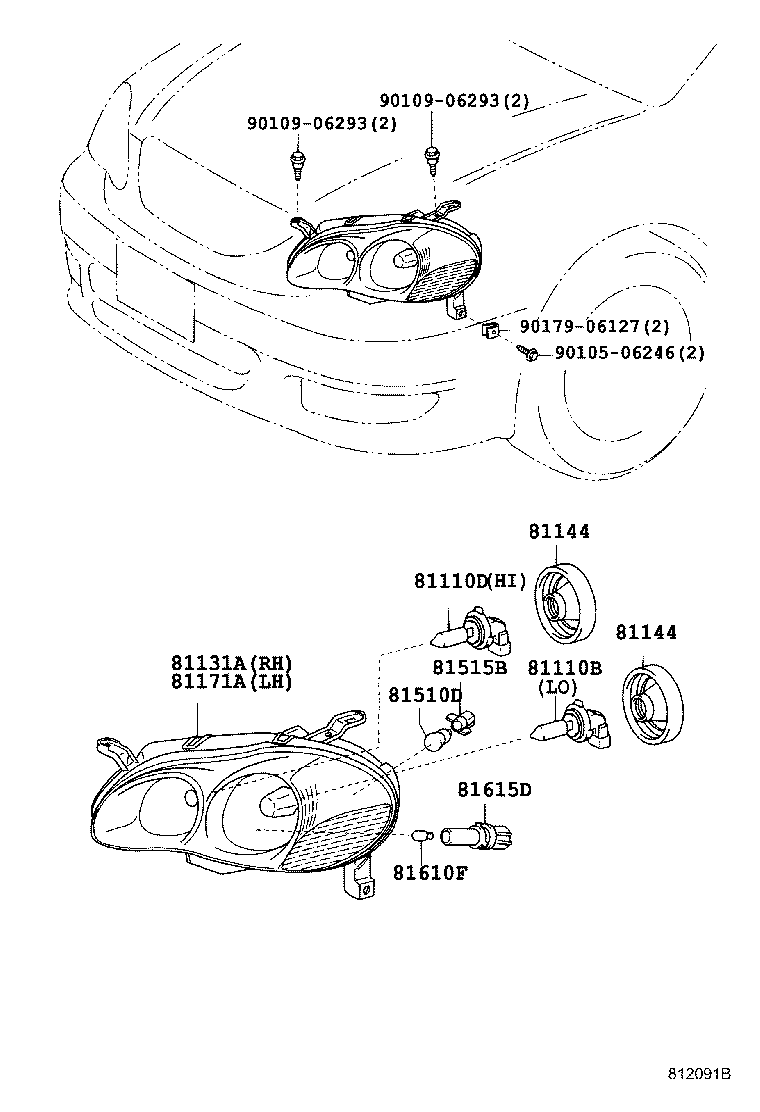

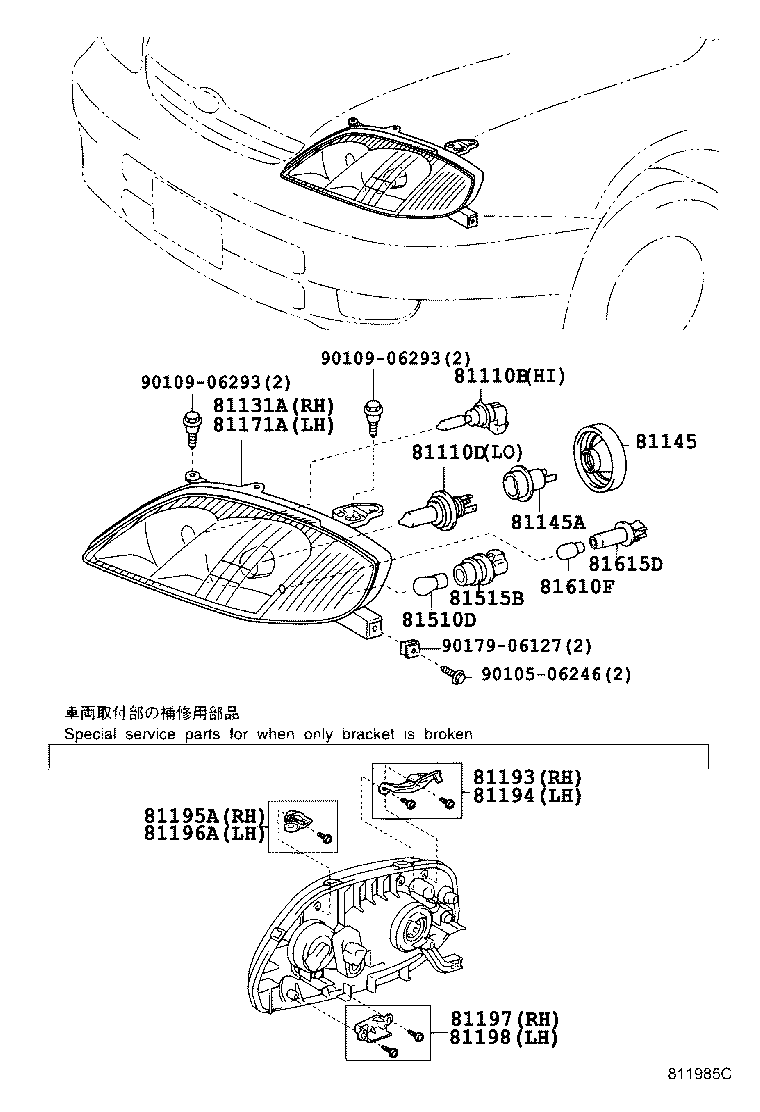

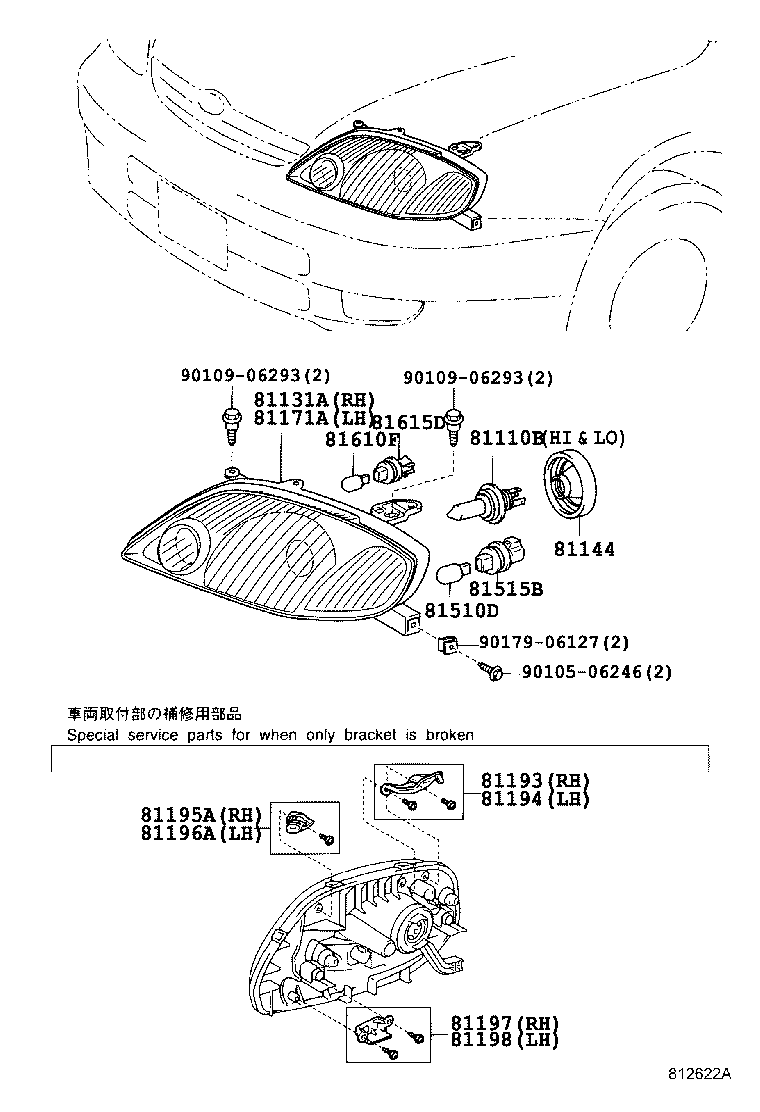

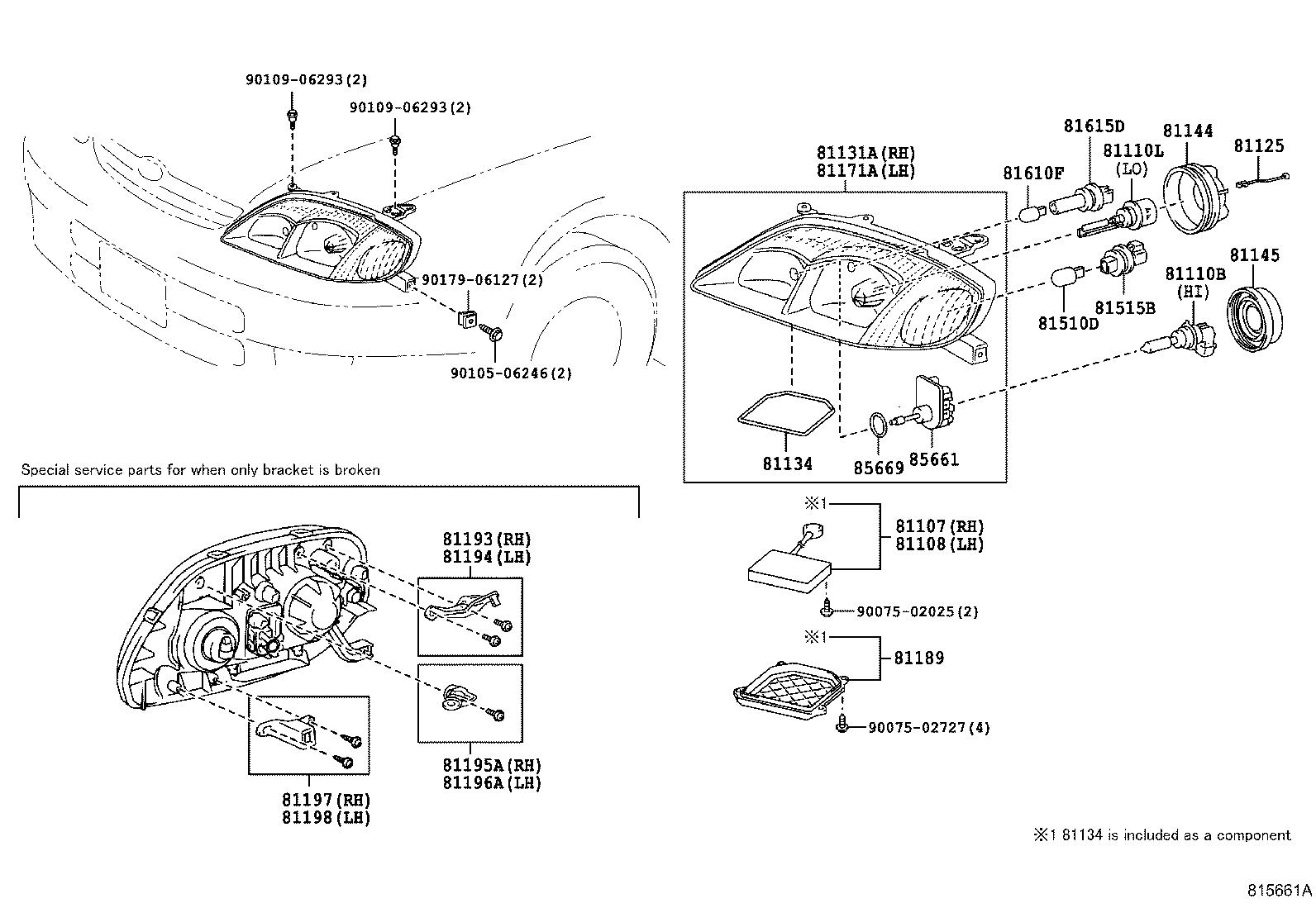

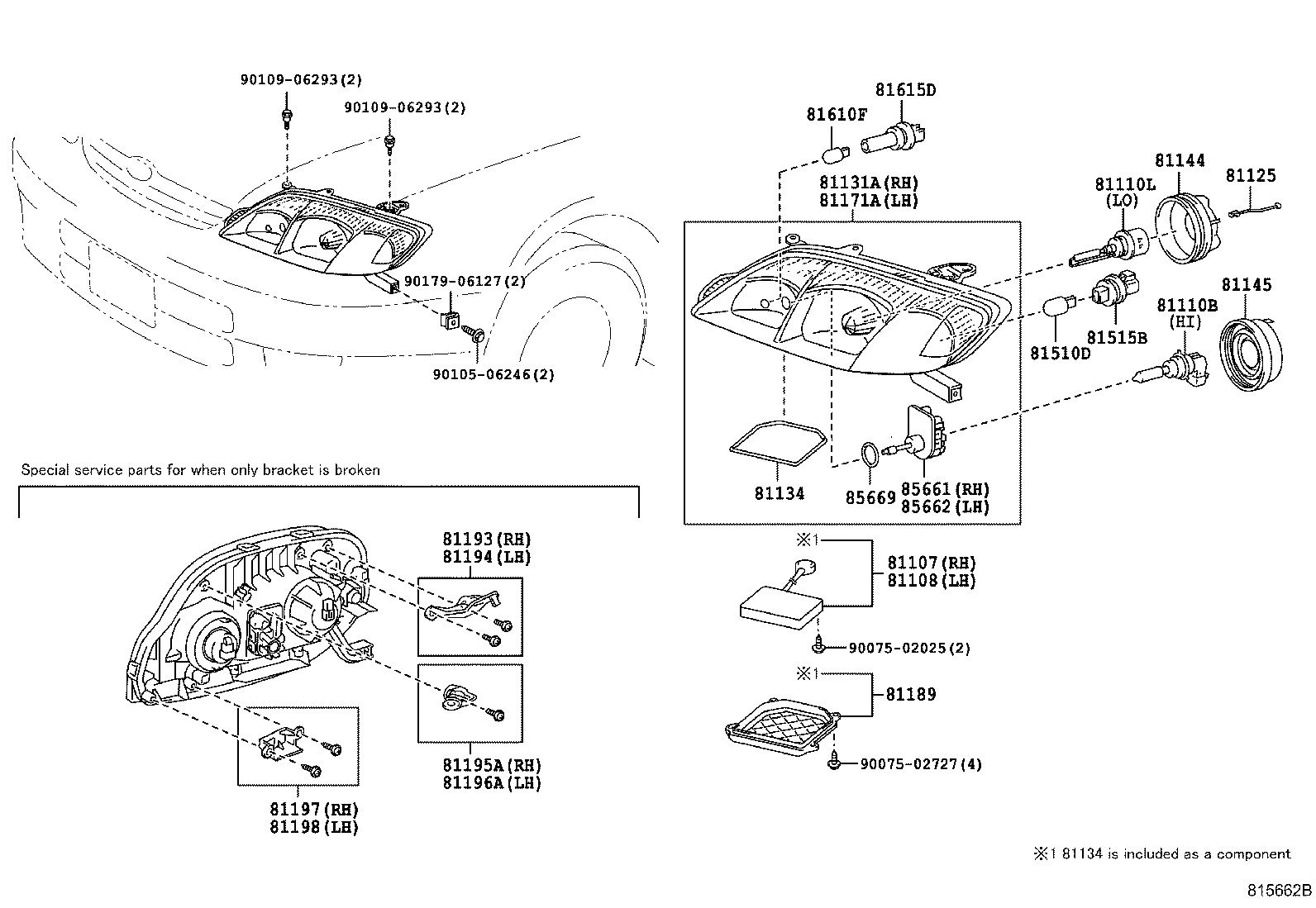

Figure 812344A 812344A 2000-08 → 2002-09 Figure 812345B 812345B 2002-09 → 2004-04 Figure 815661A 815661A 2002-09 → 2004-04 Figure 812622A 812622A 2002-09 → 2004-04 Figure 811985C 811985C 2001-10 → — Figure 812091B 812091B 2002-02 → — Figure 812796F 812796F 2004-04 → — Figure 815662B 815662B 2004-04 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81115B Socket,Headlamp, NO.1
81125 Cord, Headlamp
81131A Unit, Headlamp, RH
81134 Gasket, Headlamp
81144 Cover, Headlamp, NO.1
81145 Cover, Headlamp, NO.2
81145A Adapter Assy
81171A Unit, Headlamp, LH
81189 Cover, Headlamp
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
