Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

9 part groups · 7 illustrations

Illustrations

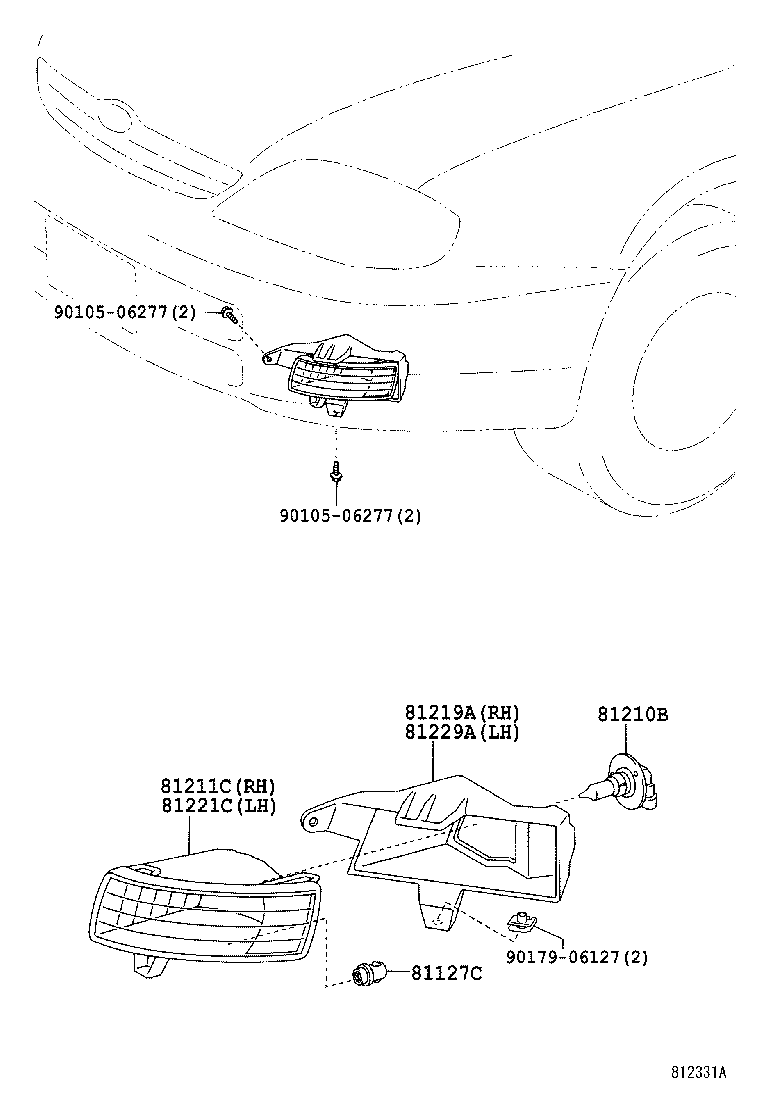

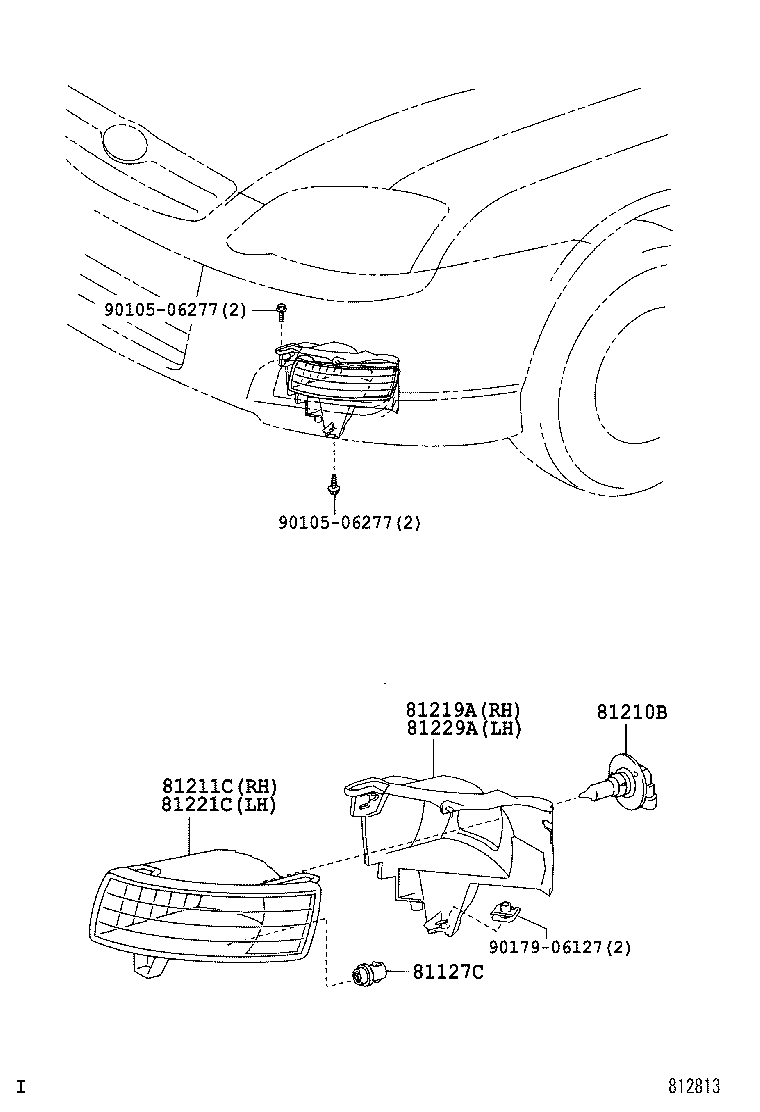

Figure 811563 811563 2000-08 → 2002-09 Figure 811563 811563 2002-09 → 2004-04 Figure 812331A 812331A 2002-09 → 2004-04 Figure 812623 812623 2002-09 → 2004-04 Figure 812813 812813 2004-04 → — Figure 812790D 812790D 2004-04 → — Figure 813291 813291 2005-07 → —

Part groups

PNCDescription
81127C Bearing Fog Lamp
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
81481 Bracket, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
