Toyota Corolla/Altis Sed/WG
2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General
Discontinued model
Data version 2009-01
Wiring & Clamp
38 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 67811F | Pad, Front Door Silencer |

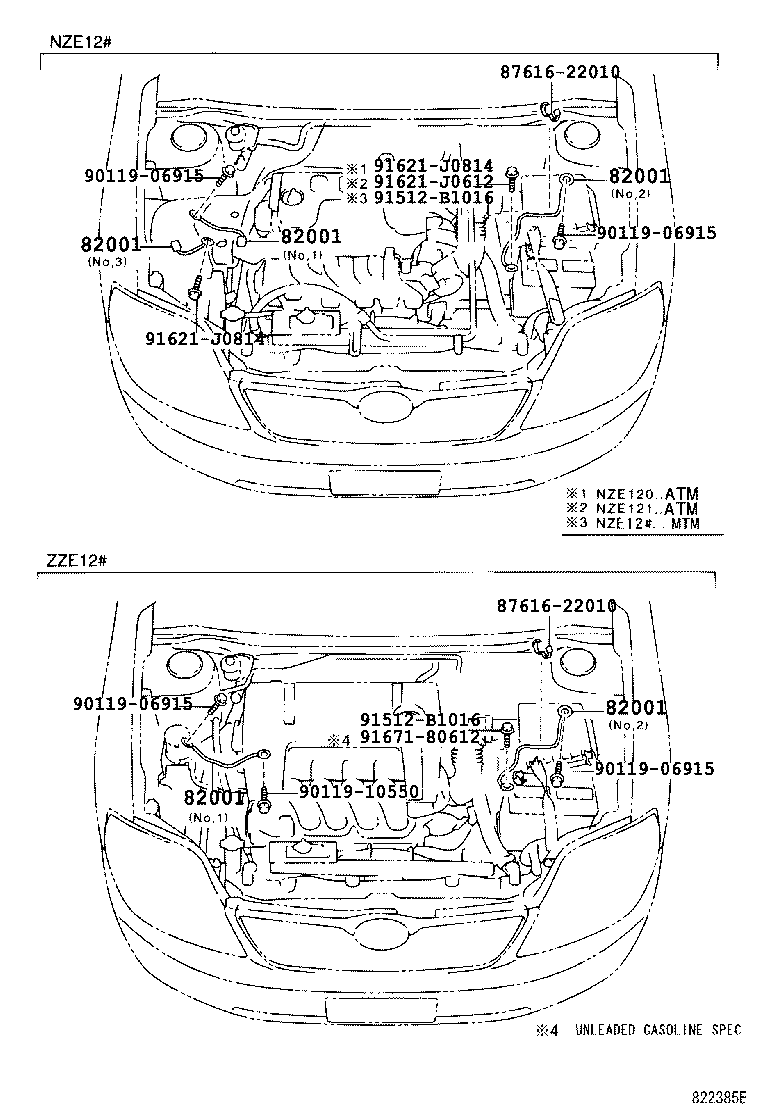

| 82001 | Cable, Bond, NO.1 |

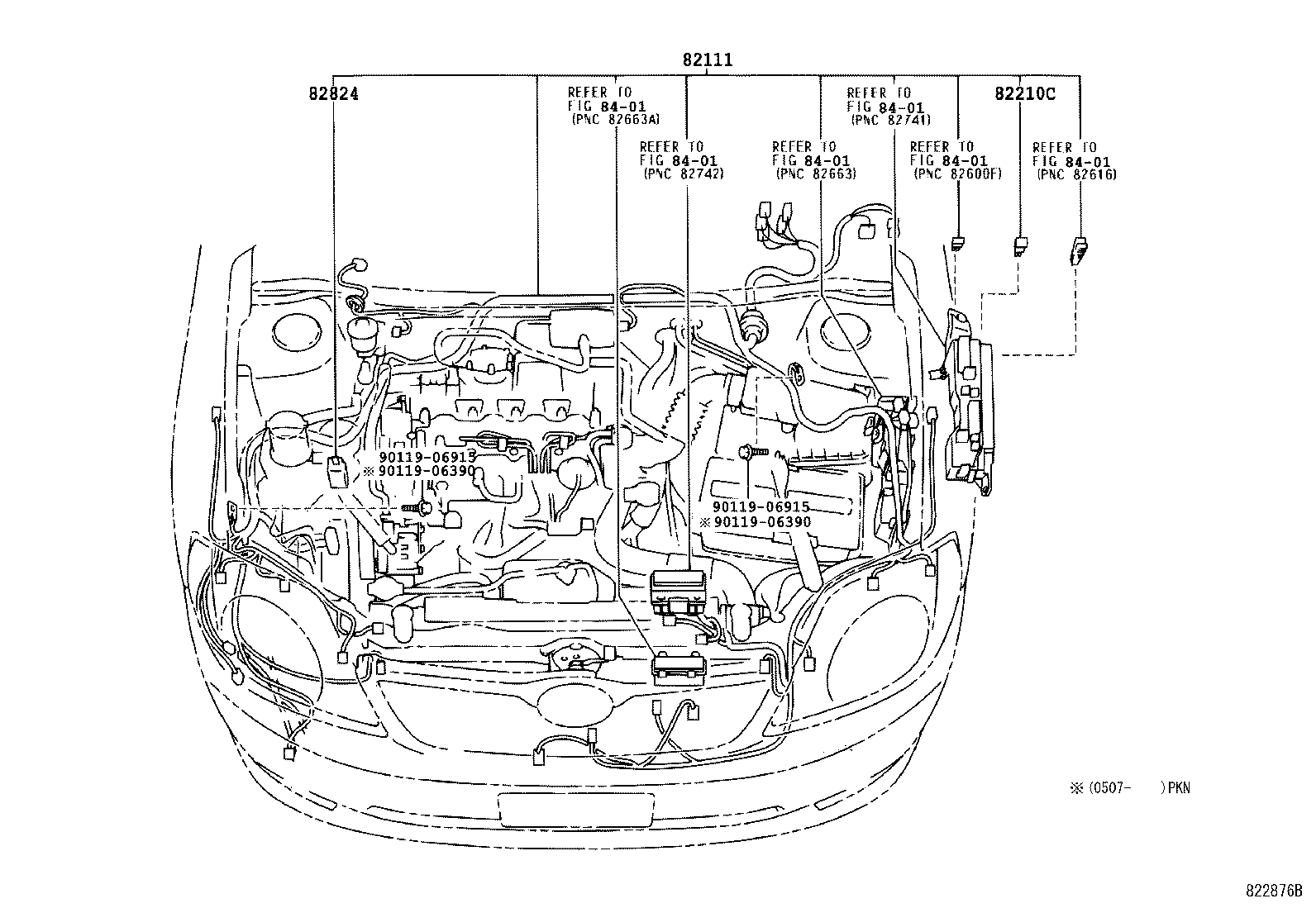

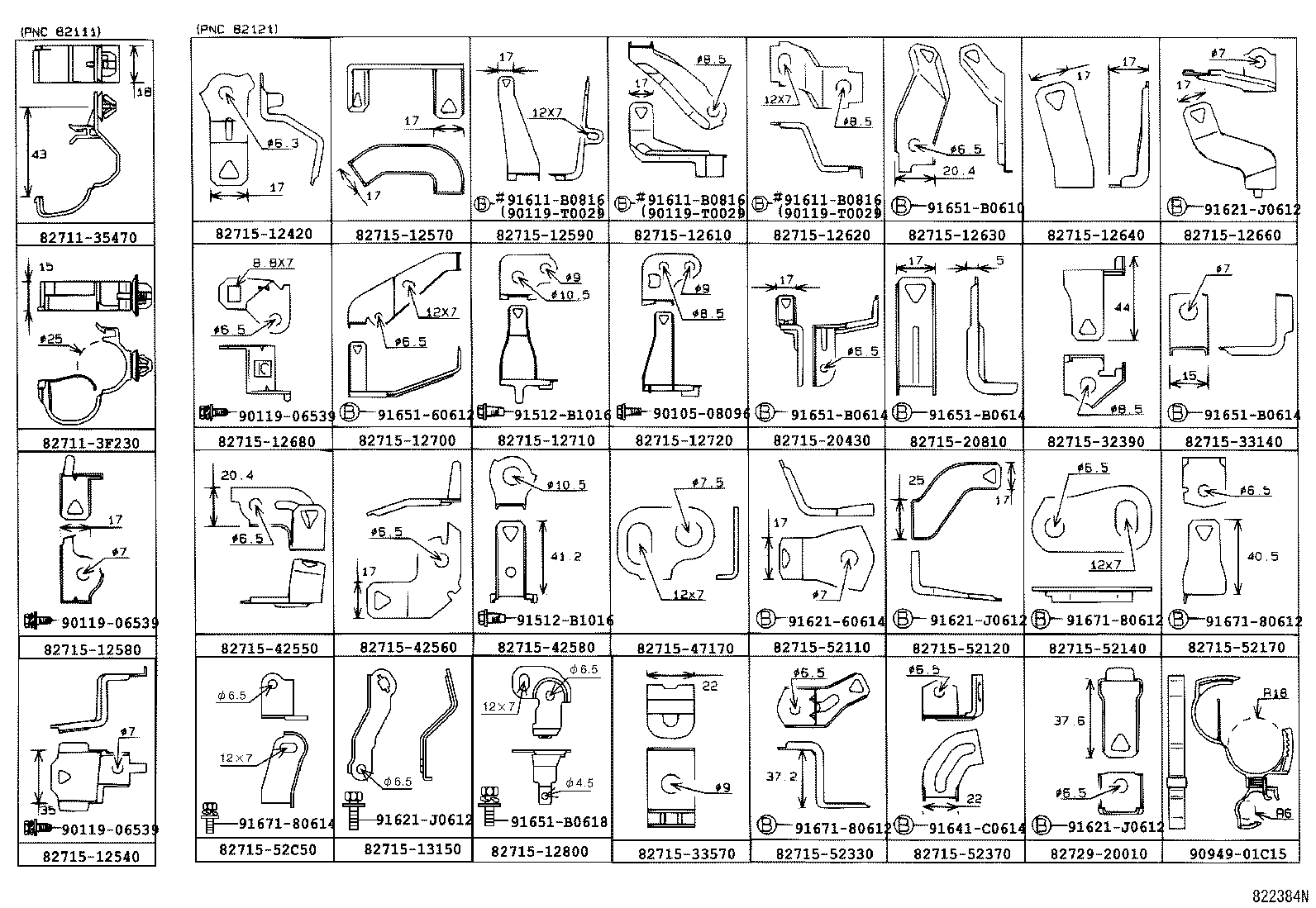

| 82111 | Wire, Engine Room Main |

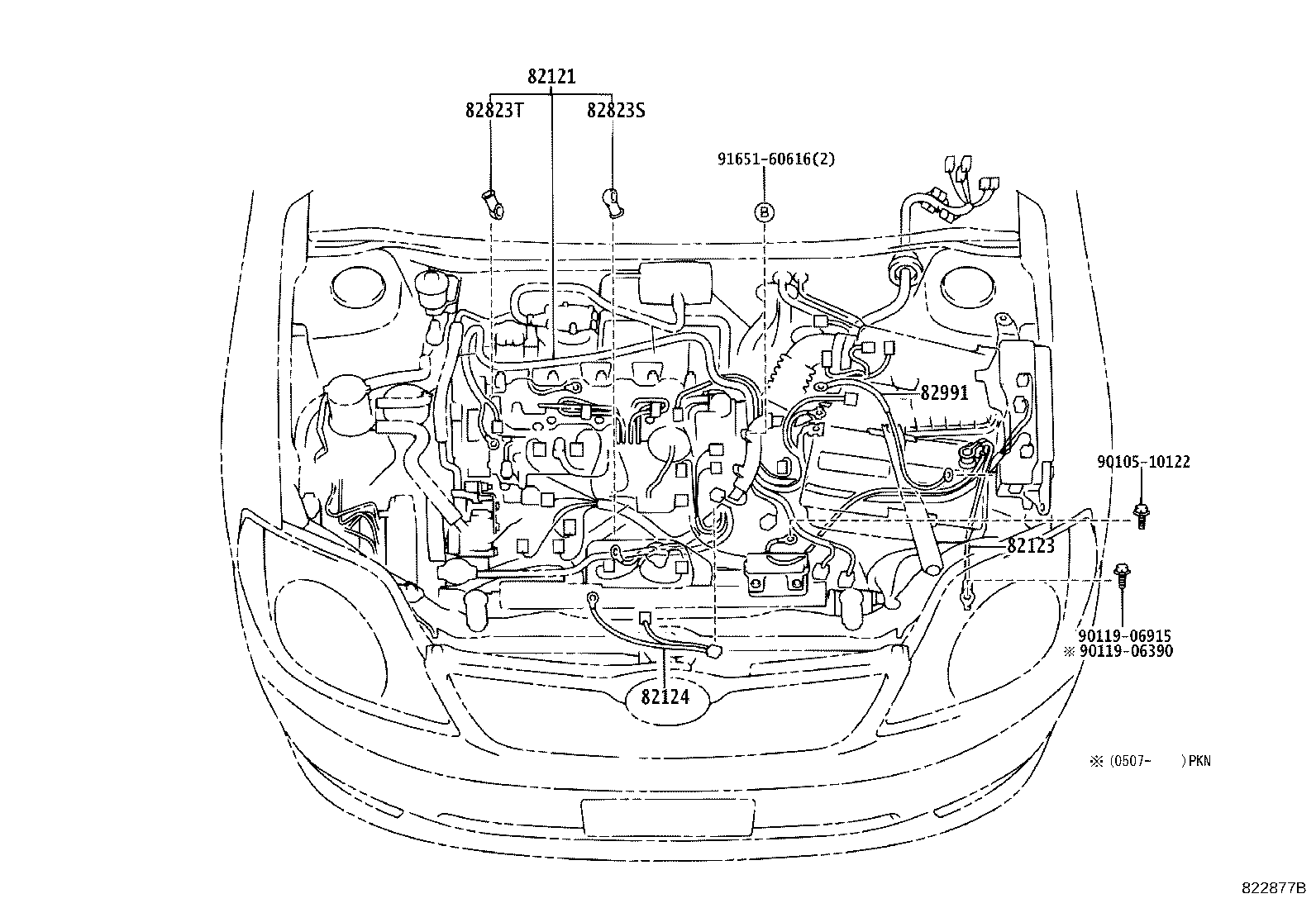

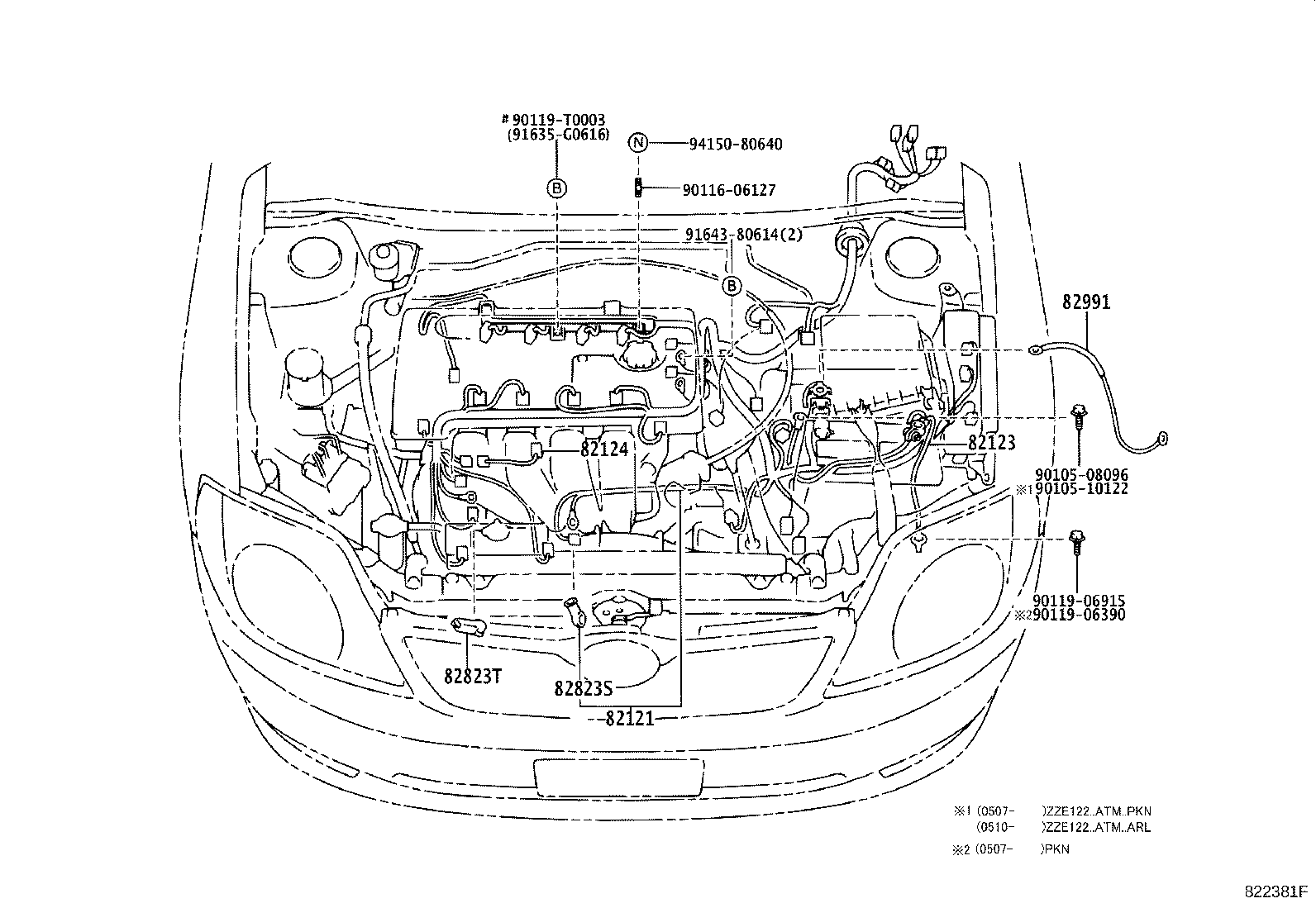

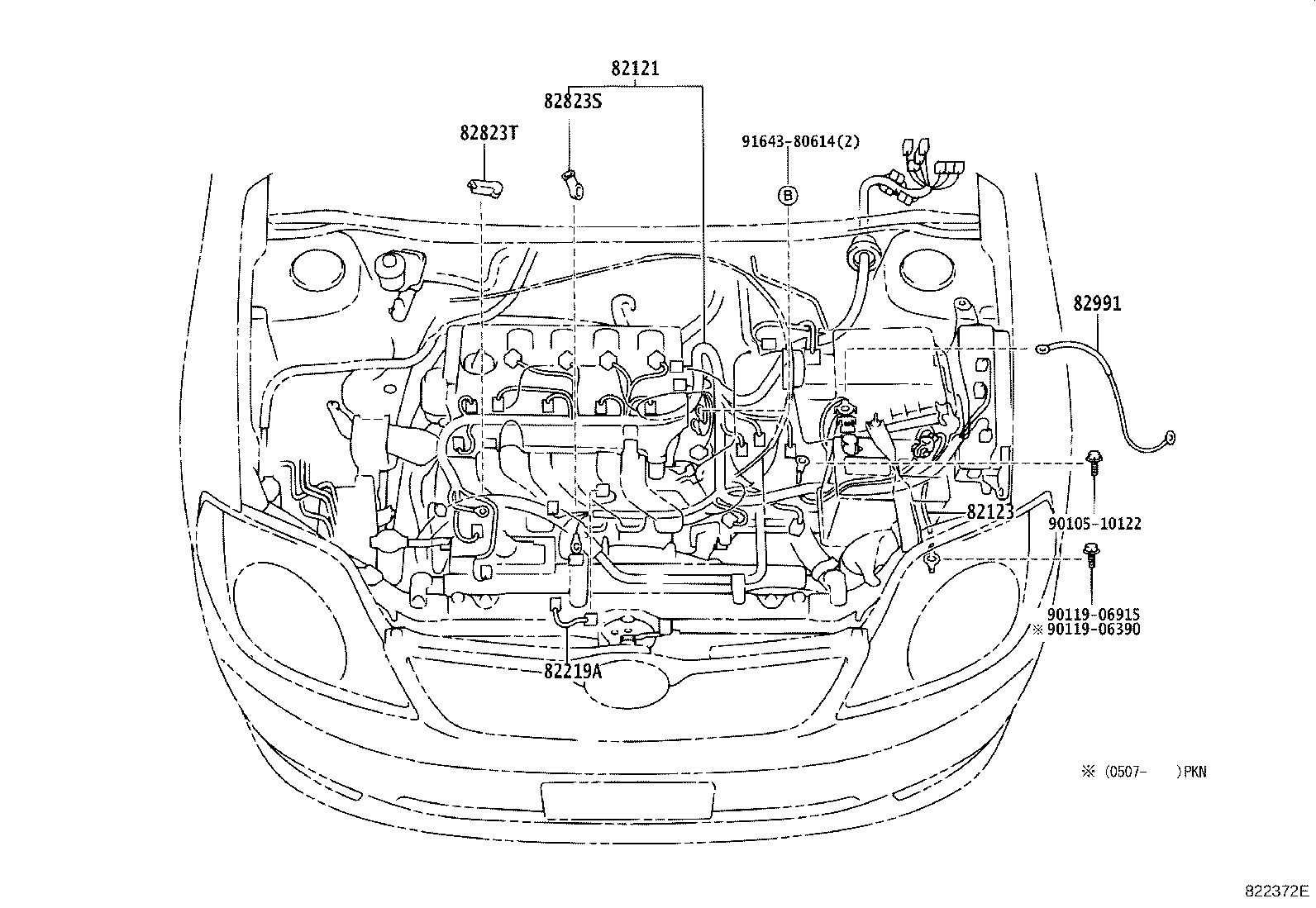

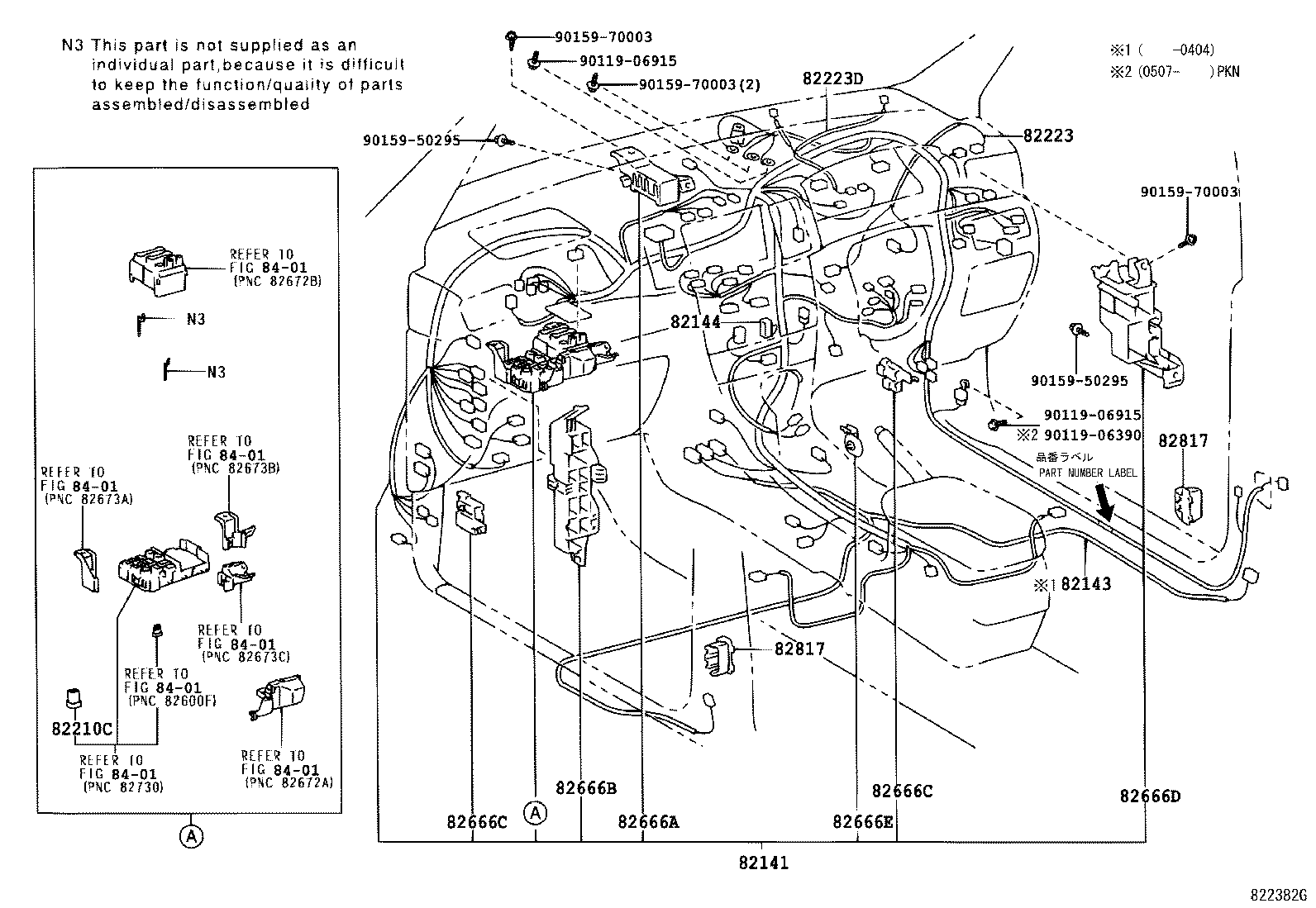

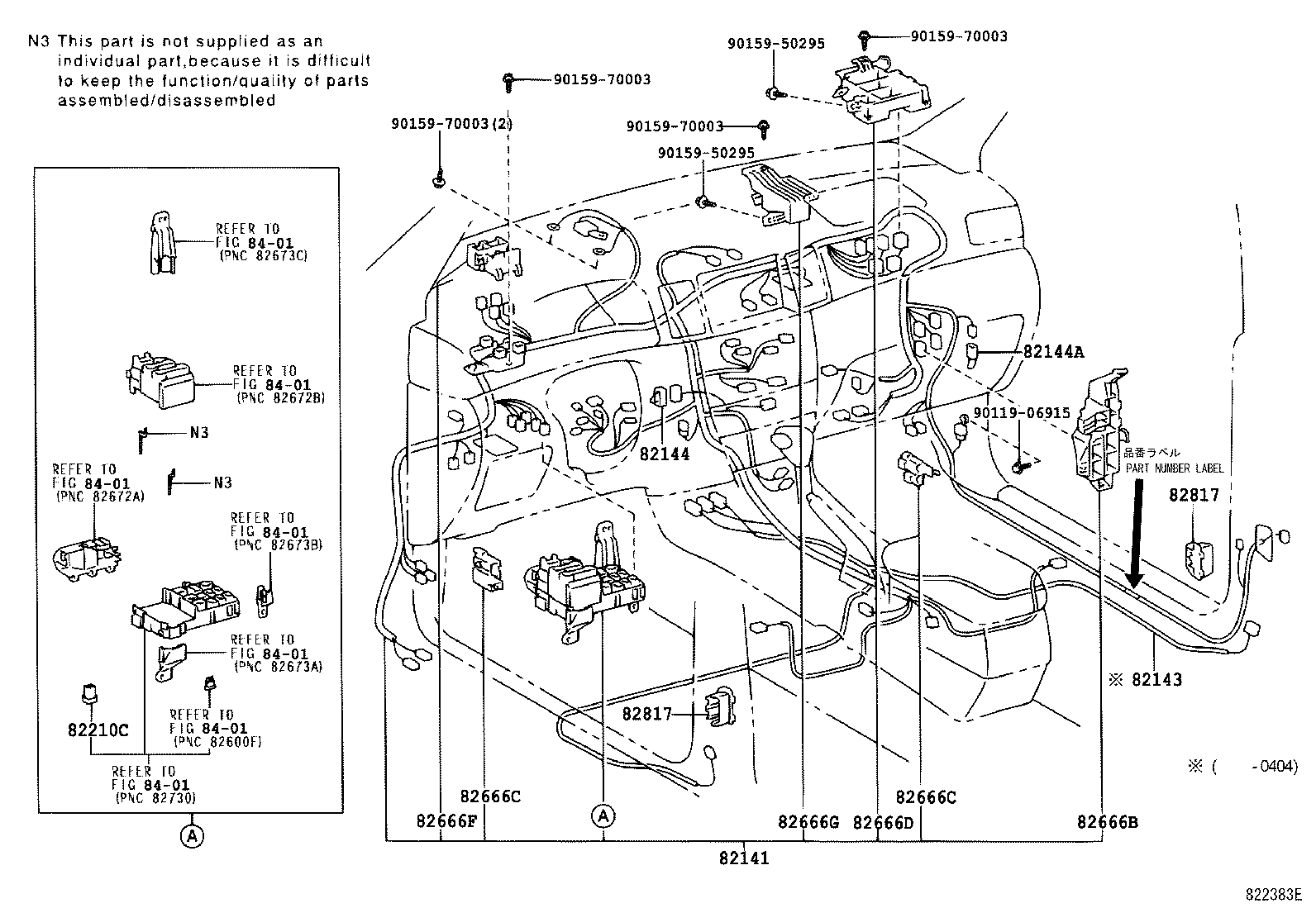

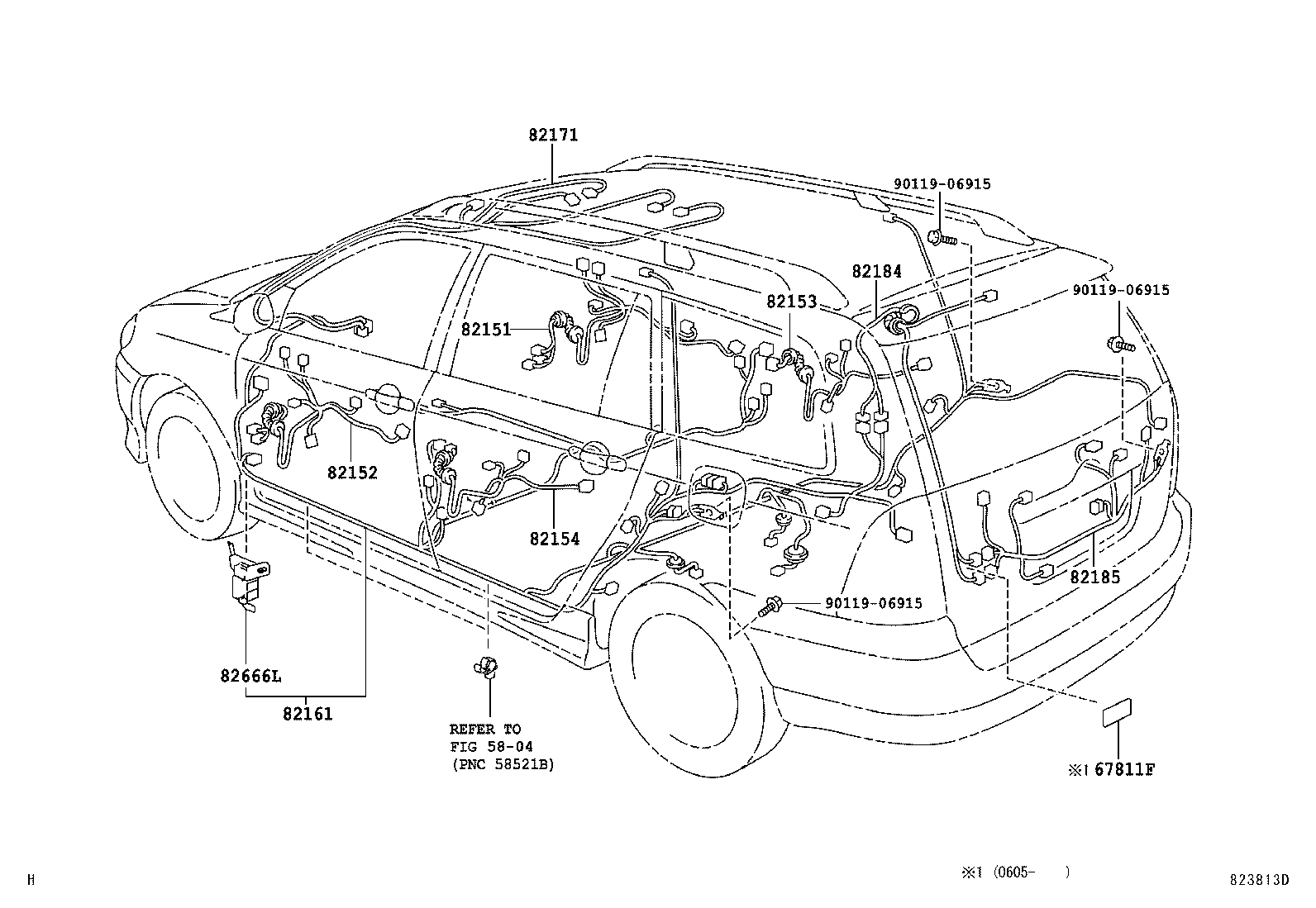

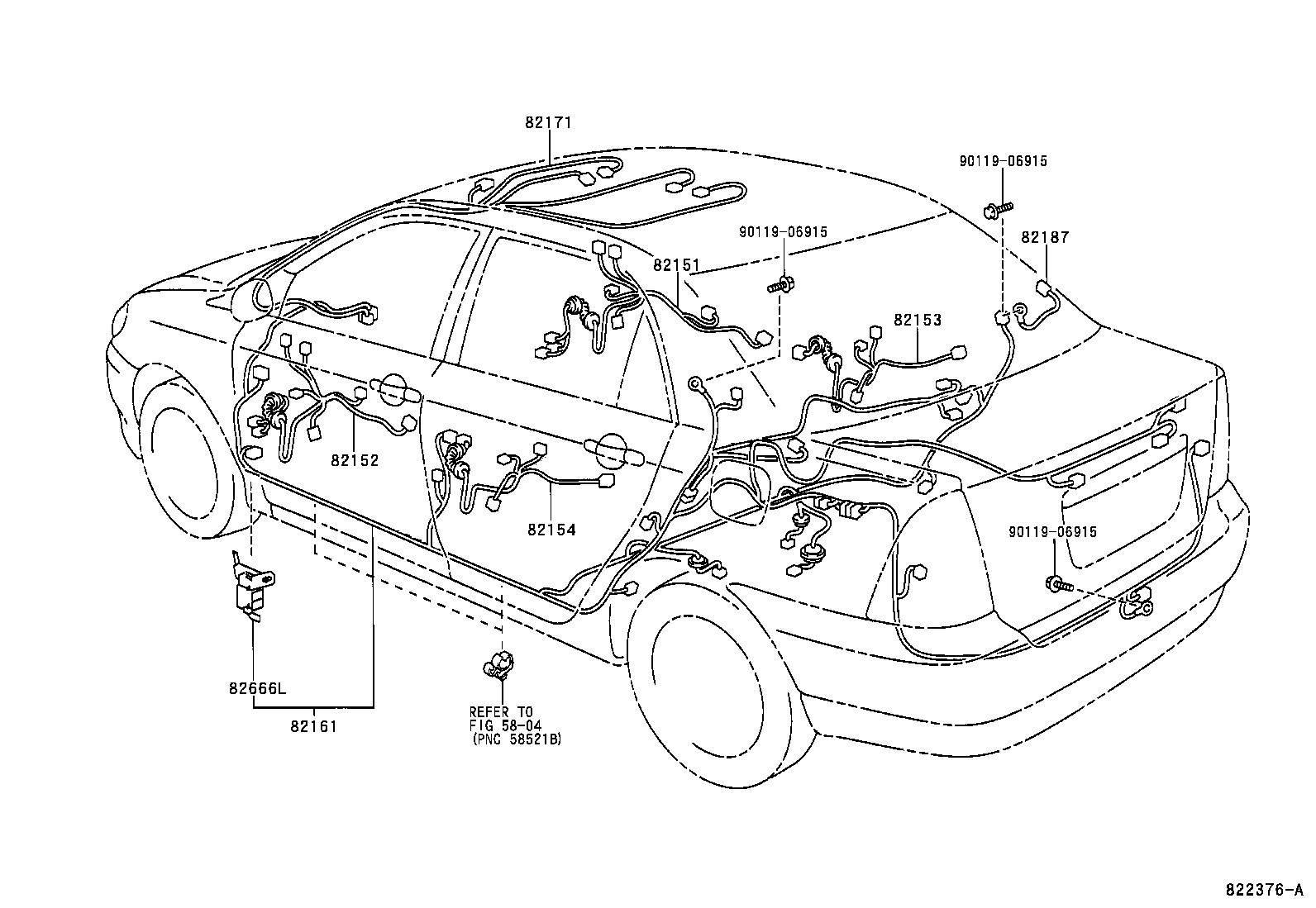

| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |
| 82141 | Wire, Instrument Panel |
| 82143 | Wire, Instrument Panel, NO.3 |
| 82144 | Wire, Instrument Panel, NO.4 |
| 82144A | Wire, Instrument Panel, NO.4 |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |

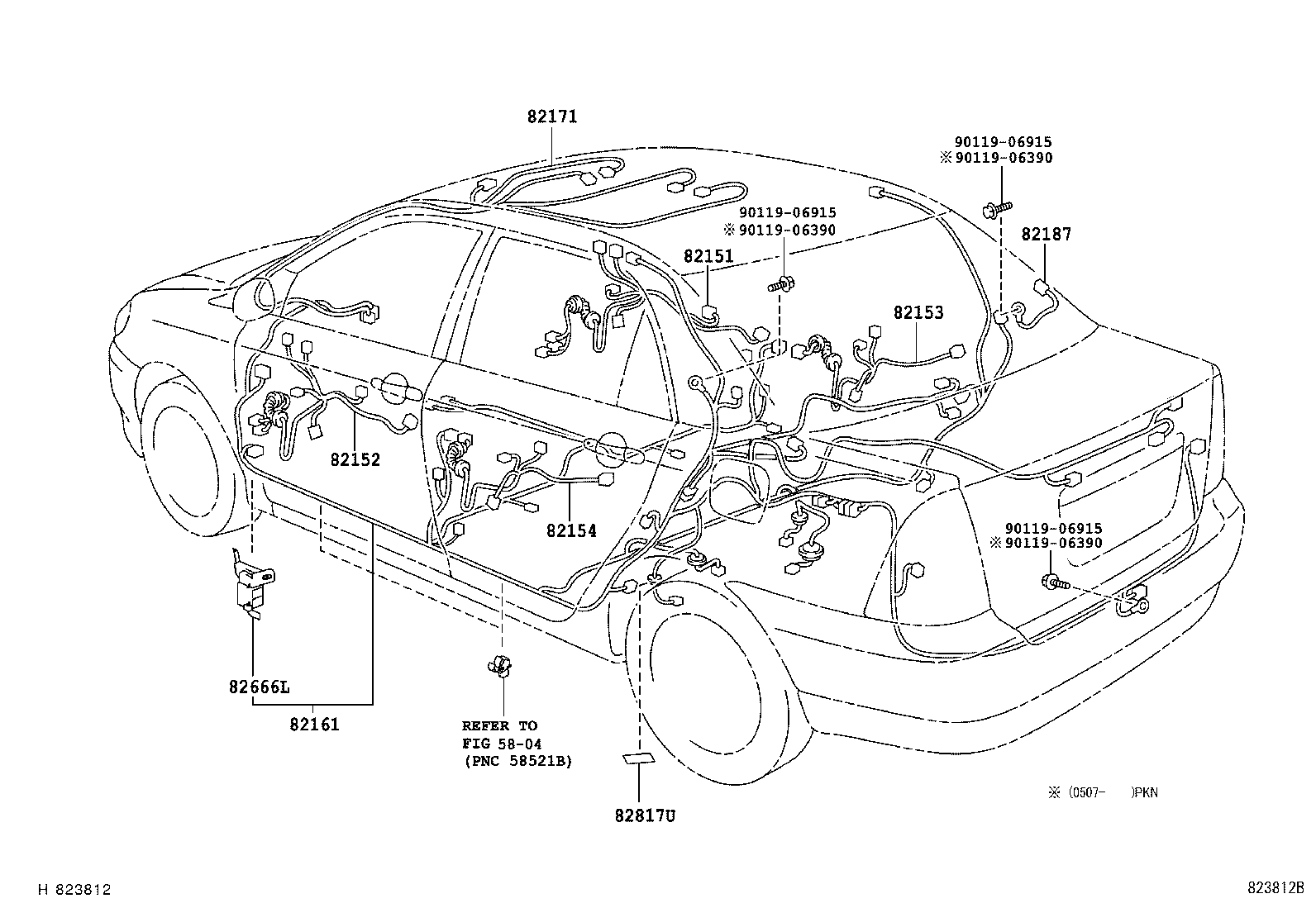

| 82171 | Wire, Roof, NO.1 |

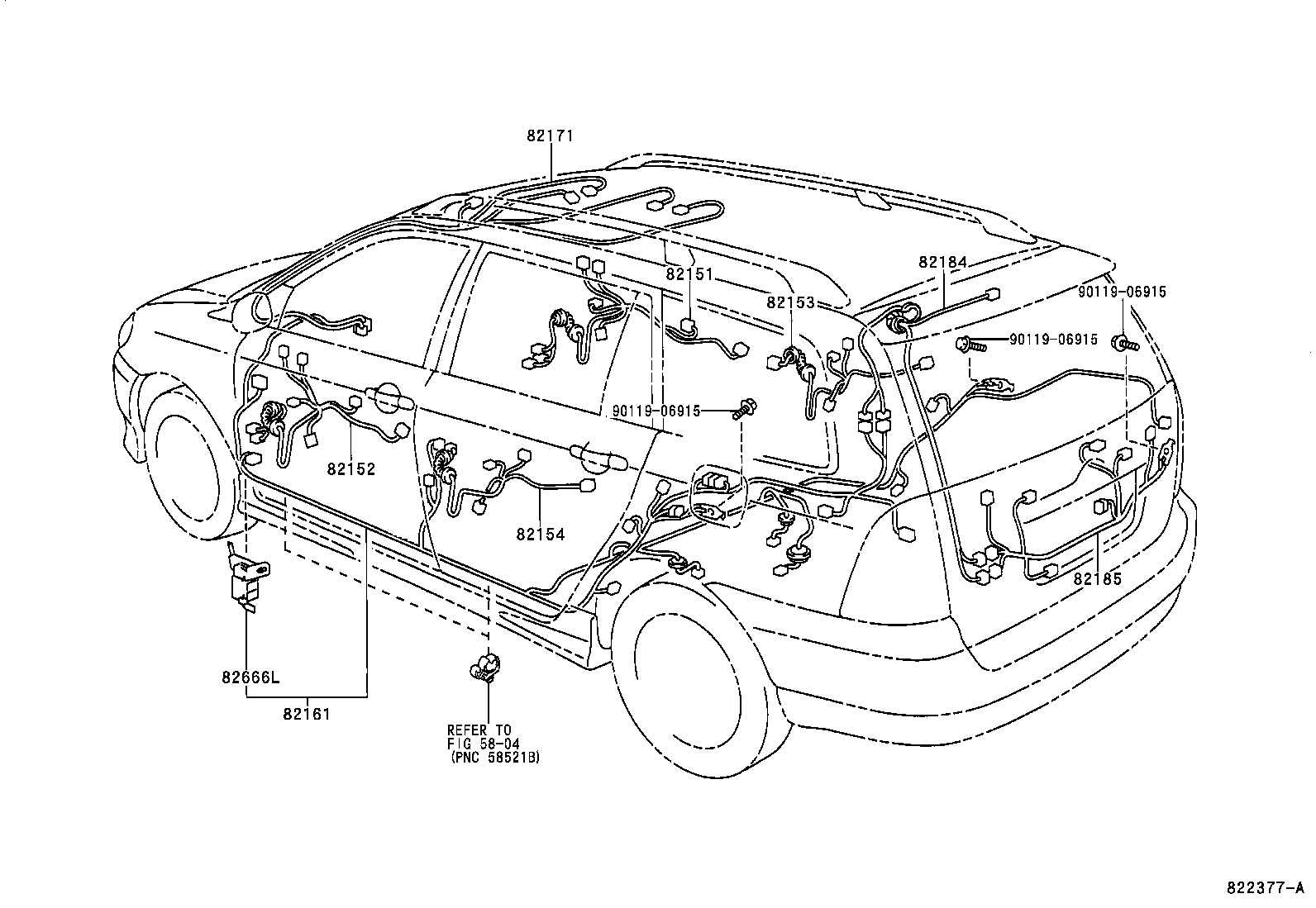

| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82187 | Wire, Rear Window, NO.2 |

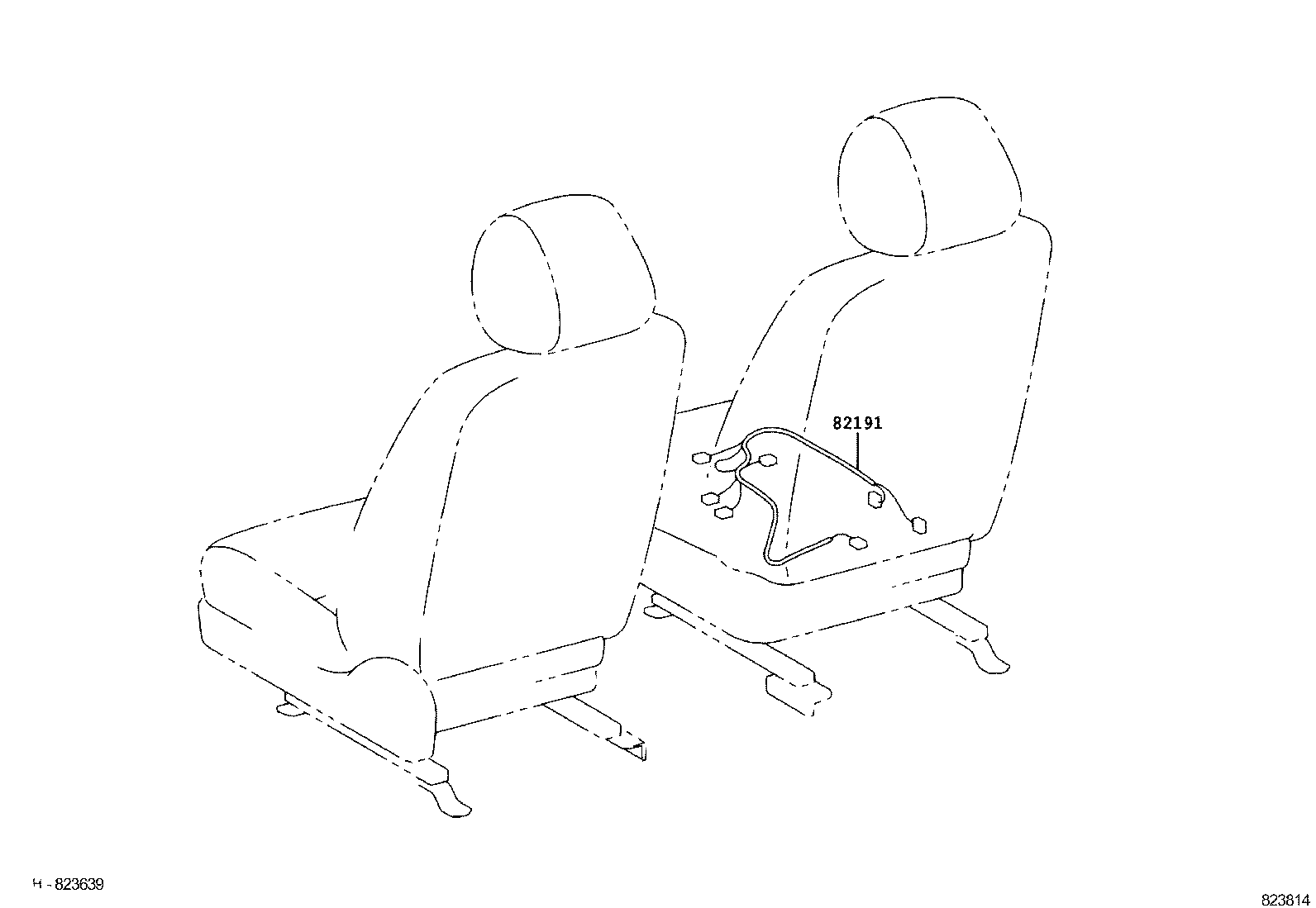

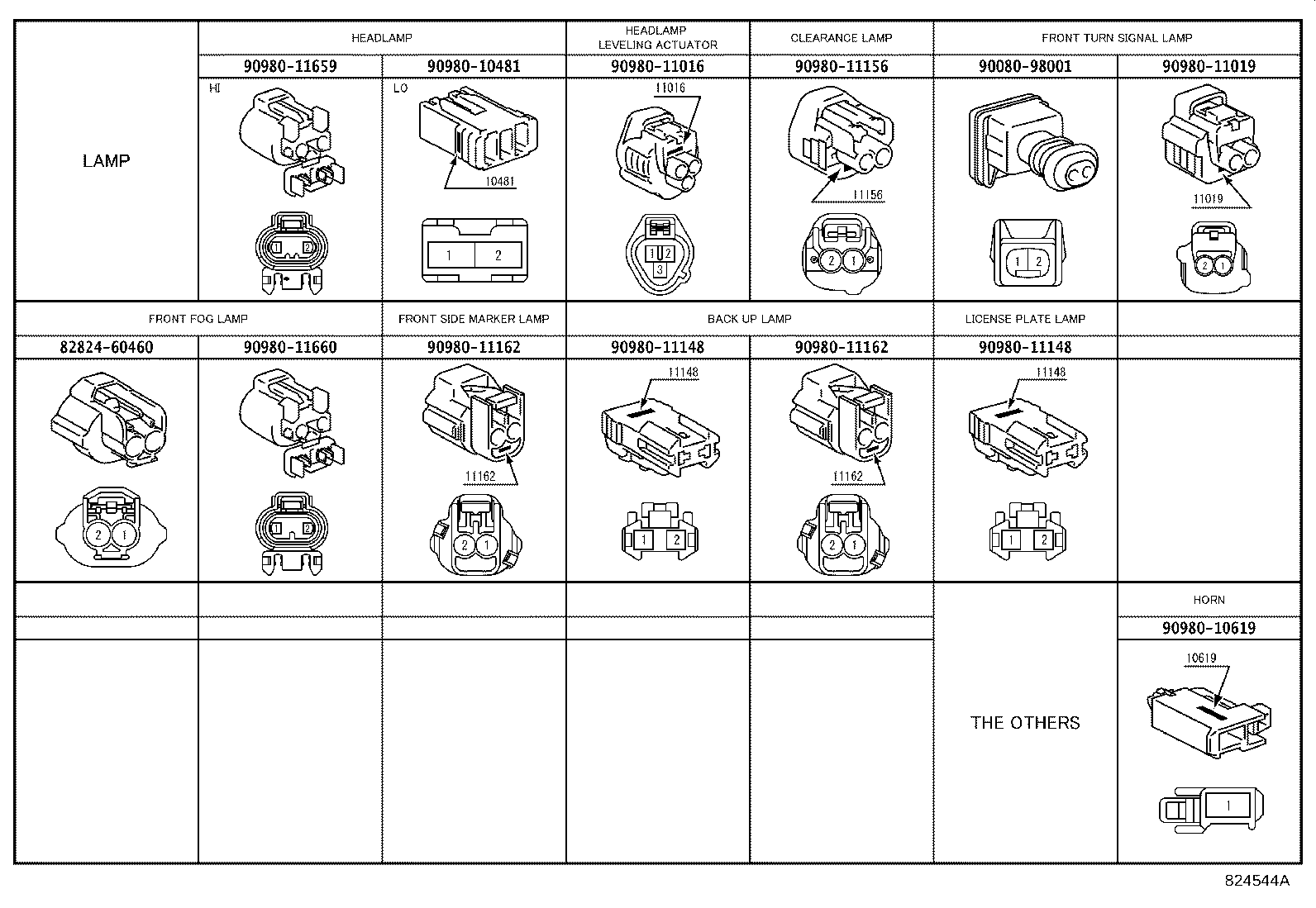

| 82191 | Wire, Front Seat, RH |
| 82210C | Fusible Link |
| 82219A | Wire, Sensor |
| 82223 | Wire, Switch |
| 82223D | Wire, Switch, NO.3 |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
| 82824 | Connector, Wiring Harness |
| 82991 | Wire, Fusible Link Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
