Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

6 part groups · 2 illustrations

Illustrations

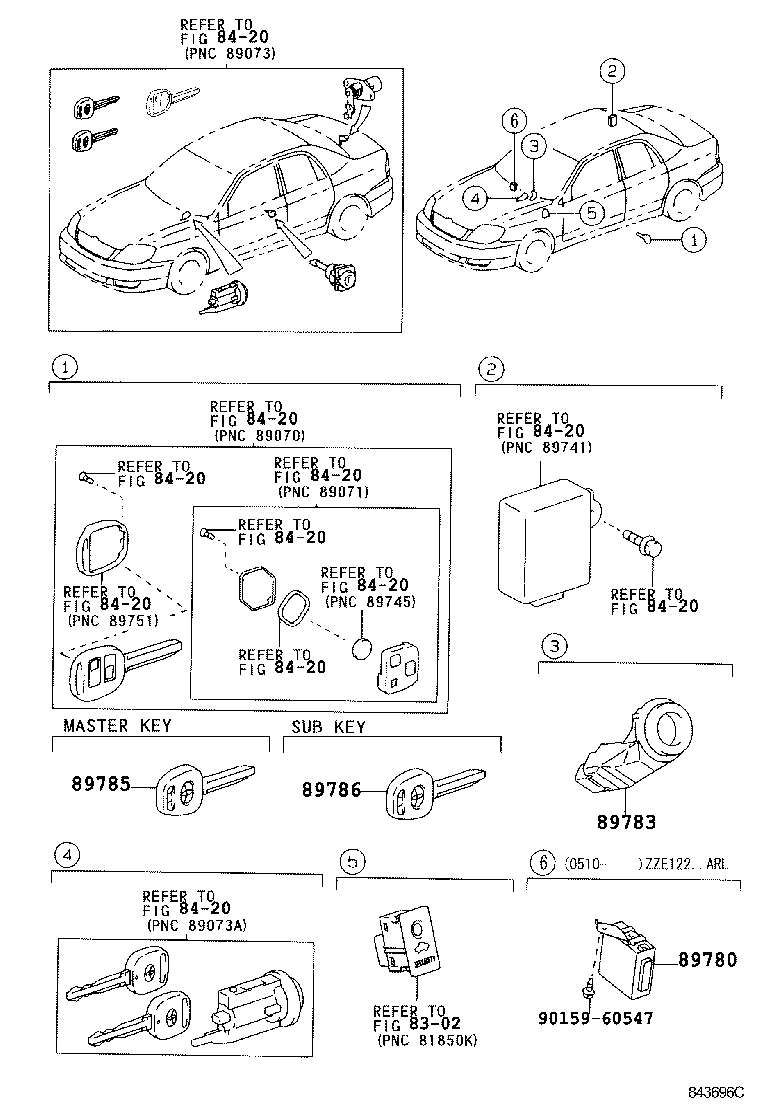

Figure 843695B 843695B 2000-08 → — Figure 843696C 843696C 2000-08 → —

Part groups

PNCDescription
89703 Cylinder & Key Set, Ignition W/Transponder
89708C Cylinder Set, Lock W/Transponder Key Transmitter
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89785 Transmitter, Transponder Key Master
89786 Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
