Toyota Corolla/Altis Sed/WG

2000-08 → 2008-08 · chassis CE120,NZE12#,ZZE12# · catalogue 151350 · General

Discontinued model Data version 2009-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 6 illustrations

Illustrations

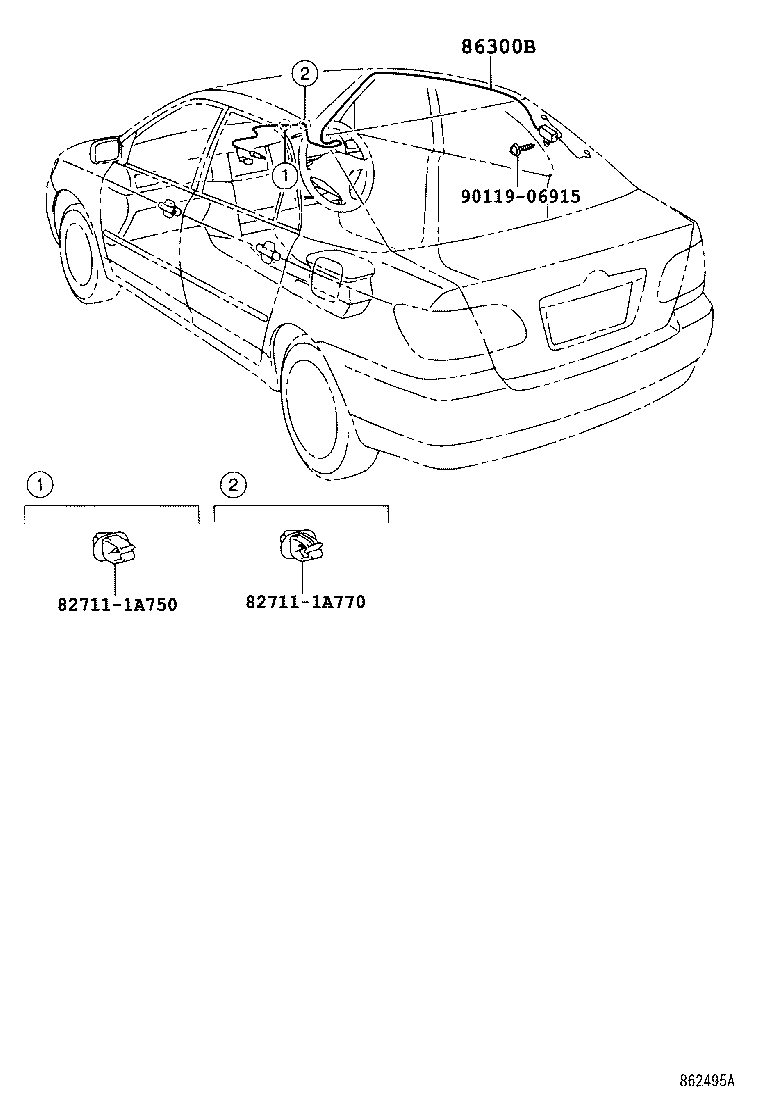

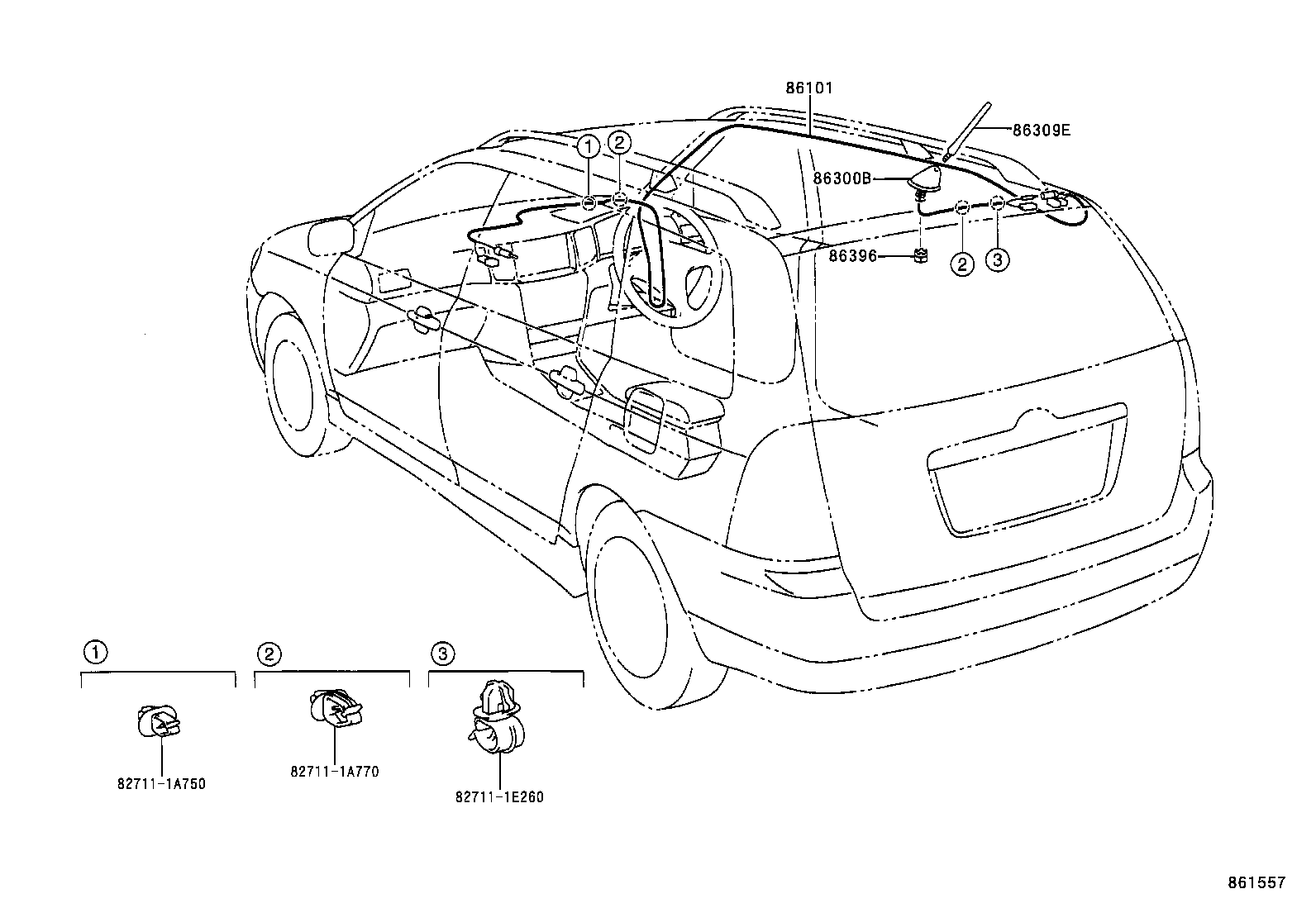

Figure 861236 861236 2000-08 → 2004-04 Figure 861236 861236 2002-02 → 2005-07 Figure 861236 861236 2004-04 → — Figure 861557 861557 2001-10 → — Figure 861557 861557 2004-04 → — Figure 862495A 862495A 2005-07 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86300 Antenna Assy, W/Holder
86300B Antenna Assy, Amplifier, NO.1
86309E Pole Sub-assy, Roof Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
