Heating & Air Conditioning - Cooler Unit

19 part groups · 12 illustrations

Illustrations

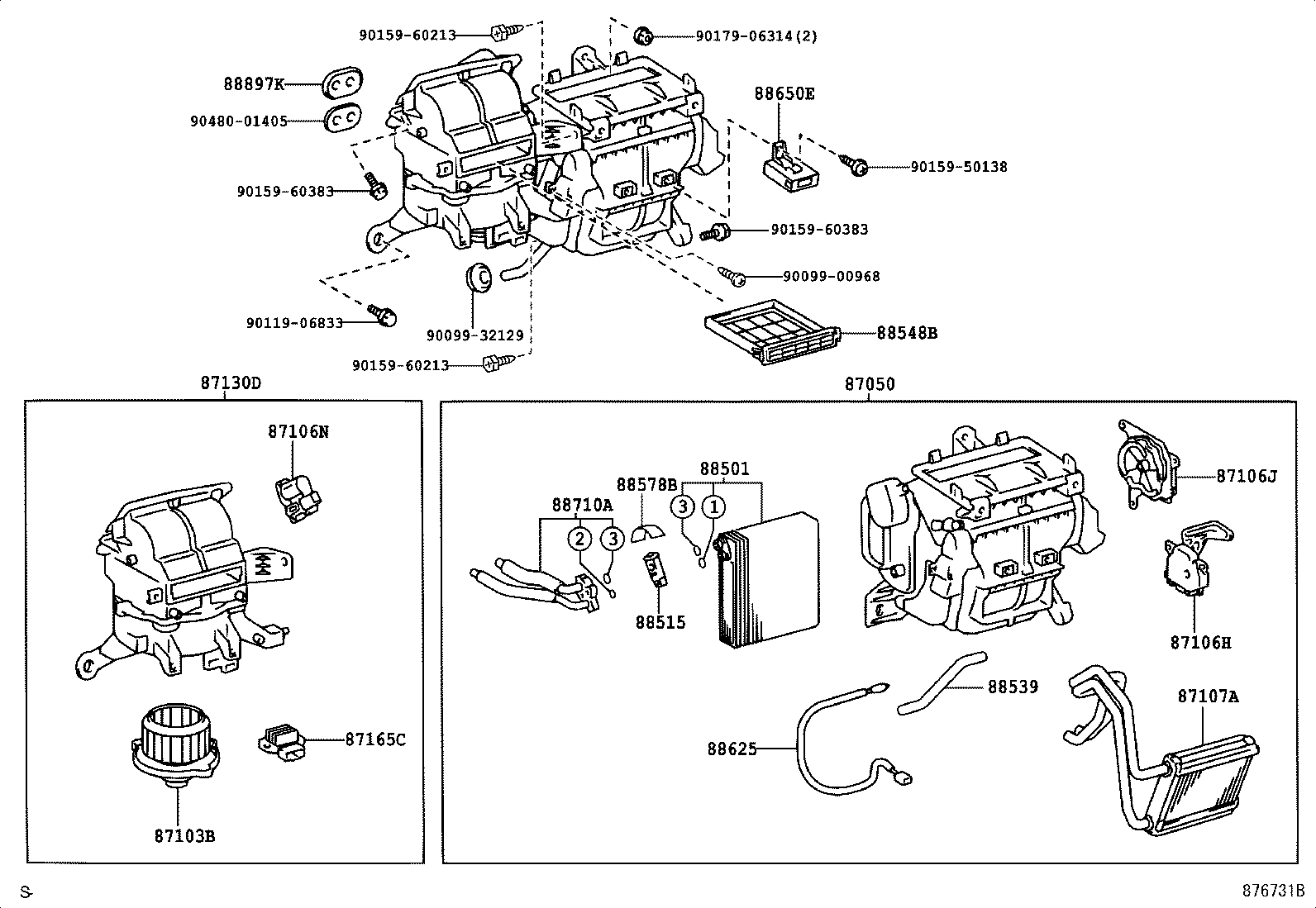

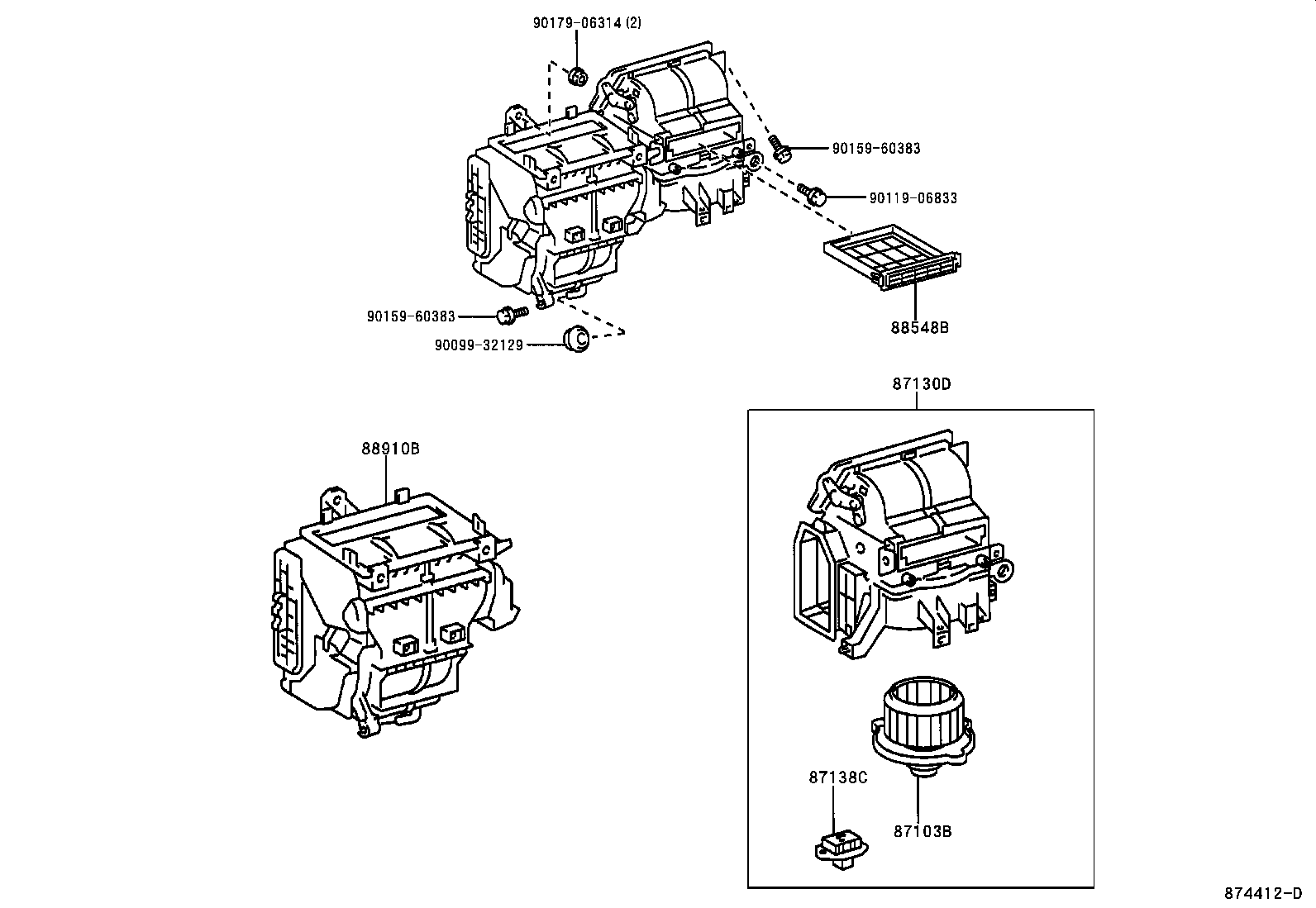

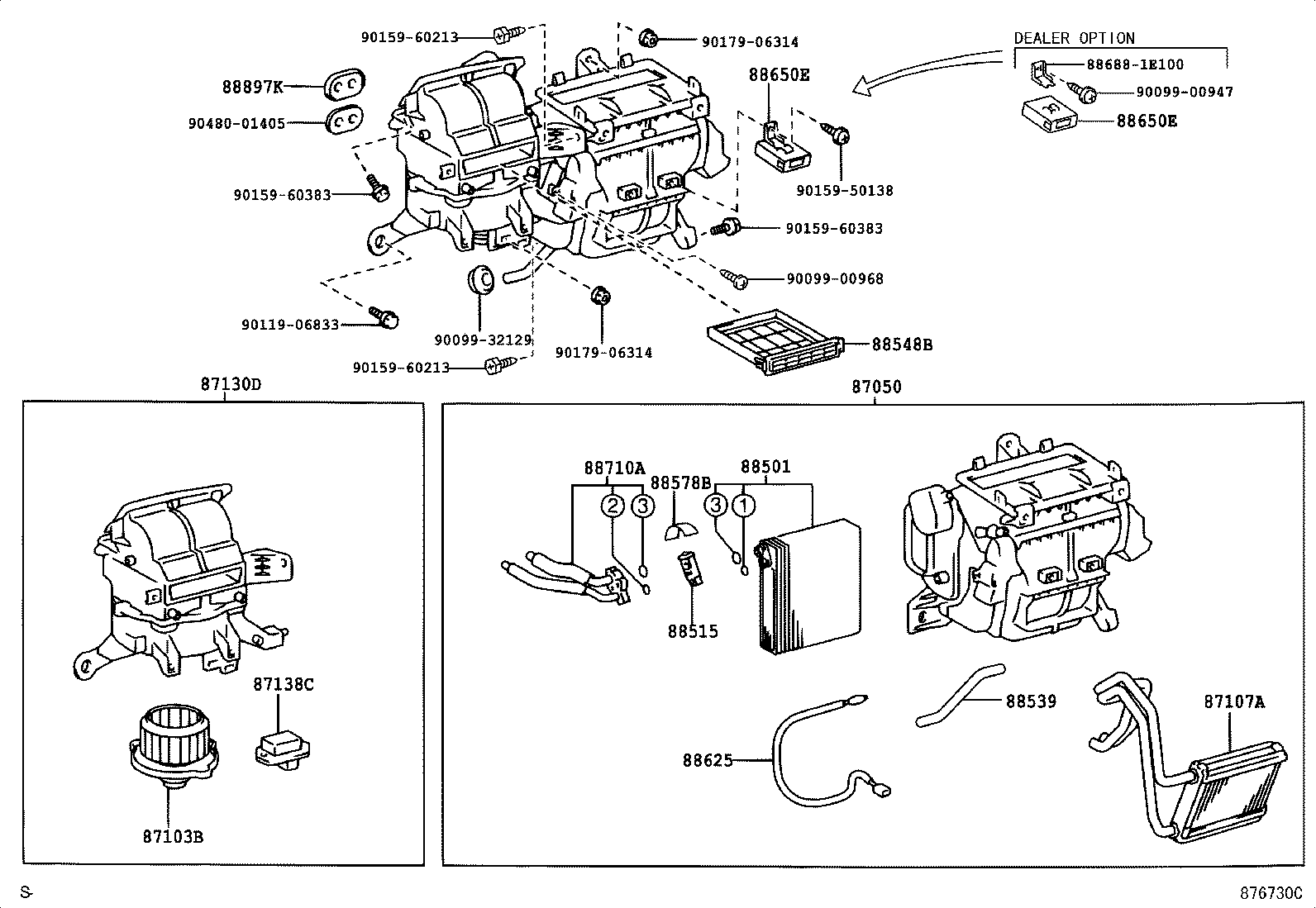

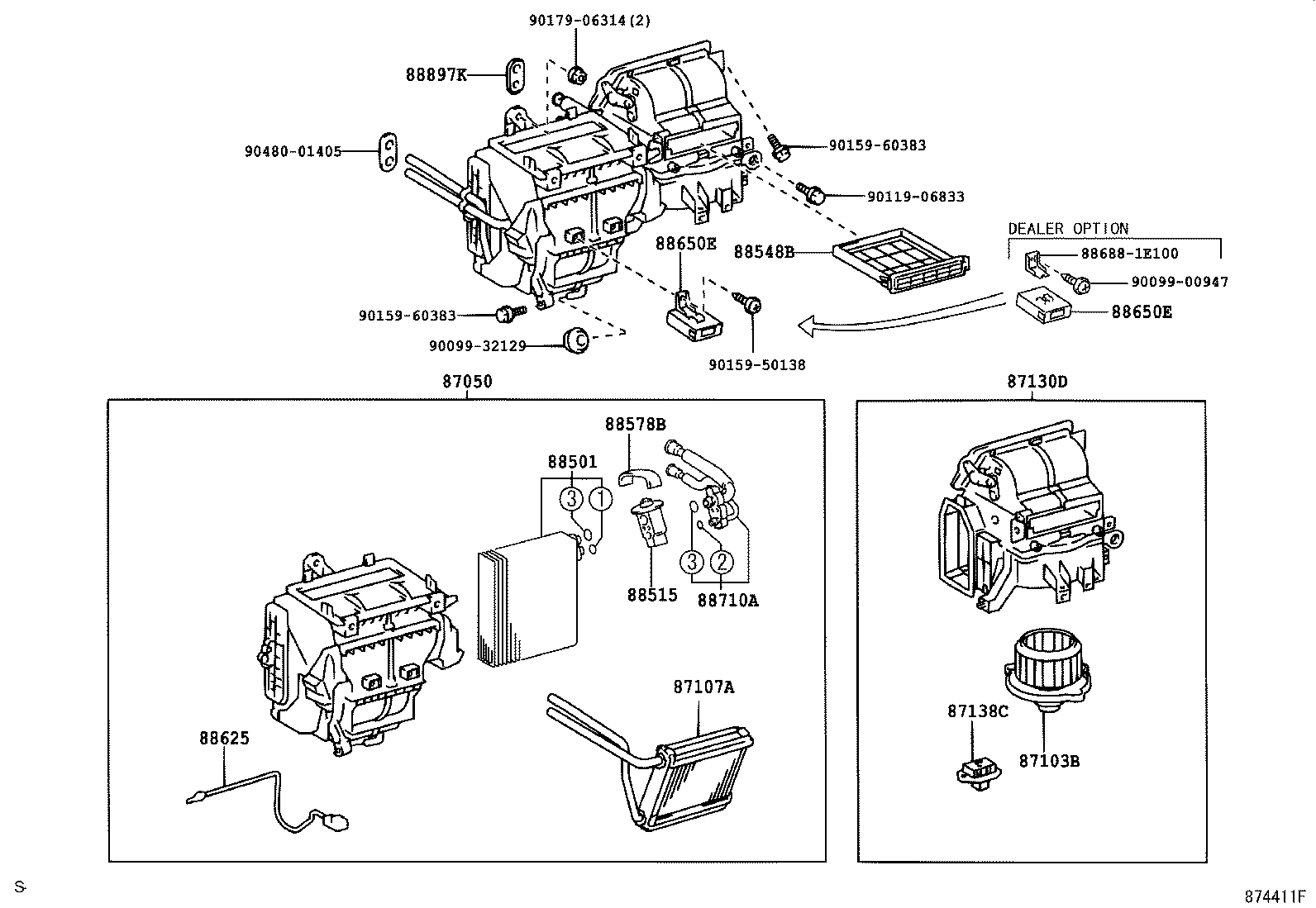

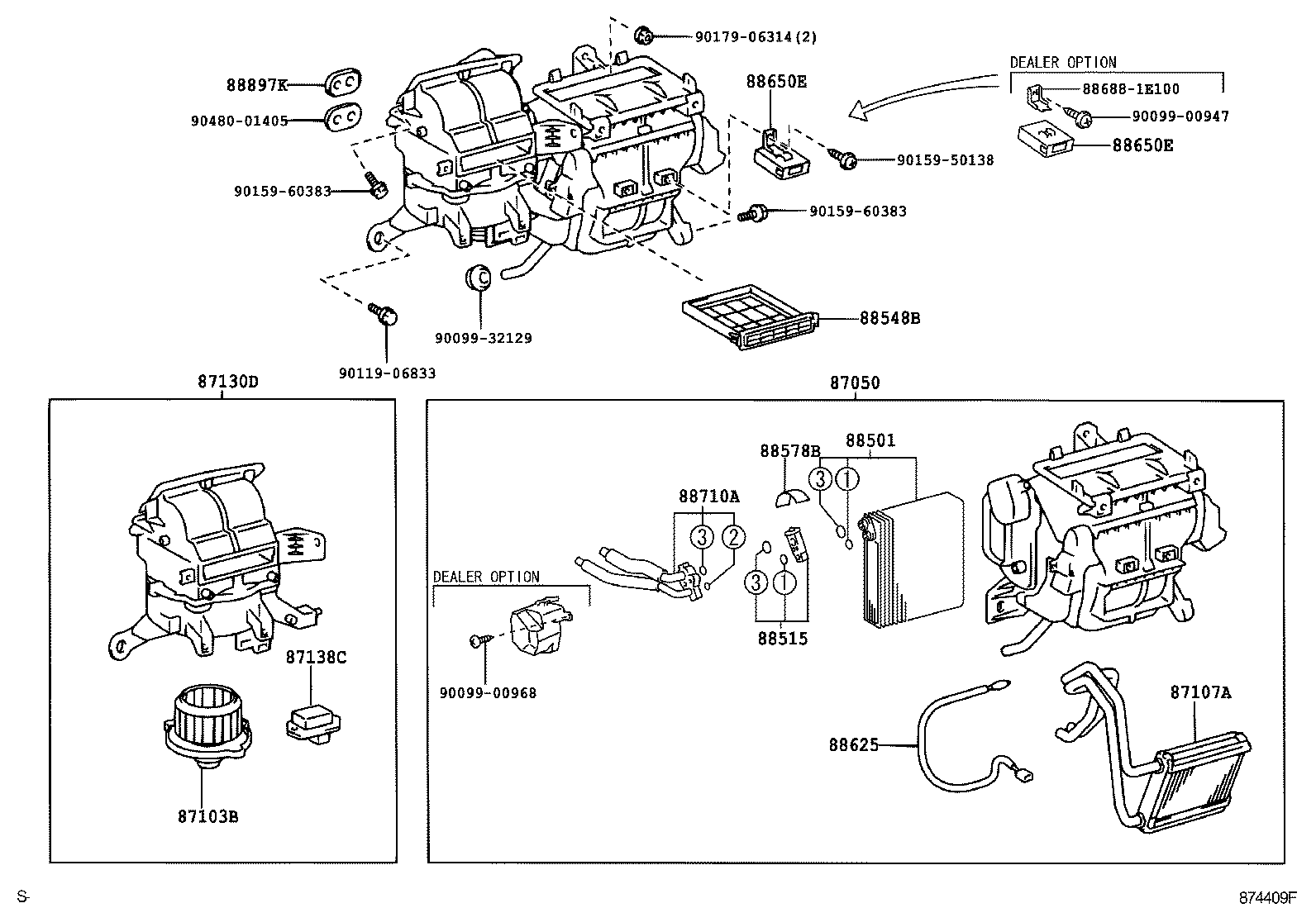

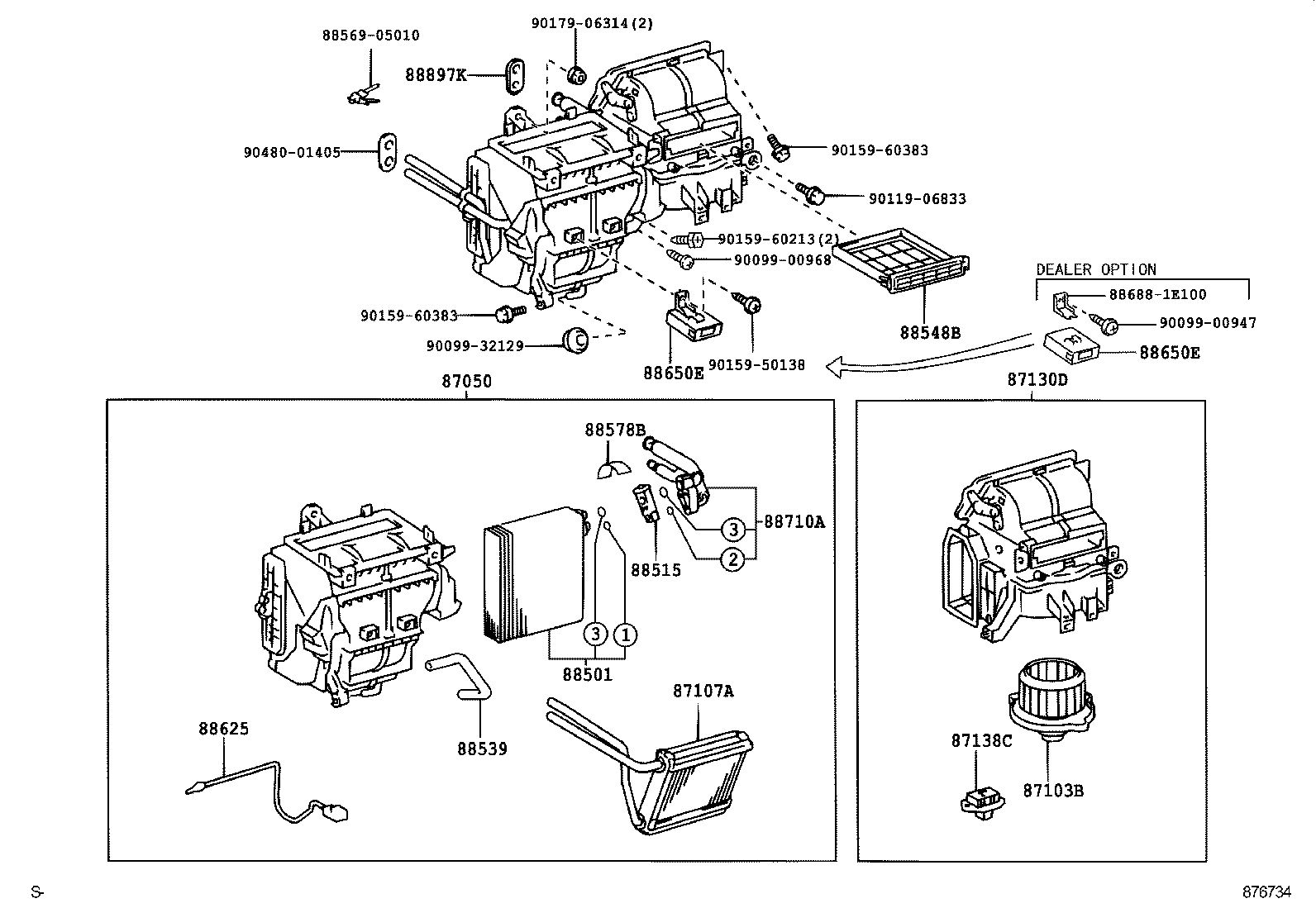

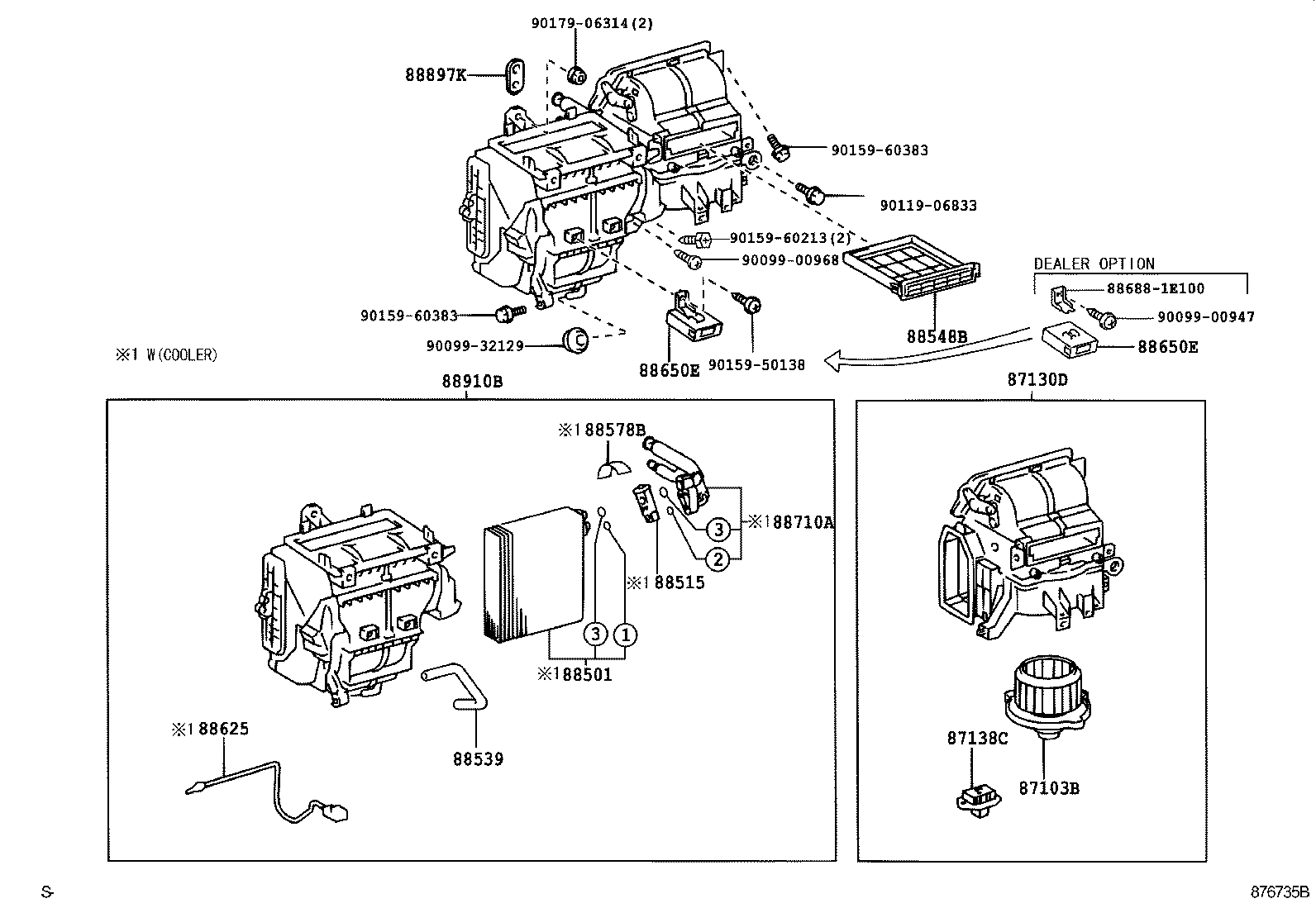

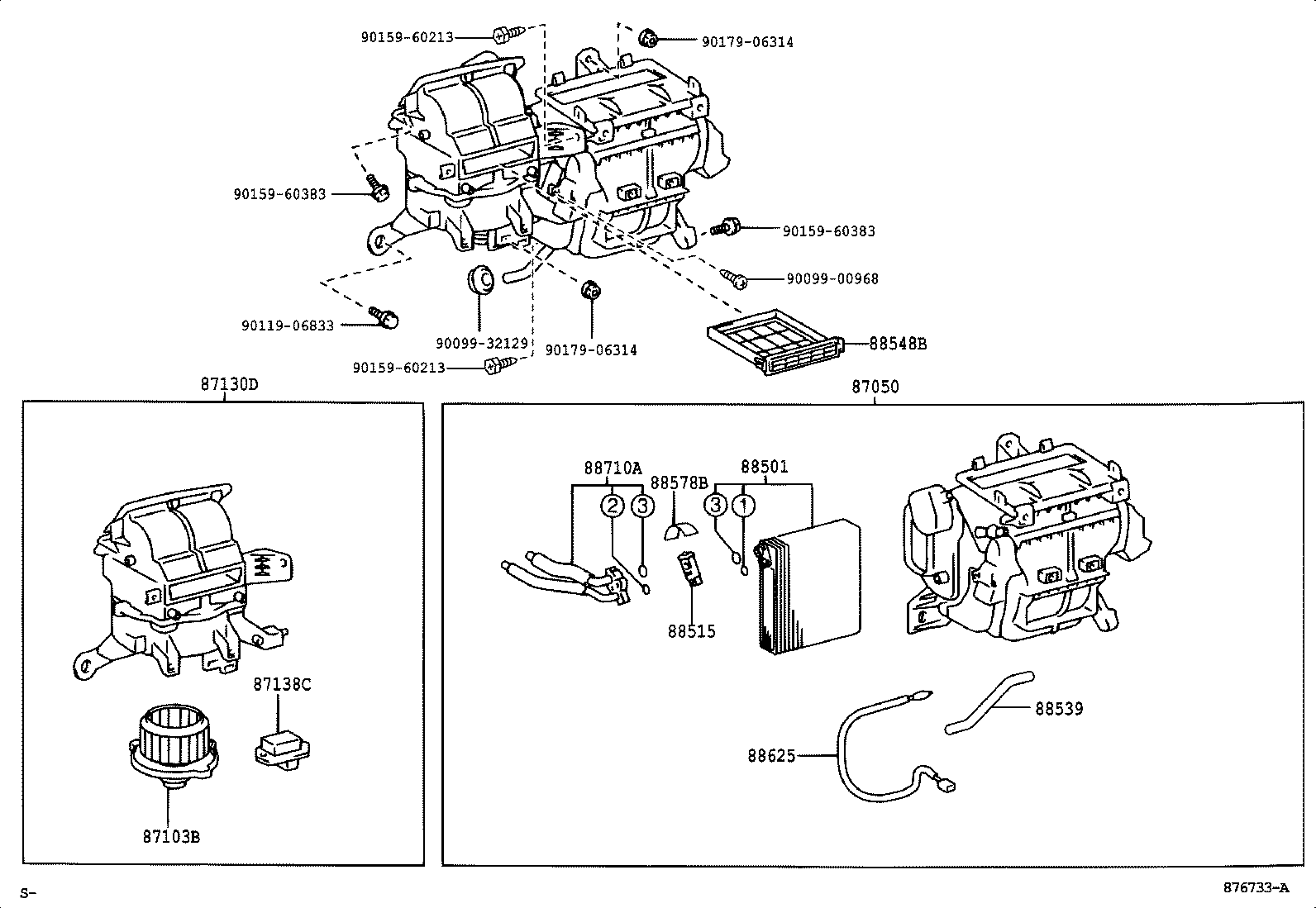

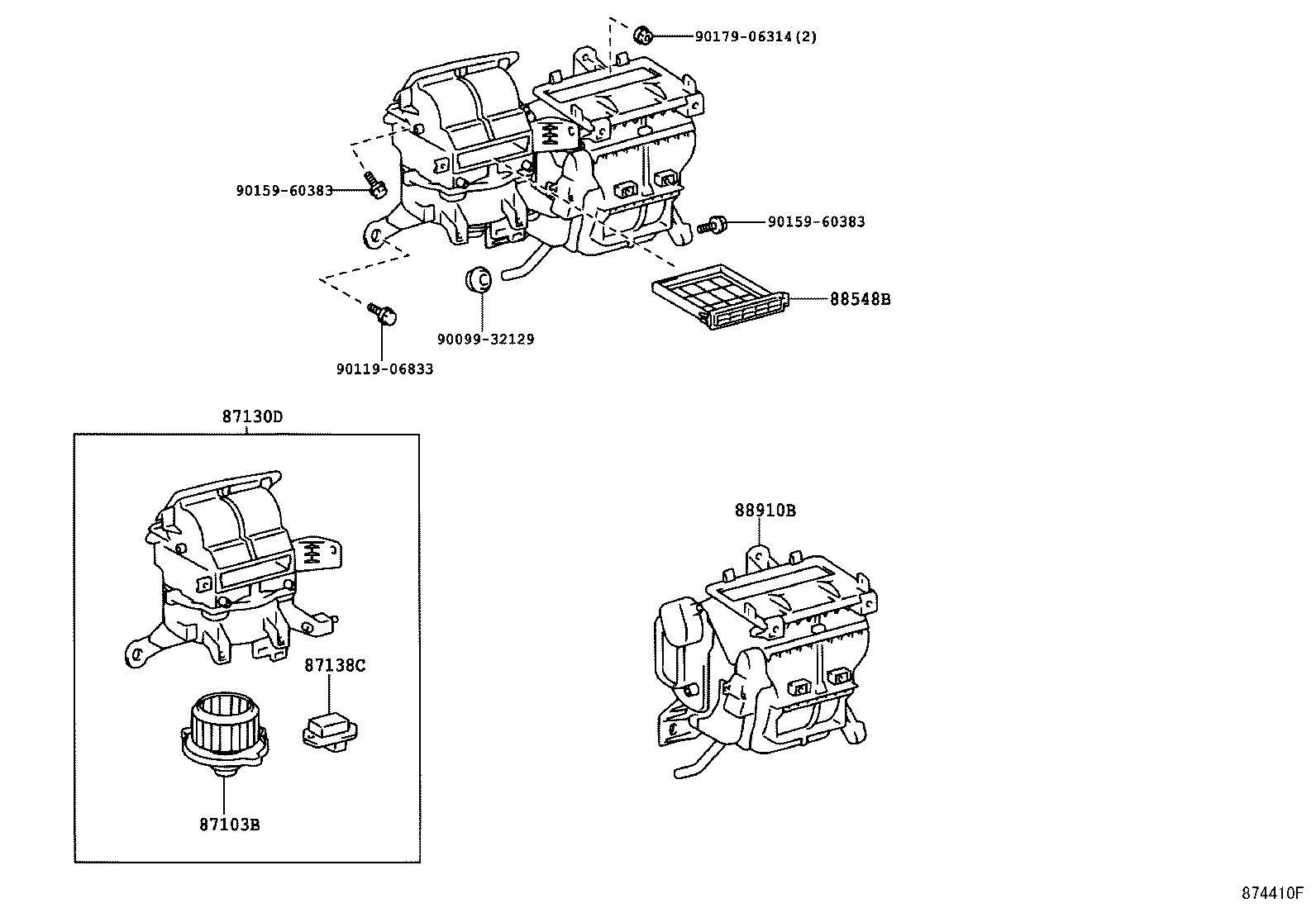

Figure 874457E 874457E 2000-08 → 2004-04 Figure 874409F 874409F 2000-08 → 2004-04 Figure 874409F 874409F 2004-04 → — Figure 874410F 874410F 2000-08 → 2004-04 Figure 874411F 874411F 2000-08 → 2004-04 Figure 874412D 874412D 2000-08 → 2004-04 Figure 876731B 876731B 2004-04 → — Figure 876730C 876730C 2004-04 → — Figure 876733A 876733A 2004-04 → — Figure 876734A 876734A 2004-04 → — Figure 876735B 876735B 2004-04 → — Figure 874869 874869 2000-08 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87138C Resistor, Blower
87165C Control, Blower Motor
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88548B Case, Air Filter
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
88710A Tube Assy, Air Conditioner
88897K Grommet, (FOR COOLER PIPE)
88910B Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
