Heating & Air Conditioning - Compressor

6 part groups · 2 illustrations

Illustrations

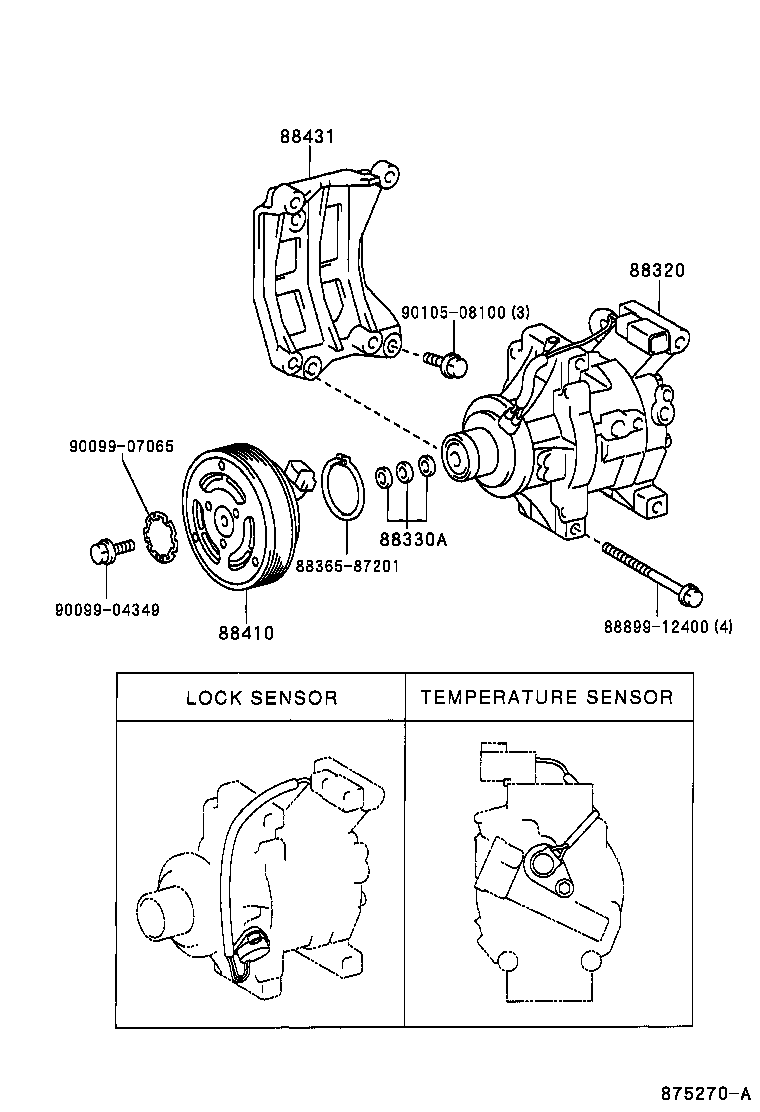

Figure 875274B 875274B 2000-08 → — Figure 875270A 875270A 2001-10 → —

Part groups

PNCDescription
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
