Toyota Corolla Sed/WG

2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 14 illustrations

Illustrations

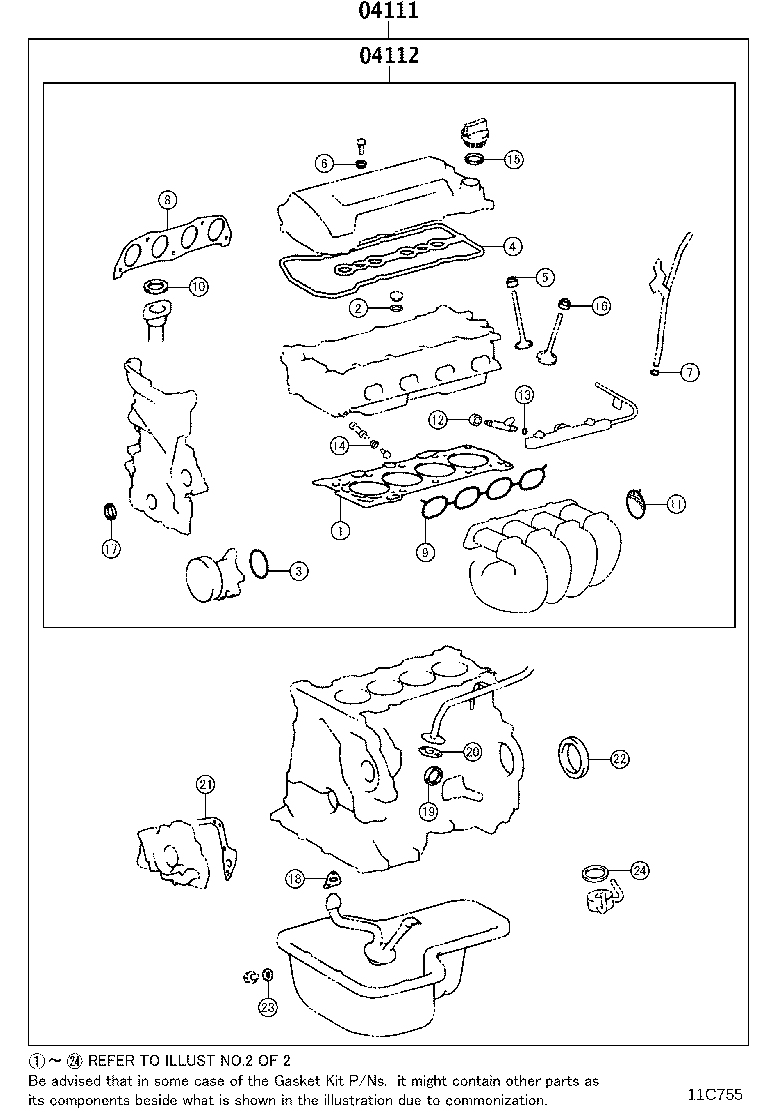

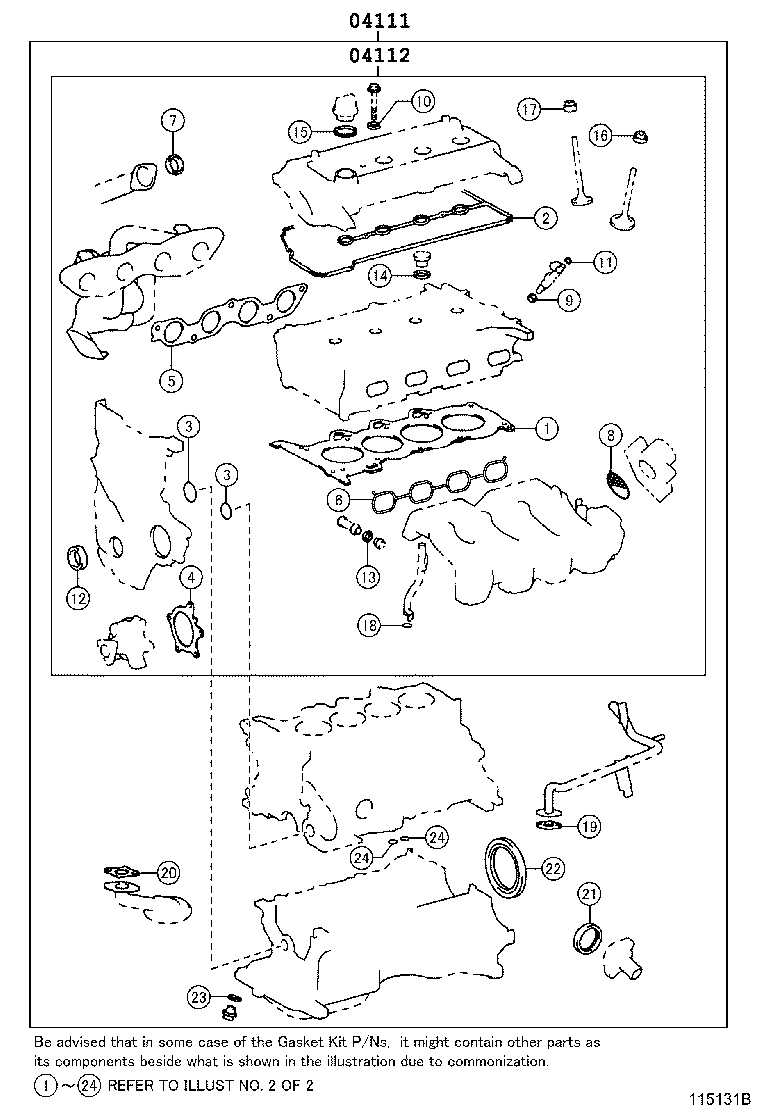

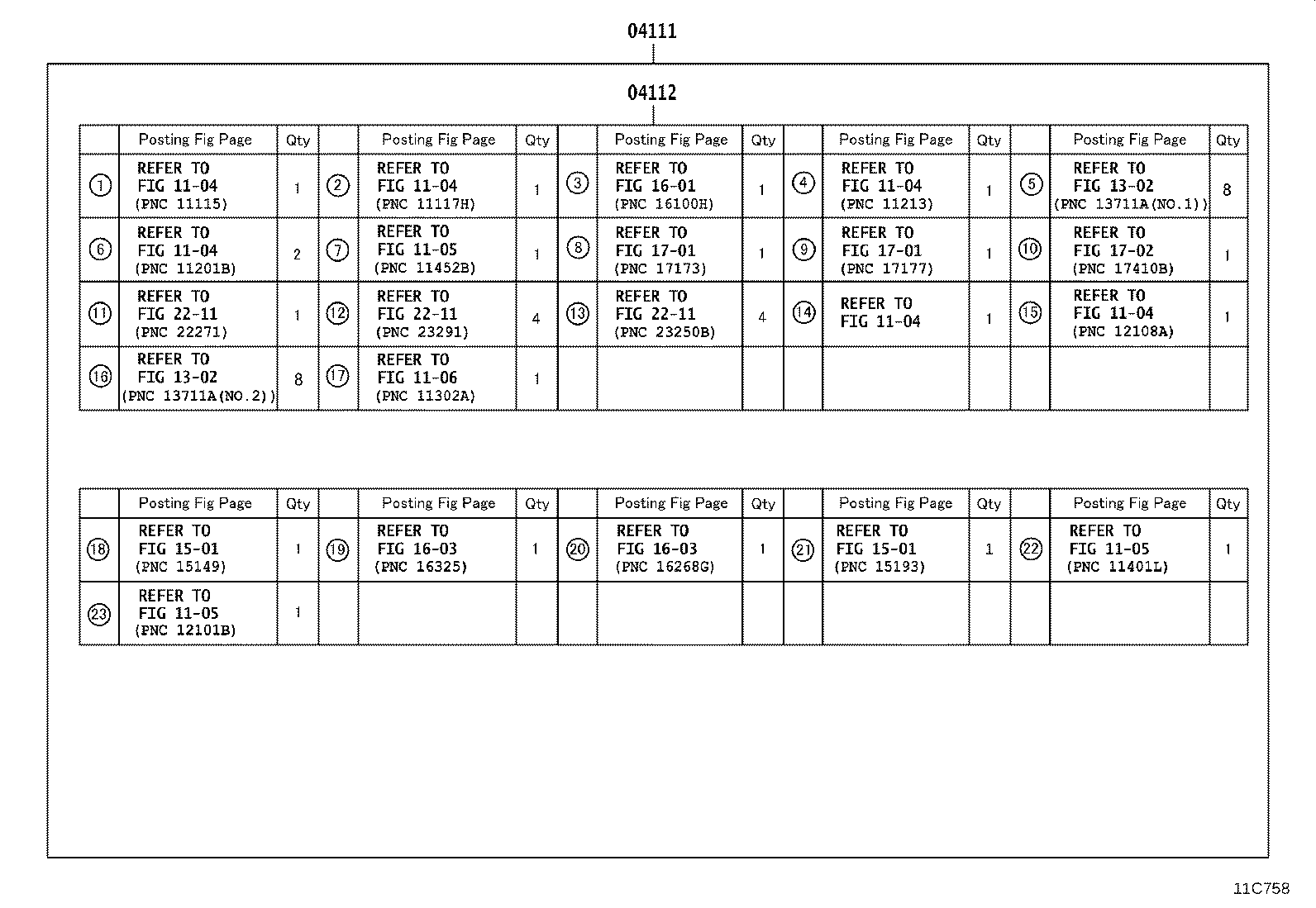

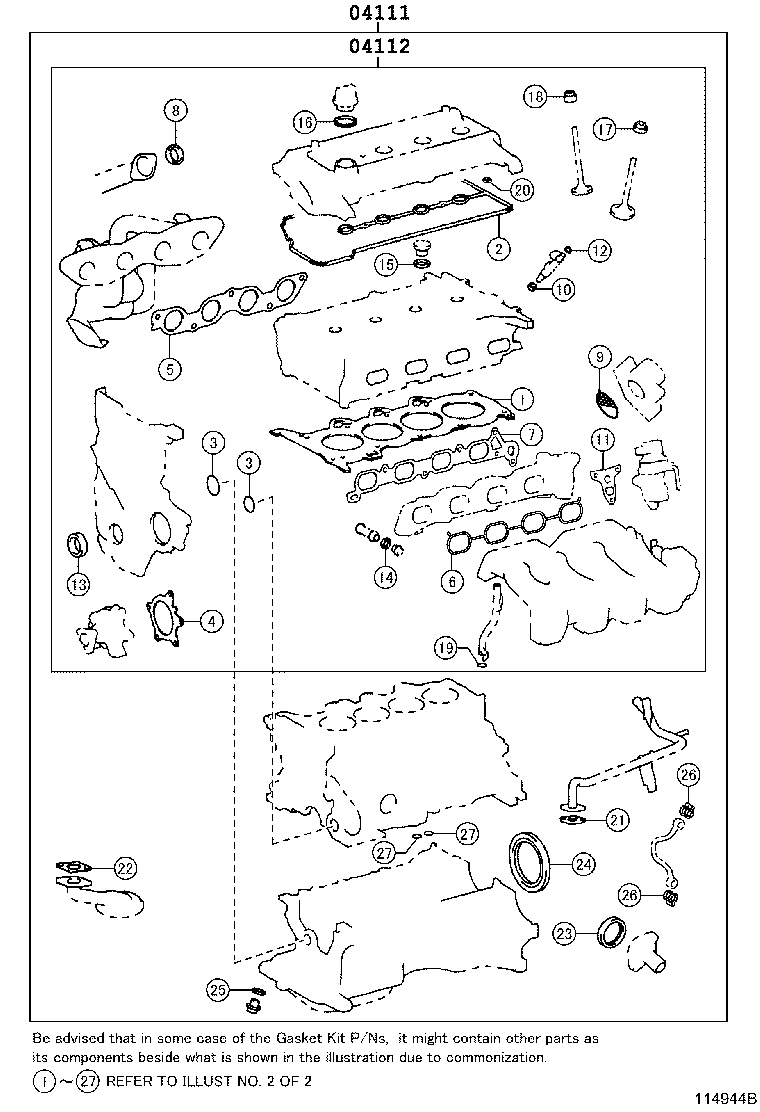

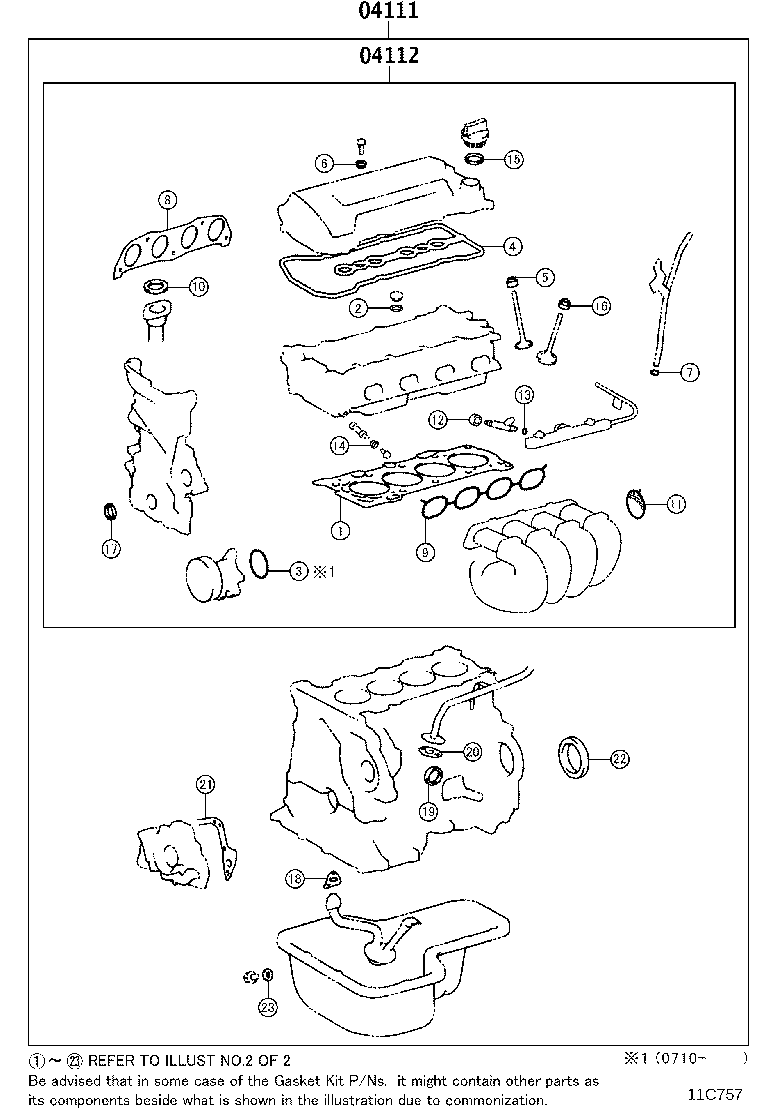

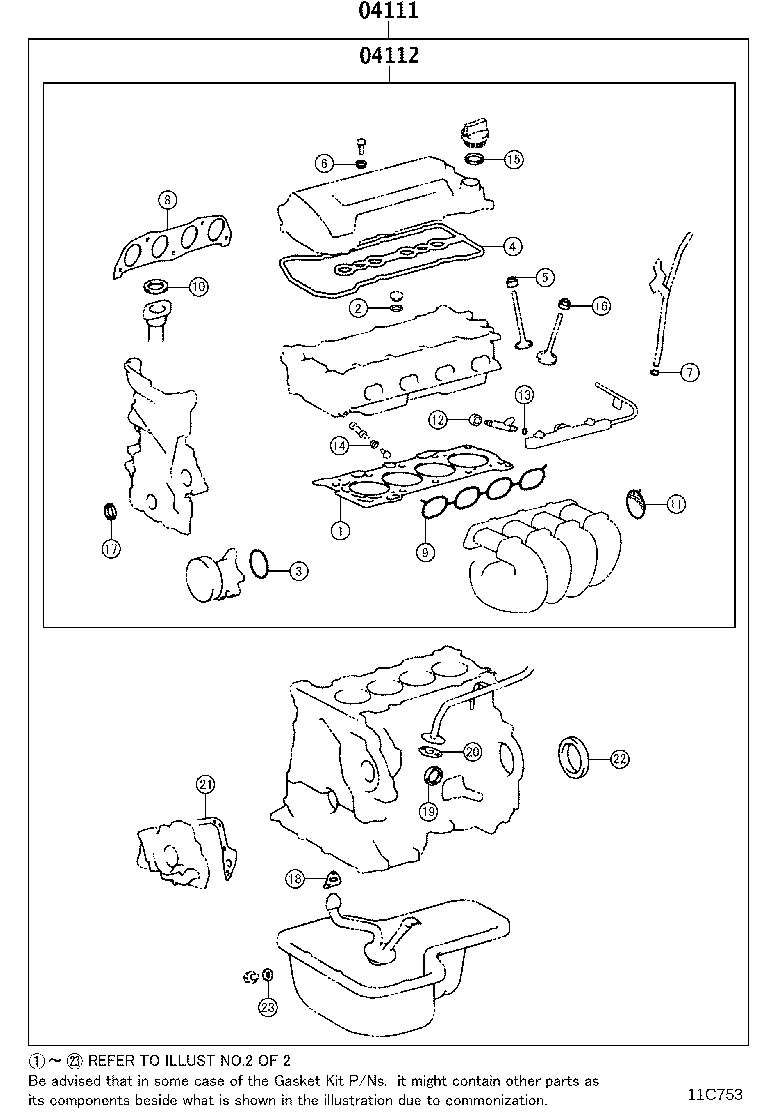

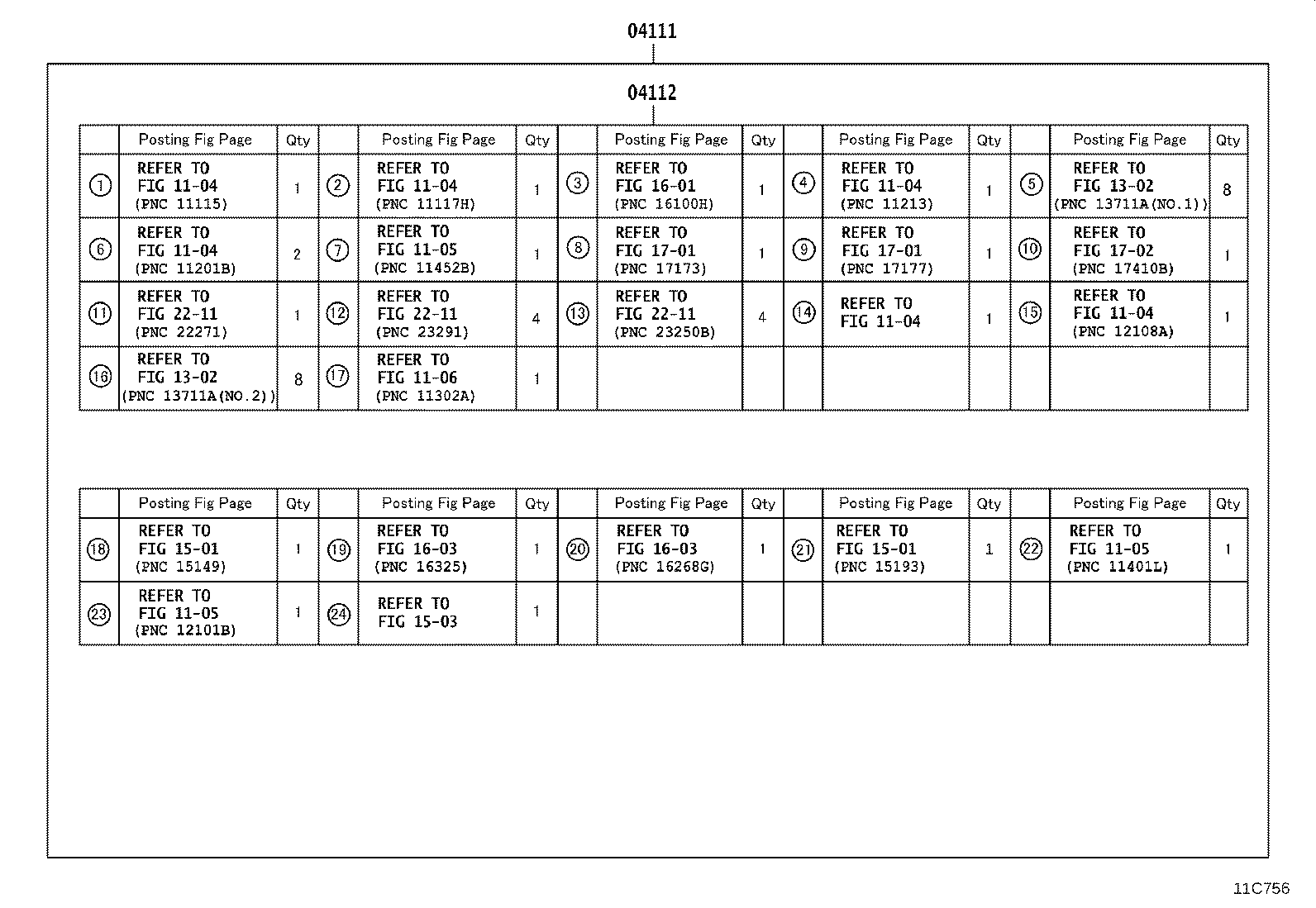

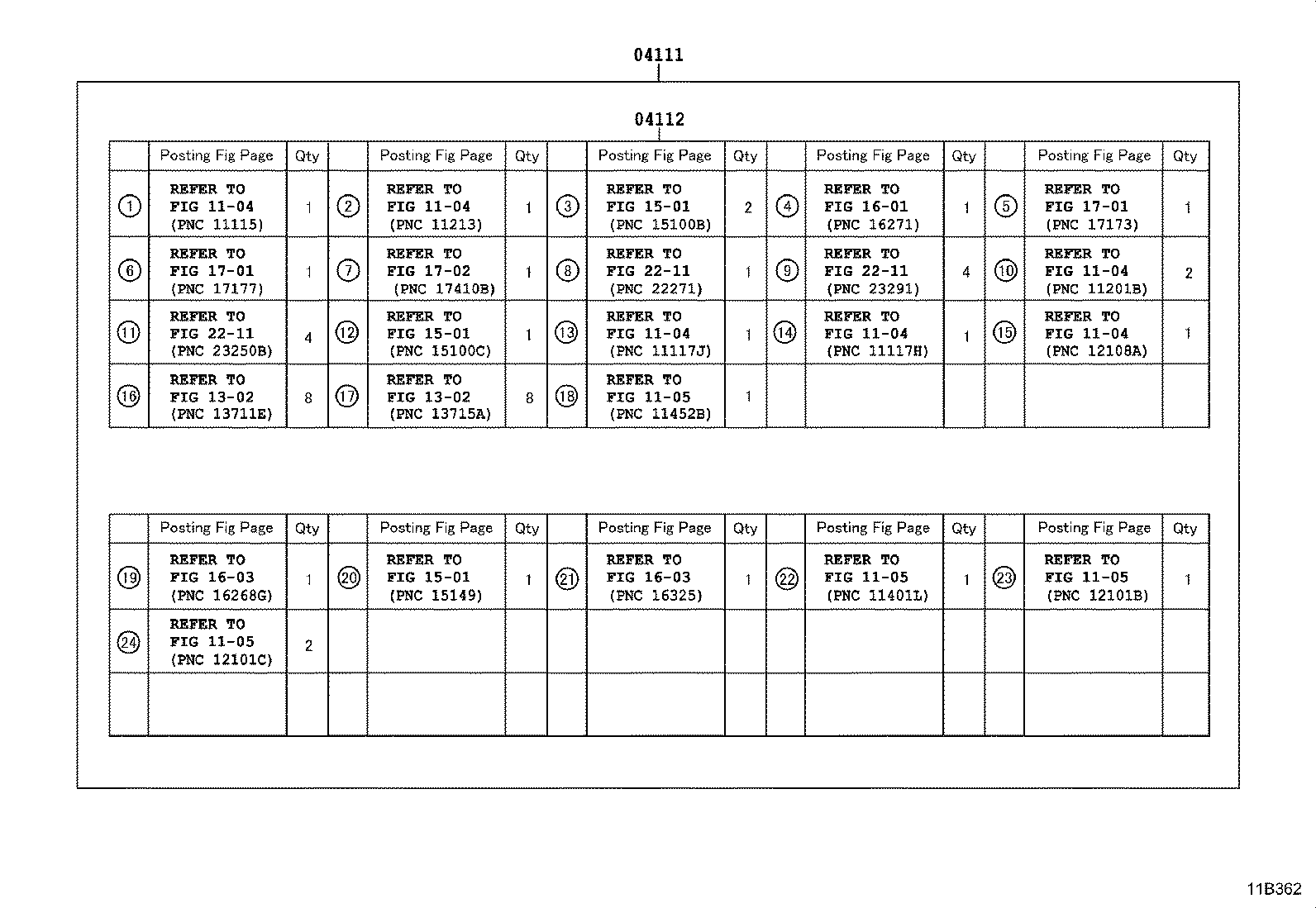

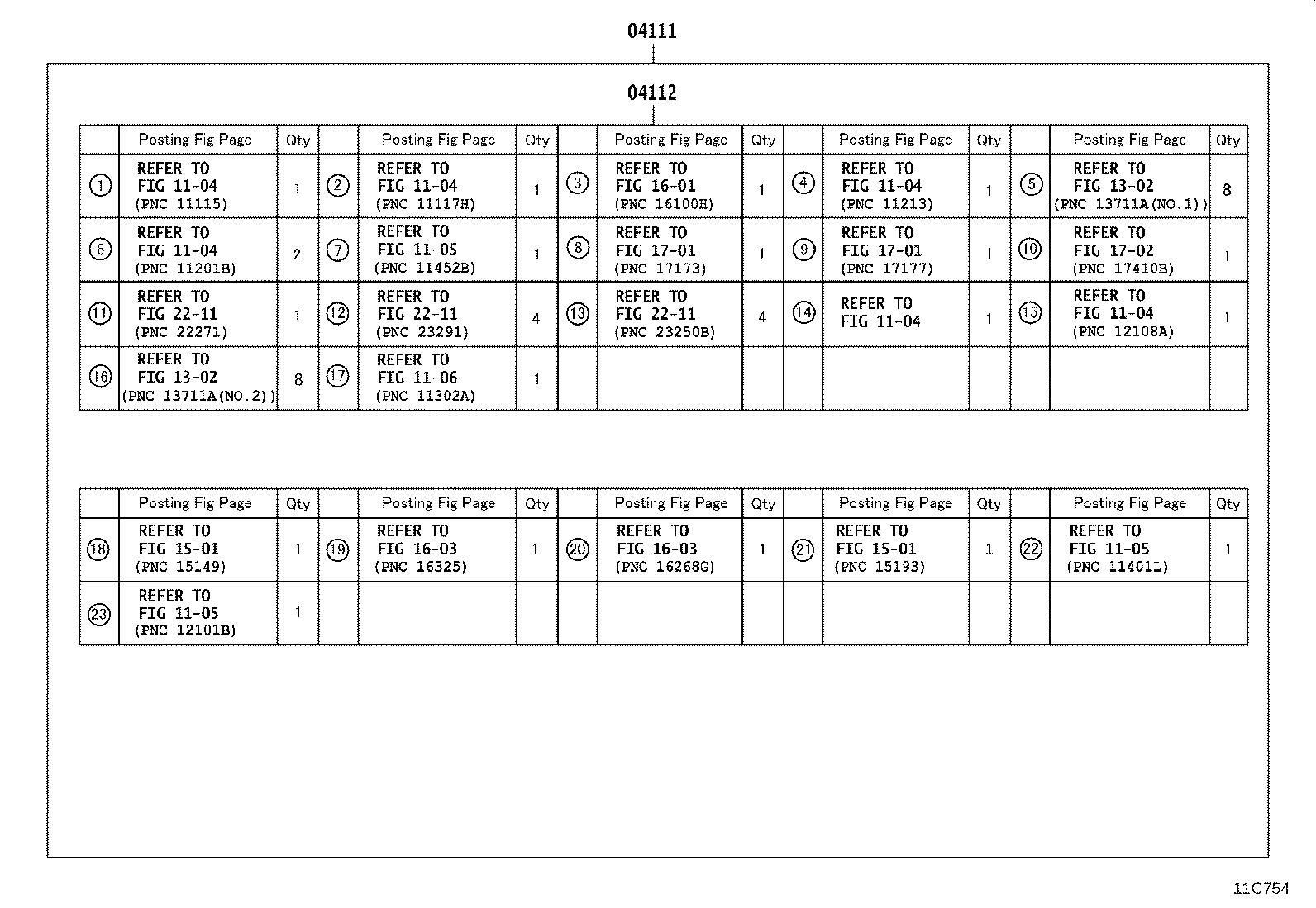

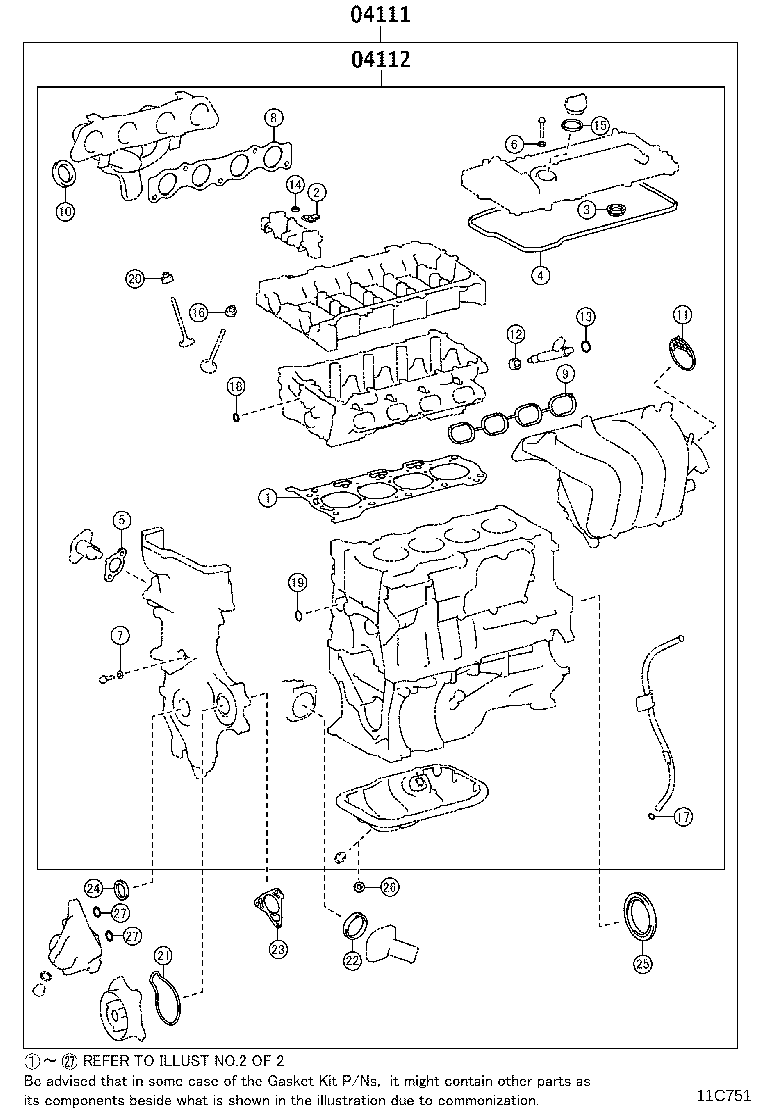

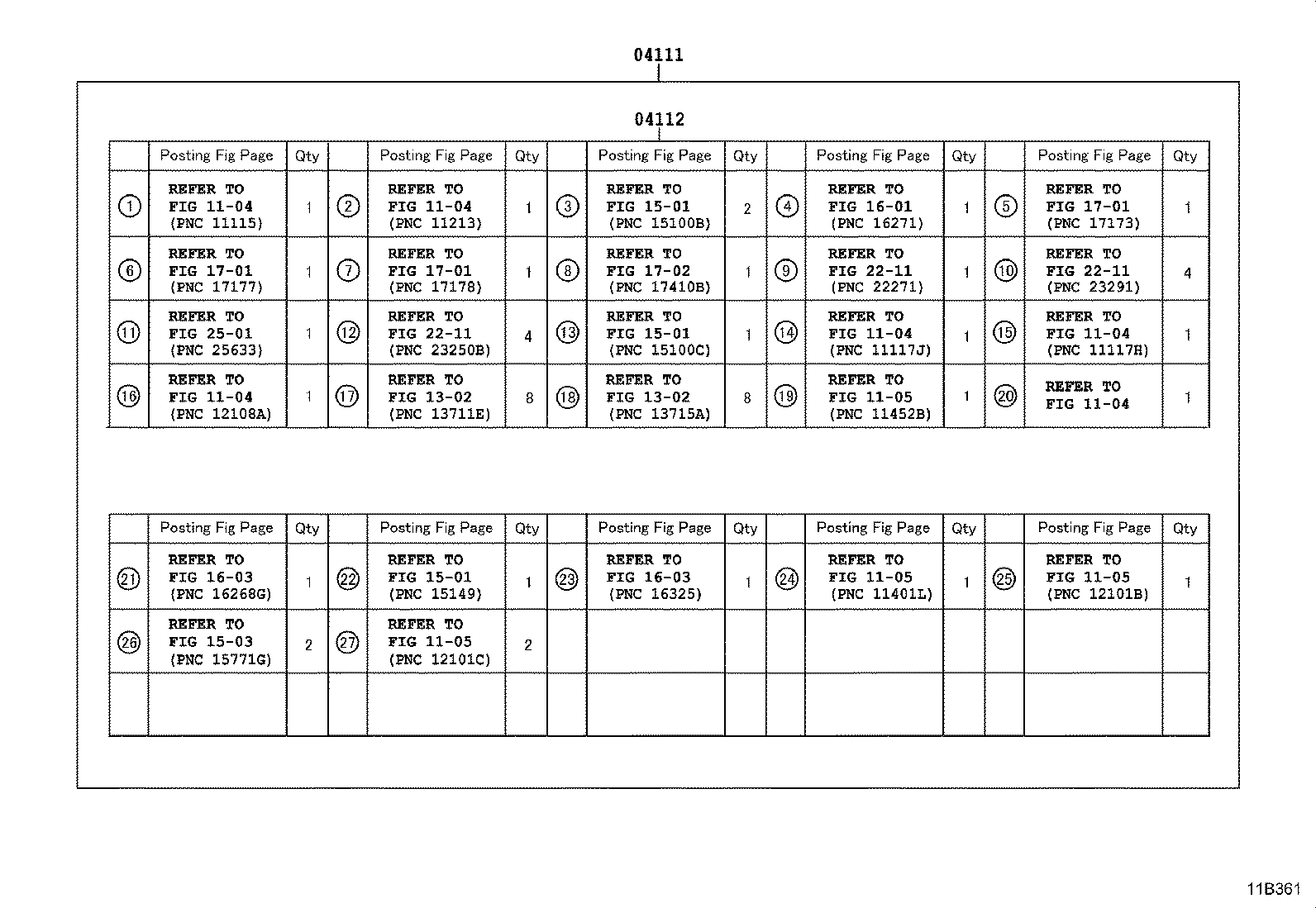

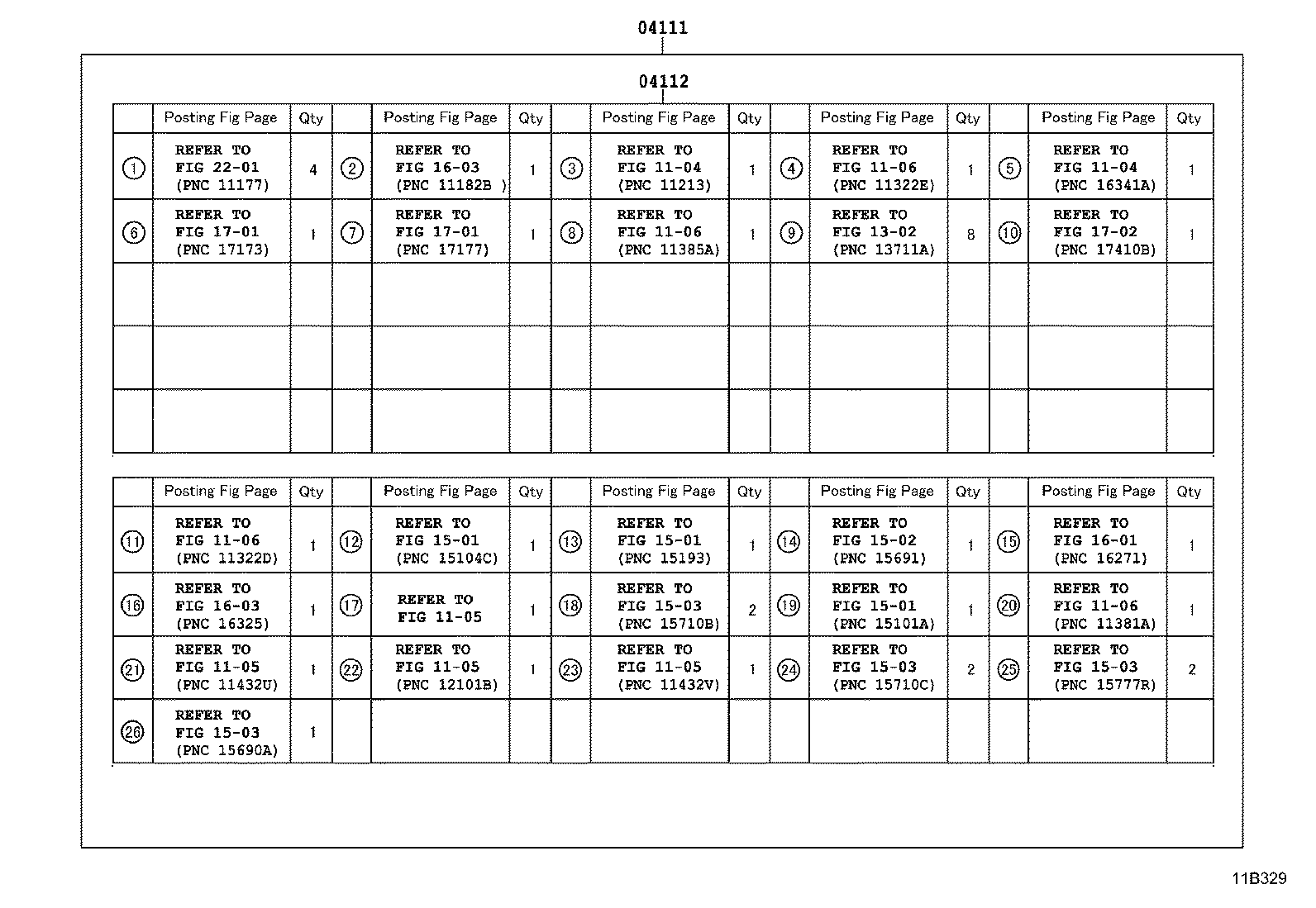

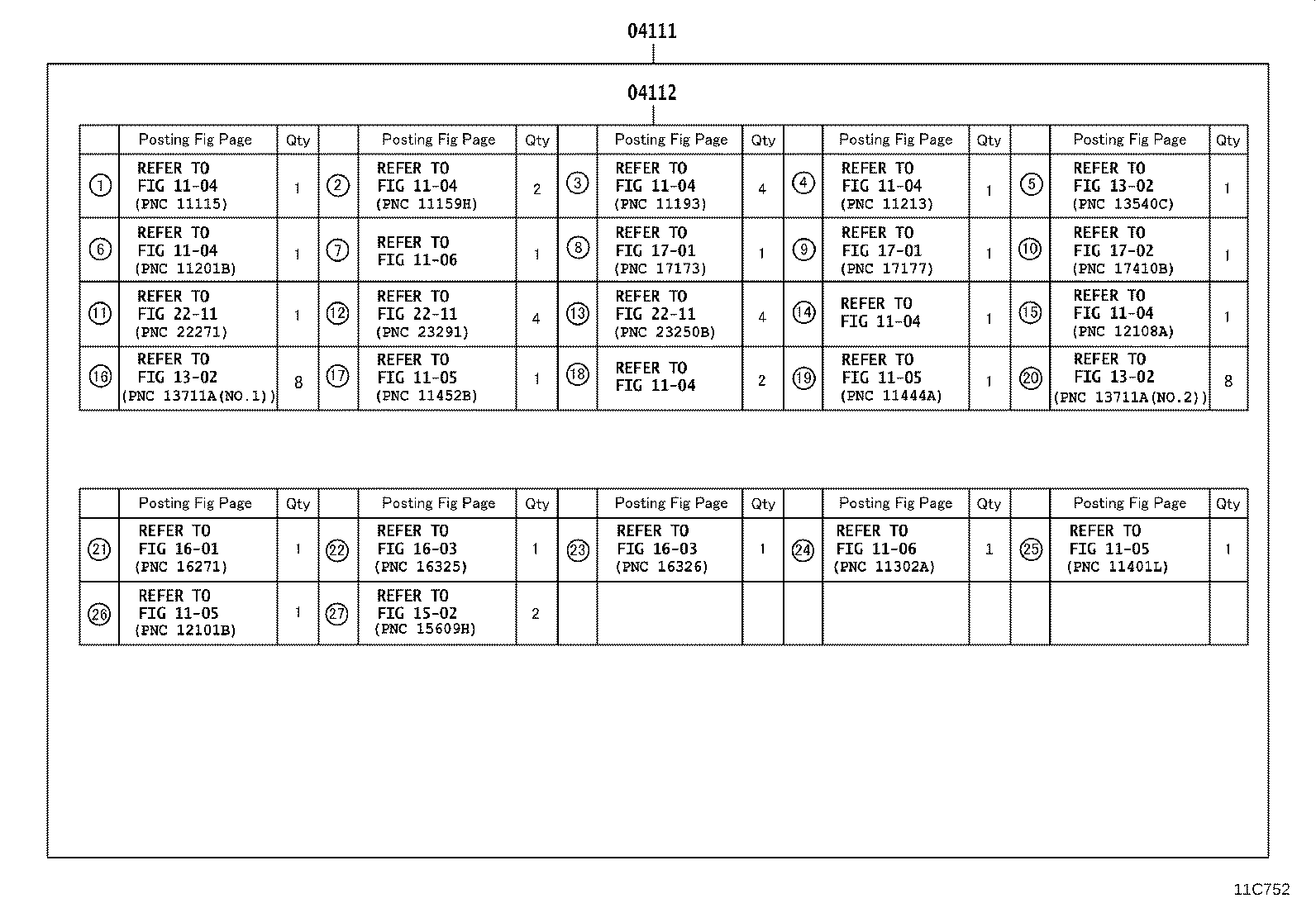

Figure 115072A 115072A 2007-08 → — Figure 11B329 11B329 2007-08 → — Figure 114944B 114944B 2007-04 → — Figure 115131B 115131B 2007-08 → — Figure 11B361 11B361 2007-04 → — Figure 11B362 11B362 2007-08 → — Figure 11C751 11C751 2010-07 → — Figure 11C752 11C752 2010-07 → — Figure 11C753 11C753 2007-08 → 2013-11 Figure 11C754 11C754 2007-08 → 2013-11 Figure 11C755 11C755 2007-08 → 2013-11 Figure 11C756 11C756 2007-08 → 2013-11 Figure 11C757 11C757 2007-08 → — Figure 11C758 11C758 2007-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
