Toyota Corolla Sed/WG

2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

18 part groups · 5 illustrations

Illustrations

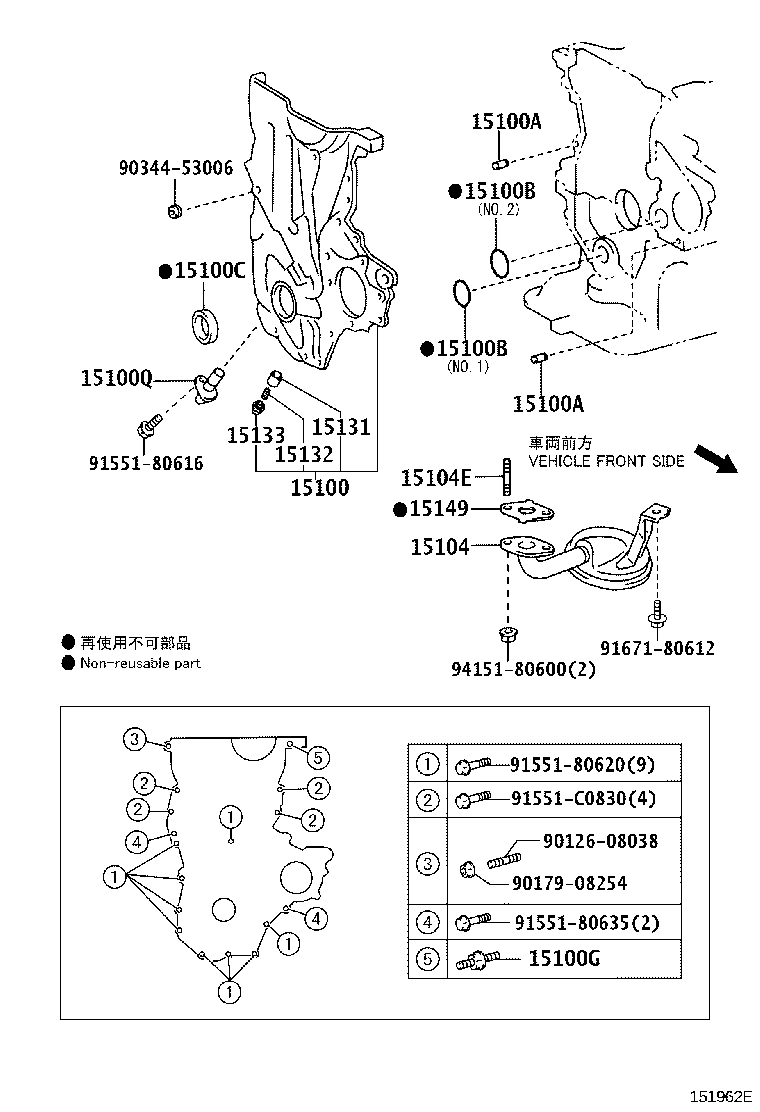

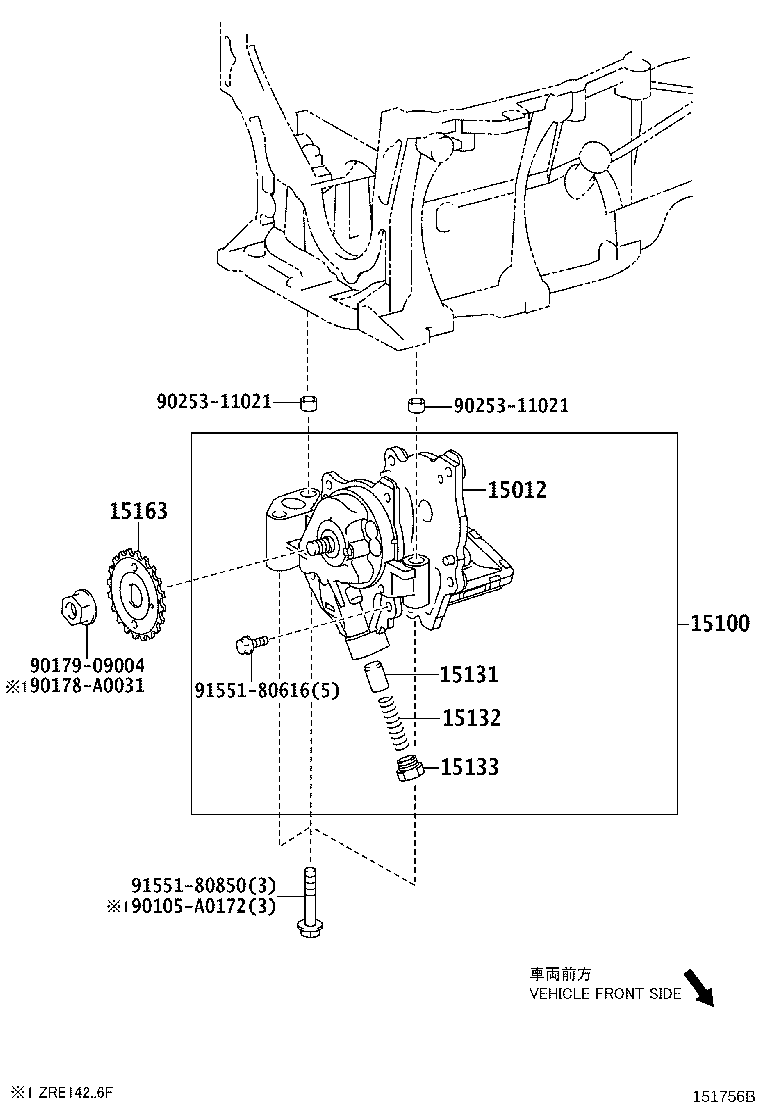

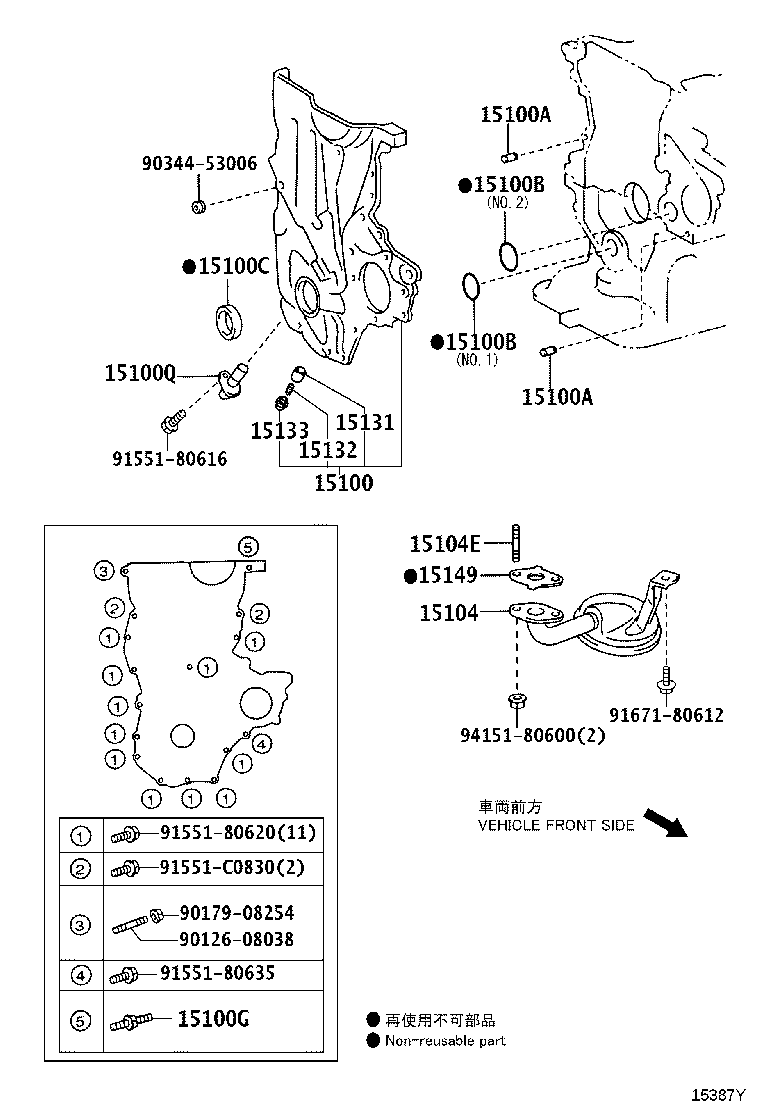

Figure 151393C 151393C 2007-08 → — Figure 15387Y 15387Y 2007-04 → 2012-04 Figure 151962E 151962E 2012-04 → — Figure 152812 152812 2007-08 → — Figure 151756B 151756B 2010-07 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100G Bolt,Stud(FOR OIL PUMP)
15100Q Sensor, Crank Position
15101A Seal(FOR CRANKSHAFT)
15104 Strainer Sub-assy, Oil
15104C Gasket(FOR OIL STRAINER)
15104E Bolt, Stud(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
15163 Gear, Oil Pump Drive Shaft
15193 Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
