Toyota Corolla Sed/WG
2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General
Supported model
Data version 2014-01

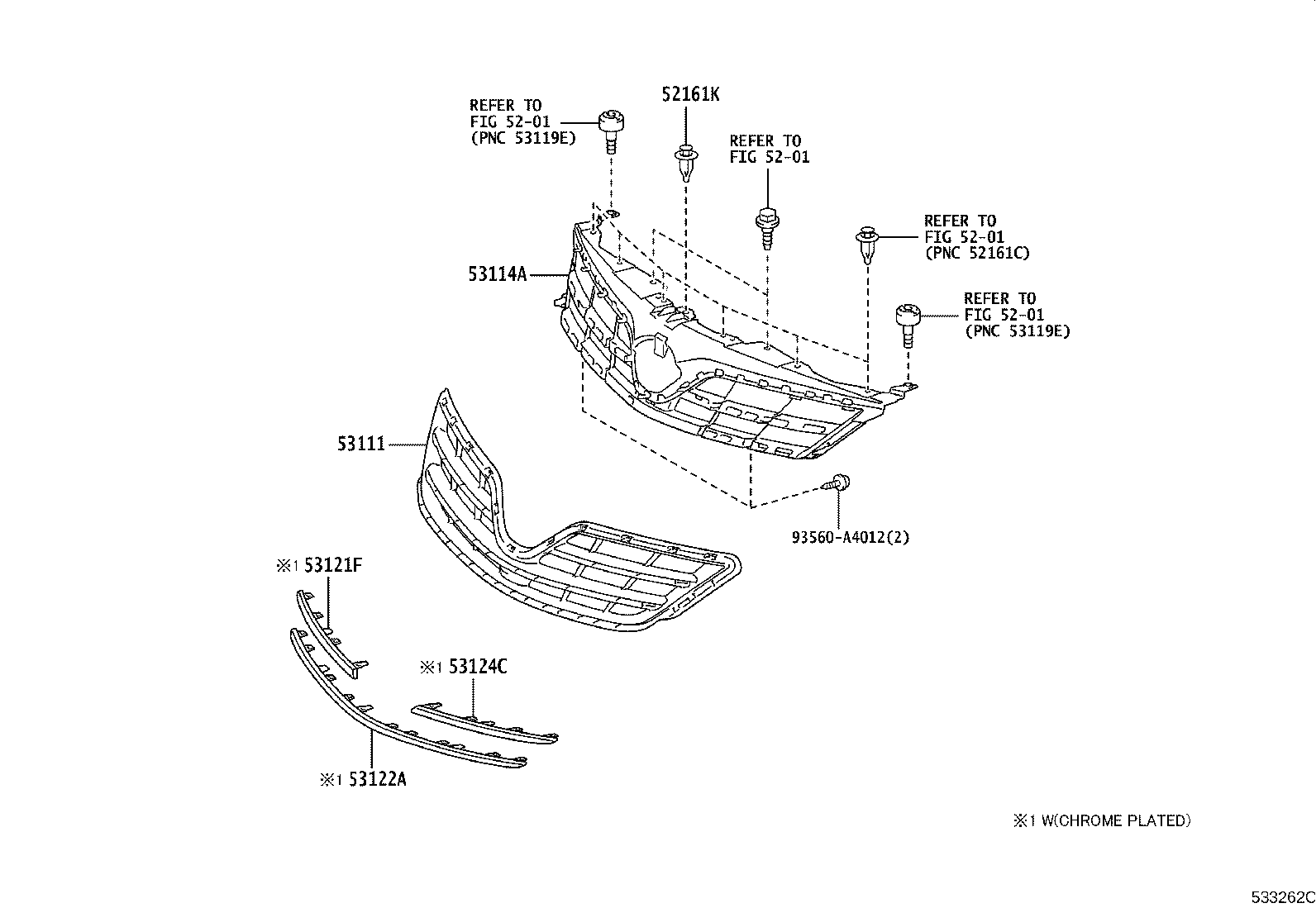

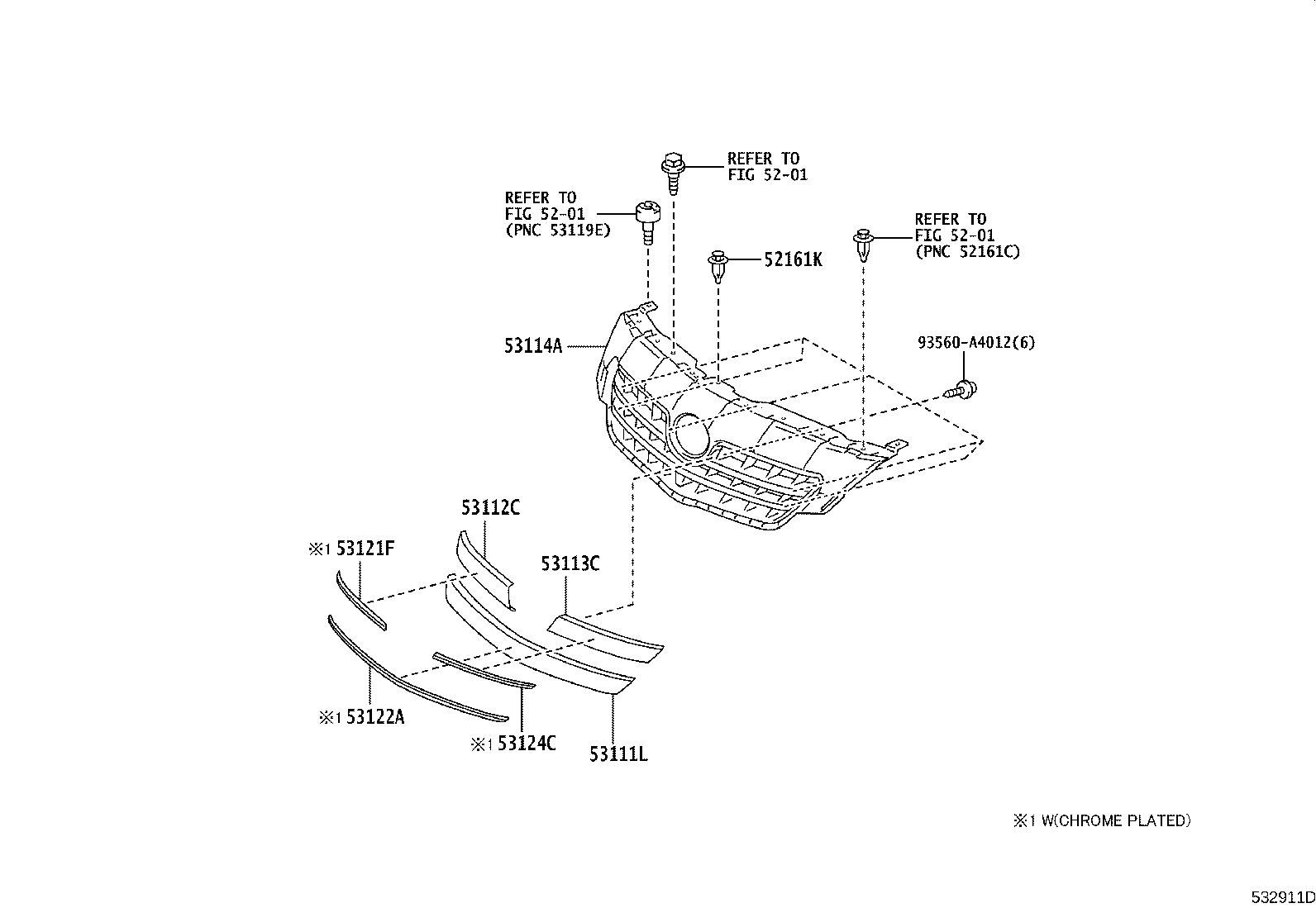

Radiator Grille
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161K | Piece, Front Bumper |
| 53101 | Grille Sub-assy, Radiator |
| 53111 | Grille, Radiator |
| 53111L | Grille Sub-assy, Radiator, Center |
| 53112C | Grille, Radiator, Lower RH |
| 53113C | Grille, Radiator, Lower LH |
| 53114A | Grille, Radiator, Inner |
| 53119B | Protector, Radiator Grille |
| 53121F | Moulding, Radiator Grille, Upper RH |
| 53122A | Moulding, Radiator Grille, Lower |
| 53124C | Moulding, Radiator Grille, Upper LH |
| 53395H | Seal, Hood TO Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
