Toyota Corolla Sed/WG
2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General
Supported model
Data version 2014-01

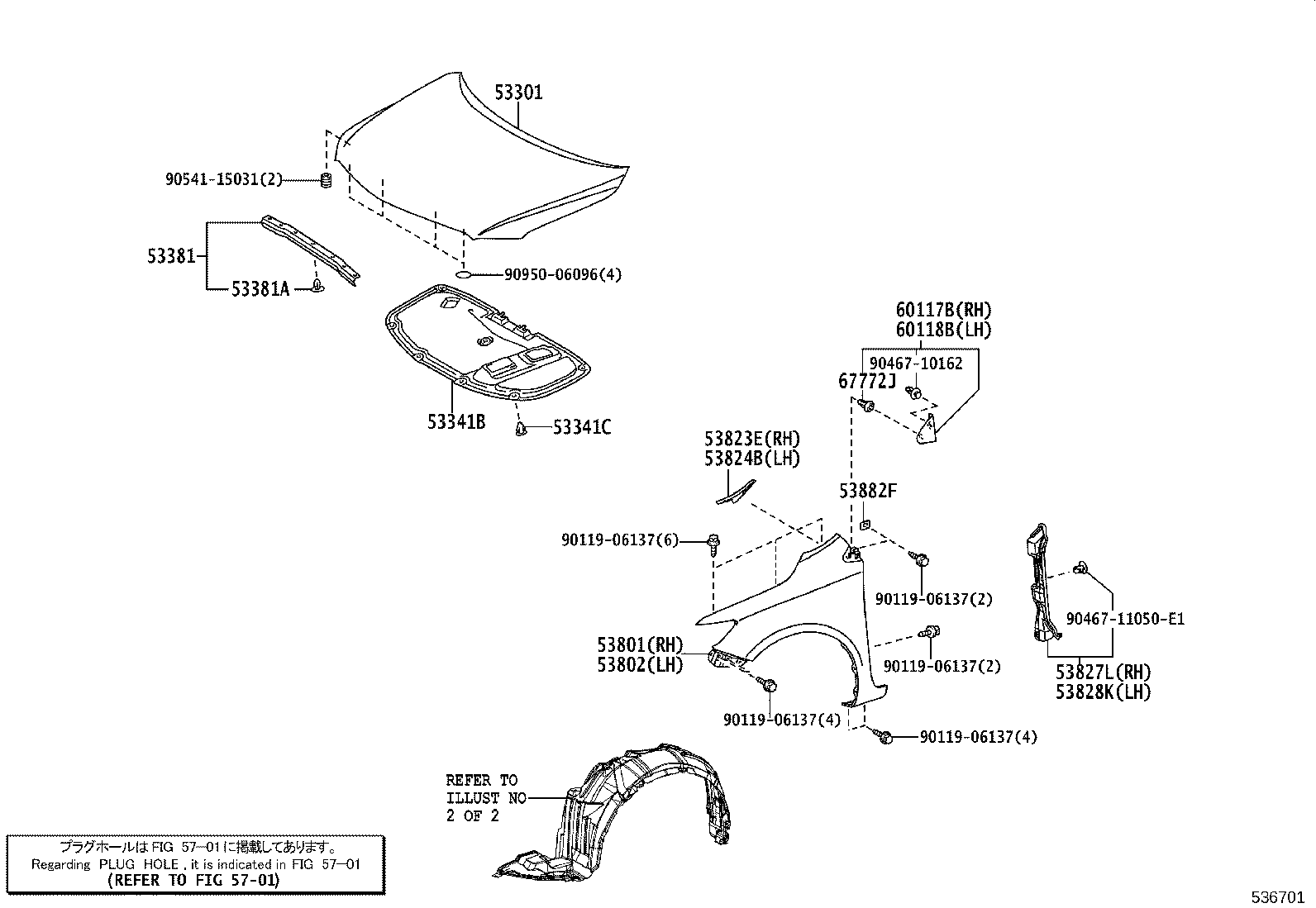

Hood & Front Fender
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749D | Clip, Pin Hold |
| 53153K | Guide, Radiator Grille Side Air, RH |
| 53154L | Guide, Radiator Grille Side Air, LH |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53823E | Protector, Front Side Panel, NO.2 RH |
| 53824B | Protector, Front Side Panel, NO.2 LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |

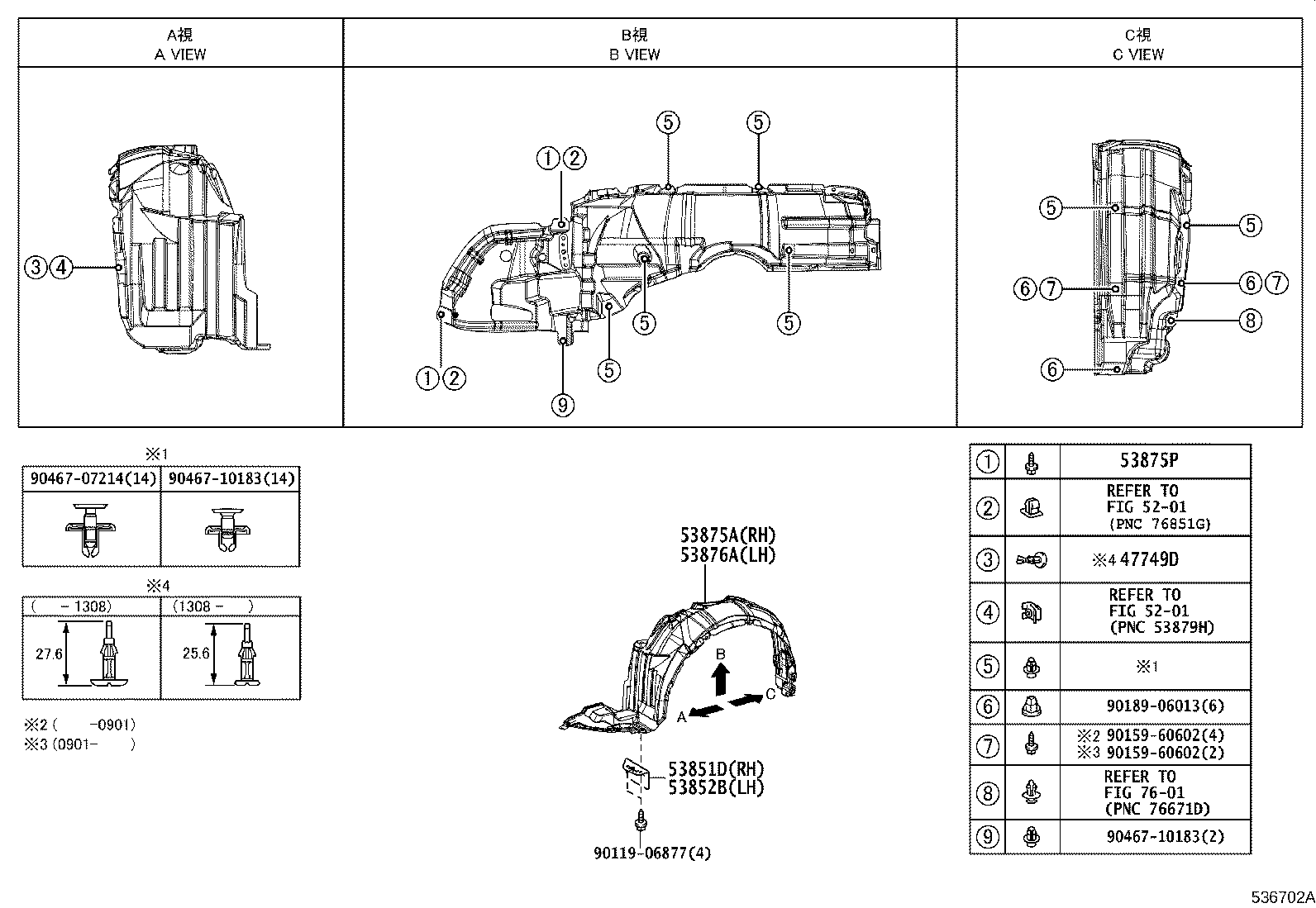

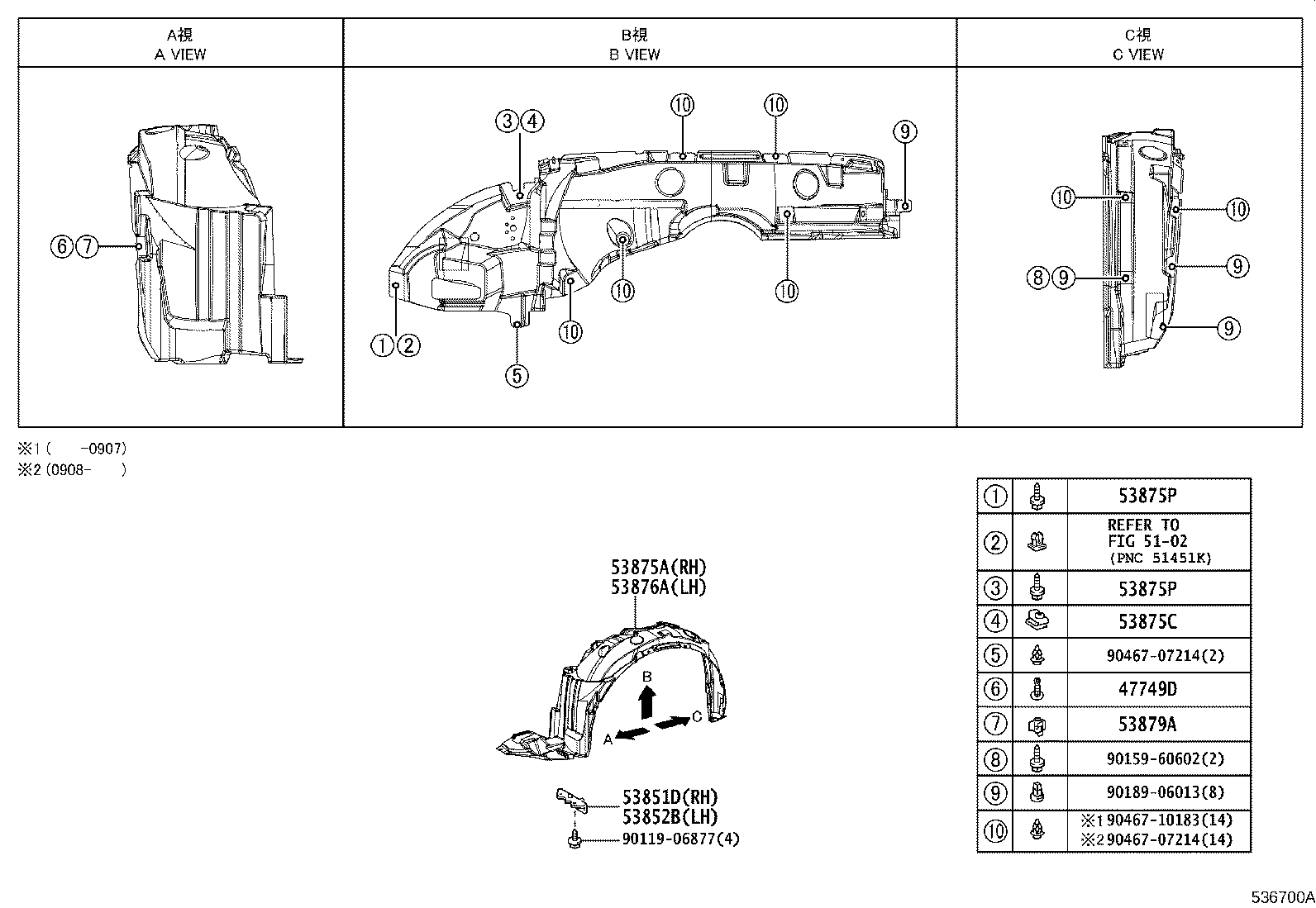

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875P | Screw, NO.1 |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882F | Seal, Front Fender |
| 60117B | Cover Sub-assy, Front Pillar, Upr RH |
| 60118B | Cover Sub-assy, Front Pillar, Upr LH |
| 67772J | Cap, Front Pillar Cover Retainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
