Toyota Corolla Sed/WG
2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General
Supported model
Data version 2014-01

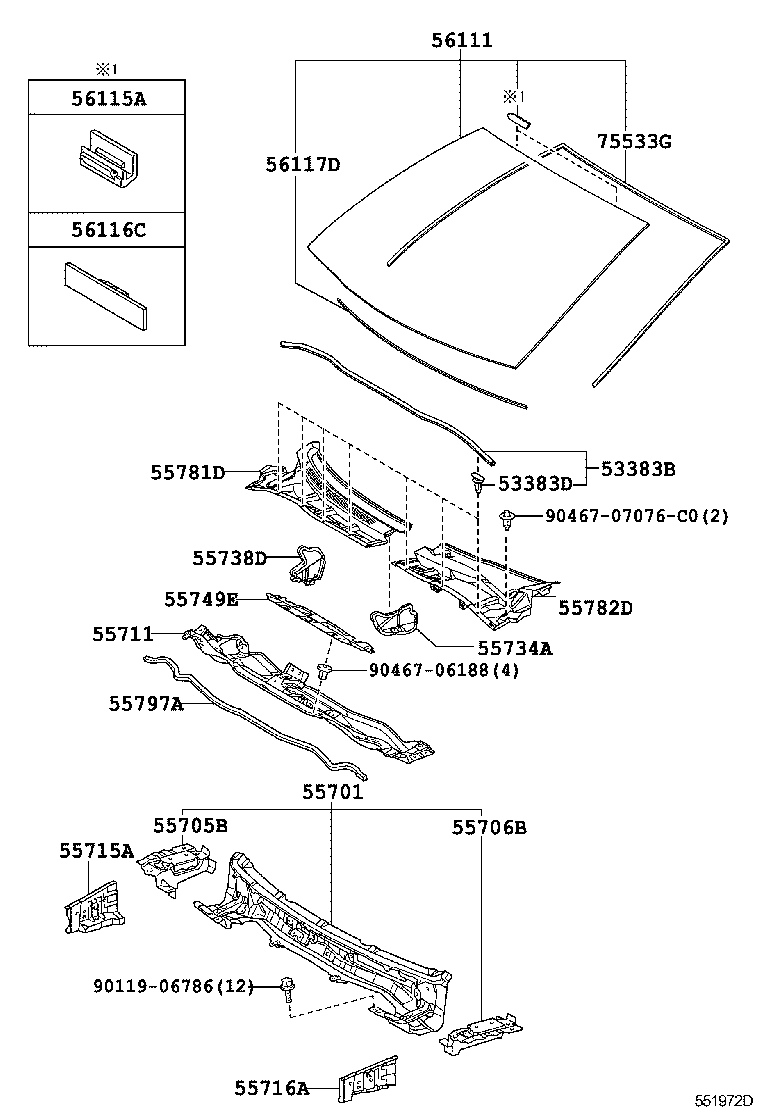

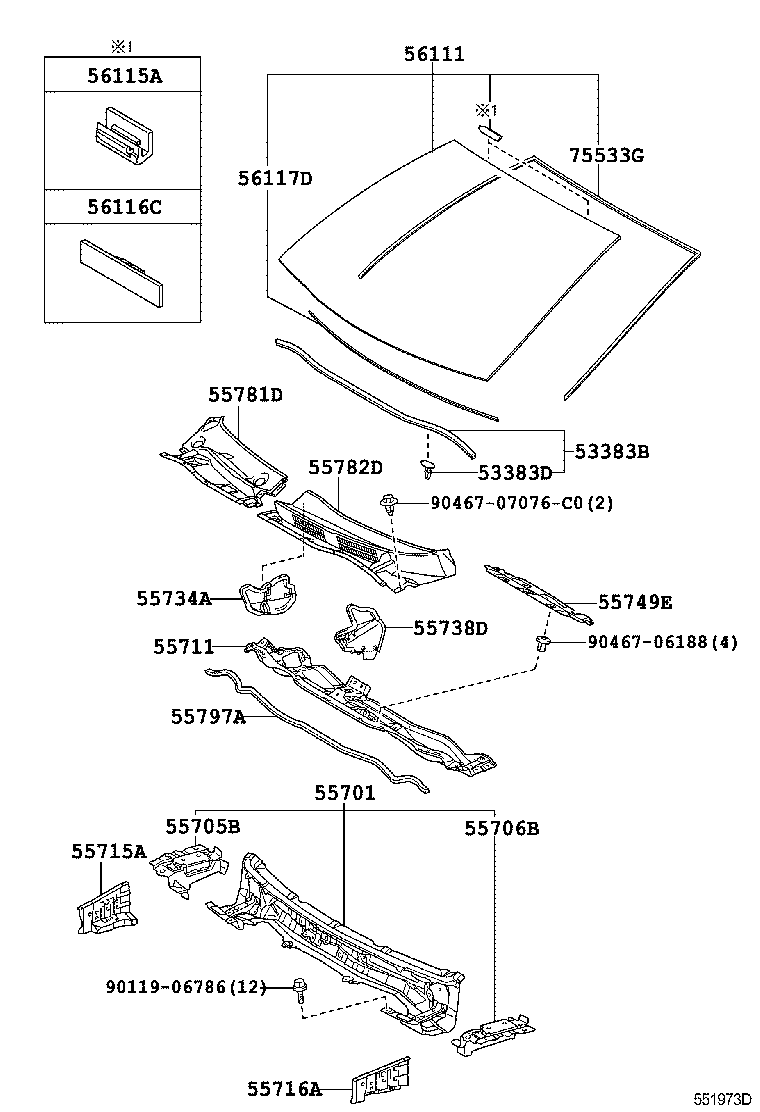

Cowl Panel & Windshield Glass
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53383D | Clip(FOR HOOD TO COWL TOP SEAL) |
| 55701 | Panel Sub-assy, Cowl |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55711 | Panel, Cowl Top, Outer |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55734A | Plate, Water Guard, RH |
| 55738D | Seal, Heater Air Duct Splash Shield, NO.2 |
| 55749E | Plate, Cowl Top Insulator, NO.2 |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55797A | Seal, Cowl Water Extract |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
| 56117D | Dam, Windshield Glass Adhesive |
| 56118A | Dam, Window Glass Adhesive, NO.2 |
| 75533G | Moulding, Windshield, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
