Toyota Corolla Sed/WG

2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

9 part groups · 3 illustrations

Illustrations

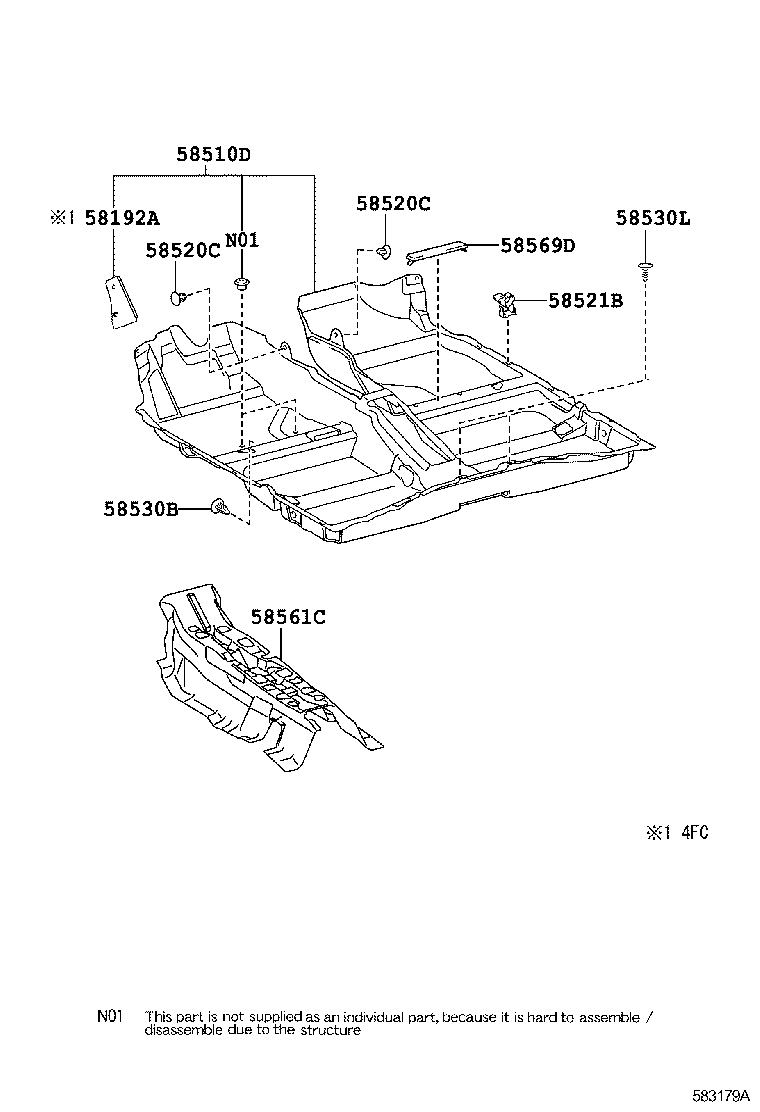

Figure 582769 582769 2007-04 → — Figure 583179A 583179A 2007-08 → — Figure 583180A 583180A 2007-08 → —

Part groups

PNCDescription
58192A Footrest, Front Floor, LH
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58530L Clip, Floor Carpet, Center
58561C Silencer, Front Floor, NO.1
58561G Clip(FOR FRONT FLOOR SILENCER)
58569D Cover, Front Floor Caution Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
