Toyota Corolla Sed/WG

2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

61 part groups · 18 illustrations

Illustrations

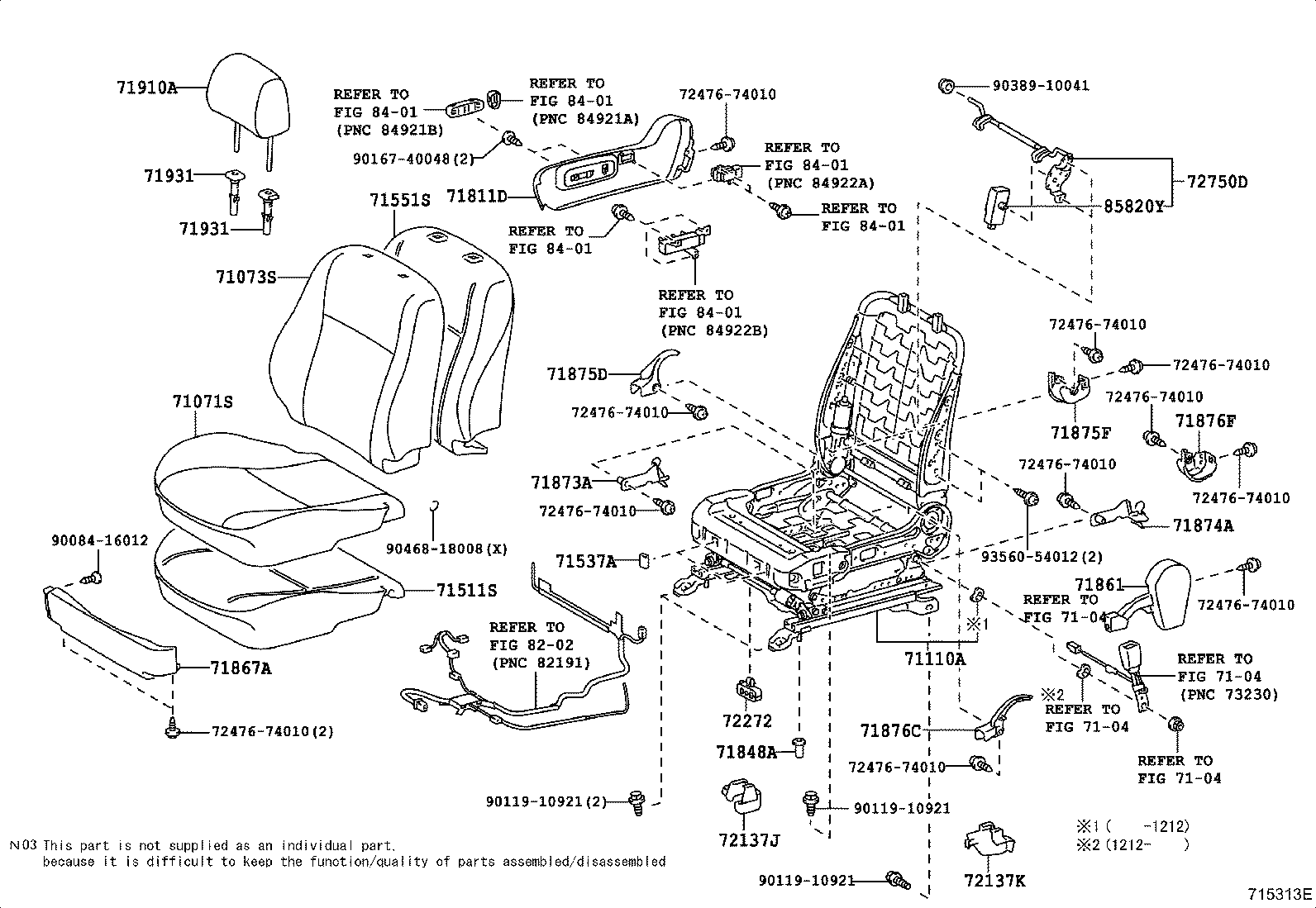

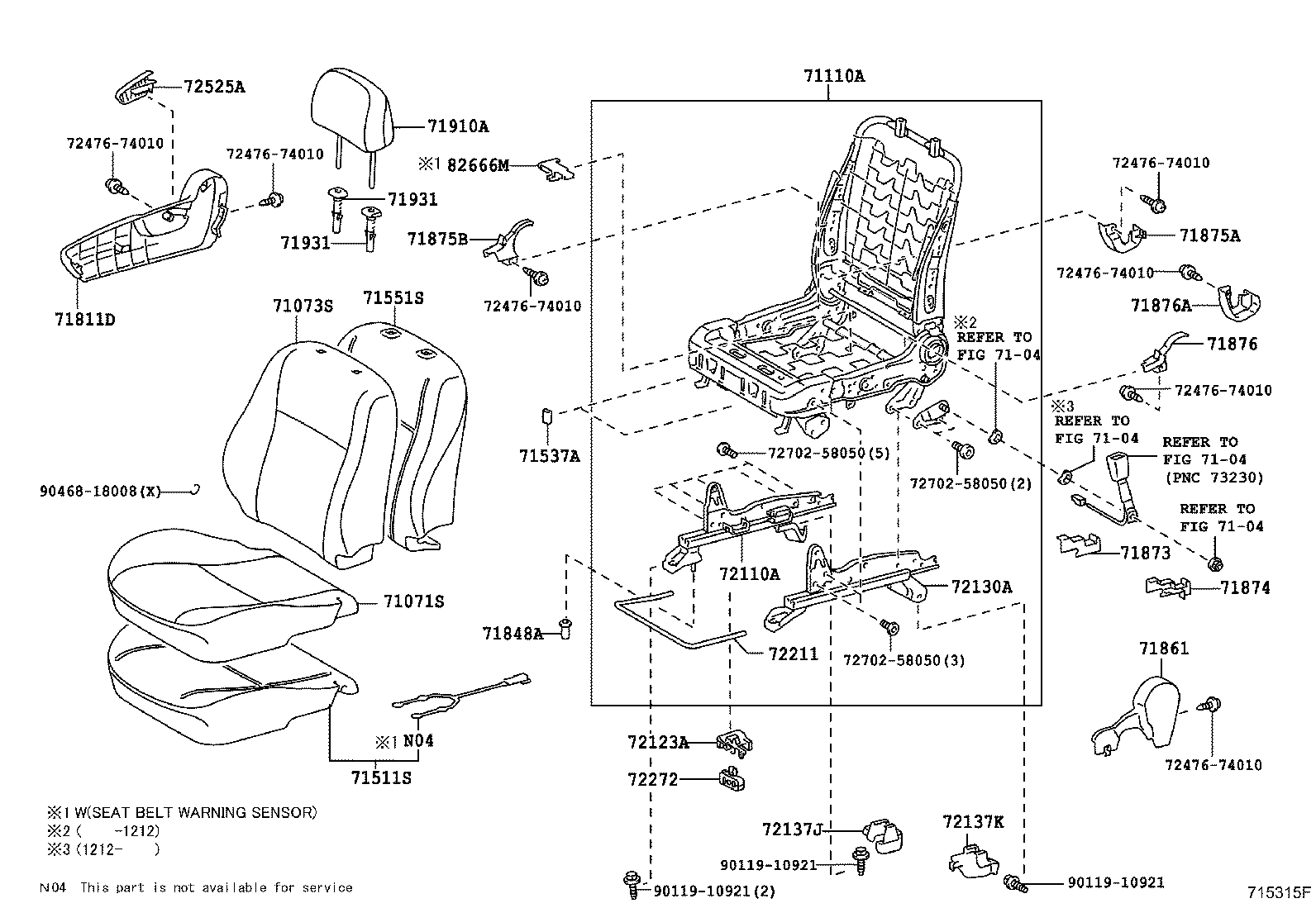

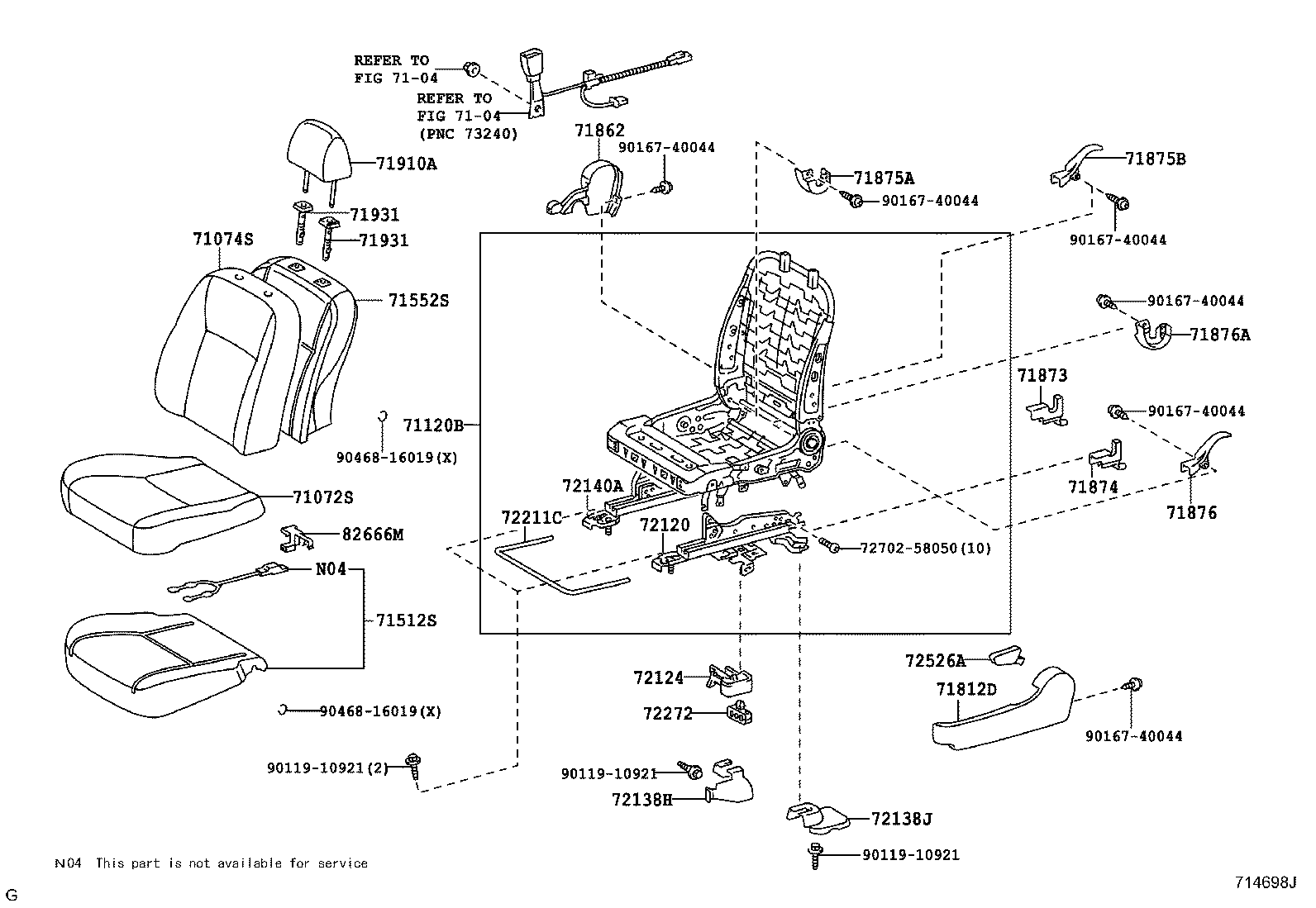

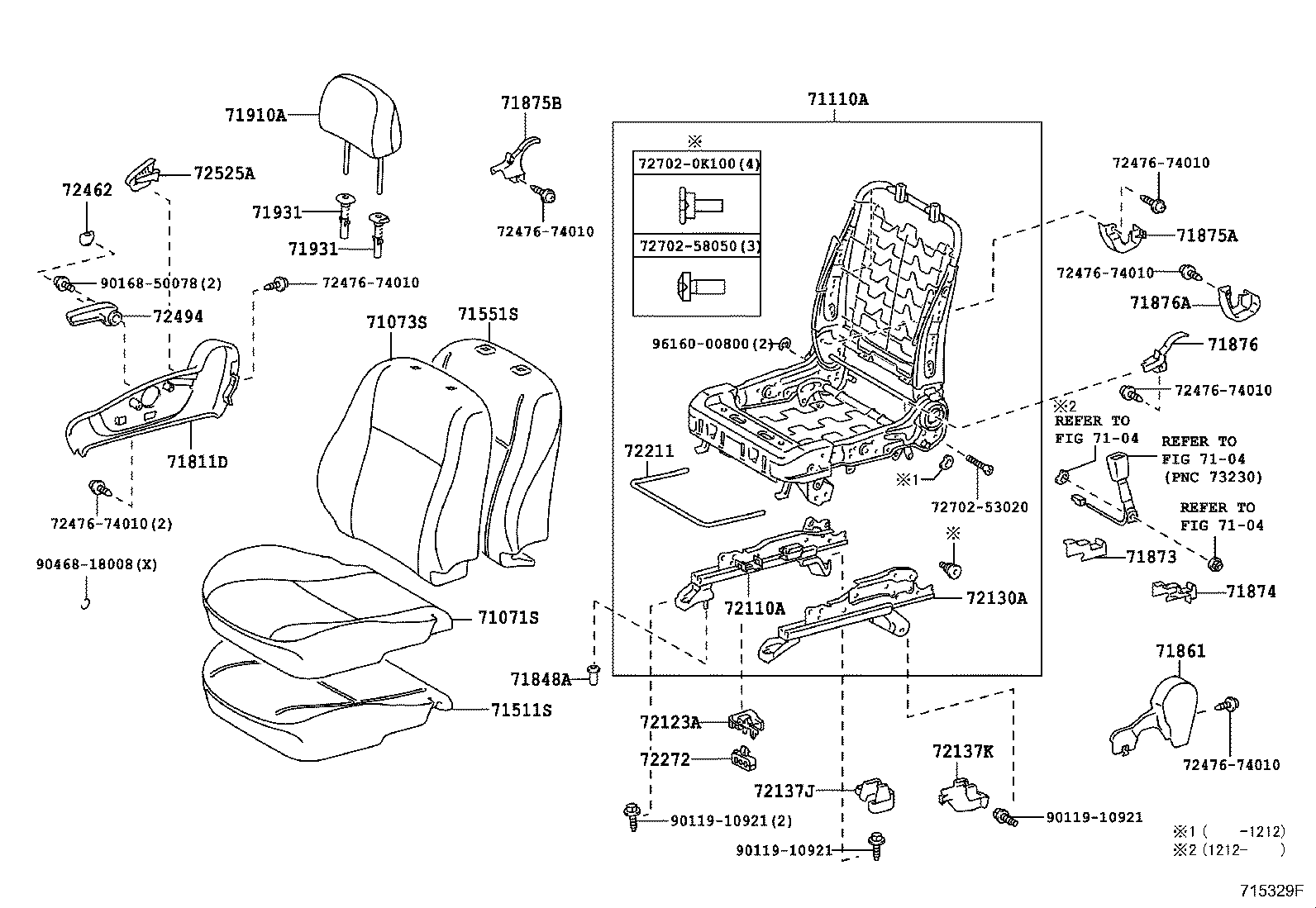

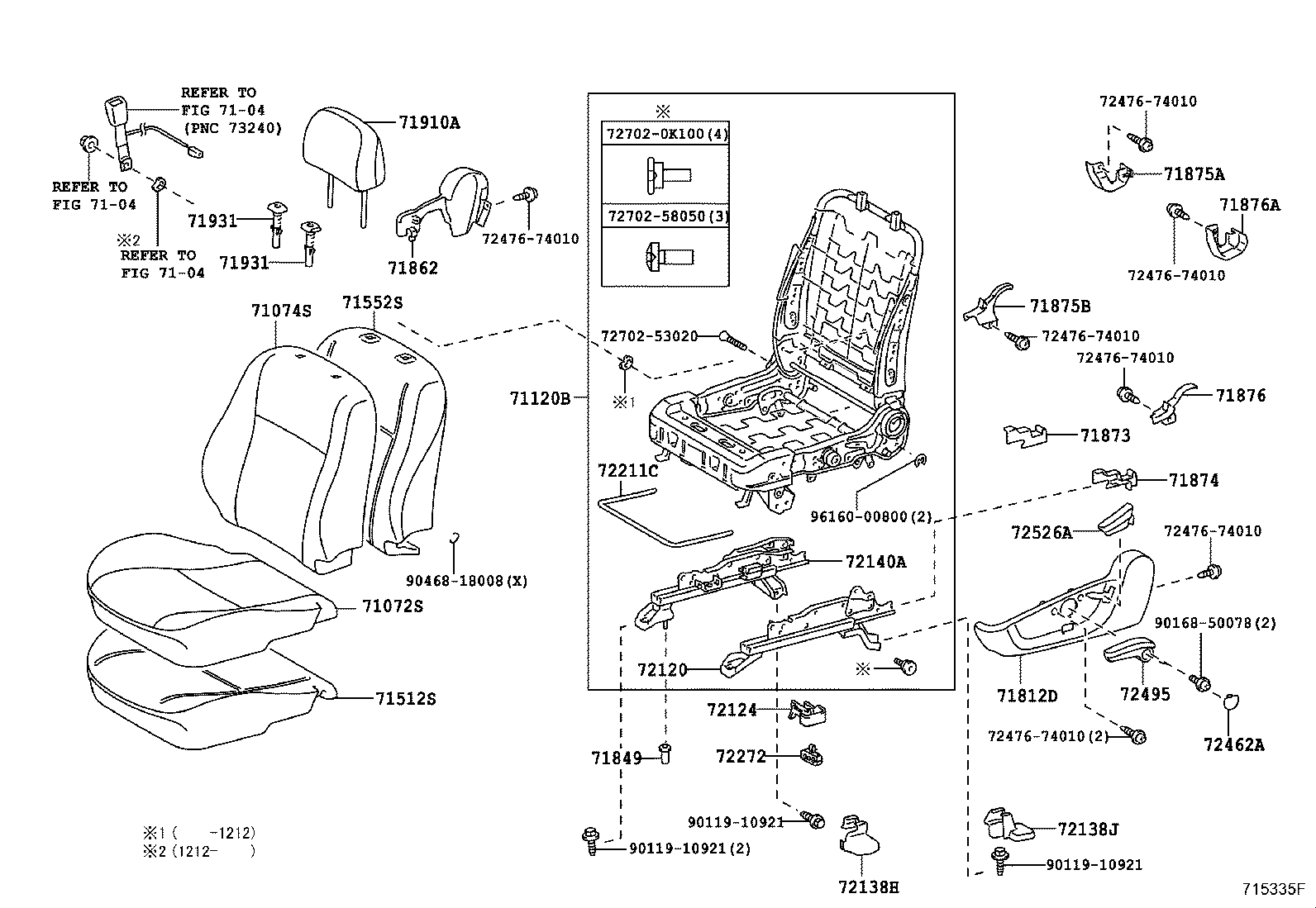

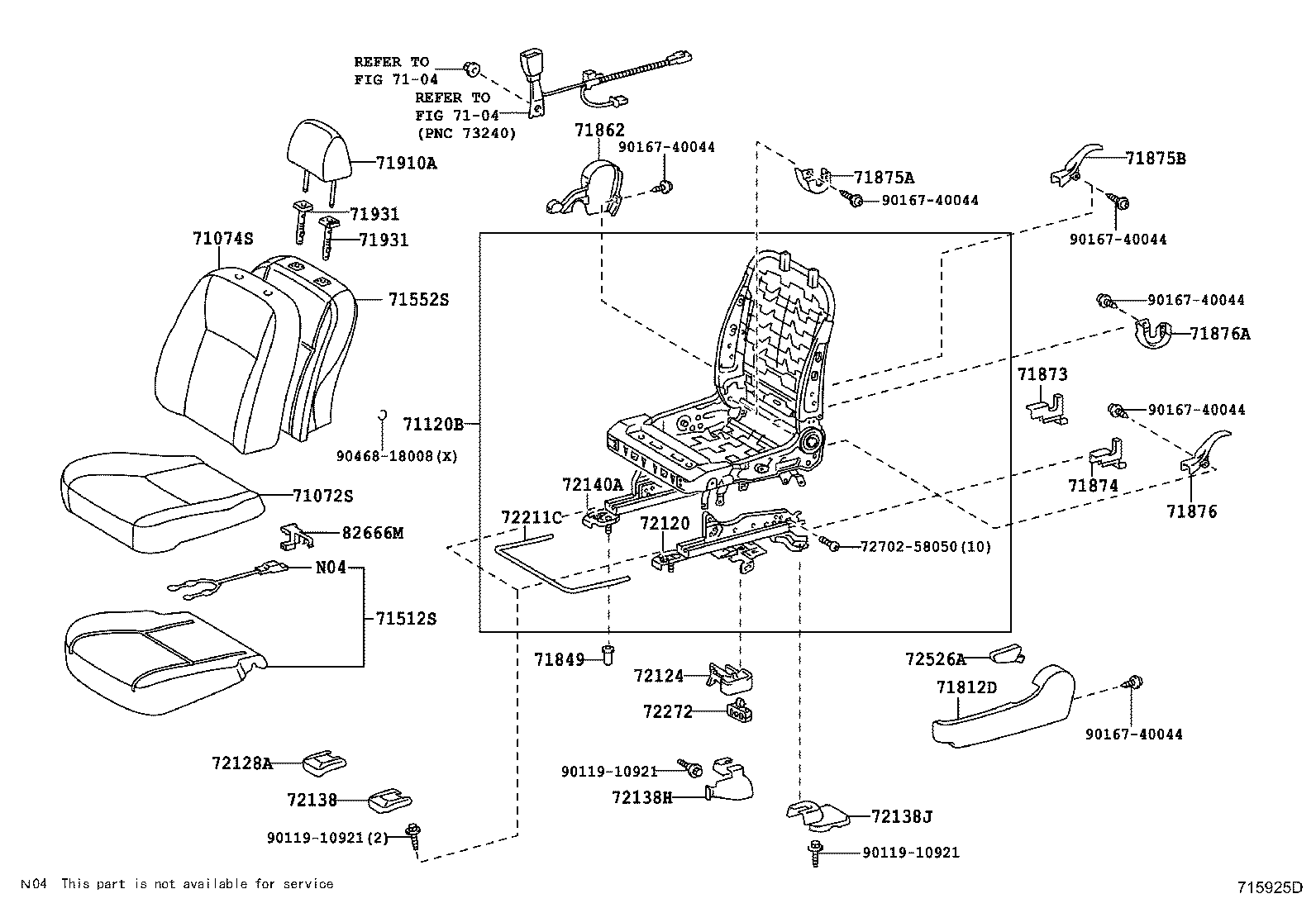

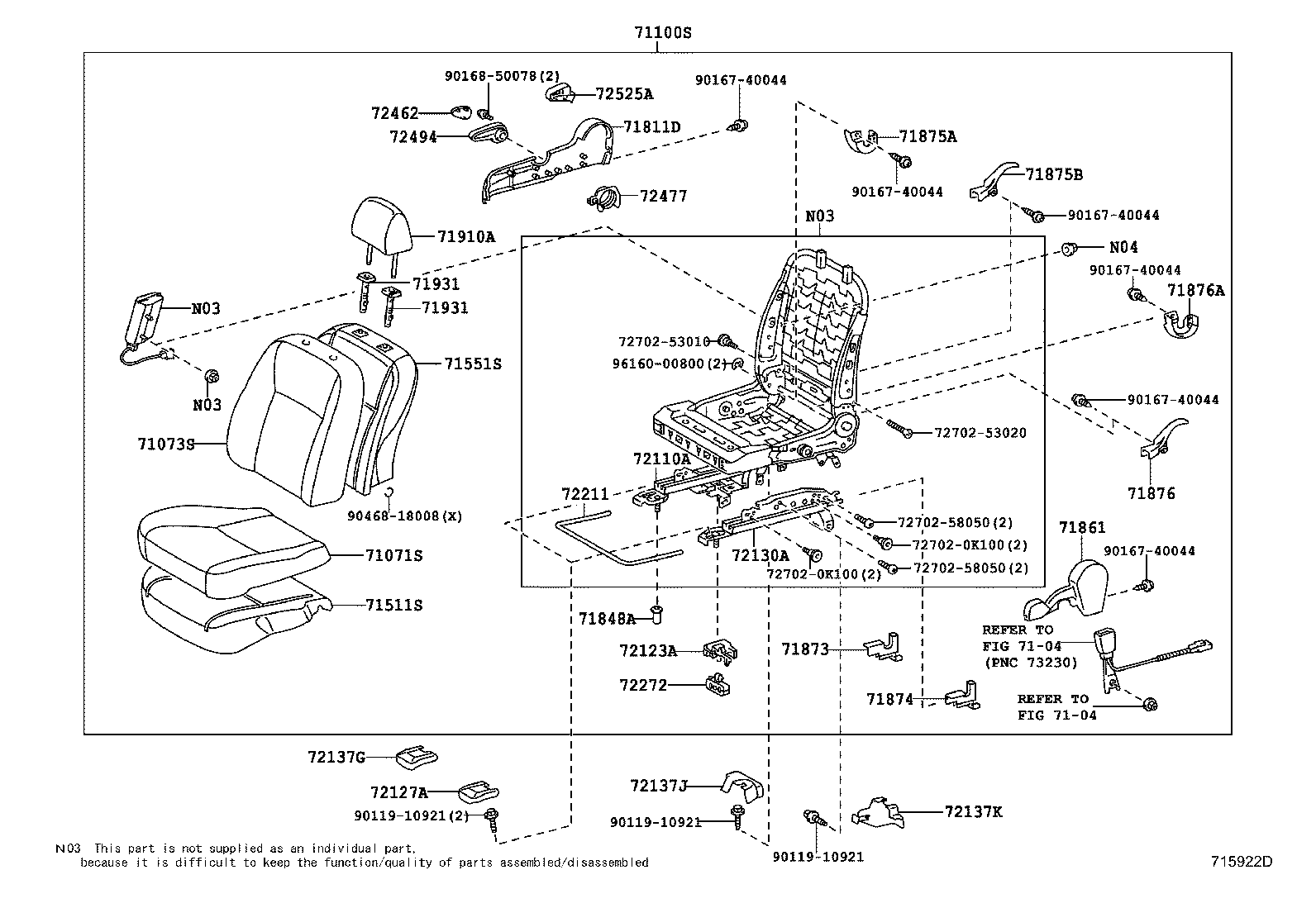

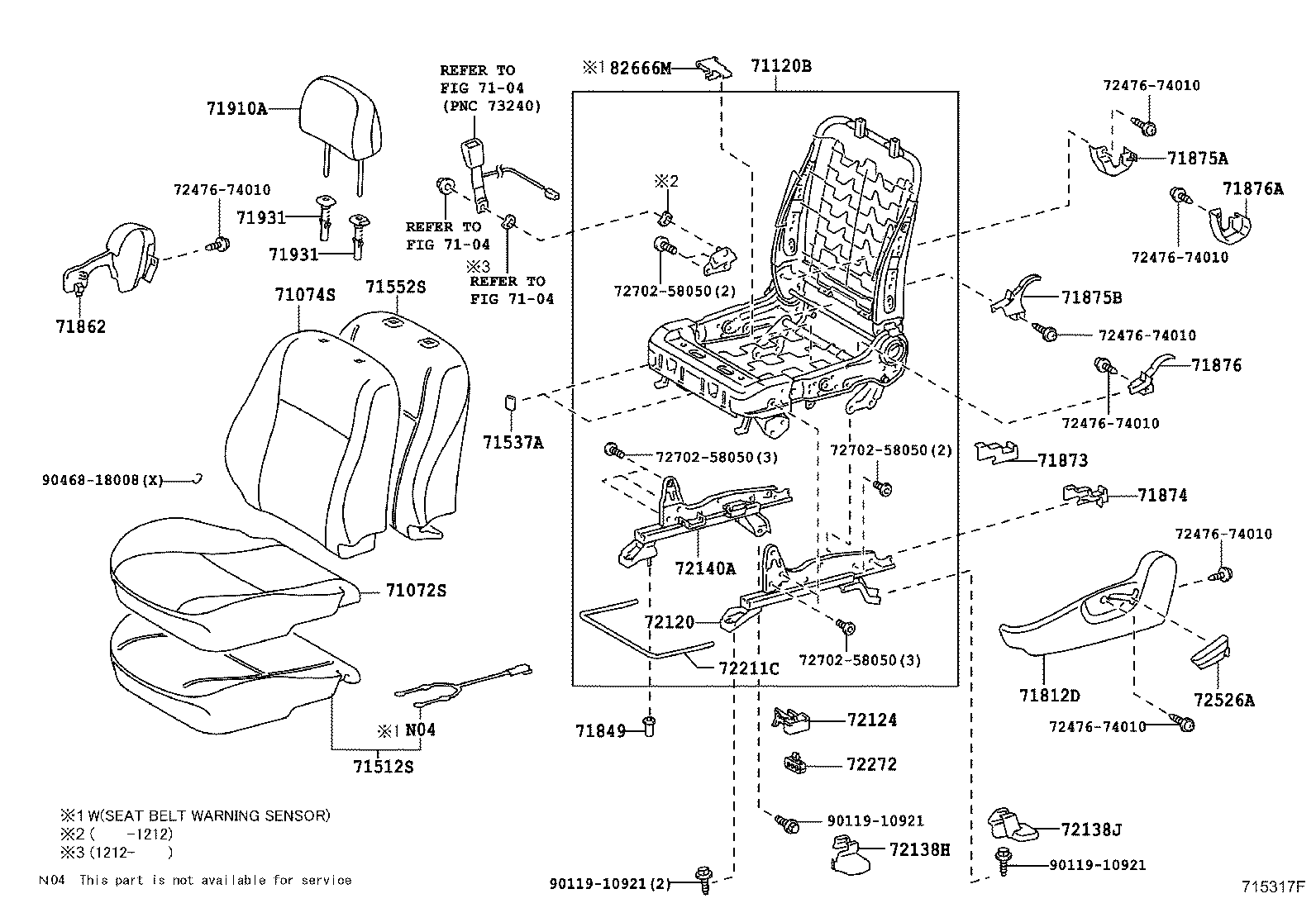

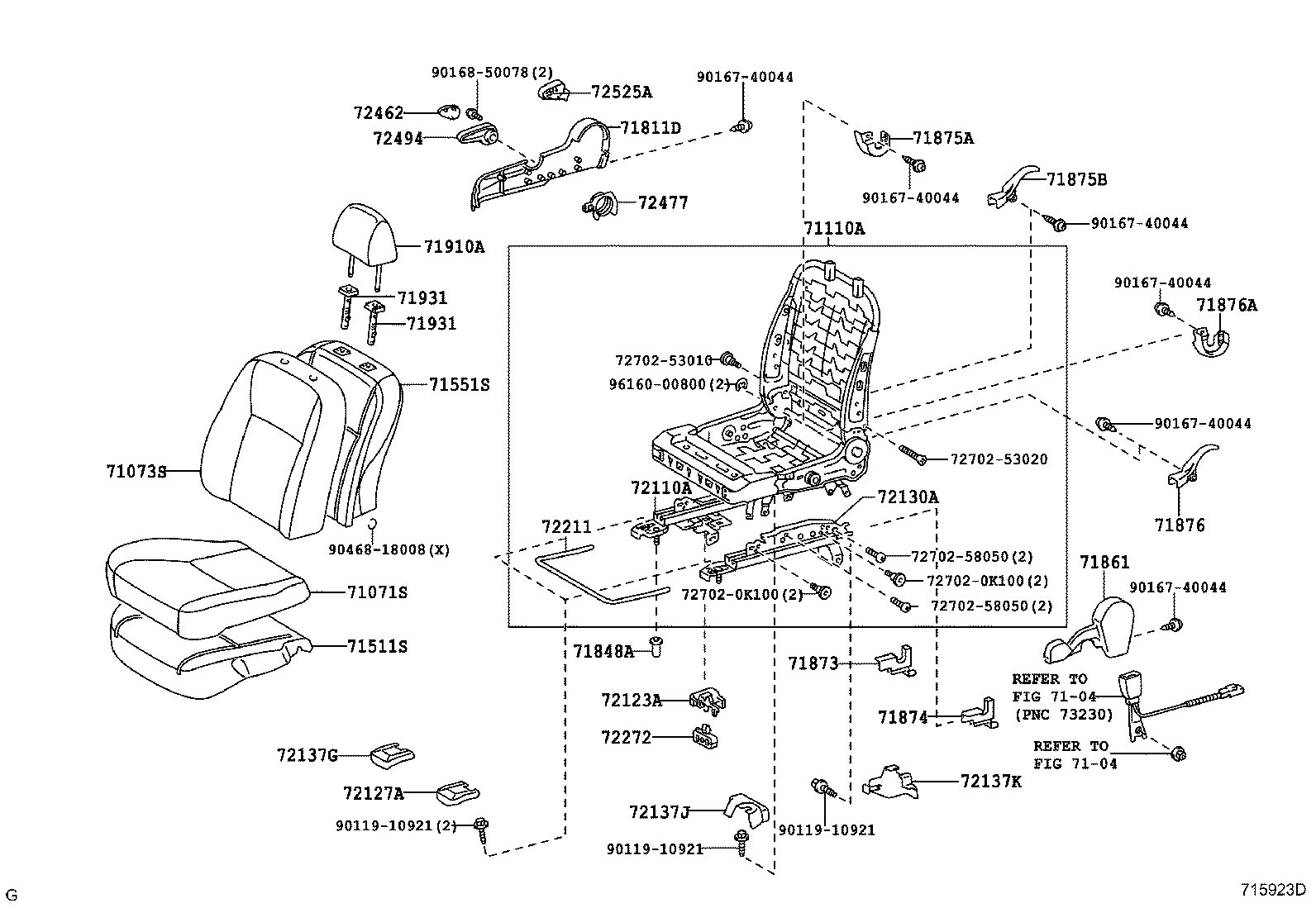

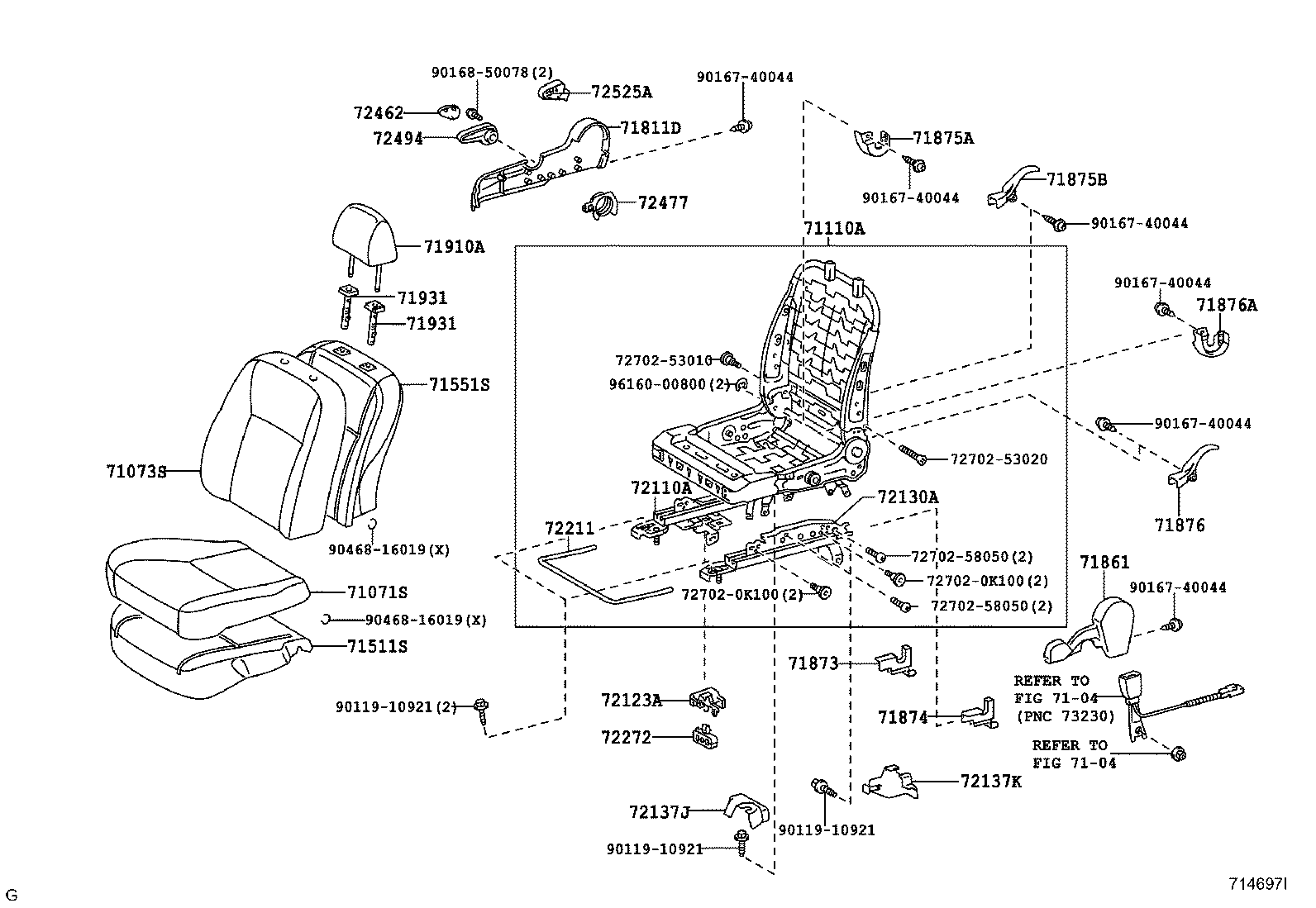

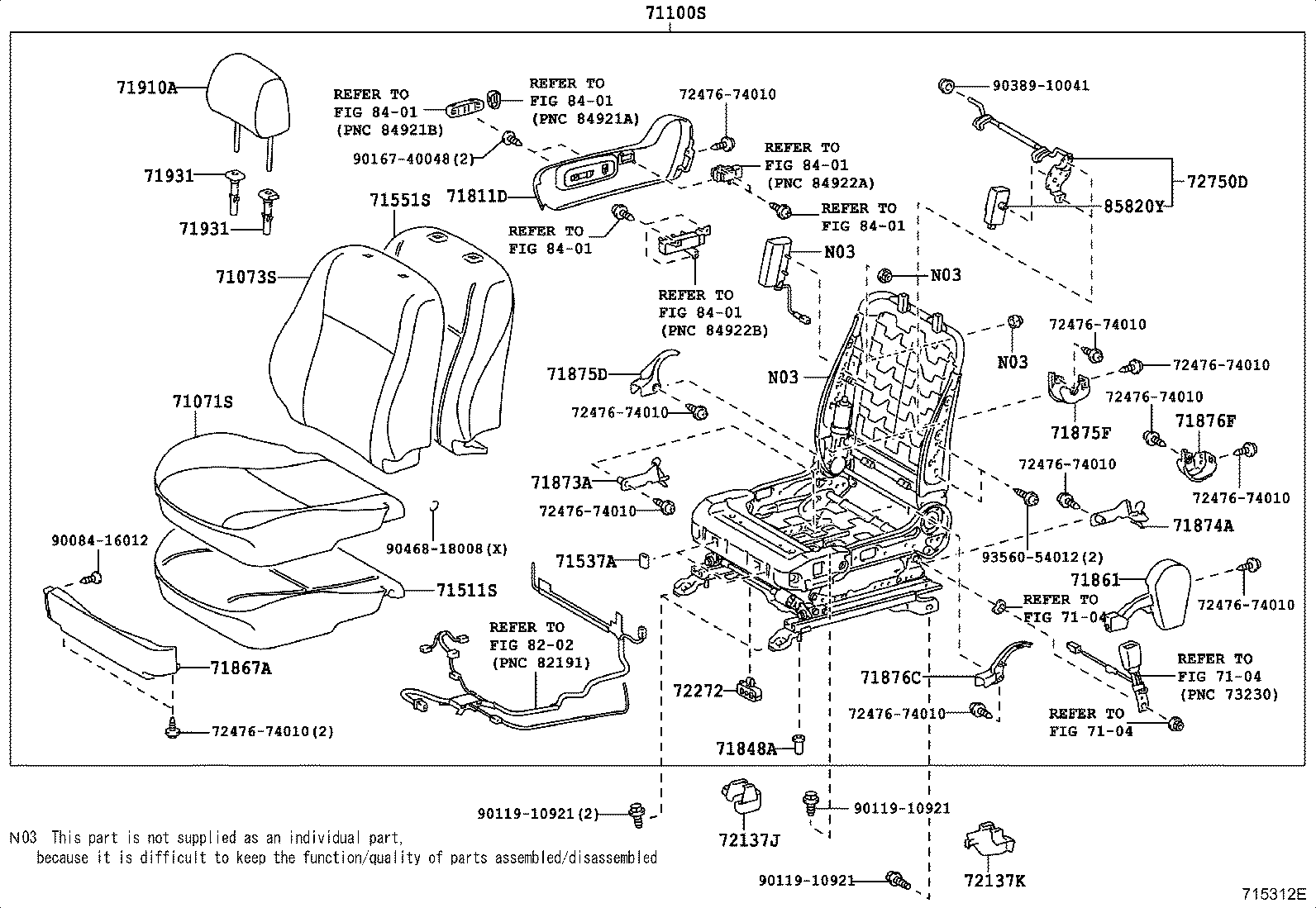

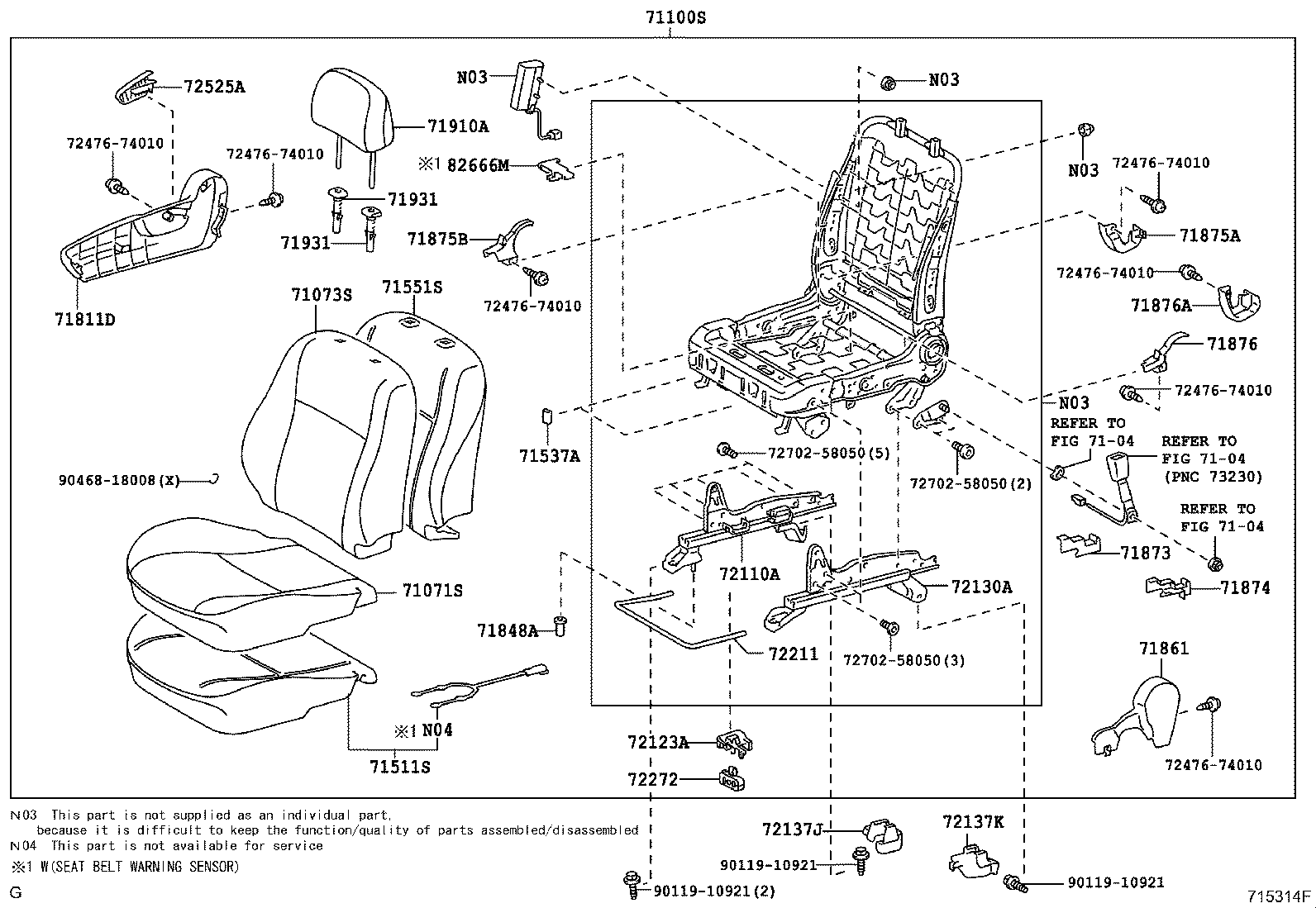

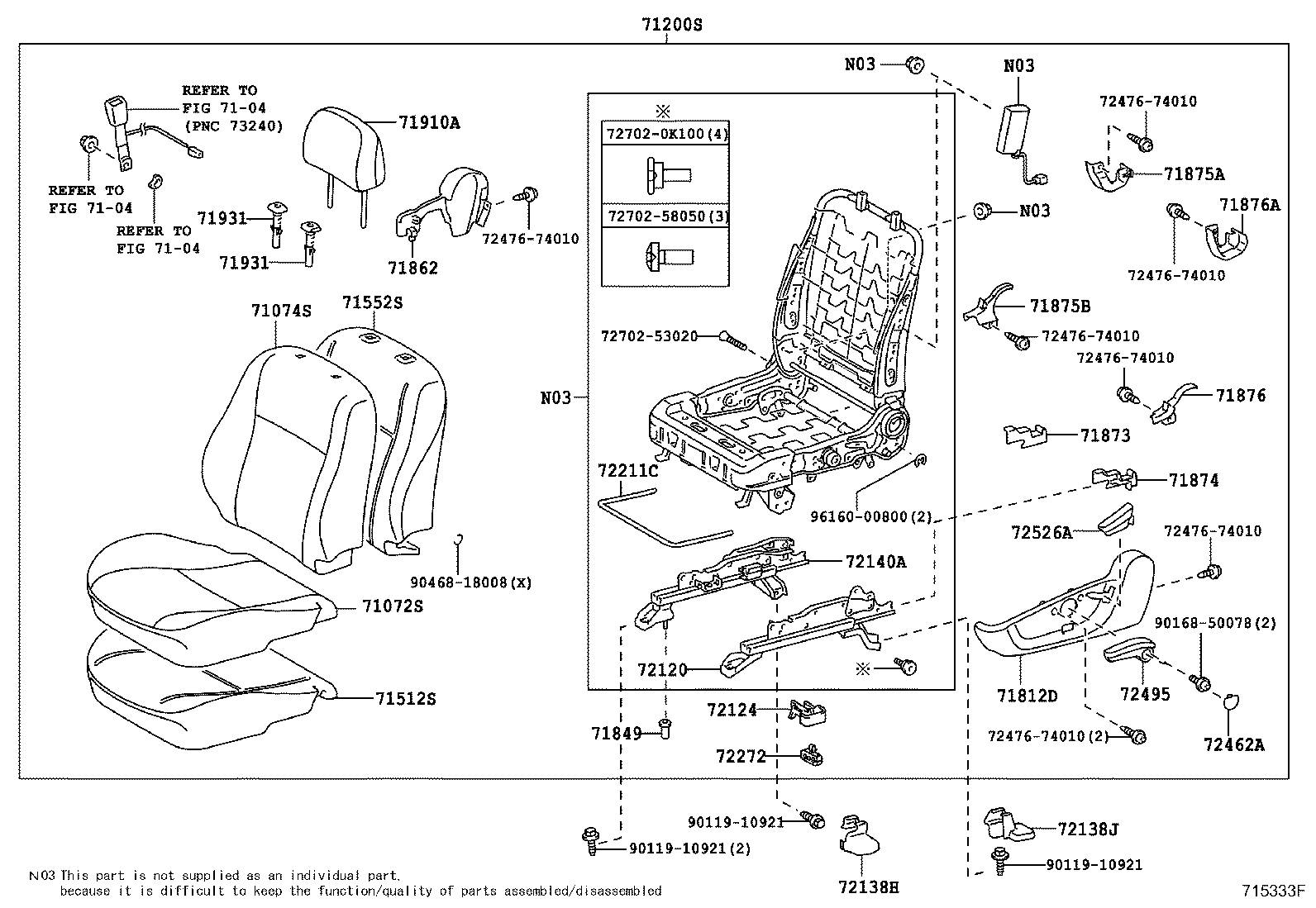

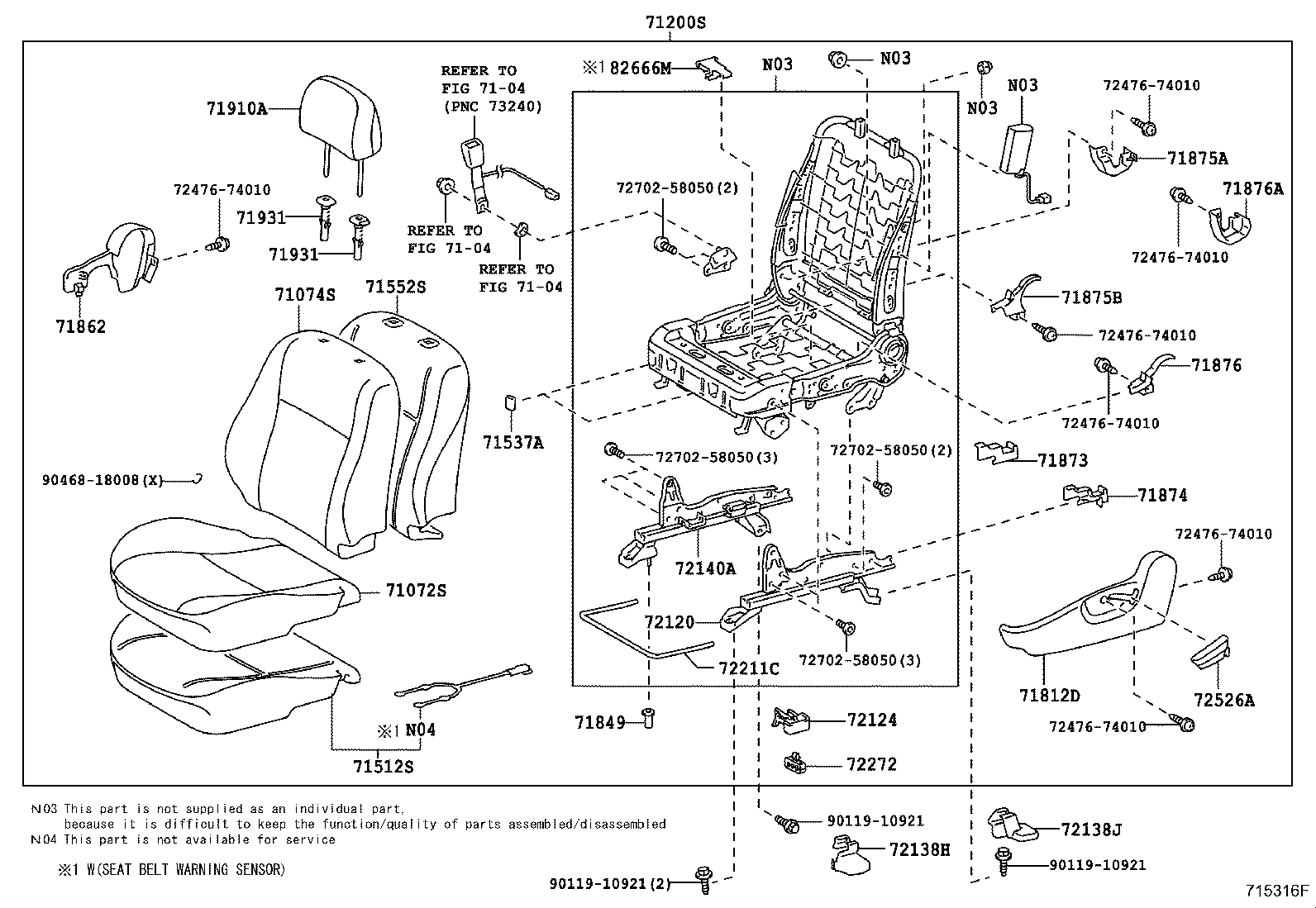

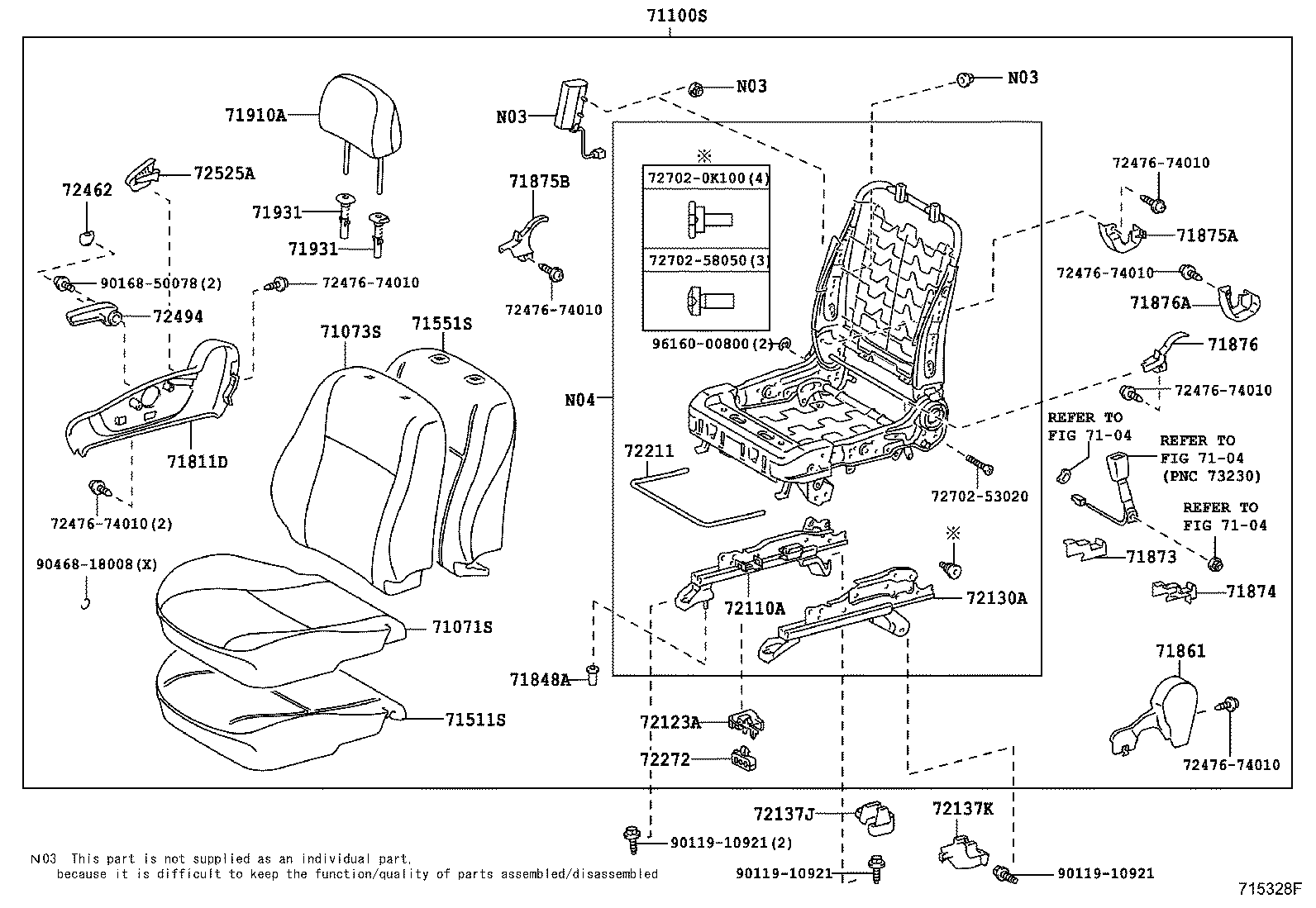

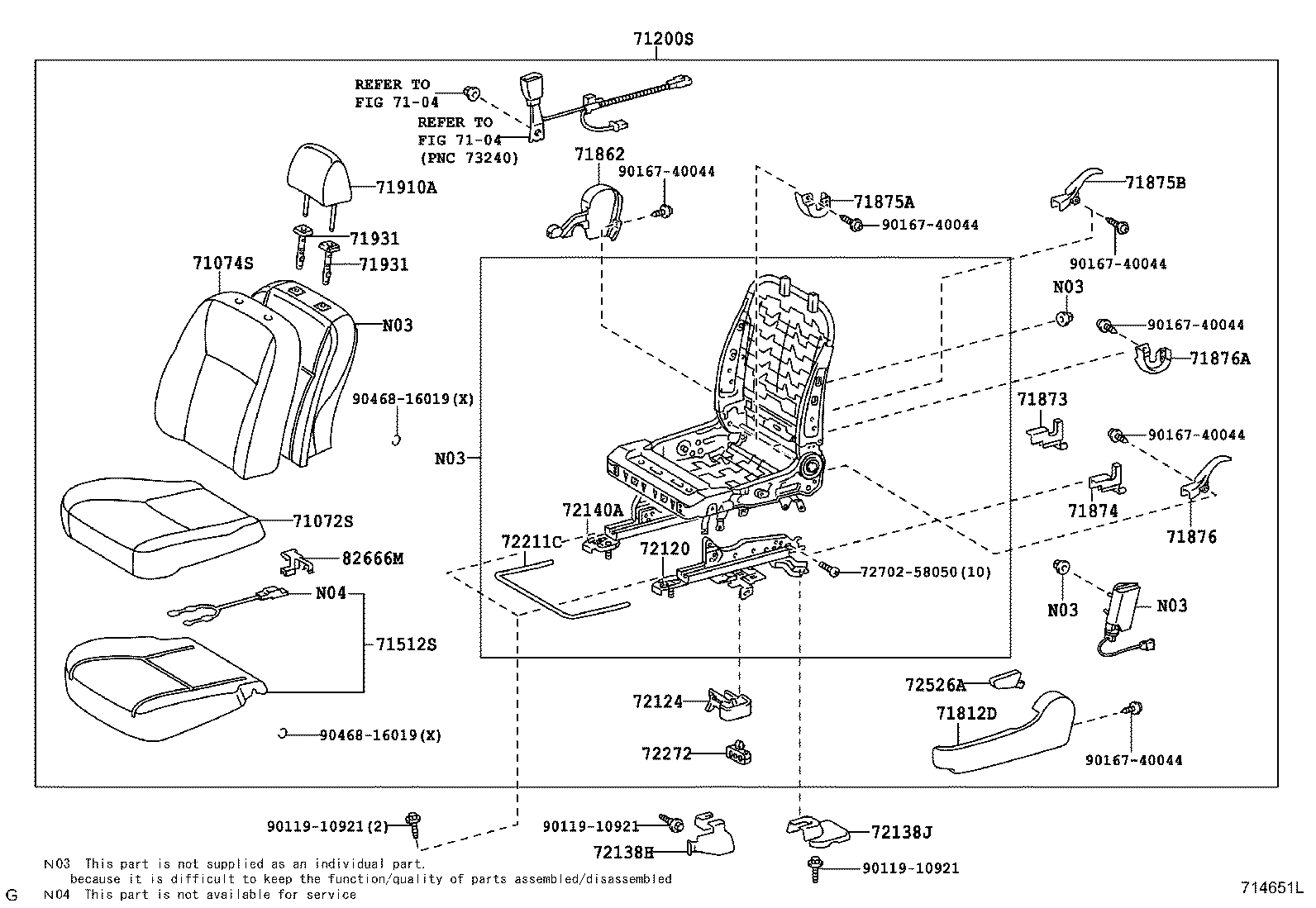

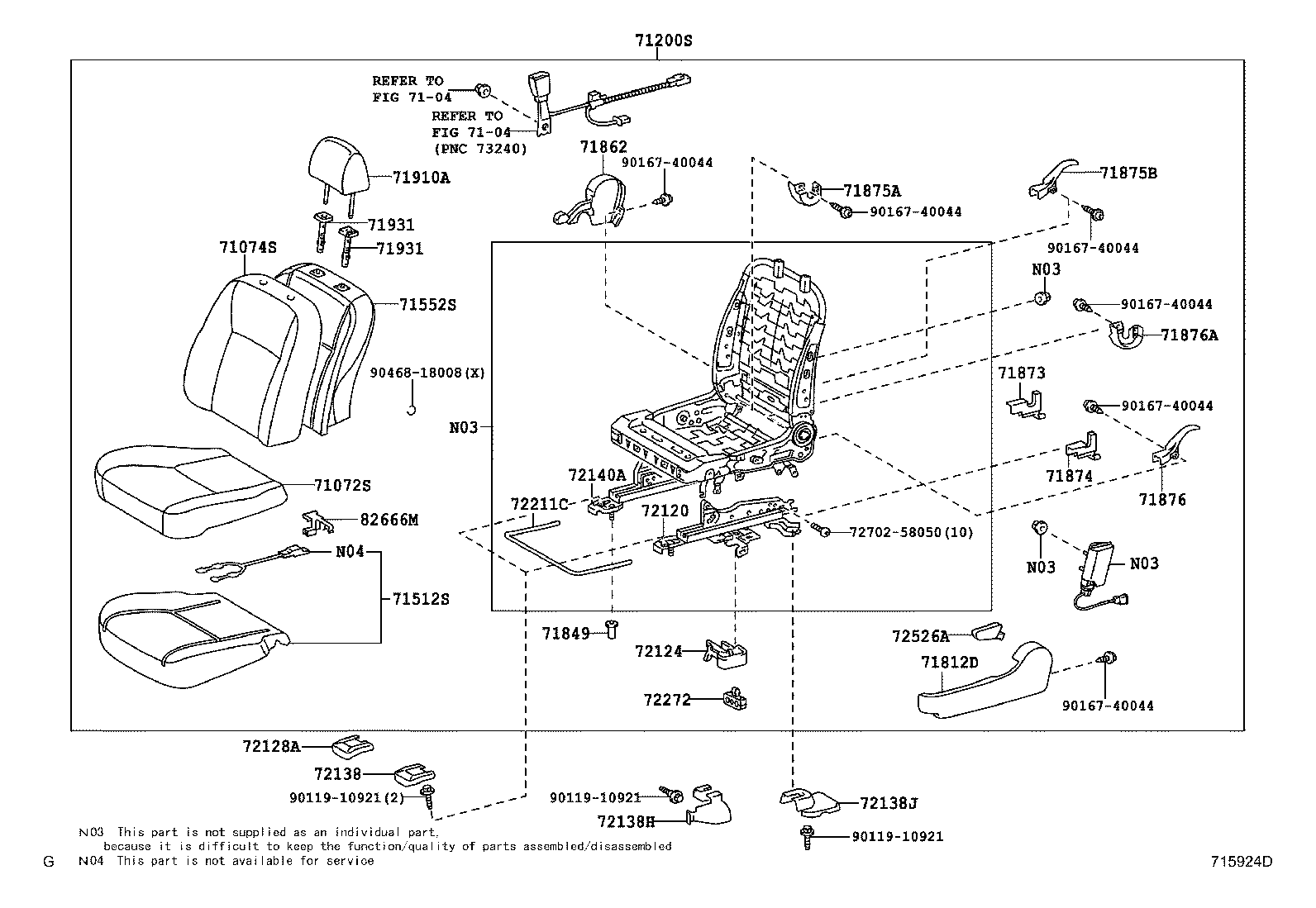

Figure 71A209 71A209 2007-04 → 2008-10 Figure 715922D 715922D 2008-10 → — Figure 714697I 714697I 2007-04 → 2008-10 Figure 715923D 715923D 2008-10 → — Figure 714651L 714651L 2007-04 → 2008-10 Figure 715924D 715924D 2008-10 → — Figure 714698J 714698J 2007-04 → 2008-10 Figure 715925D 715925D 2008-10 → — Figure 715312E 715312E 2007-08 → — Figure 715313E 715313E 2007-08 → — Figure 715328F 715328F 2007-08 → — Figure 715329F 715329F 2007-08 → — Figure 715314F 715314F 2007-08 → — Figure 715315F 715315F 2007-08 → — Figure 715333F 715333F 2007-08 → — Figure 715335F 715335F 2007-08 → — Figure 715316F 715316F 2007-08 → — Figure 715317F 715317F 2007-08 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875D Cover, Reclining Adjuster Outside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876C Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72130A Track Assy, Front Seat, Inner RH
72137G Cover, Seat Track, Outer RH
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72138 Cover, Seat Track, Outer LH
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72140A Track Assy, Front Seat,Inner LH
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72272 Clamp, Seat Track Control Cable
72462 Cover, Vertical Adjuster RH
72462A Cover, Vertical Adjuster LH
72477 Spacer, Vertical Adjuster
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72750D Adjuster Assy, Lumbar Support, RH
82666M Holder, Connector
85820Y Motor Assy, Power Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
