Toyota Corolla Sed/WG
2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General
Supported model
Data version 2014-01

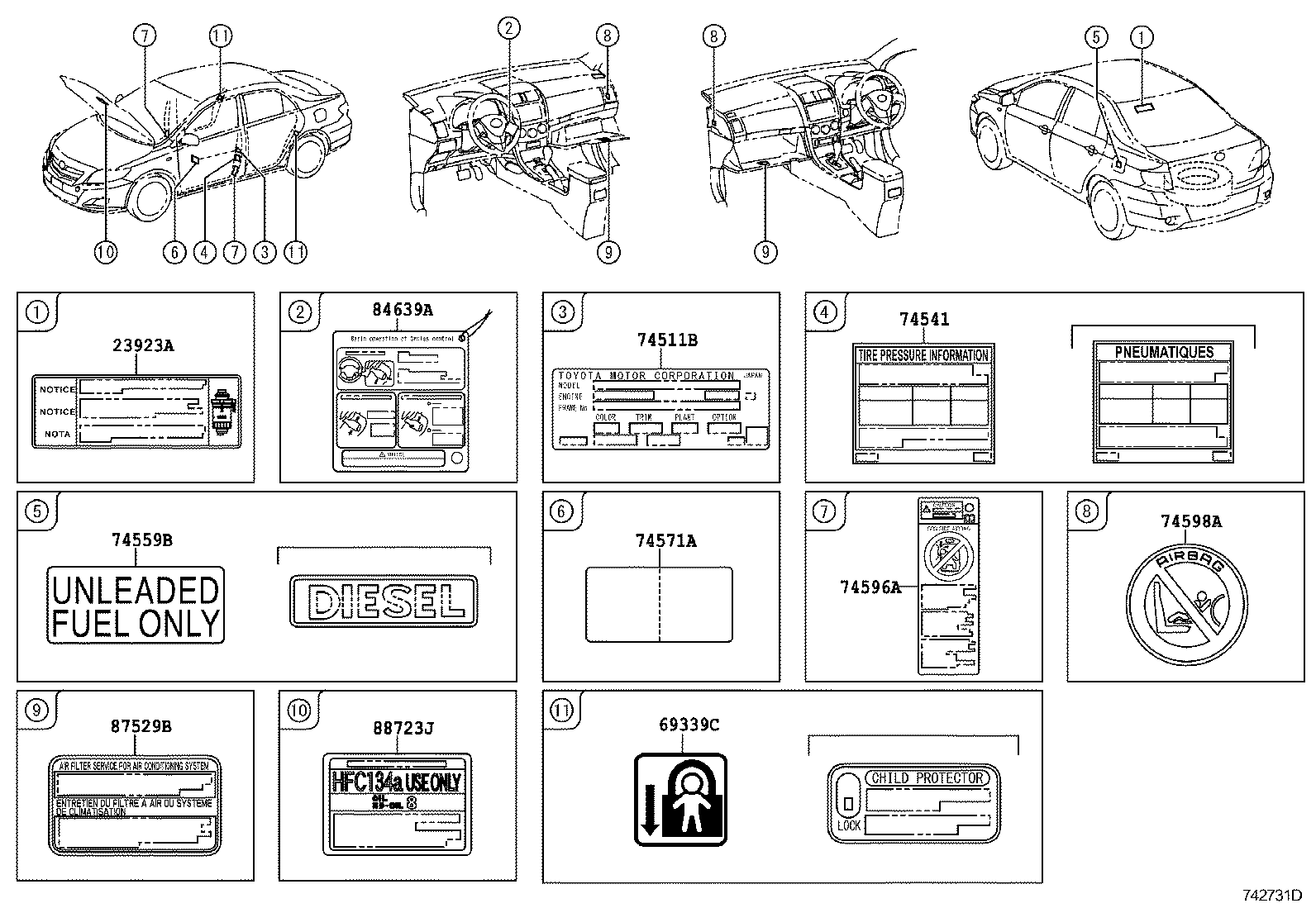

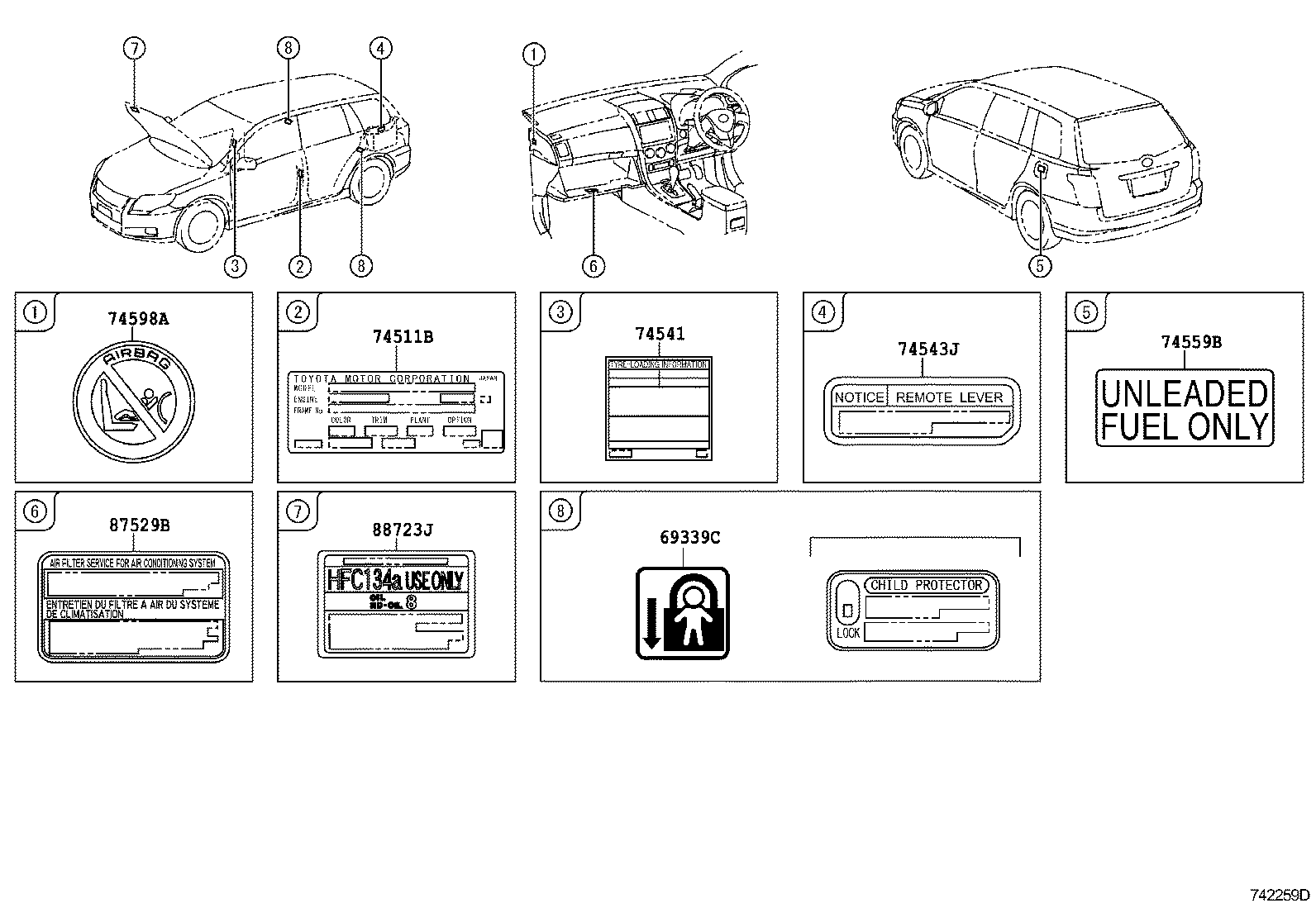

Caution Plate (EXTERIOR & INTERIOR)
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11296C | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 17791A | Label, Maintenance Information |
| 23923A | Label, Fuel Sedimenter Notice |
| 69339C | Label, Child Protector Information |
| 74511B | Plate, Name |
| 74541 | Plate, Tire Pressure Caution |
| 74543J | Label, Rear Seat Caution |
| 74559B | Label, Fuel Information |
| 74571A | Film, Label Cover |
| 74596A | Label, Side Airbag Caution |
| 74598A | Label, Passenger Airbag Caution |
| 84639A | Label, Cruise Control Switch Infomation |
| 87529B | Label, A/C Filter Information |
| 88723J | Label, Cooler Service Caution, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
