Toyota Corolla Sed/WG

2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

9 part groups · 3 illustrations

Illustrations

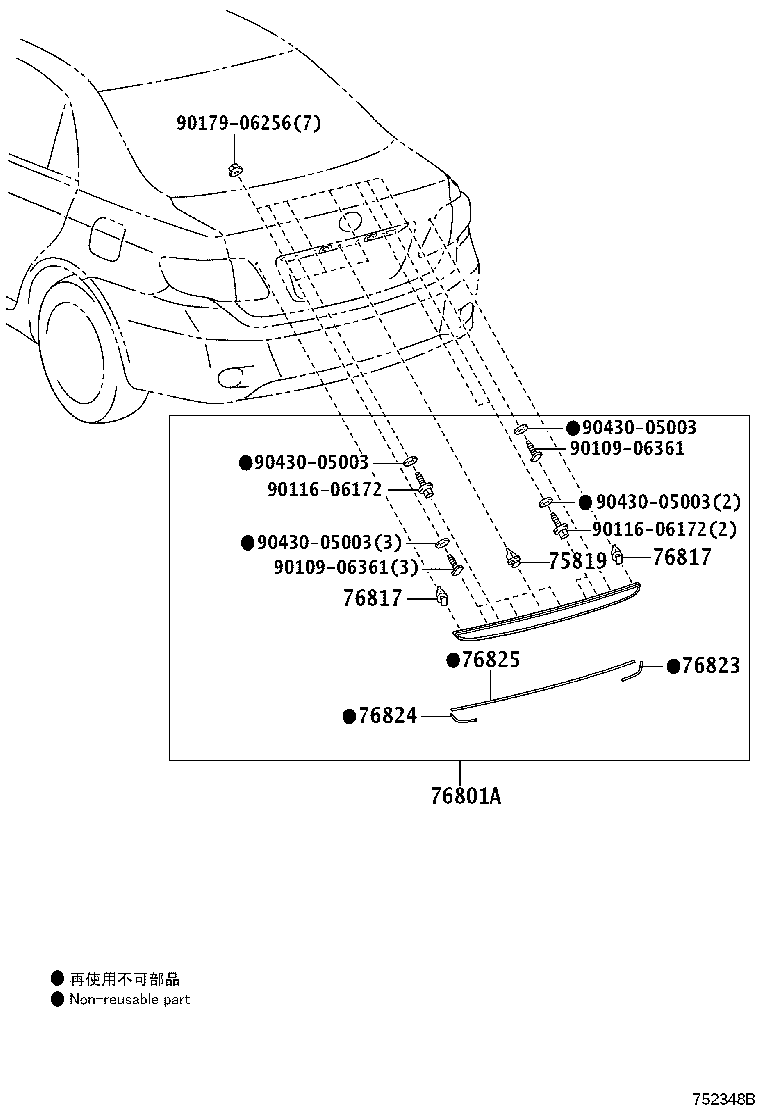

Figure 751910E 751910E 2007-04 → 2010-07 Figure 751910E 751910E 2010-07 → — Figure 752348B 752348B 2010-07 → —

Part groups

PNCDescription
75819 Clip, Luggage Compartment Door Moulding
76801 Garnish Sub-assy, Back Door, Outside
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76812A Garnish, Back Door, Outside NO.2
76817 Clip, Back Door Outside Garnish
76821A Protector, Luggage Compartment Door Outside Garnish
76823 Protector, Back Door Garnish Moulding, RH
76824 Protector, Back Door Garnish Moulding, LH
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
