Toyota Corolla Sed/WG
2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General
Supported model
Data version 2014-01
Mudguard & Spoiler
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

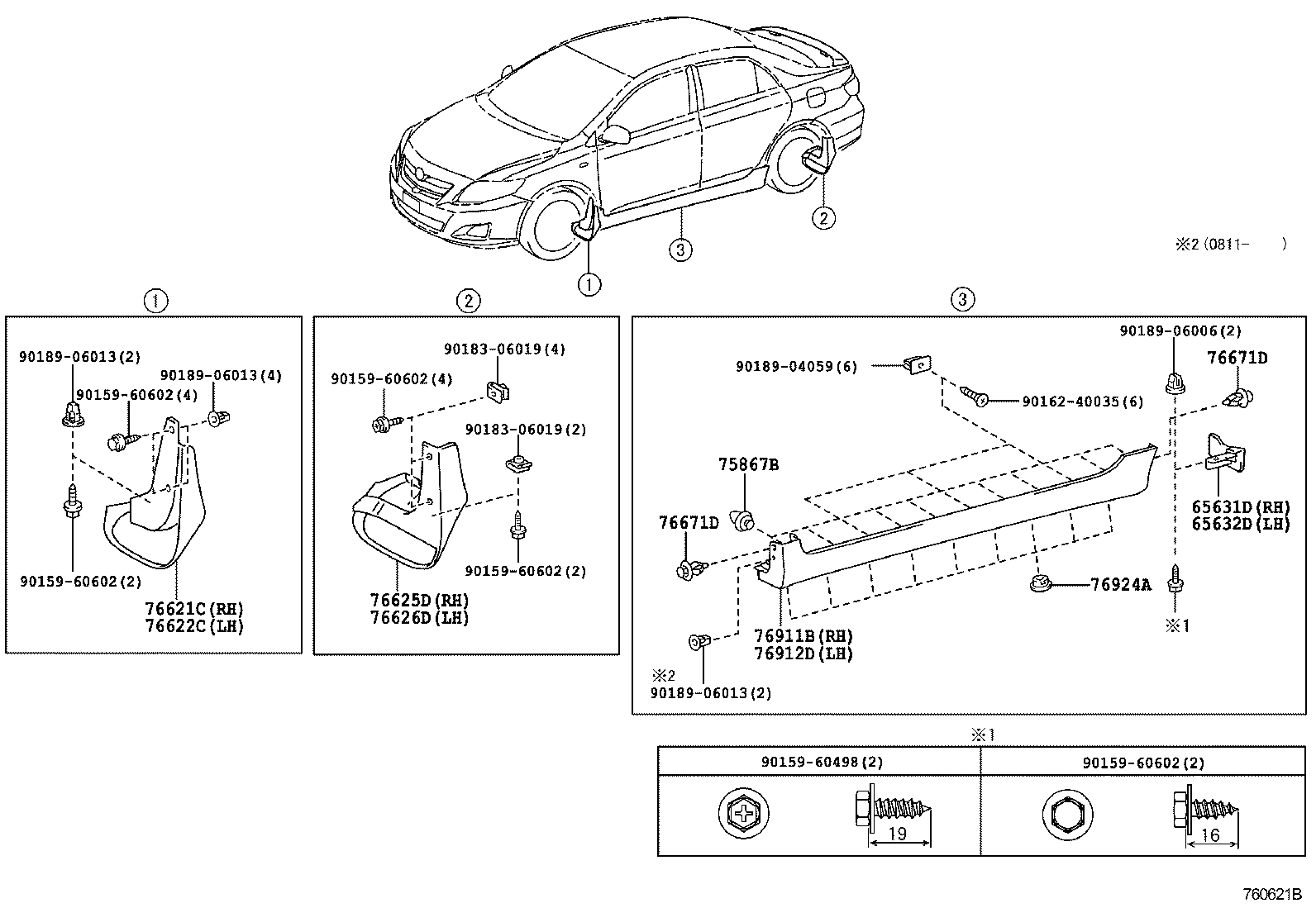

| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75867B | Clip, Rocker Panel Moulding |
| 76621C | Mudguad, Front Fender, RH |
| 76622C | Mudguard, Front Fender, LH |
| 76625D | Mudguard, Quarter Panel, Rear RH |
| 76626D | Mudguard, Quarter Panel, Rear LH |
| 76671D | Clip, Side Mudguard |

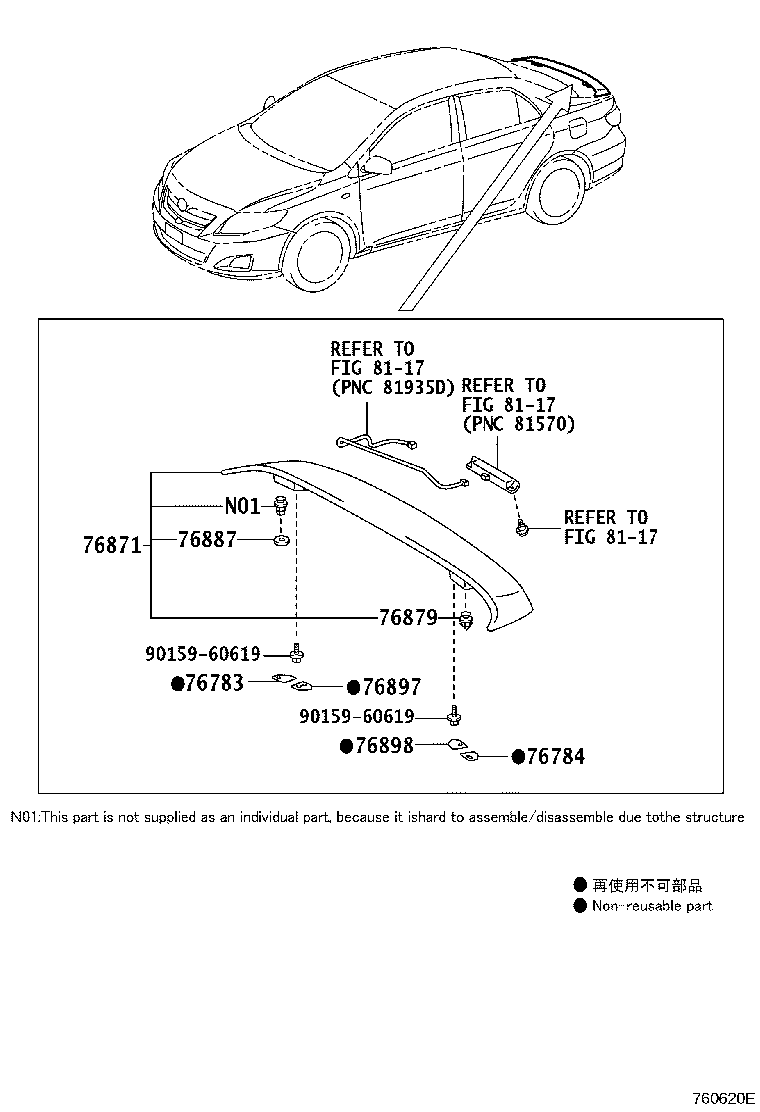

| 76783 | Tape, Rear Spoiler, Lower RH |
| 76784 | Tape, Rear Spoiler, Lower LH |
| 76871 | Spoiler, Rear |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76887 | Seal, Rear Spoiler |
| 76897 | Protector, Rear Spoiler, Side RH |
| 76898 | Protector, Rear Spoiler, Side LH |
| 76911B | Mudguard, Side, RH |
| 76912D | Mudguard, Side, LH |
| 76924A | Retainer, Side Mudguard, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
