Toyota Corolla Sed/WG

2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

61 part groups · 21 illustrations

Illustrations

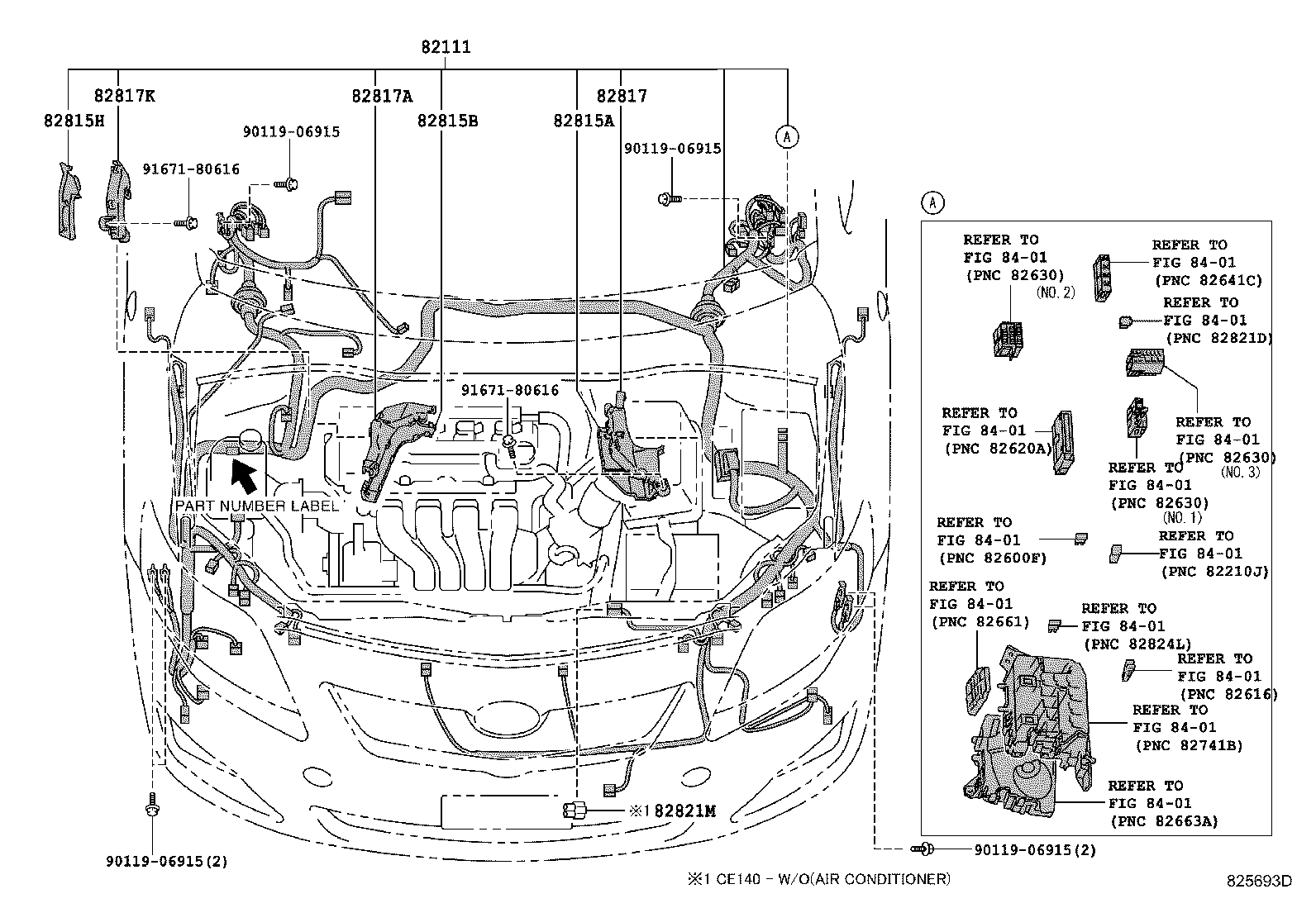

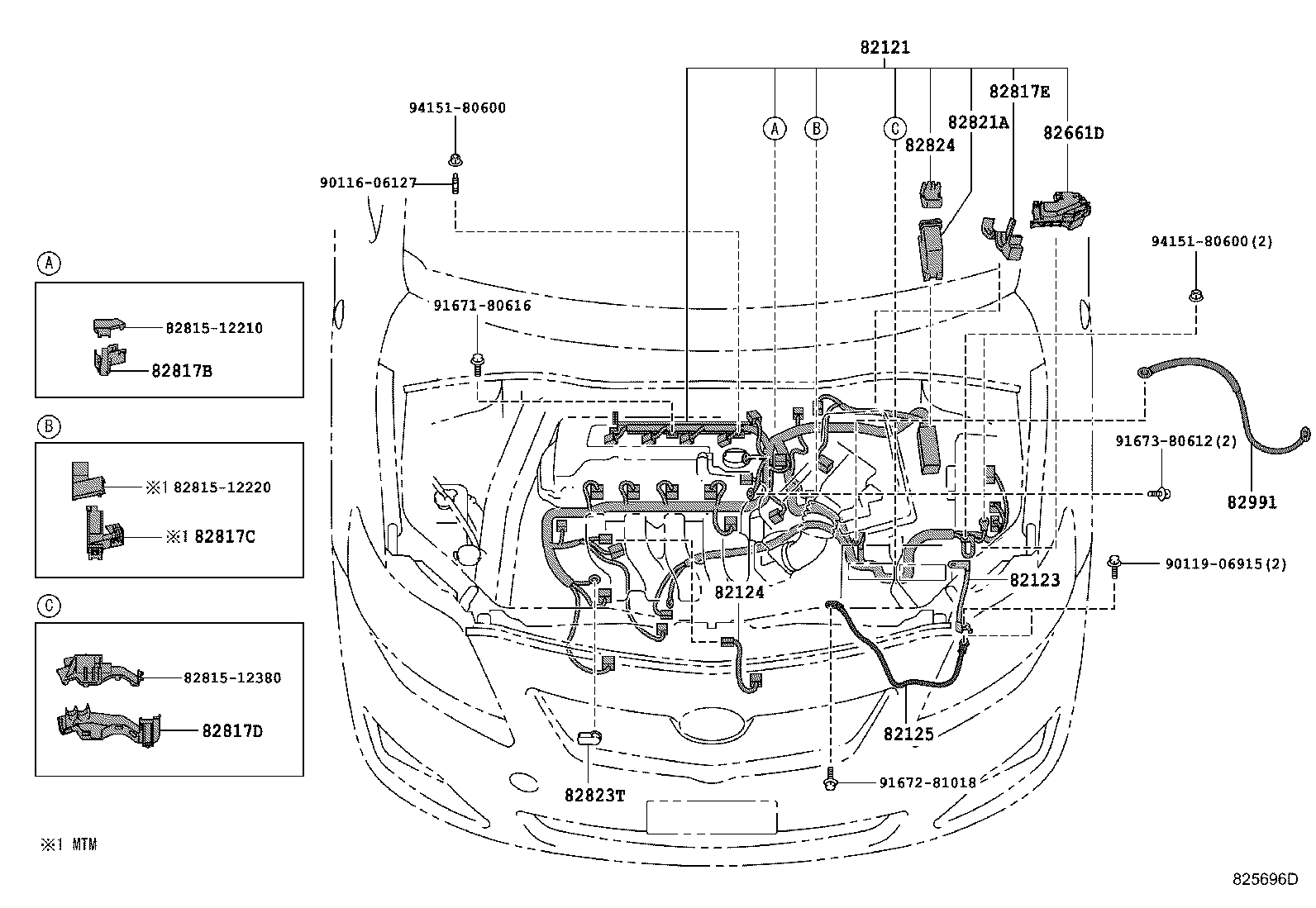

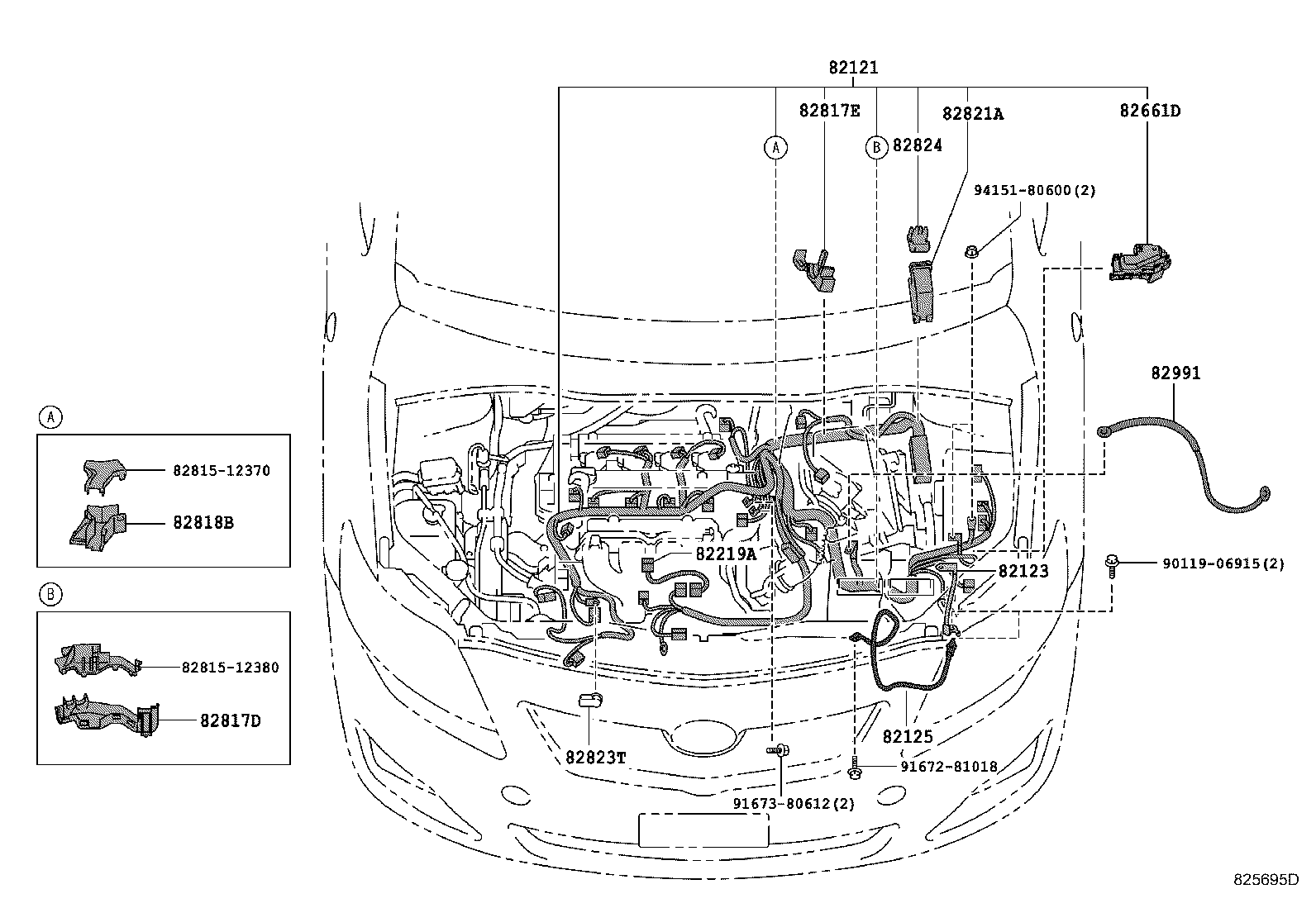

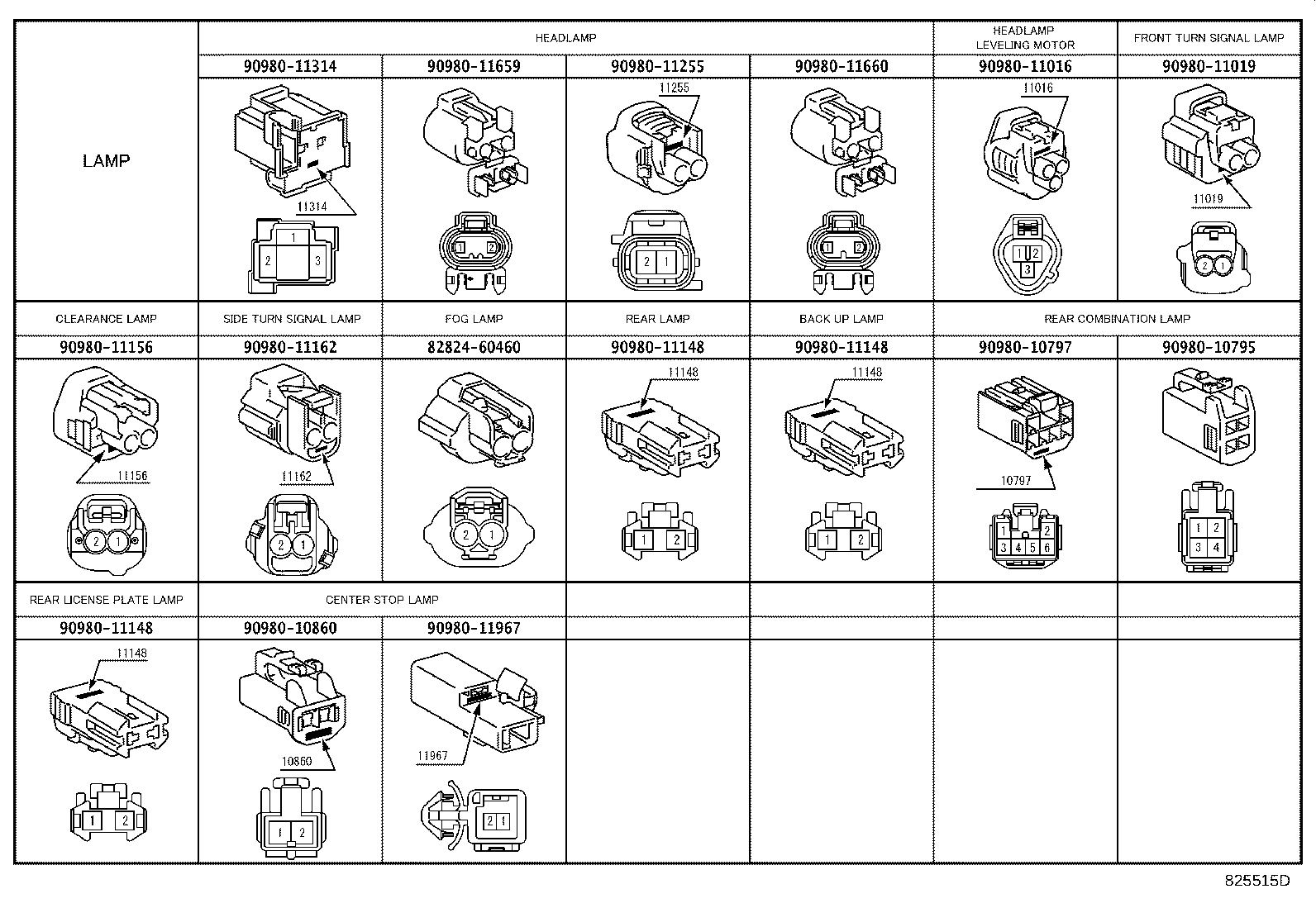

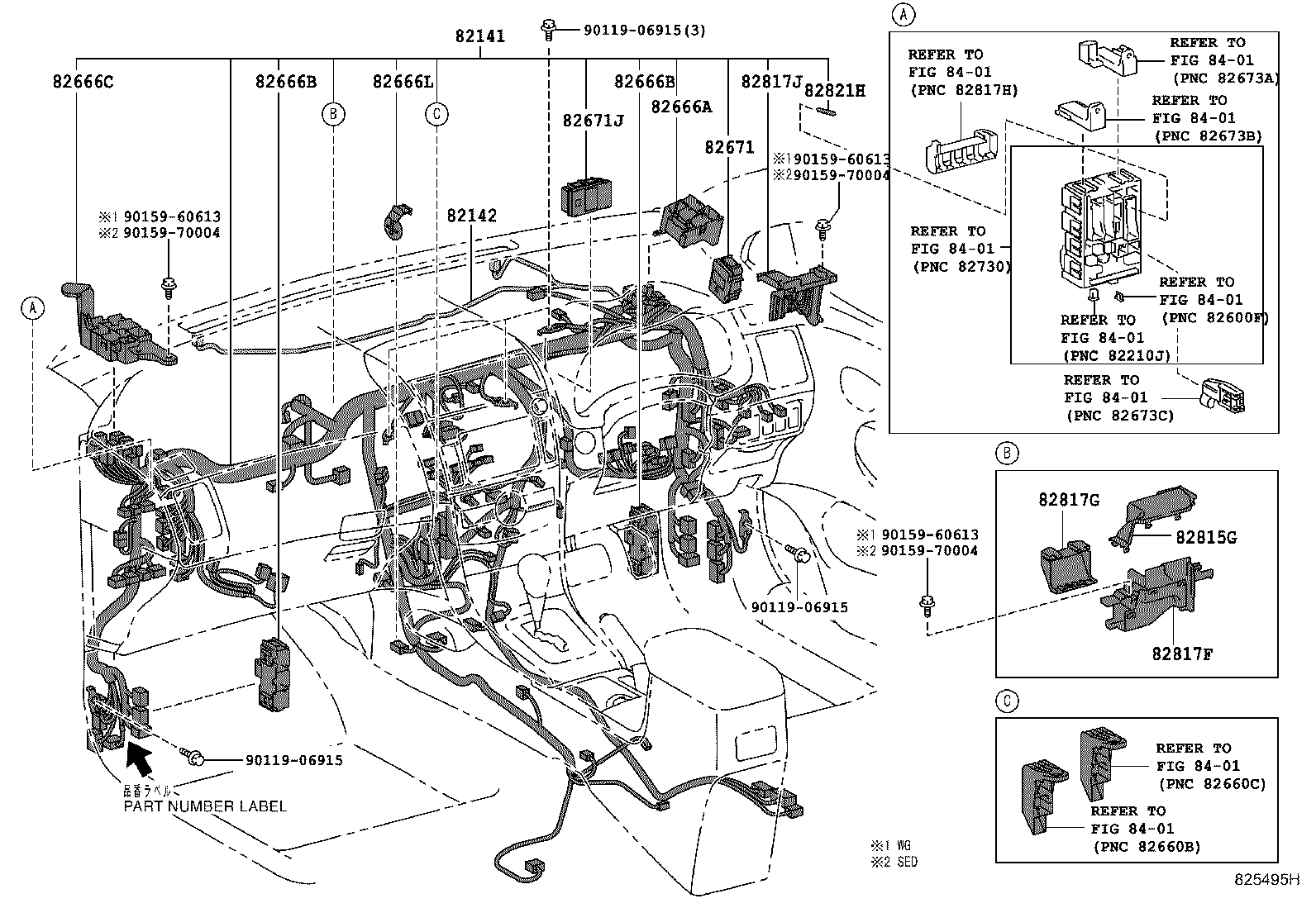

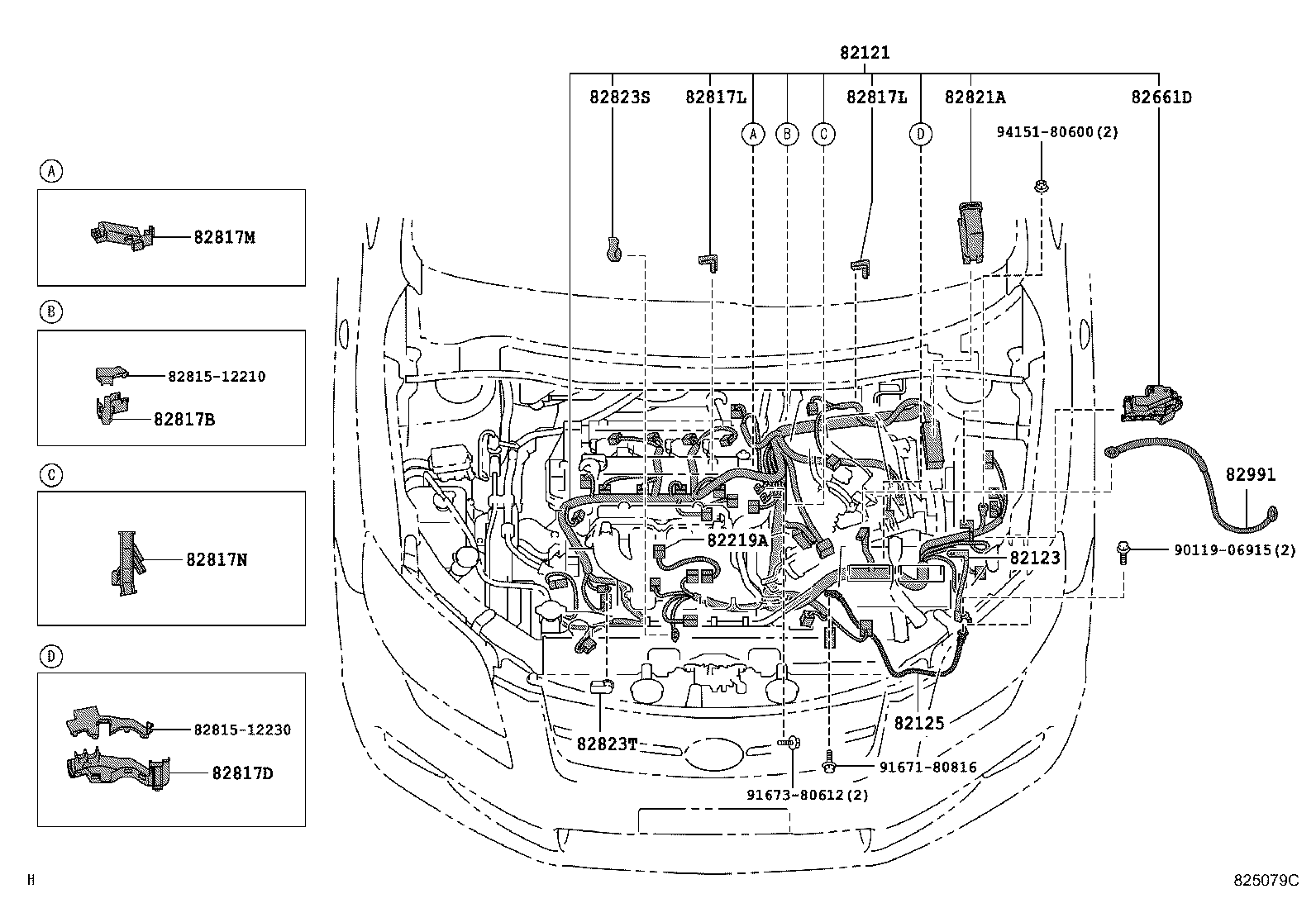

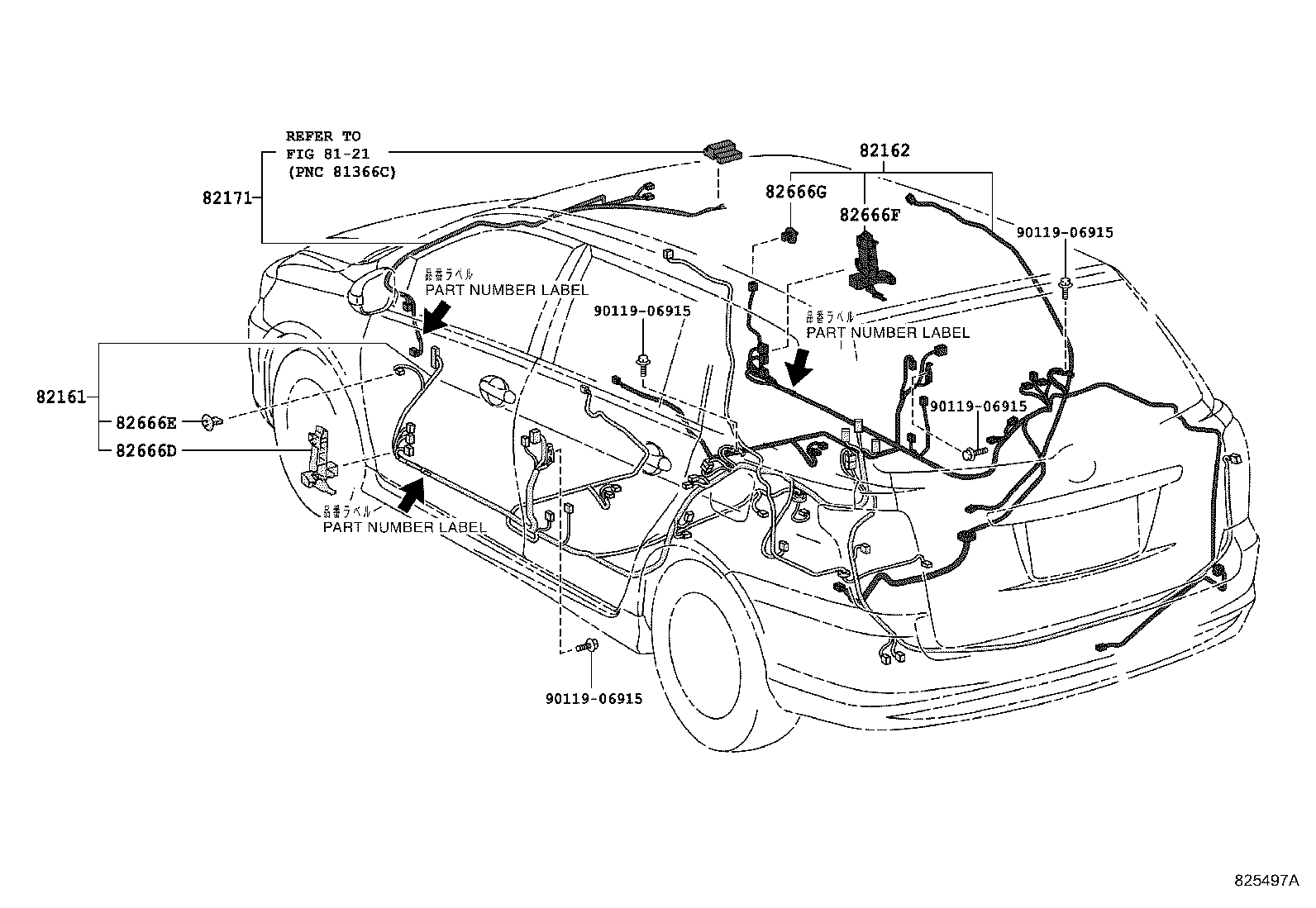

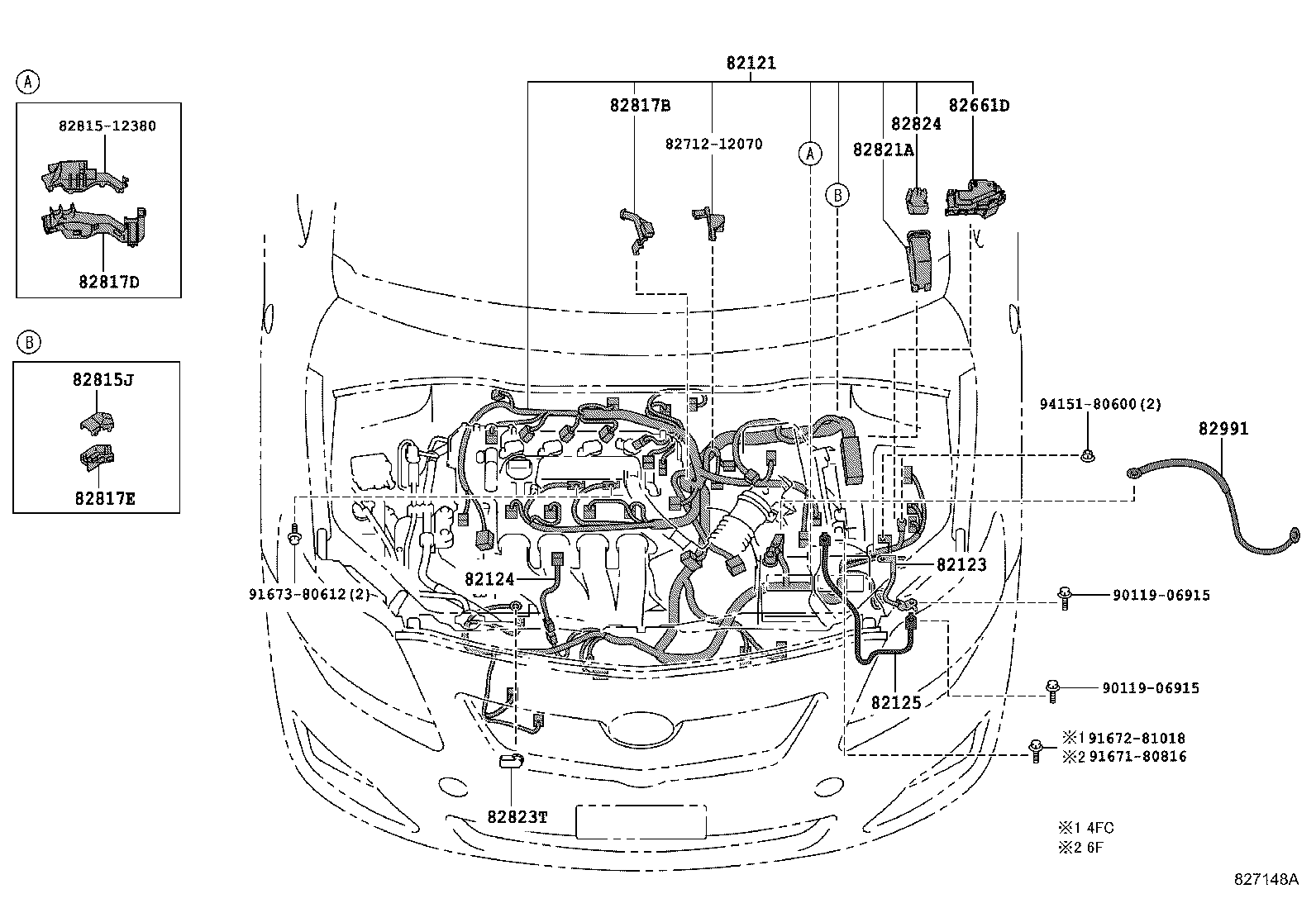

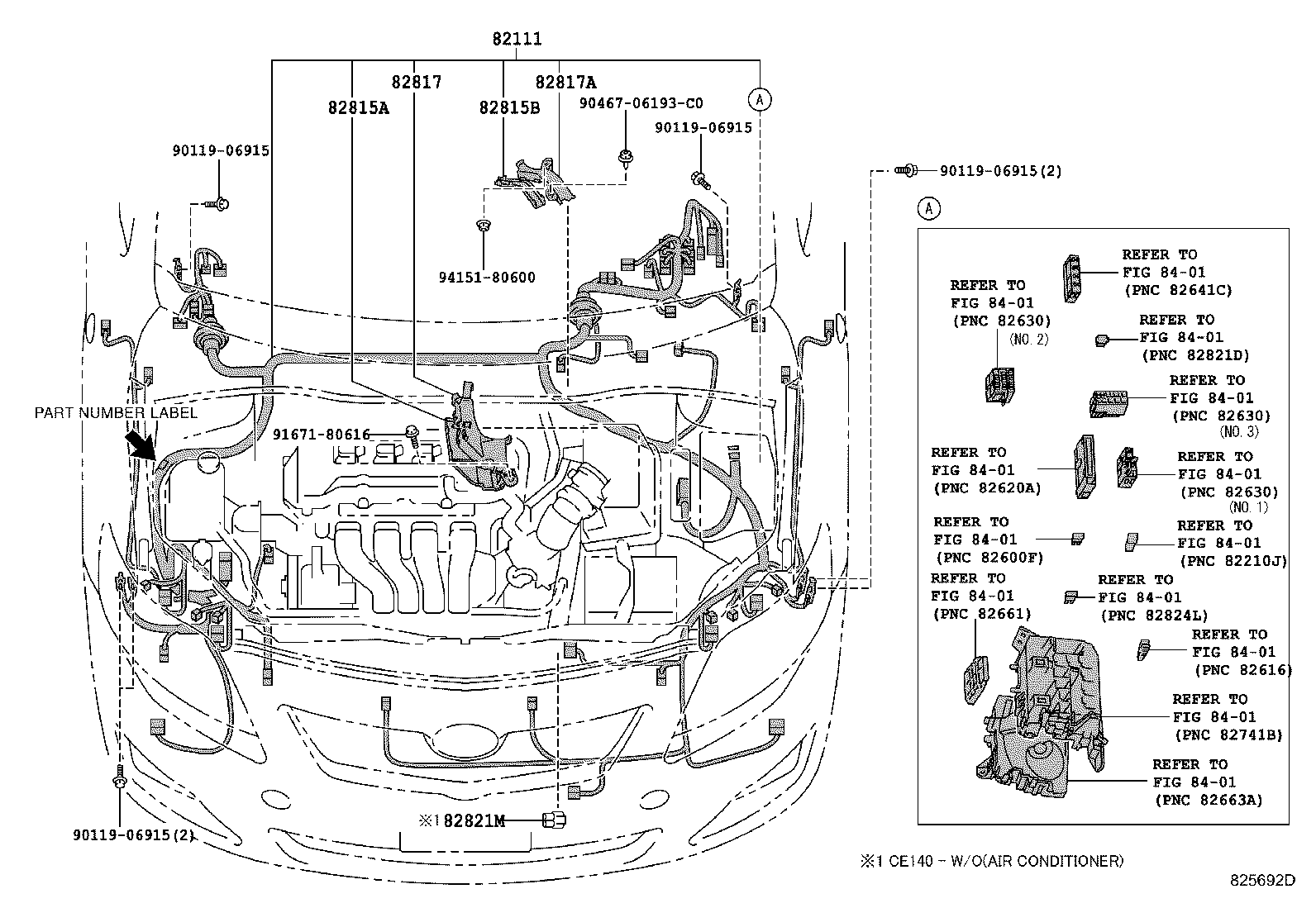

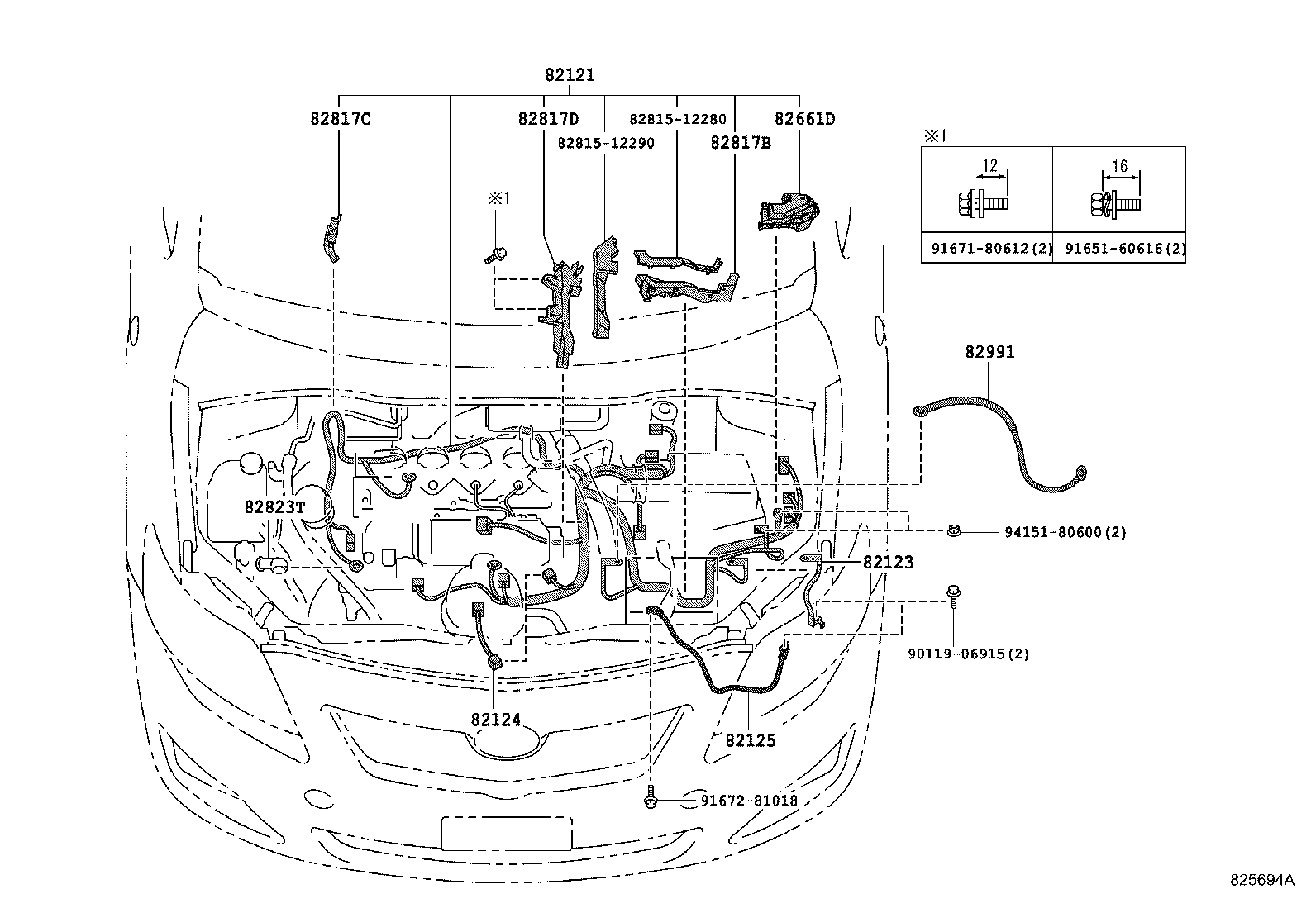

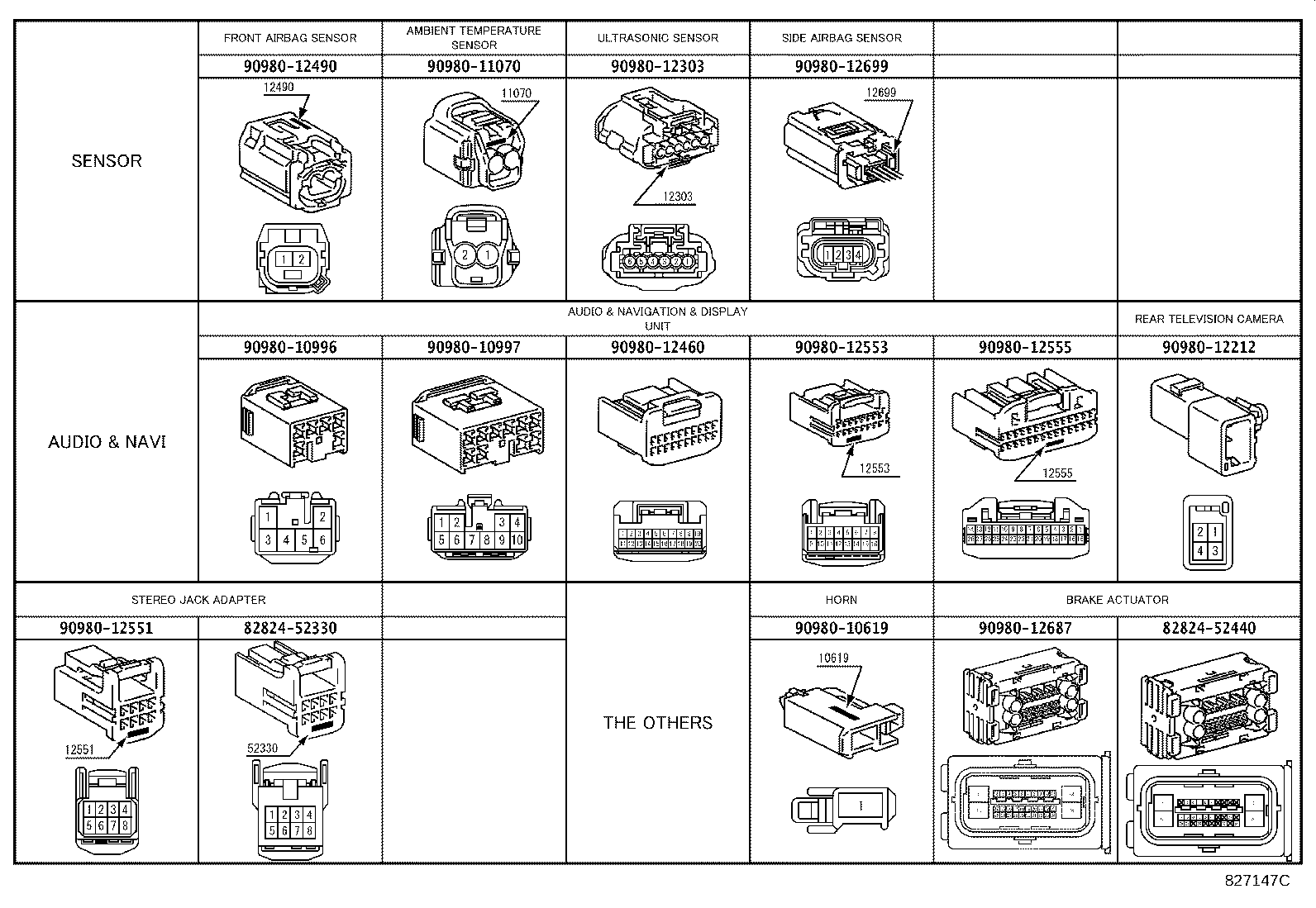

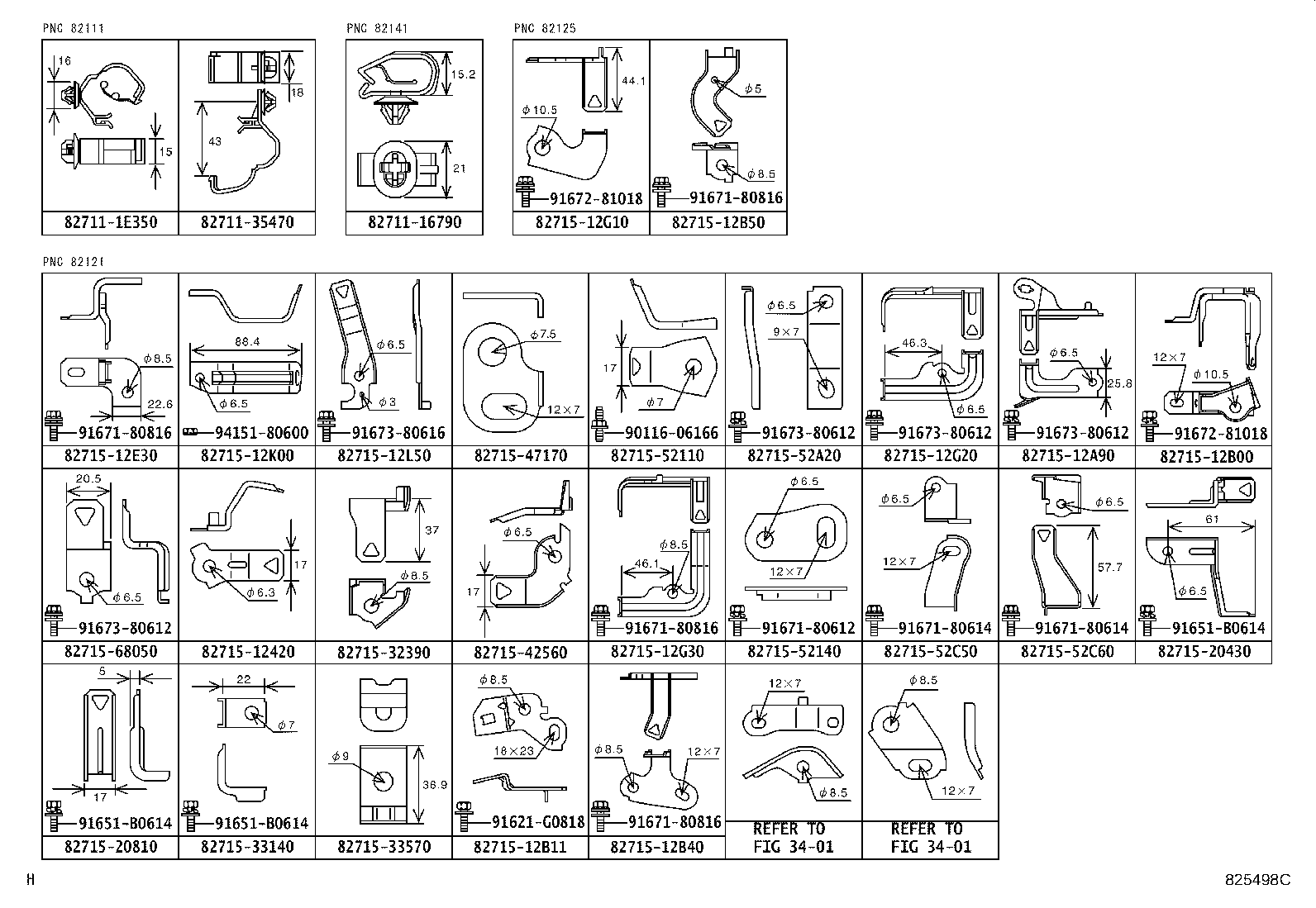

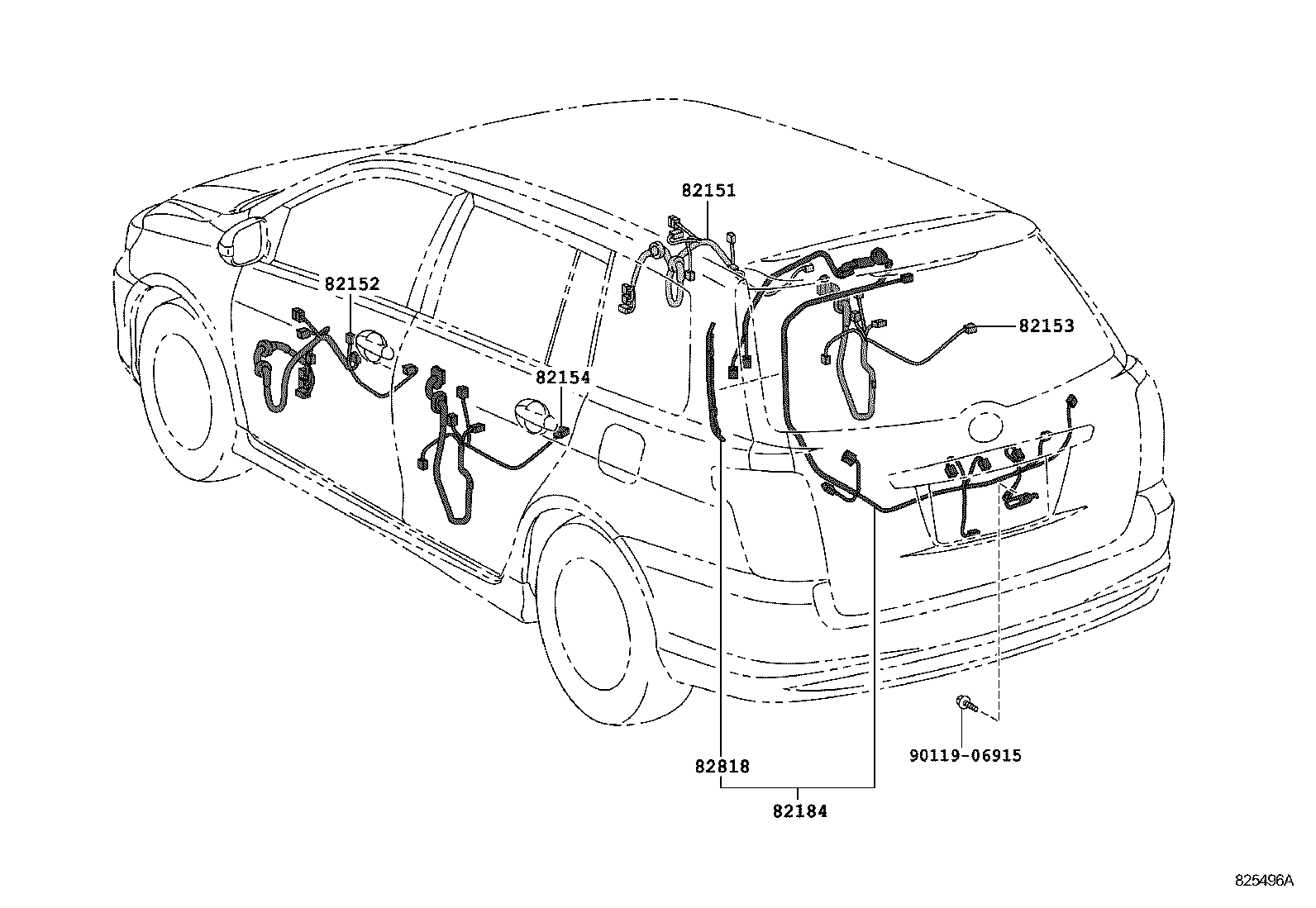

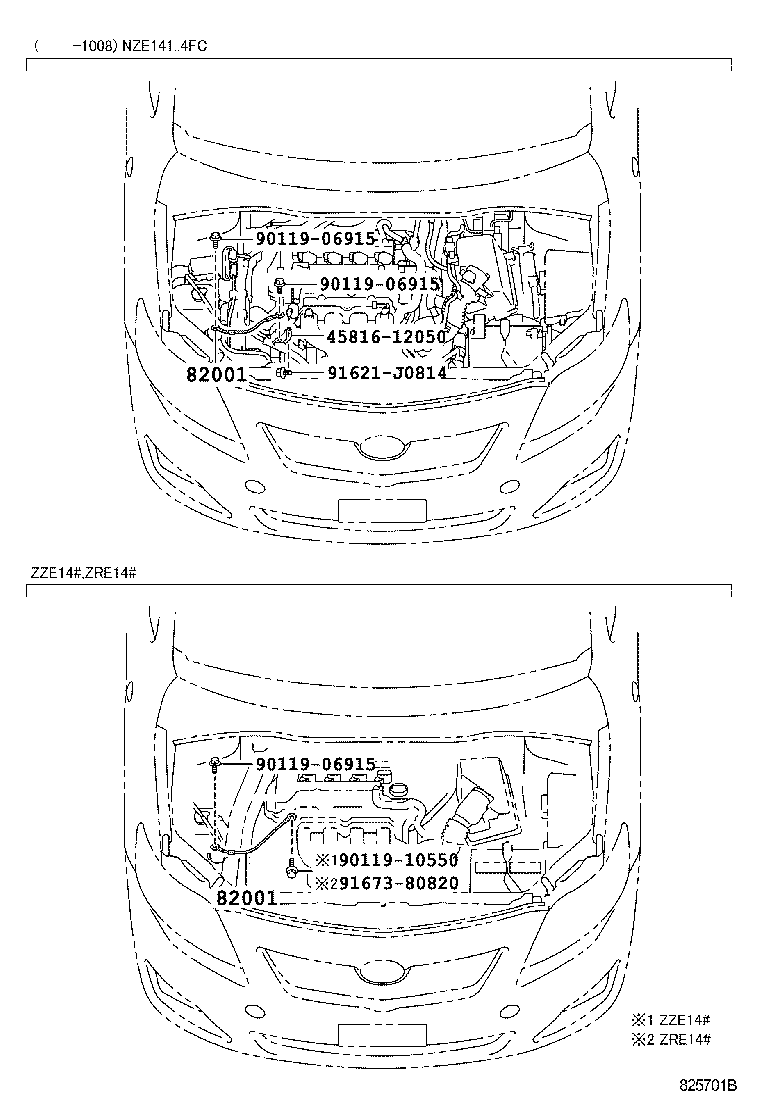

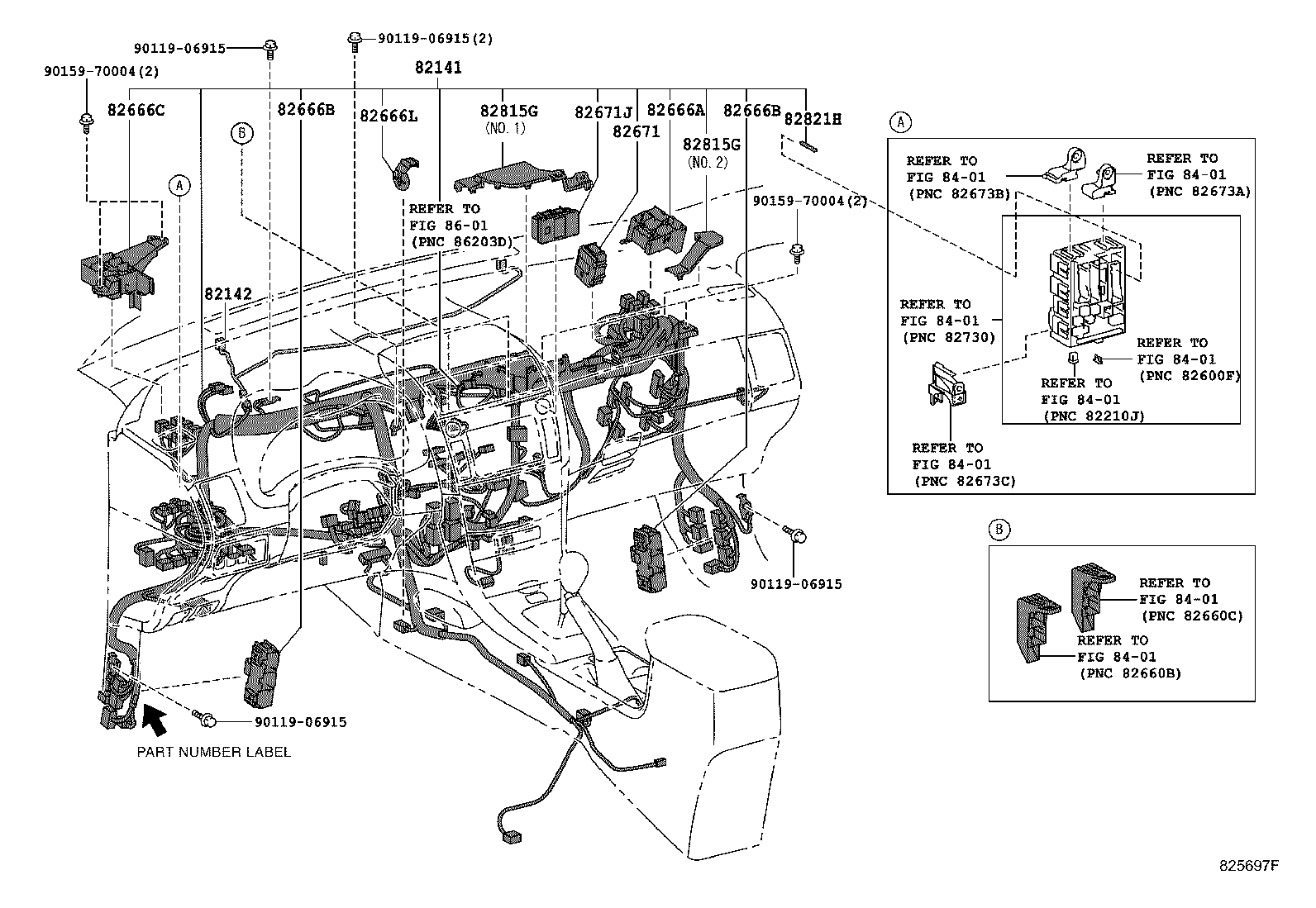

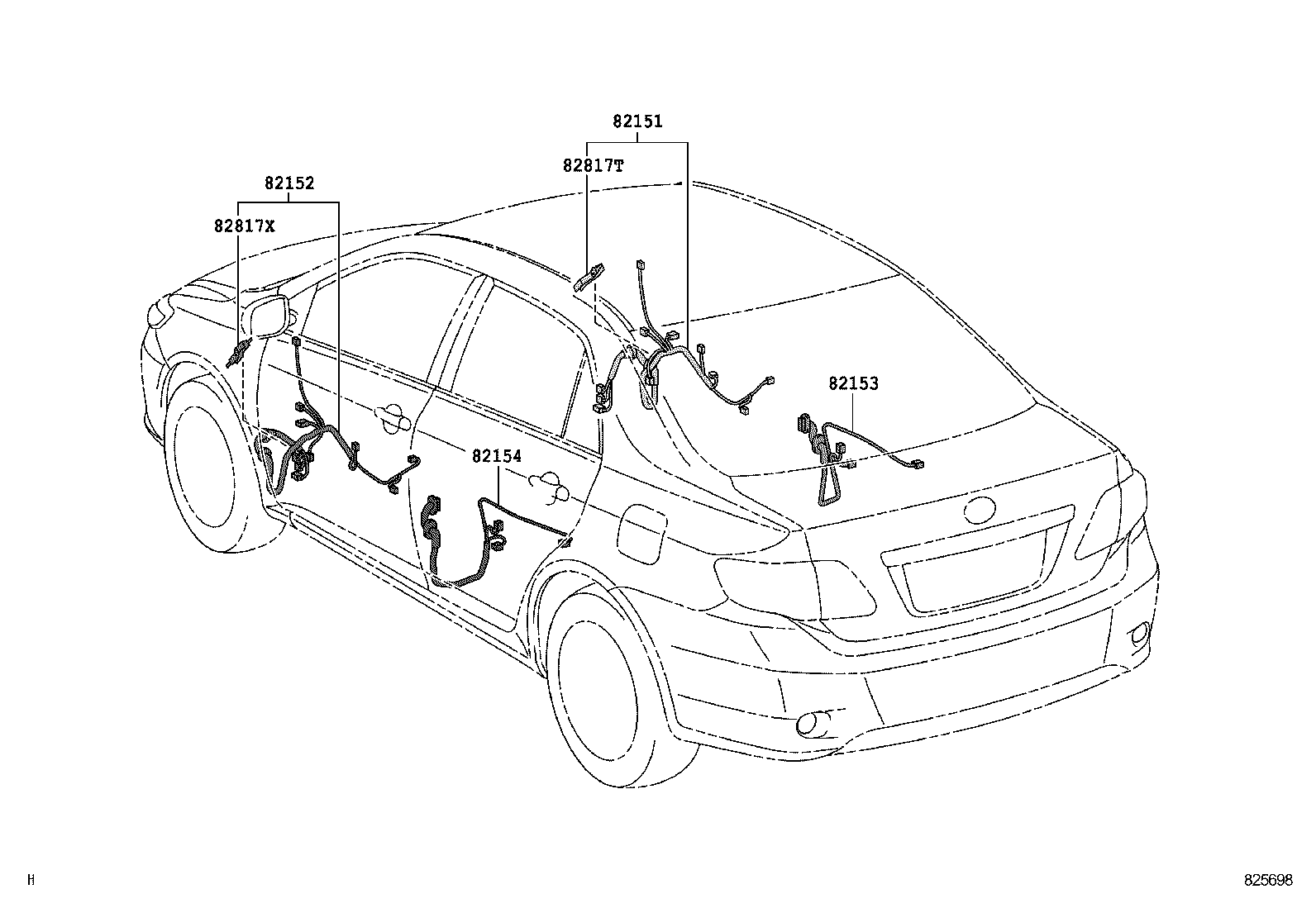

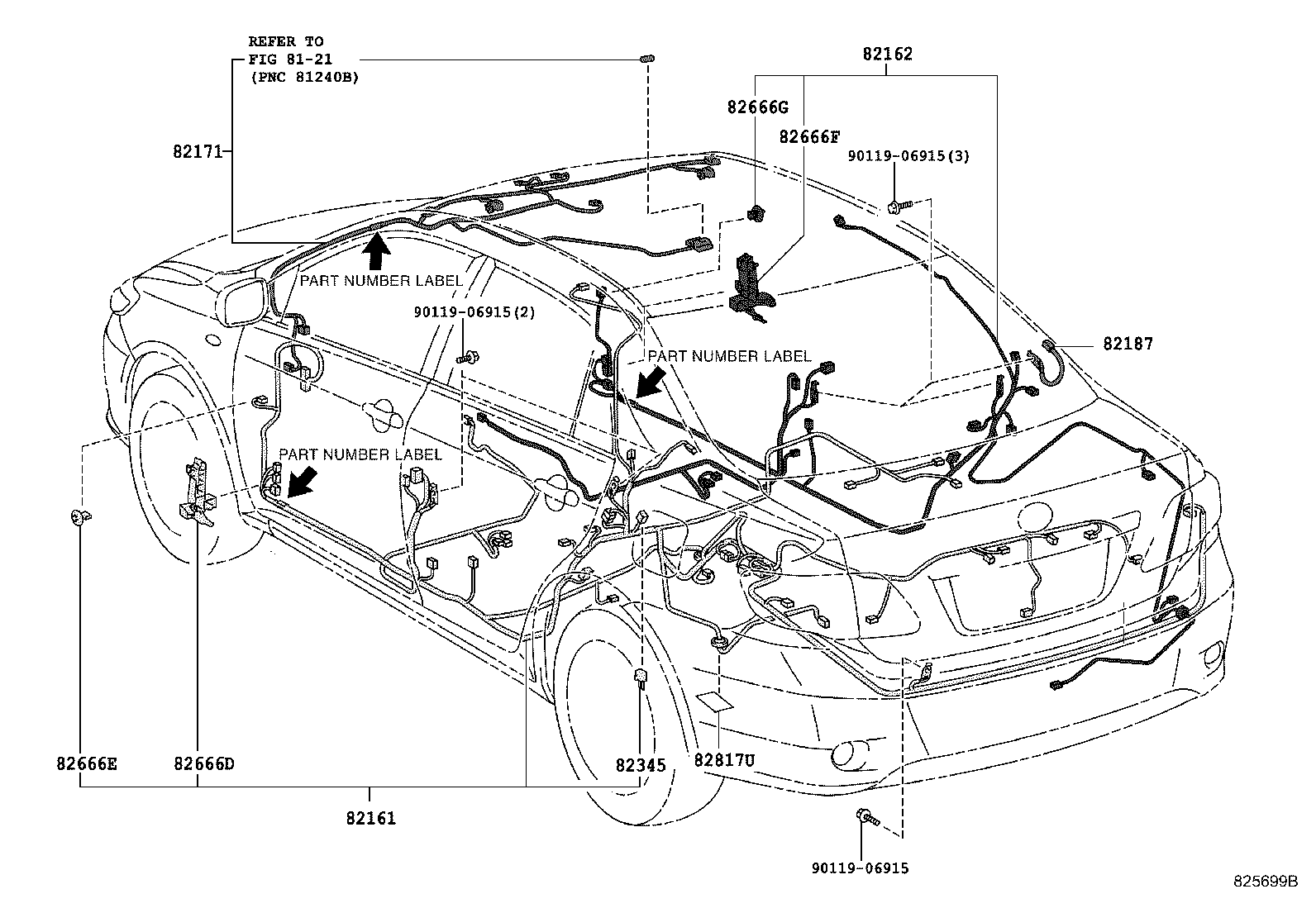

Figure 825514C 825514C 2007-04 → — Figure 825692D 825692D 2007-08 → — Figure 825693D 825693D 2007-08 → — Figure 825078D 825078D 2007-04 → — Figure 825694A 825694A 2007-08 → — Figure 825695D 825695D 2007-08 → — Figure 825696D 825696D 2007-08 → — Figure 825079C 825079C 2009-10 → — Figure 827148A 827148A 2010-07 → — Figure 825495H 825495H 2007-04 → — Figure 825697F 825697F 2007-08 → — Figure 825496A 825496A 2007-04 → — Figure 825698 825698 2007-08 → — Figure 825497A 825497A 2007-04 → — Figure 825699B 825699B 2007-08 → — Figure 825700 825700 2007-08 → — Figure 825498C 825498C 2007-04 → — Figure 827149 827149 2007-04 → — Figure 825701B 825701B 2007-08 → — Figure 825515D 825515D 2007-04 → — Figure 827147C 827147C 2007-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82219A Wire, Sensor
82345 Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82671 Block, Junction
82671J Block, Junction, NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
