Toyota Corolla Sed/WG

2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

6 part groups · 3 illustrations

Illustrations

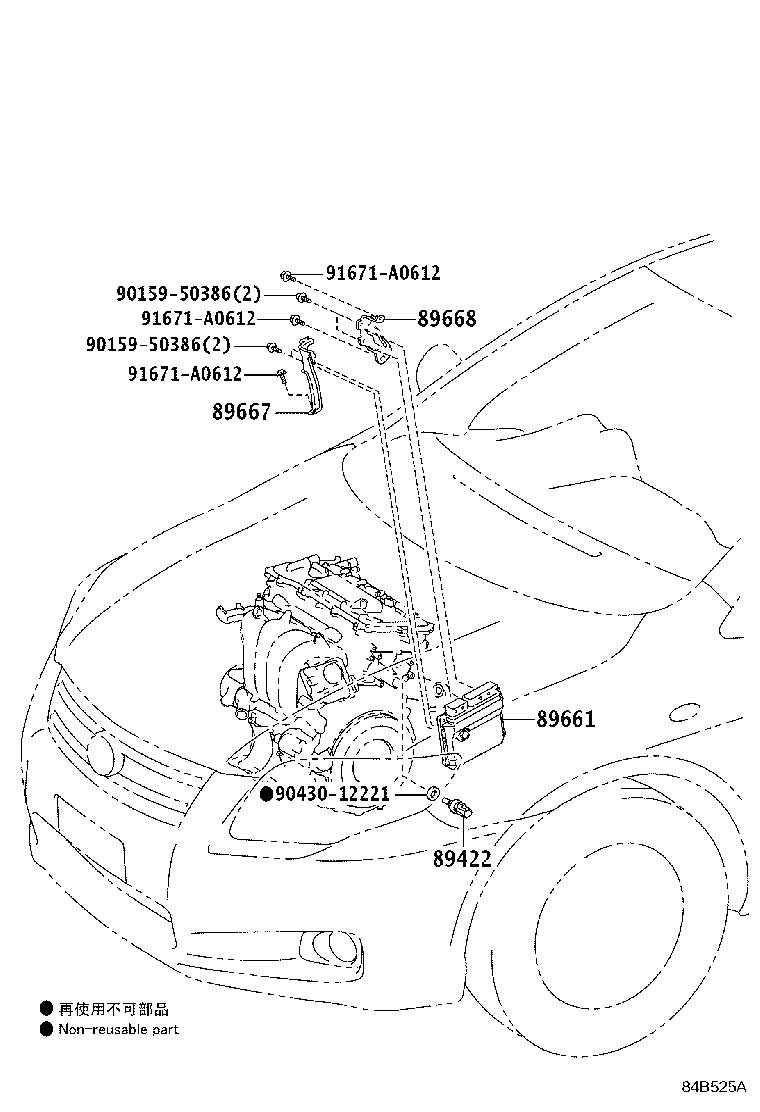

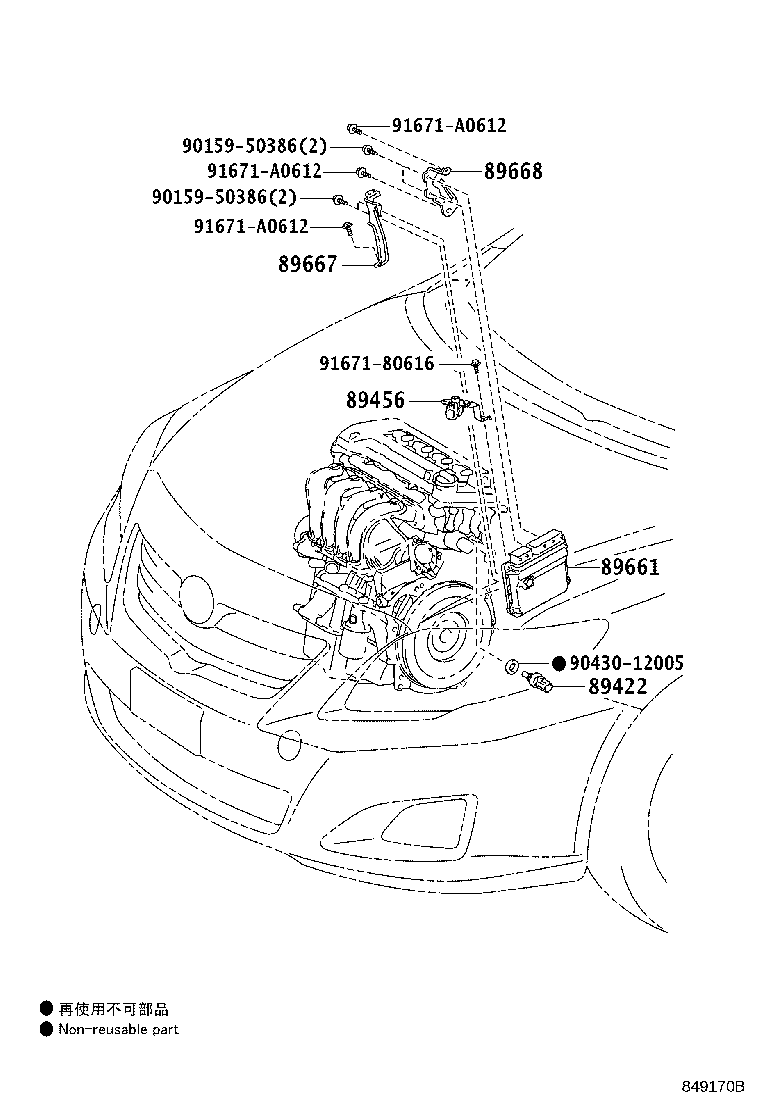

Figure 848221C 848221C 2007-04 → — Figure 849170B 849170B 2007-08 → — Figure 84B525A 84B525A 2010-07 → —

Part groups

PNCDescription
89412A Sensor, E.G.R Gas Temperature
89422 Sensor, Water Temperature (FOR E.F.I.)
89456 Resistor, Variable
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
