Toyota Corolla Sed/WG

2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General

Supported model Data version 2014-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

6 part groups · 2 illustrations

Illustrations

Figure 848919H

848919H 2007-04 → —

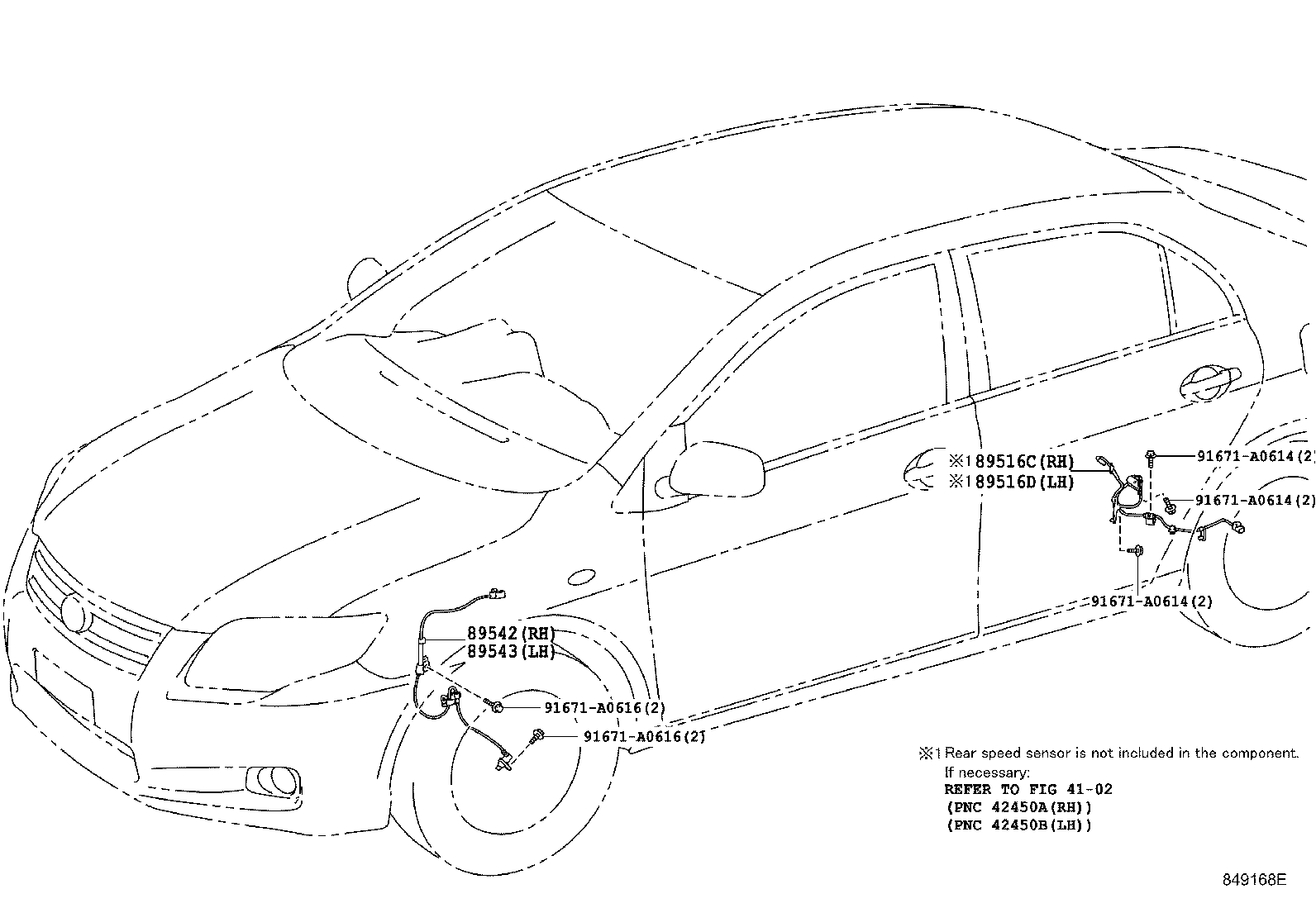

Figure 849168E

849168E 2007-08 → —

Part groups

PNC	Description
89189B	Bracket, Yawrate Sensor
89441A	Sensor, Deceleration
89516C	Wire, Skid Control Sensor, RH
89516D	Wire, Skid Control Sensor, LH
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
