Toyota Corolla Sed/WG
2007-04 → 2014-03 · chassis CE140,NZE141,ZRE14#,ZZE14# · catalogue 151360 · General
Supported model
Data version 2014-01
Heating & Air Conditioning - Compressor
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

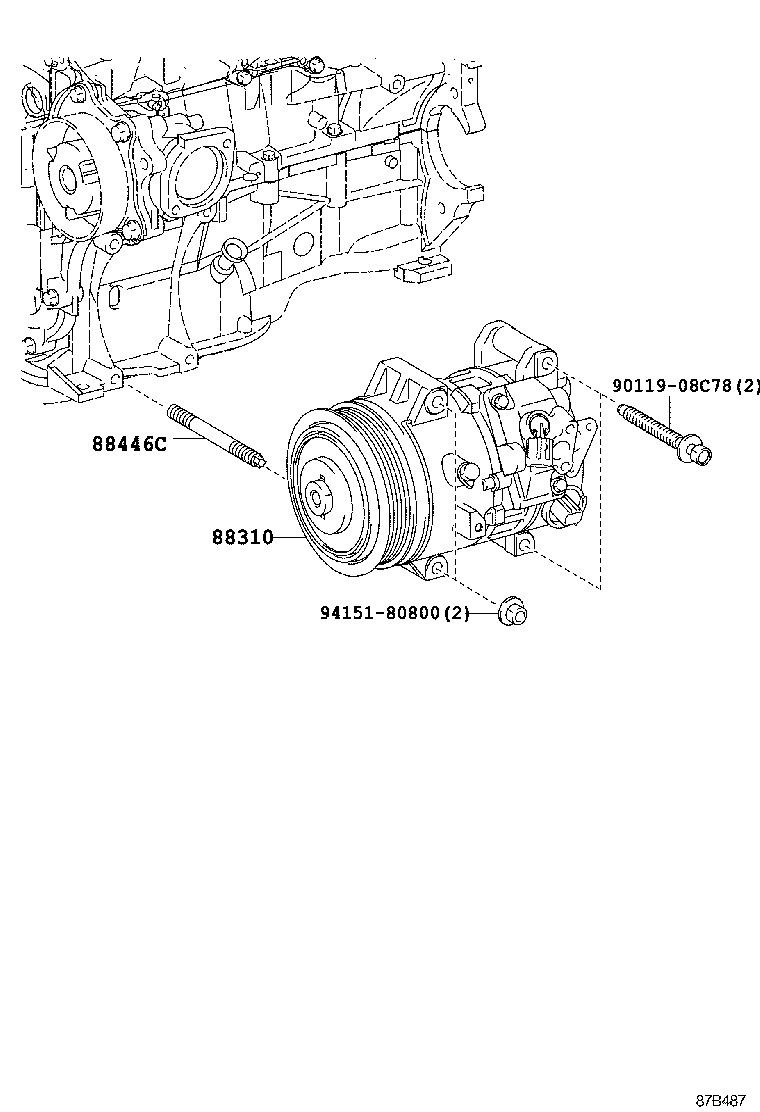

| 88310 | Compressor Assy, W/Pulley |

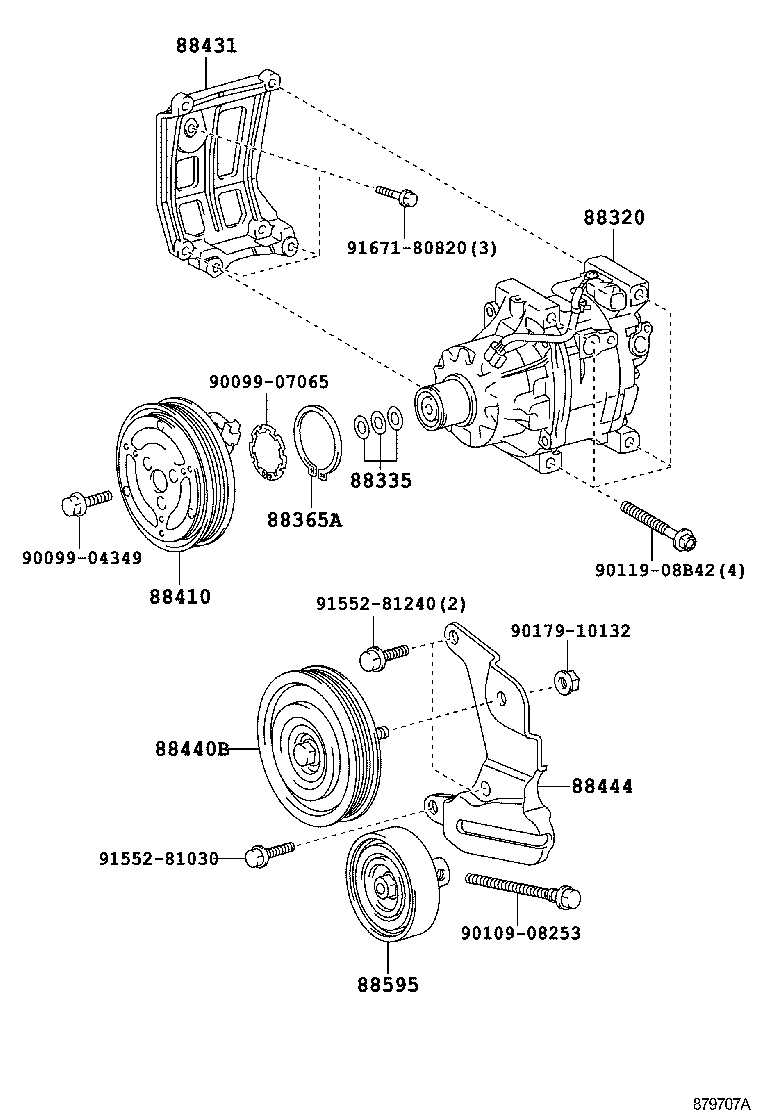

| 88320 | Compressor Assy, Cooler |
| 88335 | Gasket Kit, Overhaul |
| 88365A | Ring, Snap (FOR COMPRESSOR) |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88440B | Pulley Assy, Idle |
| 88444 | Bracket, Idle Pulley |
| 88446C | Bolt, Magnet Clutch Setting |
| 88595 | Pulley, Cooler Compressor Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
