Toyota Corolla/Axio

2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

27 part groups · 2 illustrations

Illustrations

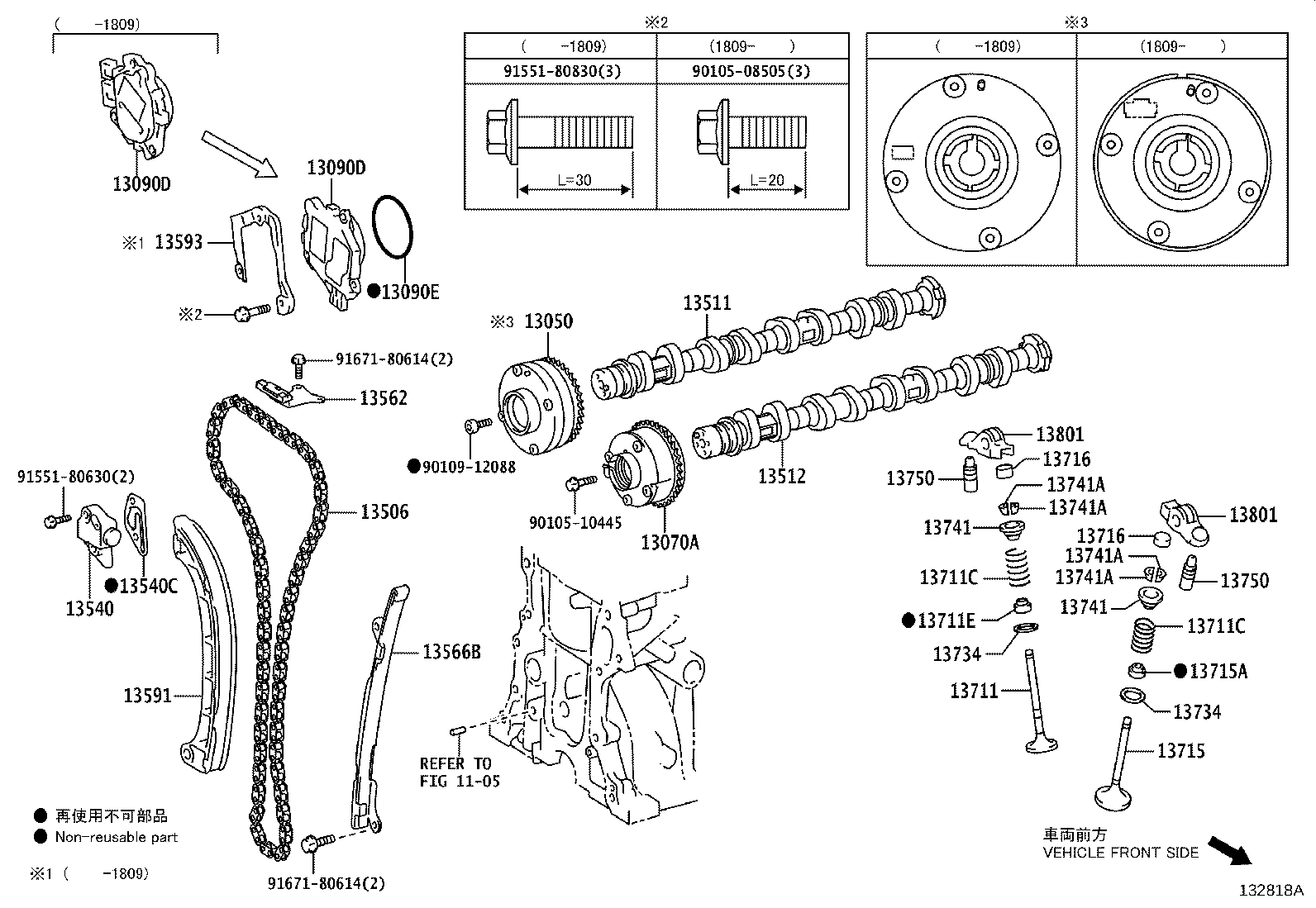

Figure 132214B 132214B 2012-04 → — Figure 132818A 132818A 2015-03 → —

Part groups

PNCDescription
13050 Gear Assy, Camshaft Timing
13070A Gear Assy, Camshaft Timing Exhaust
13090D Motor Assy, Cam Timing Control W/Edu
13090E Ring, O(FOR CAM TIMING CONTROL MOTOR)
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13523 Gear OR Sprocket, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13540C Gasket(FOR CHAIN TENSIONER)
13559 Slipper, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13562 Damper, Chain Vibration, NO.2
13566B Guide, Timing Chain
13591 Arm, Timing Chain Tension
13593 Cover, Camshaft Timing Gear
13711 Valve, Intake
13711C Spring, Compression(FOR OUTER)
13711E Seal, Intake Valve Stem Oil
13715 Valve, Exhaust
13715A Seal, Exhaust Valve Stem Oil
13716 Cap, Valve Stem
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13750 Adjuster Assy, Valve Lash
13801 Arm Sub-assy, Valve Rocker, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
