Toyota Corolla/Axio
2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General
Supported model
Data version 2017-10

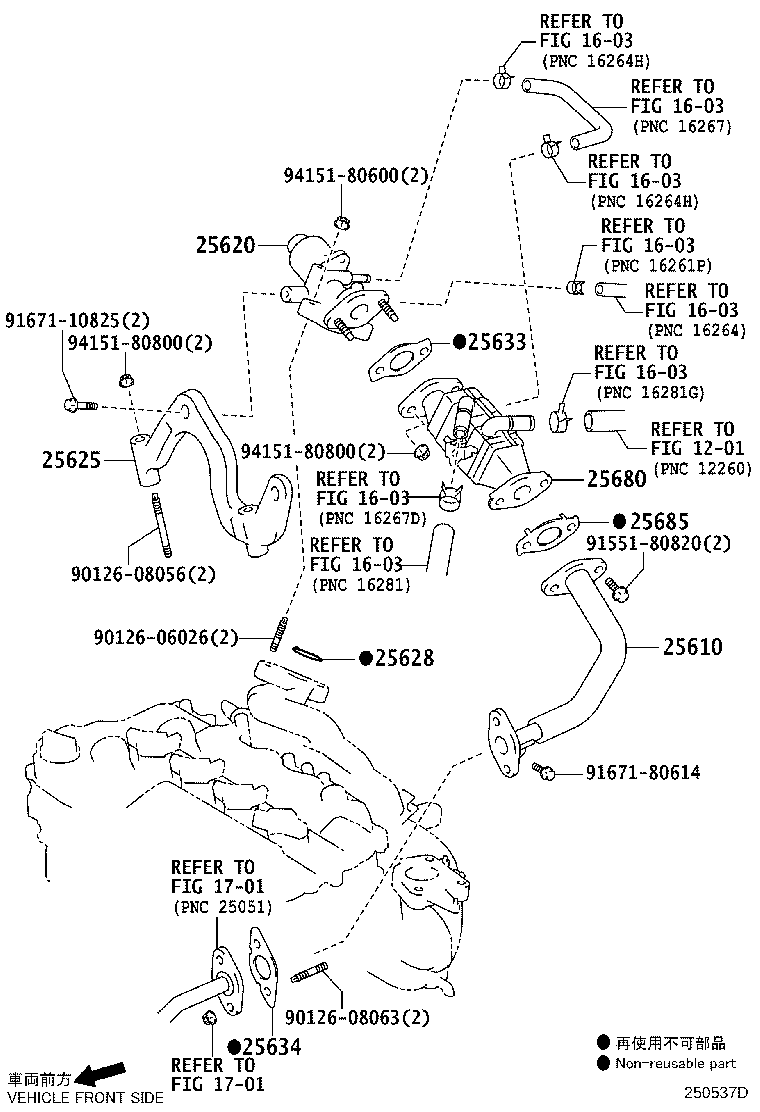

Exhaust Gas Recirculation System
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25610 | Pipe Assy, Egr |
| 25620 | Valve Assy, Egr |
| 25625 | Bracket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25633 | Gasket, Egr Valve |
| 25634 | Gasket, Egr Pipe |
| 25638 | Chamber, Egr Delivery |
| 25680 | Cooler Assy, Egr |
| 25685 | Gasket, Egr Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
