Toyota Corolla/Axio
2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General
Supported model
Data version 2017-10
Transaxle Assy(CVT)

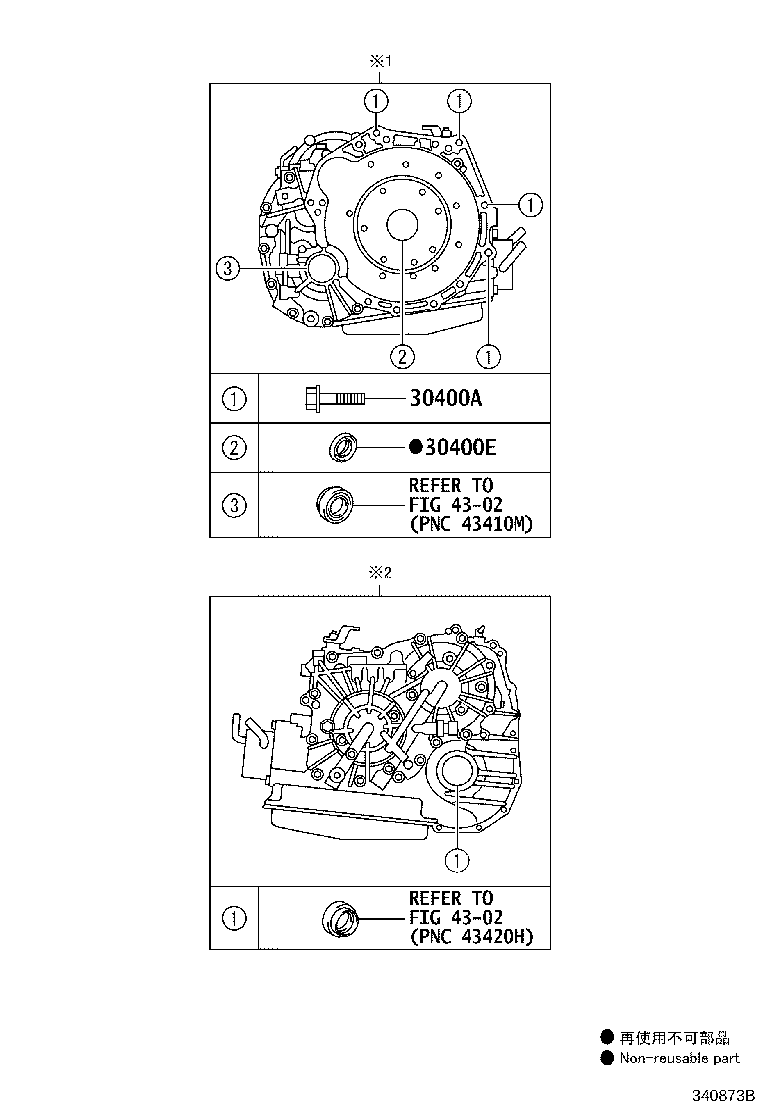

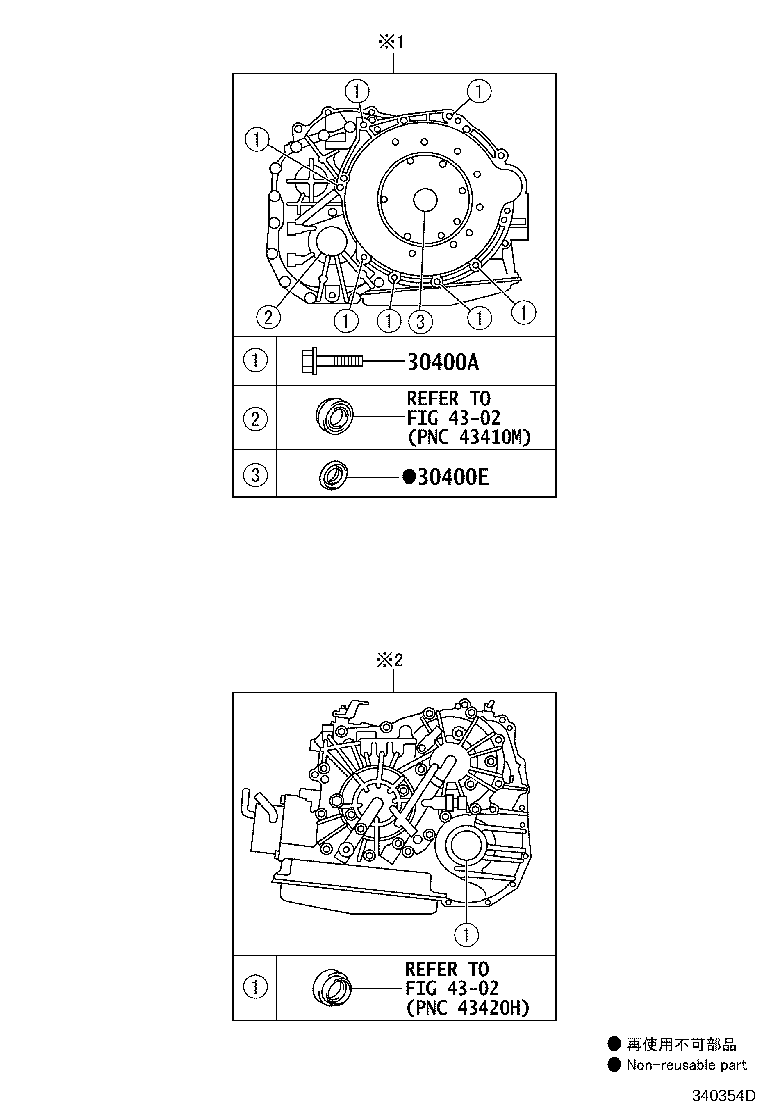

26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 30400 | Transaxle Assy, Continuously Variable |
| 30400A | Bolt(FOR TRANSAXLE & ENGINE SETTING) |
| 30400E | Seal, Type T Oil(FOR CVT OIL PUMP) |
| 30400L | Plug , Filler(CVT) |
| 30400M | Gasket, Filler Plug(CVT) |
| 30400N | Plug, Refill(CVT) |
| 30400P | Gasket, Refill Plug(CVT) |
| 33493C | Cooler, Transmission Oil |
| 33493D | Ring, O (FOR TRANSMISSION OIL COOLER) |
| 35106L | Pan Sub-assy, Transaxle Oil(CVT) |
| 35106P | Bolt(FOR TRANSAXLE OIL PAN) |
| 35123B | Skirt,Transmission Breather |
| 35125E | Tube, Overflow(CVT) |
| 35125F | Plug, Overflow(CVT) |
| 35125G | Gasket, Overflow Plug(CVT) |
| 35141D | Hose(FOR BREATHER PLUG) |
| 35141E | Ring, O(FOR BREATHER PLUG) |
| 35141F | Plug, Breather, NO.1(CVT) |
| 35150B | Plug Assy, Transmission Case |
| 35150C | Ring, O (FOR TRANSMISSION CASE PLUG) |
| 35168C | Gasket, Transaxle Oil Pan(CVT) |
| 35300C | Pump Assy, Oil W/Motor |
| 35330D | Strainer Assy, Oil |
| 35330E | Ring, O (FOR OIL STRAINER) |
| 35394D | Magnet, Oil Cleaner(CVT) |
| 35572C | Lever, Transmission Control Shaft |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
