Toyota Corolla/Axio

2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 3 illustrations

Illustrations

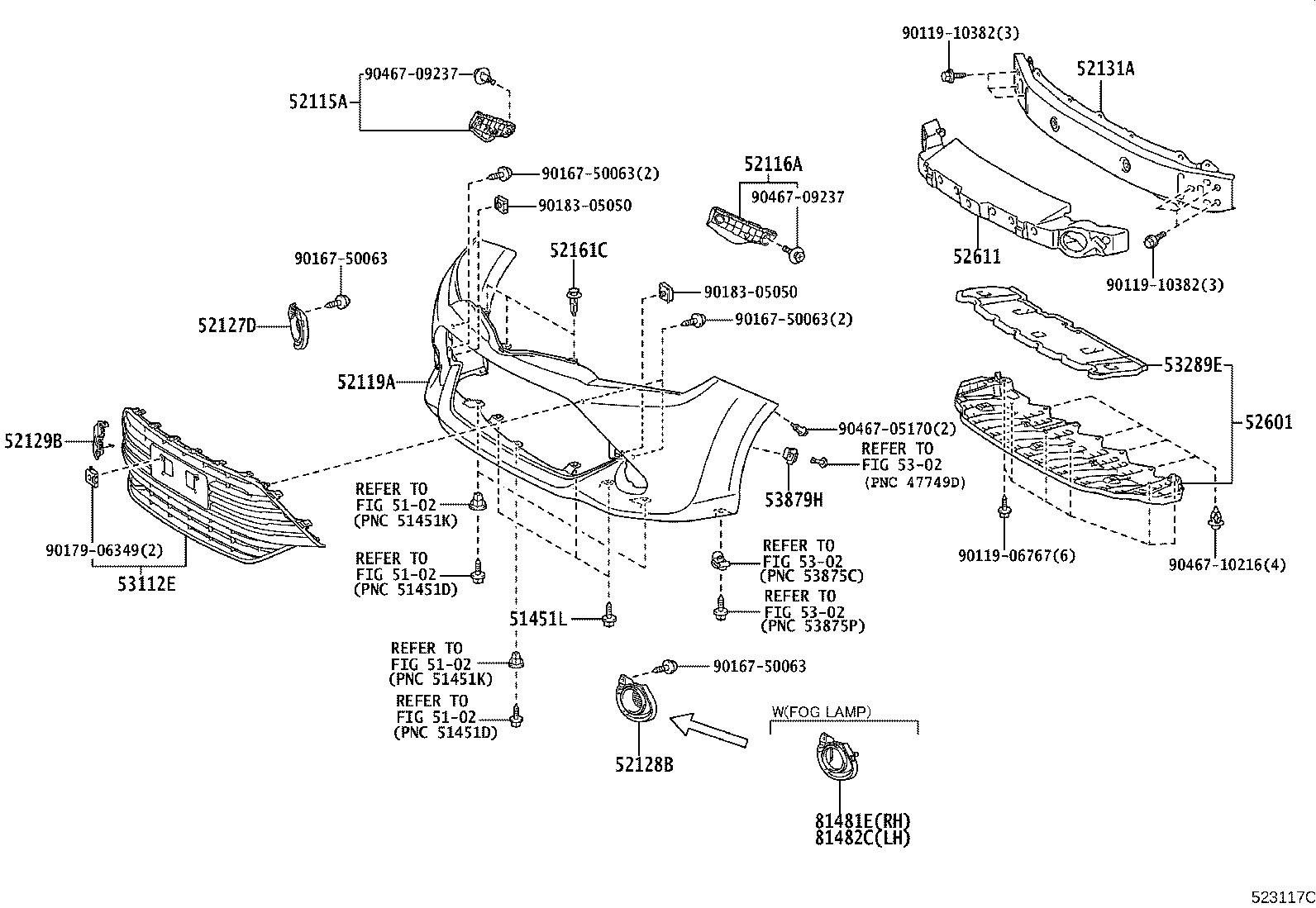

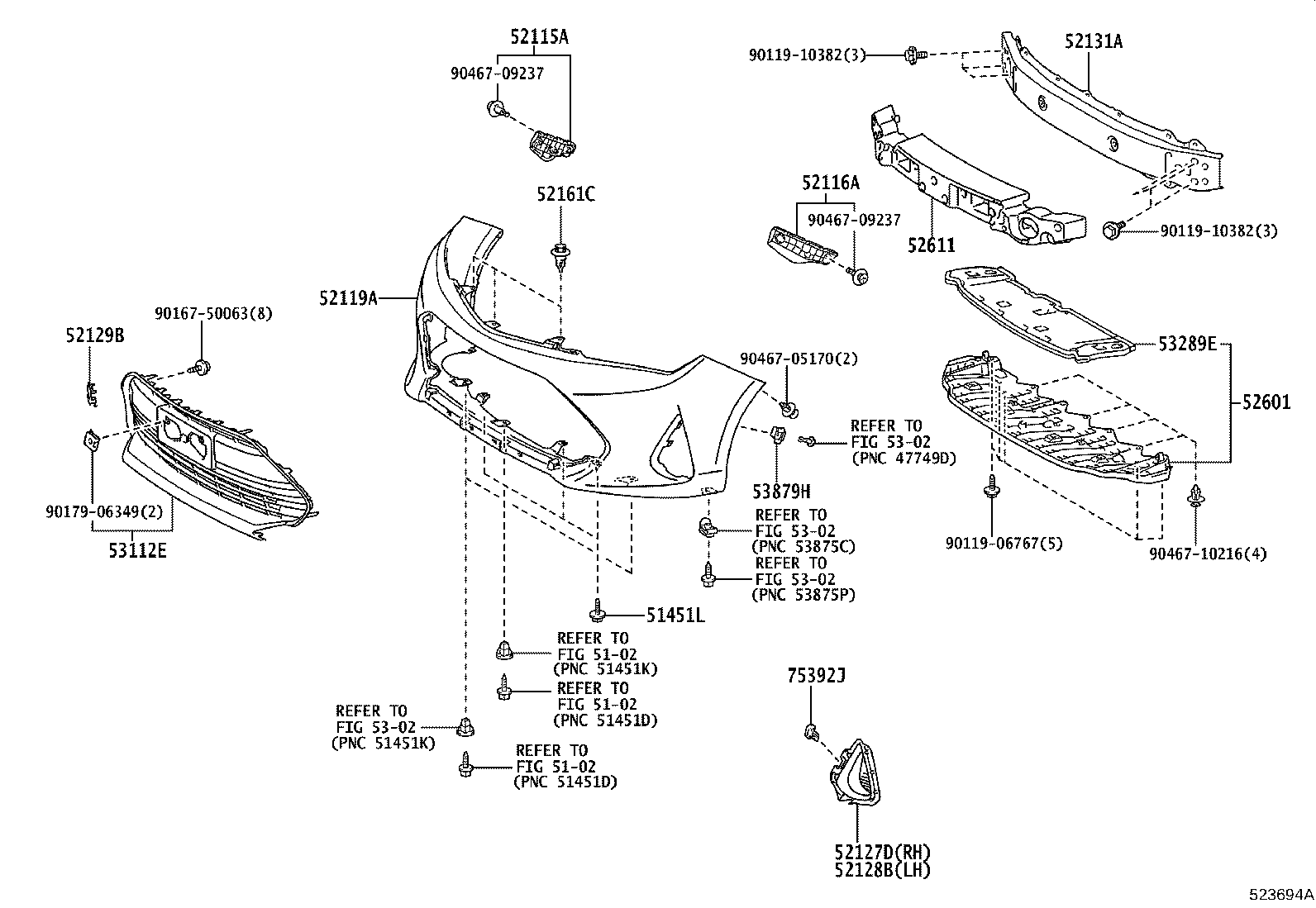

Figure 522659H 522659H 2012-04 → 2015-03 Figure 523117C 523117C 2015-03 → 2017-10 Figure 523694A 523694A 2017-10 → —

Part groups

PNCDescription
51451L Bolt, NO.1
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52162C Piece, Front Bumper
52521A Clip(FOR FRONT BUMPER RETAINER)
52601 Absorber Sub-assy, Front Bumper Energy
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53289E Cover, Radiator Support Opening
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
