Toyota Corolla/Axio

2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

11 part groups · 4 illustrations

Illustrations

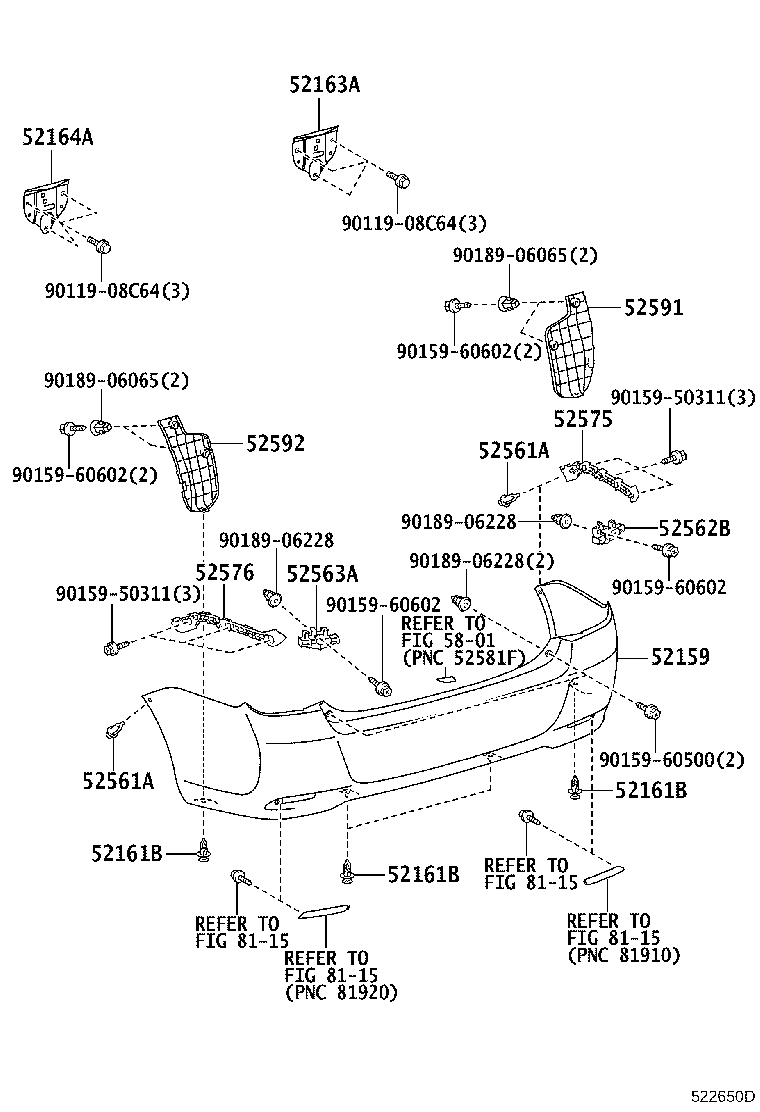

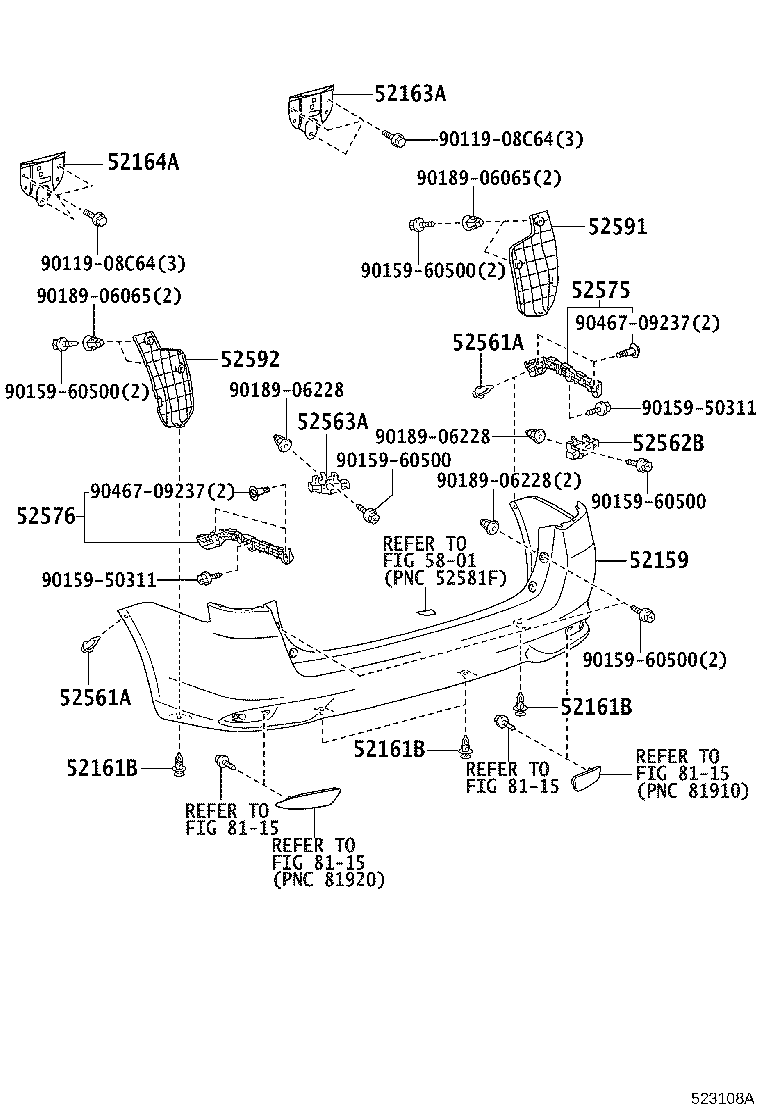

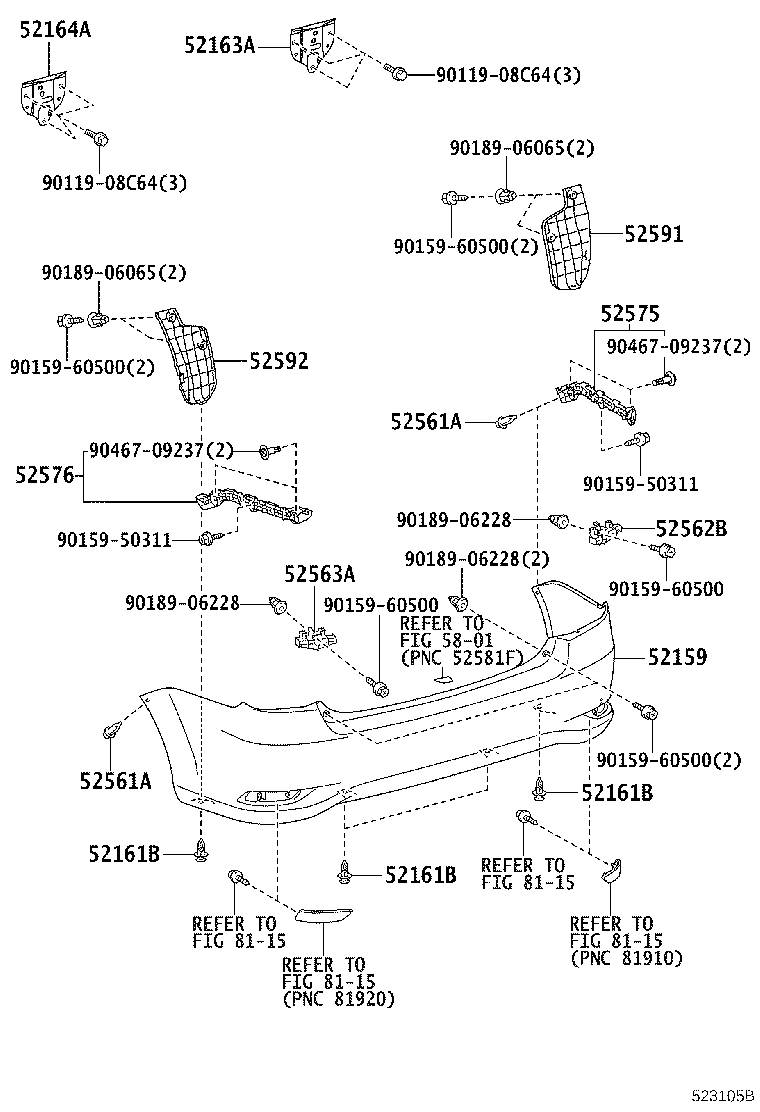

Figure 522665D 522665D 2012-04 → 2015-03 Figure 522650D 522650D 2012-12 → 2015-03 Figure 523105B 523105B 2015-03 → — Figure 523108A 523108A 2015-03 → —

Part groups

PNCDescription
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52163A Plate, Rear Bumper, RH
52164A Plate, Rear Bumper, LH
52561A Clip(FOR REAR BUMPER RETAINER)
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
