Toyota Corolla/Axio

2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 4 illustrations

Illustrations

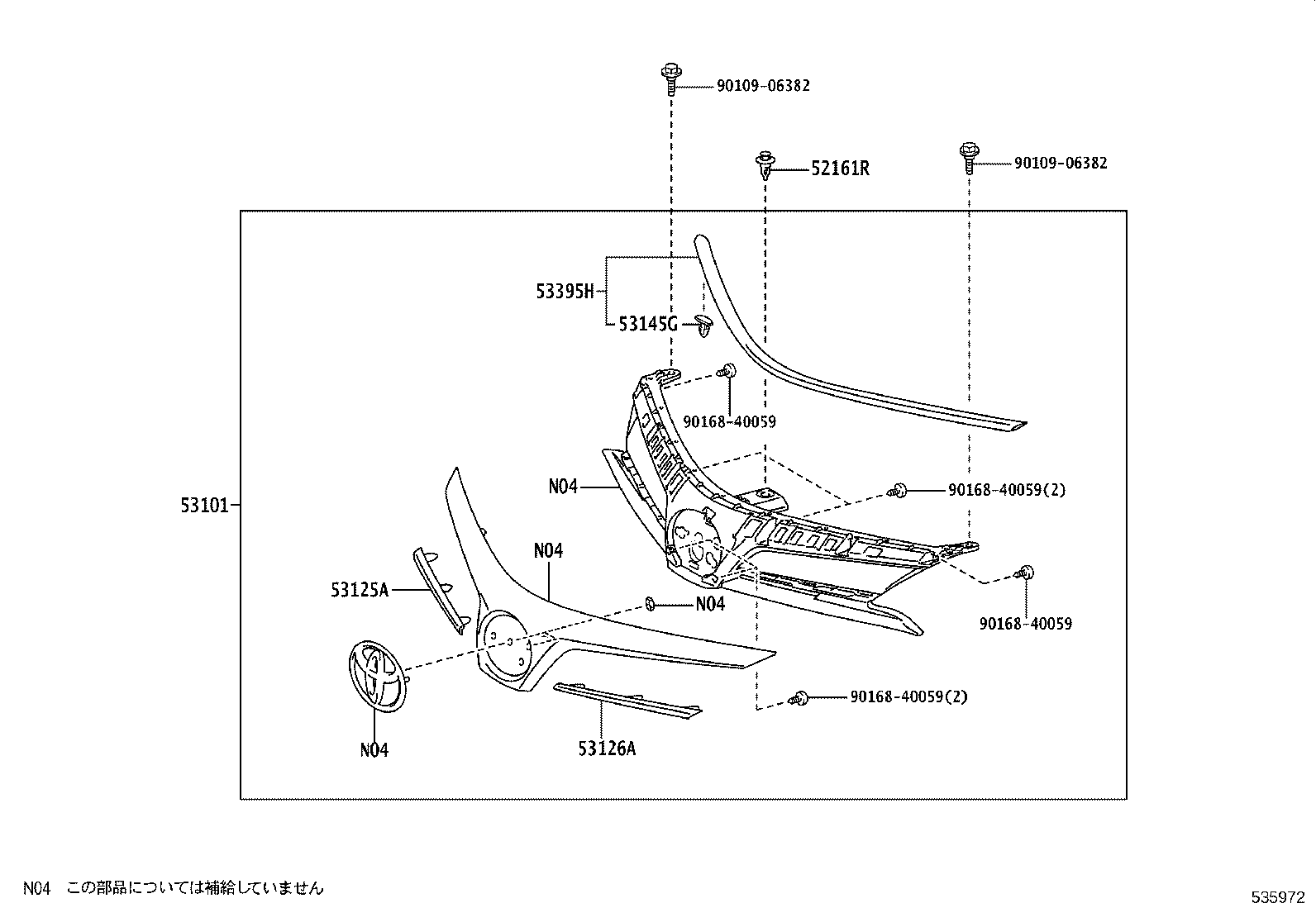

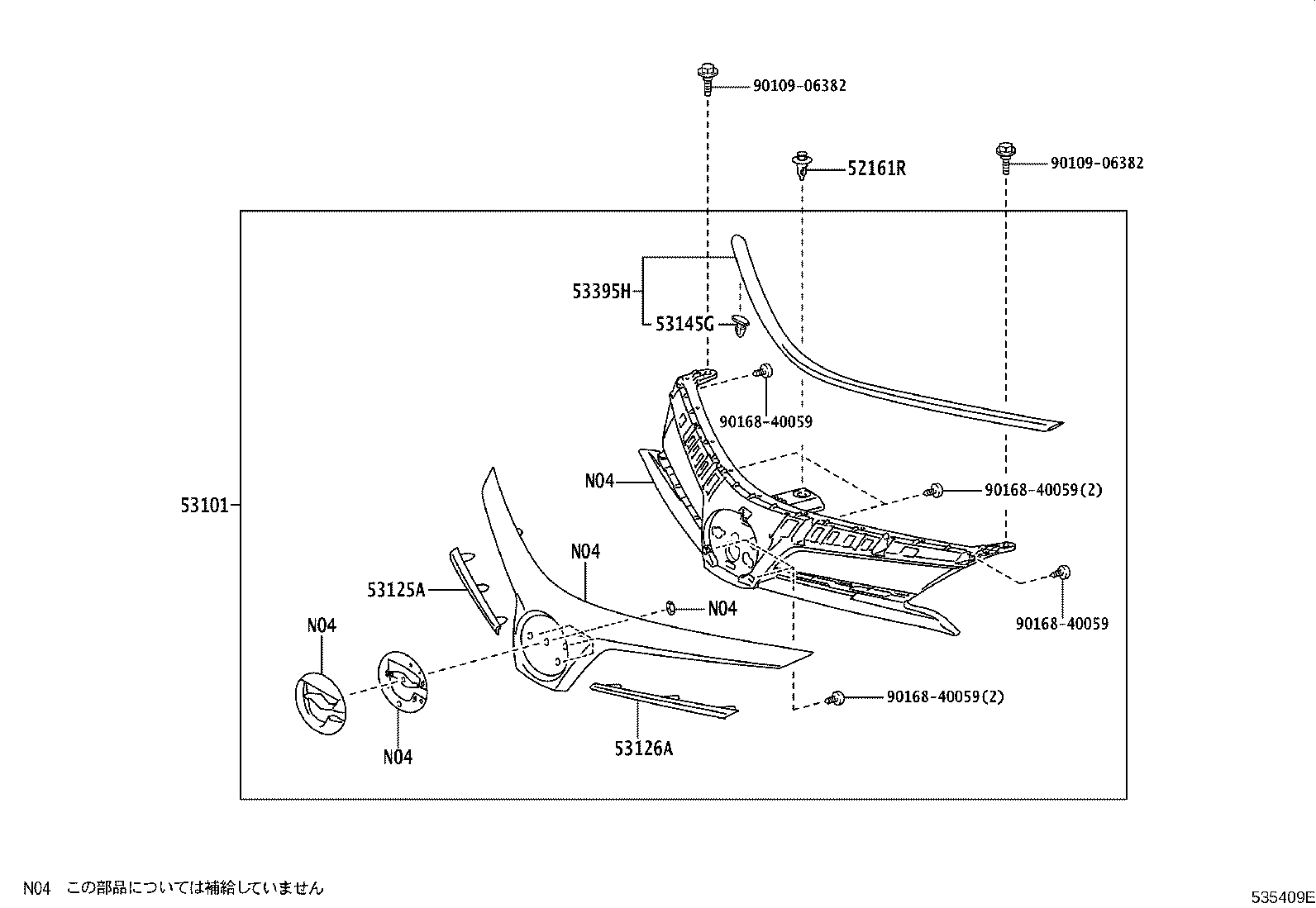

Figure 533771B 533771B 2012-04 → 2015-03 Figure 534488 534488 2015-03 → 2017-10 Figure 535409E 535409E 2017-10 → — Figure 535972 535972 2017-10 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53121A Moulding, Radiator Grille
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53145G Clip, Radiator Grille
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
