Toyota Corolla/Axio
2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General
Supported model
Data version 2017-10
Instrument Panel & Glove Compartment
40 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

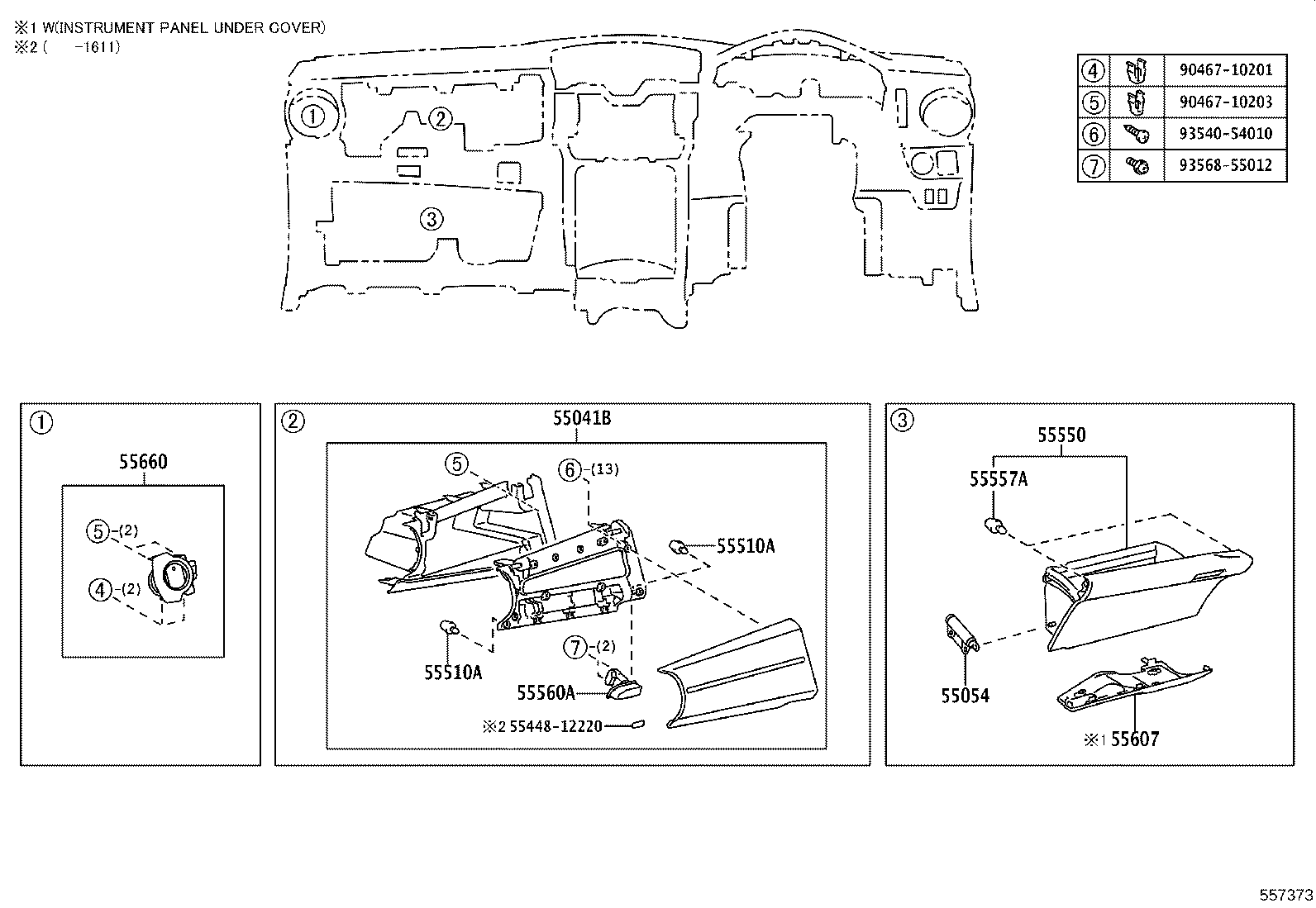

| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55312A | Clip, Instrument Panel |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55355E | Cushion, Instrument Panel |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55368C | Bracket, Meter Mounting |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55402C | Pad Sub-assy, Instrument Panel, Lower RH |
| 55403C | Pad Sub-assy, Instrument Panel, Lower LH |

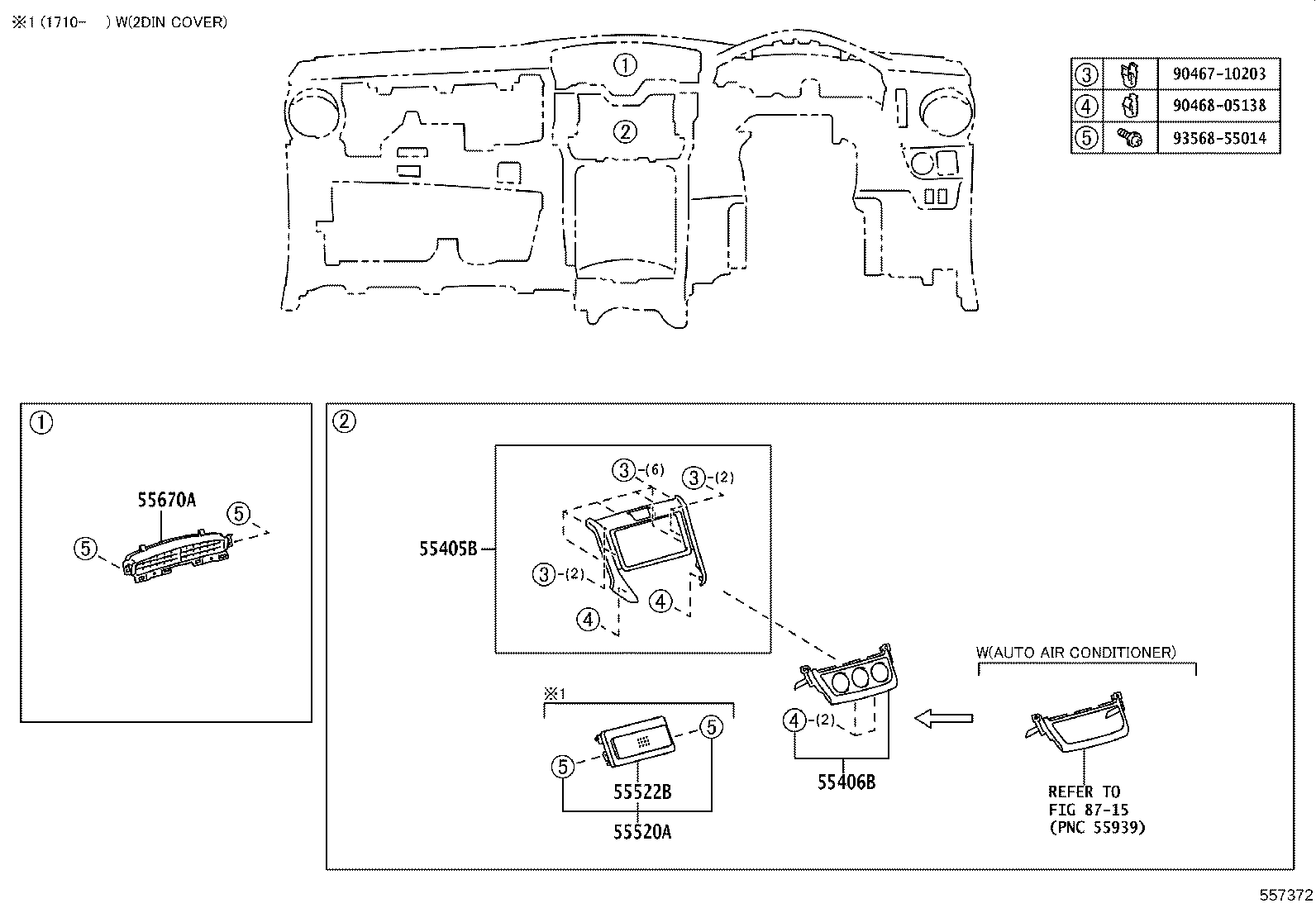

| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55408E | Box Sub-assy, Instrument Panel Coin |
| 55409G | Retainer Sub-assy, Coin Box |

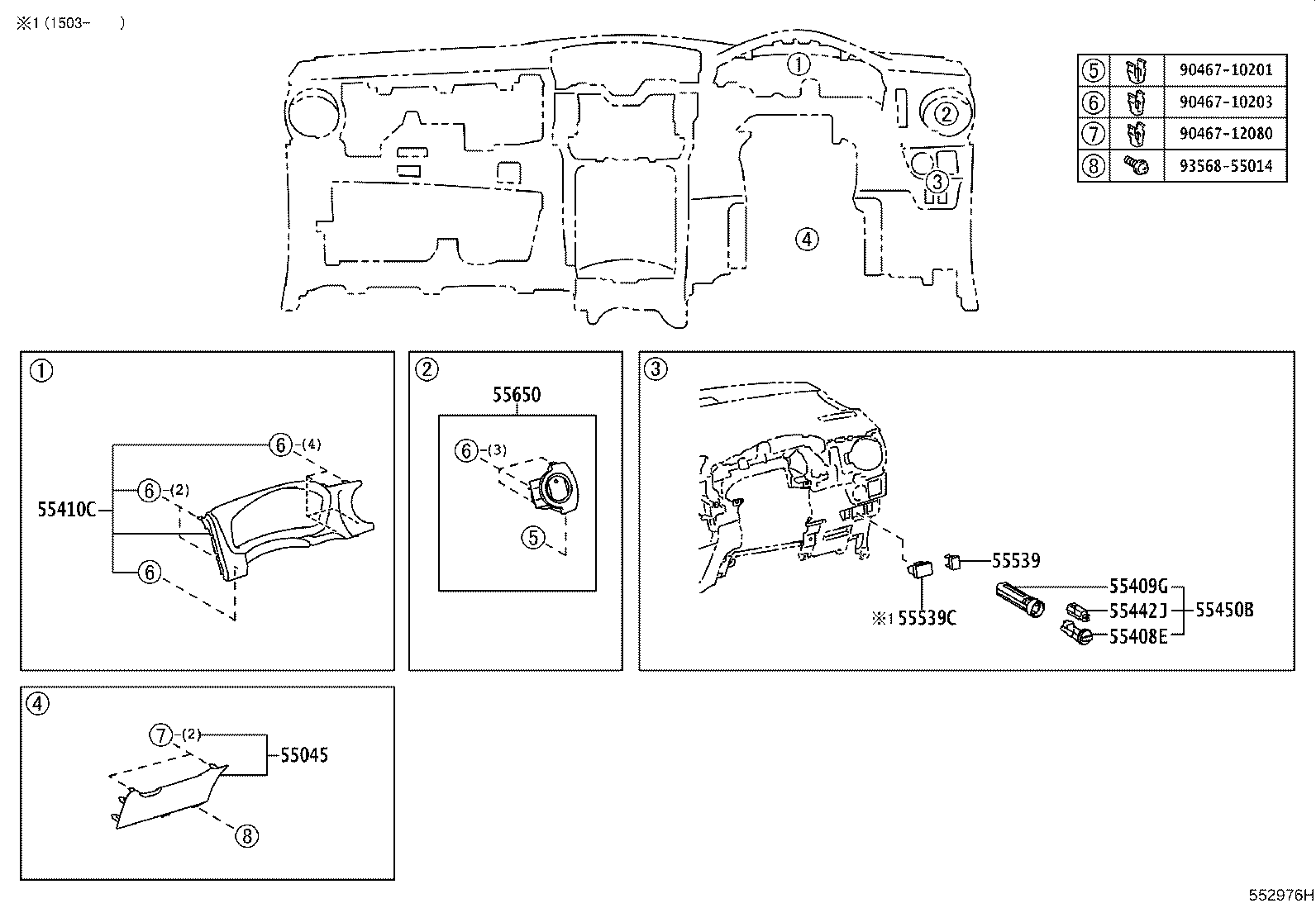

| 55410C | Panel Assy, Instrument Cluster Finish |
| 55442J | Bezel, Instrument Panel Coin Box |
| 55450B | Box Assy, Coin |
| 55458B | Cover, Instrument, Lwr |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55520A | Cover Assy, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55560A | Lock Assy, Glove Compartment Door |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
