Toyota Corolla/Axio

2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

20 part groups · 2 illustrations

Illustrations

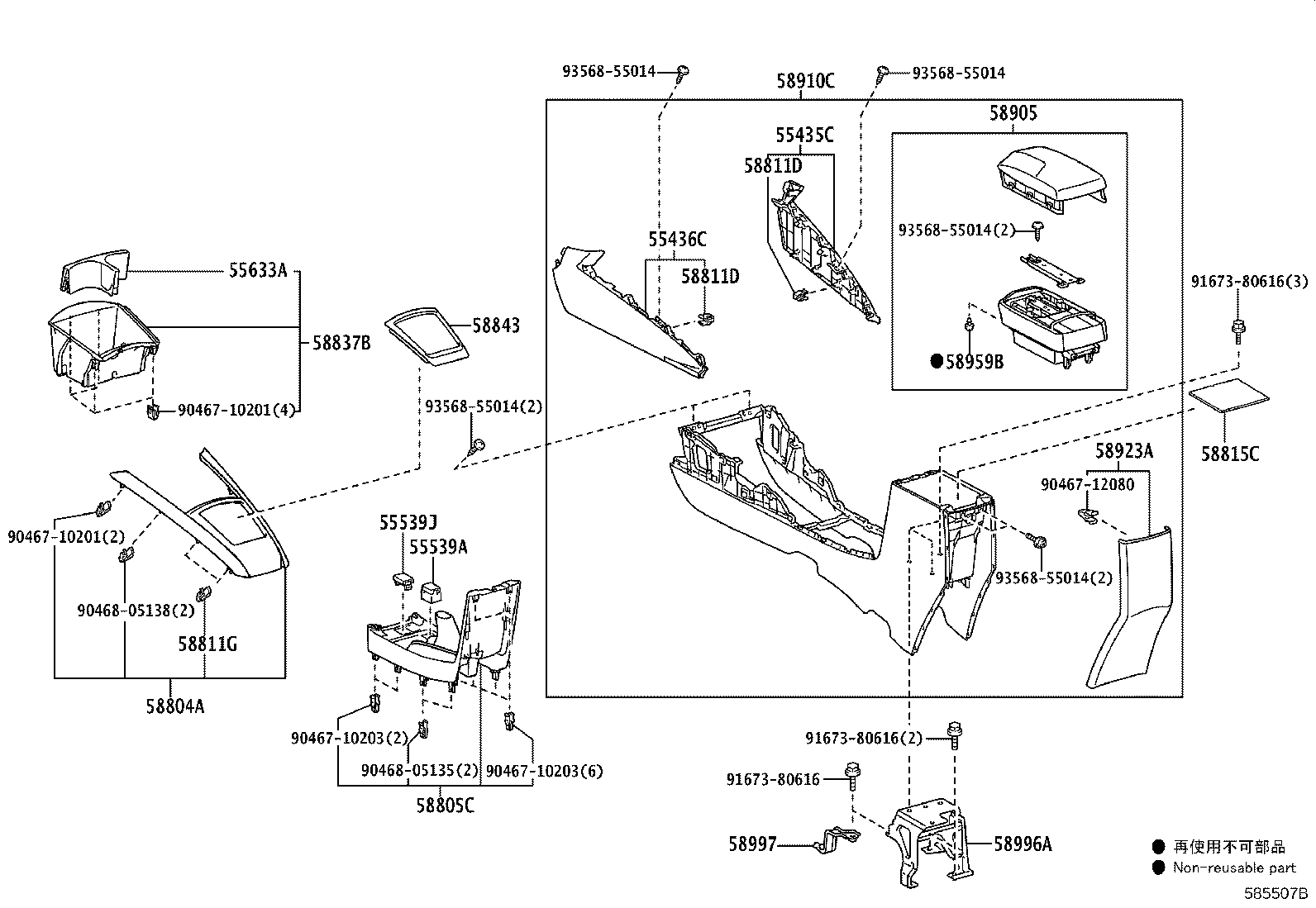

Figure 584518F 584518F 2012-04 → — Figure 585507B 585507B 2015-03 → —

Part groups

PNCDescription
55435C Panel, Instrument Panel Finish, End RH
55436C Panel, Instrument Panel Finish, End LH
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
55633A Support, Instrument Panel Cup Holder, NO.1
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58811D Clip(FOR CONSOLE BOX)
58811G Clip(CONSOL BOX)
58815C Carpet, Console Box
58837B Box, Console Cup Holder
58843 Bezel, Shifting Hole
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58923A Panel, Console Rear End
58959B Cushion, Console Compartment Door
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
