Toyota Corolla/Axio

2012-04 → 2019-08 · chassis NRE161,NZE161 · catalogue 151370 · General

Supported model Data version 2017-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

12 part groups · 2 illustrations

Illustrations

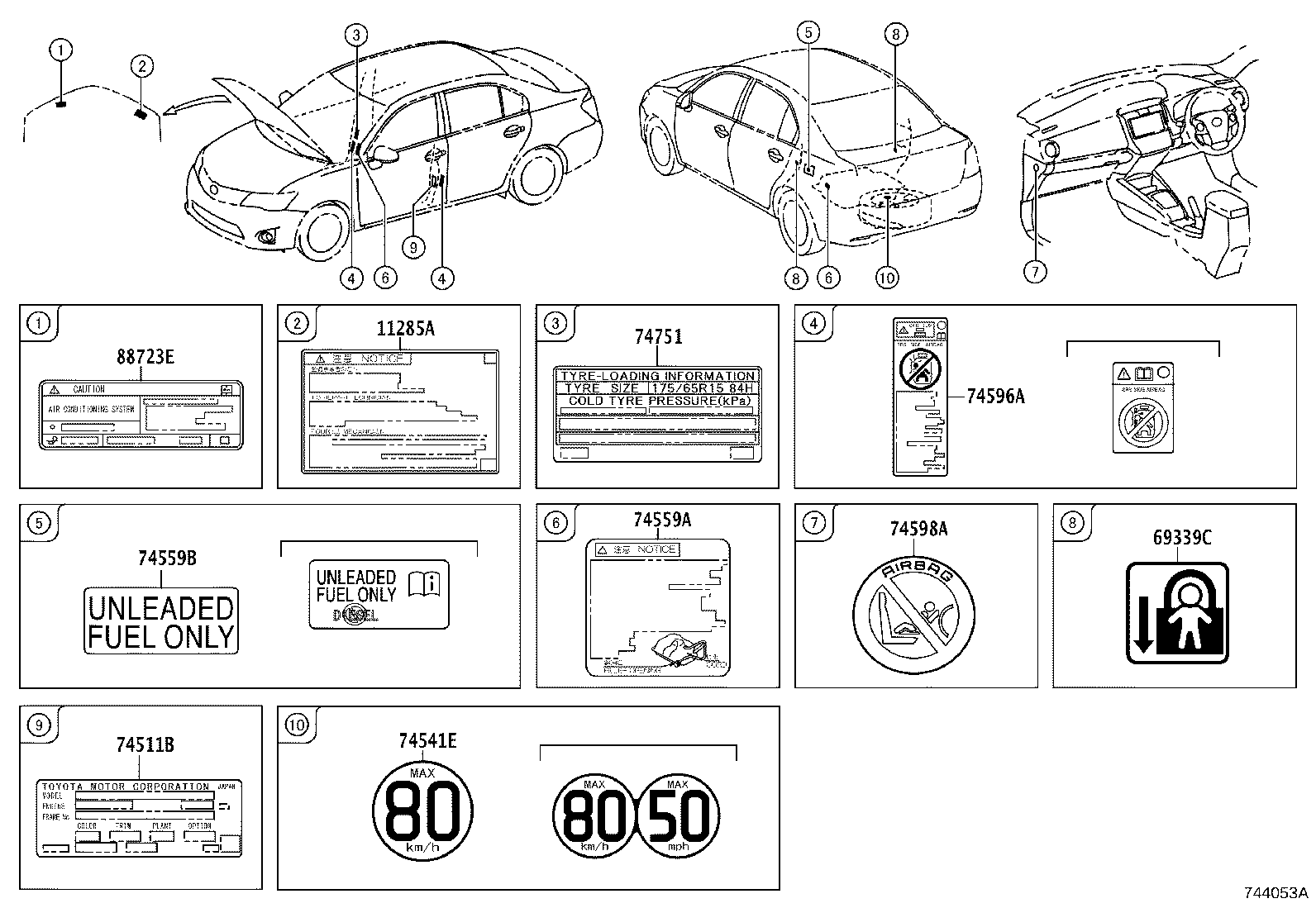

Figure 745501A 745501A 2012-04 → — Figure 744053A 744053A 2012-04 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
16793E Label, Cooling Fan Caution
69339C Label, Child Protector Information
74511B Plate, Name
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74559B Label, Fuel Information
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
